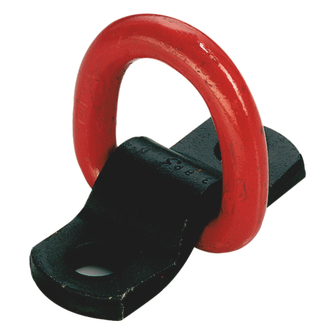

Bolt-on eye

Bolt-on eye
Screw-on attachment eye for easy assembly with hexagon bolts.
Technical data

Quality grade

  • 8

Operating temperature

  • –40 °C to +200 °C

Standard

  • EN 1677-1

Marking

  • Batch number

Safety factor

  • 4

Rotation

  • rigid

Tilting

  • 180°

Load angle

  • ±45°
Product variants
Working load limit [kg]
Reference no.
Details
  • 1120
    263500
    ASR AR8 ANSCHRAUBÖSE-1.12T
    Reference no. 263500
    Working load limit [kg] 1120
    Body width B 66.2
    Ø of contact surface E 36
    Clear height T [mm] 35.7
    Ring section diameter F 13
    Base width U [mm] 104
    Base height J [mm] 29.8
    Base thickness Z [mm] 12
    Bore Ø DB [mm] 15
    Hole spacing R [mm] 72
    Weight approx. [kg] 0.5
    Working load limit single-leg with cross bar 0° [t] 1.12
    Working load limit single-leg with cross bar 90° [t] 1.12
    Working load limit 2-leg with cross bar 0° [t] 2.24
    Working load limit 2-leg with cross bar 90° [t] 2.24
    Working load limit 2-leg symmetrical 0°–45° [t] 1.6
    Working load limit 2-leg symmetrical 45°–60° [t] 1.12
    Working load limit 2-leg asymmetrical [t] 1.12
    Working load limit 3/4-leg symmetrical 0°–45° [t] 2.36
    Working load limit 3/4-leg symmetrical 45°–60° [t] 1.7
    Working load limit 3 or 4 leg asymmetrical [t] 1.12
  • 3150
    120641
    ASR AR8 ANSCHRAUBÖSE-3.15T
    Reference no. 120641
    Working load limit [kg] 3150
    Body width B 78.7
    Ø of contact surface E 40
    Clear height T [mm] 42.8
    Ring section diameter F 17
    Base width U [mm] 130
    Base height J [mm] 37.2
    Base thickness Z [mm] 12.6
    Bore Ø DB [mm] 21
    Hole spacing R [mm] 90
    Weight approx. [kg] 0.92
    Working load limit single-leg with cross bar 0° [t] 4.75
    Working load limit single-leg with cross bar 90° [t] 3.15
    Working load limit 2-leg with cross bar 0° [t] 9.5
    Working load limit 2-leg with cross bar 90° [t] 6.3
    Working load limit 2-leg symmetrical 0°–45° [t] 4.25
    Working load limit 2-leg symmetrical 45°–60° [t] 3.15
    Working load limit 2-leg asymmetrical [t] 3.15
    Working load limit 3/4-leg symmetrical 0°–45° [t] 6.3
    Working load limit 3/4-leg symmetrical 45°–60° [t] 4.75
    Working load limit 3 or 4 leg asymmetrical [t] 3.15
  • 5300
    120642
    ASR AR8 ANSCHRAUBÖSE-5.3T
    Reference no. 120642
    Working load limit [kg] 5300
    Body width B 98.5
    Ø of contact surface E 50
    Clear height T [mm] 50.8
    Ring section diameter F 22
    Base width U [mm] 160
    Base height J [mm] 45.2
    Base thickness Z [mm] 16.4
    Bore Ø DB [mm] 25
    Hole spacing R [mm] 110
    Weight approx. [kg] 1.84
    Working load limit single-leg with cross bar 0° [t] 8
    Working load limit single-leg with cross bar 90° [t] 5.3
    Working load limit 2-leg with cross bar 0° [t] 16
    Working load limit 2-leg with cross bar 90° [t] 10.6
    Working load limit 2-leg symmetrical 0°–45° [t] 7.1
    Working load limit 2-leg symmetrical 45°–60° [t] 5.3
    Working load limit 2-leg asymmetrical [t] 5.3
    Working load limit 3/4-leg symmetrical 0°–45° [t] 11.2
    Working load limit 3/4-leg symmetrical 45°–60° [t] 8
    Working load limit 3 or 4 leg asymmetrical [t] 5.3
  • 8000
    120643
    ASR AR8 ANSCHRAUBÖSE-8T
    Reference no. 120643
    Working load limit [kg] 8000
    Body width B 122.5
    Ø of contact surface E 64
    Clear height T [mm] 59.1
    Ring section diameter F 26
    Base width U [mm] 190
    Base height J [mm] 56.6
    Base thickness Z [mm] 27
    Bore Ø DB [mm] 28
    Hole spacing R [mm] 130
    Weight approx. [kg] 3.92
    Working load limit single-leg with cross bar 0° [t] 12
    Working load limit single-leg with cross bar 90° [t] 8
    Working load limit 2-leg with cross bar 0° [t] 24
    Working load limit 2-leg with cross bar 90° [t] 16
    Working load limit 2-leg symmetrical 0°–45° [t] 11.2
    Working load limit 2-leg symmetrical 45°–60° [t] 8
    Working load limit 2-leg asymmetrical [t] 8
    Working load limit 3/4-leg symmetrical 0°–45° [t] 16
    Working load limit 3/4-leg symmetrical 45°–60° [t] 12
    Working load limit 3 or 4 leg asymmetrical [t] 8
Working load limit [kg] 1120
Reference no. 263500
  • Details
    ASR AR8 ANSCHRAUBÖSE-1.12T
    Reference no. 263500
    Working load limit [kg] 1120
    Body width B 66.2
    Ø of contact surface E 36
    Clear height T [mm] 35.7
    Ring section diameter F 13
    Base width U [mm] 104
    Base height J [mm] 29.8
    Base thickness Z [mm] 12
    Bore Ø DB [mm] 15
    Hole spacing R [mm] 72
    Weight approx. [kg] 0.5
    Working load limit single-leg with cross bar 0° [t] 1.12
    Working load limit single-leg with cross bar 90° [t] 1.12
    Working load limit 2-leg with cross bar 0° [t] 2.24
    Working load limit 2-leg with cross bar 90° [t] 2.24
    Working load limit 2-leg symmetrical 0°–45° [t] 1.6
    Working load limit 2-leg symmetrical 45°–60° [t] 1.12
    Working load limit 2-leg asymmetrical [t] 1.12
    Working load limit 3/4-leg symmetrical 0°–45° [t] 2.36
    Working load limit 3/4-leg symmetrical 45°–60° [t] 1.7
    Working load limit 3 or 4 leg asymmetrical [t] 1.12
Working load limit [kg] 3150
Reference no. 120641
  • Details
    ASR AR8 ANSCHRAUBÖSE-3.15T
    Reference no. 120641
    Working load limit [kg] 3150
    Body width B 78.7
    Ø of contact surface E 40
    Clear height T [mm] 42.8
    Ring section diameter F 17
    Base width U [mm] 130
    Base height J [mm] 37.2
    Base thickness Z [mm] 12.6
    Bore Ø DB [mm] 21
    Hole spacing R [mm] 90
    Weight approx. [kg] 0.92
    Working load limit single-leg with cross bar 0° [t] 4.75
    Working load limit single-leg with cross bar 90° [t] 3.15
    Working load limit 2-leg with cross bar 0° [t] 9.5
    Working load limit 2-leg with cross bar 90° [t] 6.3
    Working load limit 2-leg symmetrical 0°–45° [t] 4.25
    Working load limit 2-leg symmetrical 45°–60° [t] 3.15
    Working load limit 2-leg asymmetrical [t] 3.15
    Working load limit 3/4-leg symmetrical 0°–45° [t] 6.3
    Working load limit 3/4-leg symmetrical 45°–60° [t] 4.75
    Working load limit 3 or 4 leg asymmetrical [t] 3.15
Working load limit [kg] 5300
Reference no. 120642
  • Details
    ASR AR8 ANSCHRAUBÖSE-5.3T
    Reference no. 120642
    Working load limit [kg] 5300
    Body width B 98.5
    Ø of contact surface E 50
    Clear height T [mm] 50.8
    Ring section diameter F 22
    Base width U [mm] 160
    Base height J [mm] 45.2
    Base thickness Z [mm] 16.4
    Bore Ø DB [mm] 25
    Hole spacing R [mm] 110
    Weight approx. [kg] 1.84
    Working load limit single-leg with cross bar 0° [t] 8
    Working load limit single-leg with cross bar 90° [t] 5.3
    Working load limit 2-leg with cross bar 0° [t] 16
    Working load limit 2-leg with cross bar 90° [t] 10.6
    Working load limit 2-leg symmetrical 0°–45° [t] 7.1
    Working load limit 2-leg symmetrical 45°–60° [t] 5.3
    Working load limit 2-leg asymmetrical [t] 5.3
    Working load limit 3/4-leg symmetrical 0°–45° [t] 11.2
    Working load limit 3/4-leg symmetrical 45°–60° [t] 8
    Working load limit 3 or 4 leg asymmetrical [t] 5.3
Working load limit [kg] 8000
Reference no. 120643
  • Details
    ASR AR8 ANSCHRAUBÖSE-8T
    Reference no. 120643
    Working load limit [kg] 8000
    Body width B 122.5
    Ø of contact surface E 64
    Clear height T [mm] 59.1
    Ring section diameter F 26
    Base width U [mm] 190
    Base height J [mm] 56.6
    Base thickness Z [mm] 27
    Bore Ø DB [mm] 28
    Hole spacing R [mm] 130
    Weight approx. [kg] 3.92
    Working load limit single-leg with cross bar 0° [t] 12
    Working load limit single-leg with cross bar 90° [t] 8
    Working load limit 2-leg with cross bar 0° [t] 24
    Working load limit 2-leg with cross bar 90° [t] 16
    Working load limit 2-leg symmetrical 0°–45° [t] 11.2
    Working load limit 2-leg symmetrical 45°–60° [t] 8
    Working load limit 2-leg asymmetrical [t] 8
    Working load limit 3/4-leg symmetrical 0°–45° [t] 16
    Working load limit 3/4-leg symmetrical 45°–60° [t] 12
    Working load limit 3 or 4 leg asymmetrical [t] 8
Bolts are not included in the scope of delivery! Observe the requirements for bolts in accordance with the operating instructions.
Safety

Please note the admissible load angle.
Options
  • A selection of the options available on request can be found below. Please contact us for your individual offer!

Labelling options

  • with individual serial number or labelling
