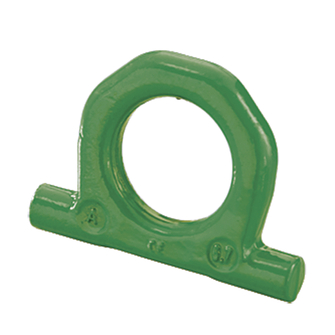

Load ring for hoist ring
Load ring for hoist ring
Technical data
Quality grade
- 10
Operating temperature
- –40 °C to +200 °C
- reduced carrying capacities outside this range
Standard
- EN 1677-1
Marking
- Batch number
Safety factor
- 4
Rotation
- rigid
Tilting
- 180°
Load angle
- ±90°
Safety
Please note the admissible load angle.
Options
- A selection of the options available on request can be found below. Please contact us for your individual offer!
Labelling options
- with individual serial number or labelling
Product variants
Working load limit [kg]
Reference no.
Details
-
4000255604
ARB RB1 SFA-RING-F.-RINGBOCK-4T

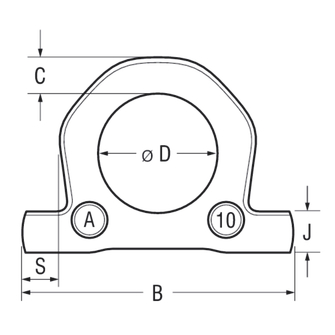

Reference no. 255604 Working load limit [kg] 4000 Body width B 105 Stirrup height C [mm] 14 Inner ring Ø D [mm] 48 Base height J [mm] 16 S [mm] 16 Weight approx. [kg] 0.5 -
6700255605
ARB RB1 SFA-RING-F.-RINGBOCK-6.7T
Reference no. 255605 Working load limit [kg] 6700 Body width B 138 Stirrup height C [mm] 20 Inner ring Ø D [mm] 60 Base height J [mm] 22 S [mm] 20 Weight approx. [kg] 1 -
10000255606
ARB RB1 SFA-RING-F.-RINGBOCK-10T
Reference no. 255606 Working load limit [kg] 10000 Body width B 153 Stirrup height C [mm] 22 Inner ring Ø D [mm] 64 Base height J [mm] 27.5 S [mm] 25 Weight approx. [kg] 1.6 -
16000255607
ARB RB1 SFA-RING-F.-RINGBOCK-16T
Reference no. 255607 Working load limit [kg] 16000 Body width B 205 Stirrup height C [mm] 30 Inner ring Ø D [mm] 90 Base height J [mm] 35 S [mm] 30.5 Weight approx. [kg] 3.6
Working load limit [kg]
4000
Reference no.
255604
-
Details
ARB RB1 SFA-RING-F.-RINGBOCK-4T
Reference no. 255604 Working load limit [kg] 4000 Body width B 105 Stirrup height C [mm] 14 Inner ring Ø D [mm] 48 Base height J [mm] 16 S [mm] 16 Weight approx. [kg] 0.5
Working load limit [kg]
6700
Reference no.
255605
-
Details
ARB RB1 SFA-RING-F.-RINGBOCK-6.7T
Reference no. 255605 Working load limit [kg] 6700 Body width B 138 Stirrup height C [mm] 20 Inner ring Ø D [mm] 60 Base height J [mm] 22 S [mm] 20 Weight approx. [kg] 1
Working load limit [kg]
10000
Reference no.
255606
-
Details
ARB RB1 SFA-RING-F.-RINGBOCK-10T
Reference no. 255606 Working load limit [kg] 10000 Body width B 153 Stirrup height C [mm] 22 Inner ring Ø D [mm] 64 Base height J [mm] 27.5 S [mm] 25 Weight approx. [kg] 1.6
Working load limit [kg]
16000
Reference no.
255607
-
Details
ARB RB1 SFA-RING-F.-RINGBOCK-16T
Reference no. 255607 Working load limit [kg] 16000 Body width B 205 Stirrup height C [mm] 30 Inner ring Ø D [mm] 90 Base height J [mm] 35 S [mm] 30.5 Weight approx. [kg] 3.6
