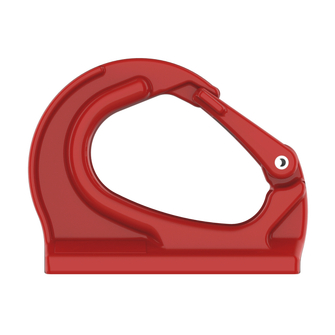

Welding hooks

Welding hooks
for welding to excavators, cross bars, spreaders, etc.
Technical data

Operating temperature

  • –40 °C to +200 °C
  • reduced carrying capacities outside this range

Standard

  • EN 1677-1

Marking

  • Batch number

Safety factor

  • 4
Options

Options on request

  • further working load limits

Labelling options

  • with individual serial number or labelling
Product variants
Working load limit [kg]
Reference no.
Details
  • 1120
    215923
    LHW-WELD-ON-HOOK-1120KG-COAT
    Reference no. 215923
    Working load limit [kg] 1120

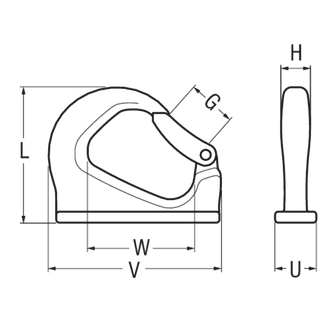

    Overall length L [mm] 83
    Body length V [mm] 98
    Stirrup width H 18
    Clearance W [mm] 59
    Base width U [mm] 25
    Hook opening width G [mm] 23
    Weight approx. [kg] 0.48
  • 2000
    215924
    LHW-WELD-ON-HOOK-2000KG-COAT
    Reference no. 215924
    Working load limit [kg] 2000
    Overall length L [mm] 92
    Body length V [mm] 113
    Stirrup width H 20.5
    Clearance W [mm] 65
    Base width U [mm] 34
    Hook opening width G [mm] 27
    Weight approx. [kg] 0.85
  • 3000
    215925
    LHW-WELD-ON-HOOK-3000KG-COAT
    Reference no. 215925
    Working load limit [kg] 3000
    Overall length L [mm] 106
    Body length V [mm] 128
    Stirrup width H 24
    Clearance W [mm] 75
    Base width U [mm] 36
    Hook opening width G [mm] 31
    Weight approx. [kg] 1.12
  • 5000
    215926
    LHW-WELD-ON-HOOK-5000KG-COAT
    Reference no. 215926
    Working load limit [kg] 5000
    Overall length L [mm] 133
    Body length V [mm] 171
    Stirrup width H 28
    Clearance W [mm] 97
    Base width U [mm] 43.5
    Hook opening width G [mm] 37
    Weight approx. [kg] 2.5
  • 8000
    215927
    LHW-WELD-ON-HOOK-8000KG-COAT
    Reference no. 215927
    Working load limit [kg] 8000
    Overall length L [mm] 144
    Body length V [mm] 175
    Stirrup width H 39
    Clearance W [mm] 94
    Base width U [mm] 51
    Hook opening width G [mm] 35
    Weight approx. [kg] 3.2
  • 10000
    215928
    LHW-WELD-ON-HOOK-10000KG-COAT
    Reference no. 215928
    Working load limit [kg] 10000
    Overall length L [mm] 170
    Body length V [mm] 222
    Stirrup width H 38
    Clearance W [mm] 138
    Base width U [mm] 53
    Hook opening width G [mm] 51
    Weight approx. [kg] 5.2
Working load limit [kg] 1120
Reference no. 215923
  • Details
    LHW-WELD-ON-HOOK-1120KG-COAT
    Reference no. 215923
    Working load limit [kg] 1120
    Overall length L [mm] 83
    Body length V [mm] 98
    Stirrup width H 18
    Clearance W [mm] 59
    Base width U [mm] 25
    Hook opening width G [mm] 23
    Weight approx. [kg] 0.48
Working load limit [kg] 2000
Reference no. 215924
  • Details
    LHW-WELD-ON-HOOK-2000KG-COAT
    Reference no. 215924
    Working load limit [kg] 2000
    Overall length L [mm] 92
    Body length V [mm] 113
    Stirrup width H 20.5
    Clearance W [mm] 65
    Base width U [mm] 34
    Hook opening width G [mm] 27
    Weight approx. [kg] 0.85
Working load limit [kg] 3000
Reference no. 215925
  • Details
    LHW-WELD-ON-HOOK-3000KG-COAT
    Reference no. 215925
    Working load limit [kg] 3000
    Overall length L [mm] 106
    Body length V [mm] 128
    Stirrup width H 24
    Clearance W [mm] 75
    Base width U [mm] 36
    Hook opening width G [mm] 31
    Weight approx. [kg] 1.12
Working load limit [kg] 5000
Reference no. 215926
  • Details
    LHW-WELD-ON-HOOK-5000KG-COAT
    Reference no. 215926
    Working load limit [kg] 5000
    Overall length L [mm] 133
    Body length V [mm] 171
    Stirrup width H 28
    Clearance W [mm] 97
    Base width U [mm] 43.5
    Hook opening width G [mm] 37
    Weight approx. [kg] 2.5
Working load limit [kg] 8000
Reference no. 215927
  • Details
    LHW-WELD-ON-HOOK-8000KG-COAT
    Reference no. 215927
    Working load limit [kg] 8000
    Overall length L [mm] 144
    Body length V [mm] 175
    Stirrup width H 39
    Clearance W [mm] 94
    Base width U [mm] 51
    Hook opening width G [mm] 35
    Weight approx. [kg] 3.2
Working load limit [kg] 10000
Reference no. 215928
  • Details
    LHW-WELD-ON-HOOK-10000KG-COAT
    Reference no. 215928
    Working load limit [kg] 10000
    Overall length L [mm] 170
    Body length V [mm] 222
    Stirrup width H 38
    Clearance W [mm] 138
    Base width U [mm] 53
    Hook opening width G [mm] 51
    Weight approx. [kg] 5.2
