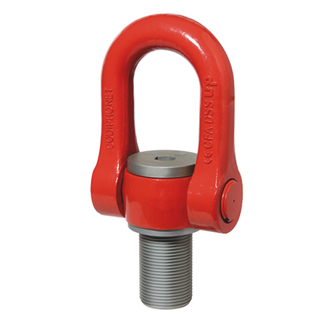

Bolt-on swivel MEGA DSS PLUS
Bolt-on swivel MEGA DSS PLUS
Technical data
Operating temperature
- –20 °C to +200 °C
- reduced carrying capacities outside this range
Standard
- EN 1677-1, ASME B30.26-1010
Marking
- Batch number and serial number
Safety factor
- 5 or 4
Rotation
- 360° (under load)
Tilting
- 180°
Load angle
- ±90°
Material
- High-tensile steel
Safety
Options
Options on request
- in special designs
- with centring
- Also available on request with RFID chip
Thread options
- Variable thread lengths
- with UNC thread and other thread types
Labelling options
- with RFID chip
- with individual serial number or labelling
Product variants
Working load limit [kg]
Thread diameter metric M
Reference no.
Details
-
30000M 64707069
ASW SNB MEGADSS+-30T-35T-M64X6-EL100MM
Reference no. 707069 Working load limit [kg] 30000 Thread length K [mm] 100 pitch [mm] 6 Inner wrench size AF2 [mm] 36 Tightening torque MA [Nm] 600 Body width B 278 Ø of contact surface E 140 Clear height T [mm] 186 Clearance W [mm] 143 Ring section diameter F 69 Base height J [mm] 127 Weight approx. [kg] 42 Thread diameter metric M M 64 Working load limit single-leg with cross bar 0° [t] 30 Working load limit single-leg with cross bar 90° [t] 30 Working load limit 2-leg with cross bar 0° [t] 60 Working load limit 2-leg with cross bar 90° [t] 60 Working load limit 2-leg symmetrical 0°–45° [t] 42 Working load limit 2-leg symmetrical 45°–60° [t] 30 Working load limit 2-leg asymmetrical [t] 30 Working load limit 3/4-leg symmetrical 0°–45° [t] 63 Working load limit 3/4-leg symmetrical 45°–60° [t] 45 Working load limit 3 or 4 leg asymmetrical [t] 30 -
35000M 72707070
ASW SNB MEGADSS+-35T-40T-M72X6-EL110MM
Reference no. 707070 Working load limit [kg] 35000 Thread length K [mm] 110 pitch [mm] 6 Inner wrench size AF2 [mm] 36 Tightening torque MA [Nm] 700 Body width B 278 Ø of contact surface E 140 Clear height T [mm] 186 Clearance W [mm] 143 Ring section diameter F 69 Base height J [mm] 127 Weight approx. [kg] 43 Thread diameter metric M M 72 Working load limit single-leg with cross bar 0° [t] 35 Working load limit single-leg with cross bar 90° [t] 35 Working load limit 2-leg with cross bar 0° [t] 70 Working load limit 2-leg with cross bar 90° [t] 70 Working load limit 2-leg symmetrical 0°–45° [t] 49 Working load limit 2-leg symmetrical 45°–60° [t] 35 Working load limit 2-leg asymmetrical [t] 35 Working load limit 3/4-leg symmetrical 0°–45° [t] 73.5 Working load limit 3/4-leg symmetrical 45°–60° [t] 52.5 Working load limit 3 or 4 leg asymmetrical [t] 35 -
40000M 80707071
Mega-SNB bolt-on swivel-40.0t -M80x6-paint-GwLg.120mm
Reference no. 707071 Working load limit [kg] 40000 Thread length K [mm] 120 pitch [mm] 6 Inner wrench size AF2 [mm] 36 Tightening torque MA [Nm] 800 Body width B 278 Ø of contact surface E 140 Clear height T [mm] 186 Clearance W [mm] 143 Ring section diameter F 69 Base height J [mm] 127 Weight approx. [kg] 44.5 Thread diameter metric M M 80 Working load limit single-leg with cross bar 0° [t] 40 Working load limit single-leg with cross bar 90° [t] 40 Working load limit 2-leg with cross bar 0° [t] 80 Working load limit 2-leg with cross bar 90° [t] 80 Working load limit 2-leg symmetrical 0°–45° [t] 56 Working load limit 2-leg symmetrical 45°–60° [t] 40 Working load limit 2-leg asymmetrical [t] 40 Working load limit 3/4-leg symmetrical 0°–45° [t] 84 Working load limit 3/4-leg symmetrical 45°–60° [t] 60 Working load limit 3 or 4 leg asymmetrical [t] 40 -
50000M 90707072
ASW SNB MEGADSS+-50T-60T-M90X6-EL135MM
Reference no. 707072 Working load limit [kg] 50000 Thread length K [mm] 135 pitch [mm] 6 Inner wrench size AF2 [mm] 36 Tightening torque MA [Nm] 900 Body width B 278 Ø of contact surface E 140 Clear height T [mm] 186 Clearance W [mm] 143 Ring section diameter F 69 Base height J [mm] 127 Weight approx. [kg] 46.5 Thread diameter metric M M 90 Working load limit single-leg with cross bar 0° [t] 50 Working load limit single-leg with cross bar 90° [t] 50 Working load limit 2-leg with cross bar 0° [t] 100 Working load limit 2-leg with cross bar 90° [t] 100 Working load limit 2-leg symmetrical 0°–45° [t] 70 Working load limit 2-leg symmetrical 45°–60° [t] 50 Working load limit 2-leg asymmetrical [t] 50 Working load limit 3/4-leg symmetrical 0°–45° [t] 105 Working load limit 3/4-leg symmetrical 45°–60° [t] 75 Working load limit 3 or 4 leg asymmetrical [t] 50 -
60000M 100707073
Mega-SNB bolt-on swivel-60.0t -M100x6-paint-GwLg.150mm
Reference no. 707073 Working load limit [kg] 60000 Thread length K [mm] 150 pitch [mm] 6 Inner wrench size AF2 [mm] 36 Tightening torque MA [Nm] 1000 Body width B 278 Ø of contact surface E 140 Clear height T [mm] 186 Clearance W [mm] 143 Ring section diameter F 69 Base height J [mm] 127 Weight approx. [kg] 49 Thread diameter metric M M 100 Working load limit single-leg with cross bar 0° [t] 60 Working load limit single-leg with cross bar 90° [t] 60 Working load limit 2-leg with cross bar 0° [t] 120 Working load limit 2-leg with cross bar 90° [t] 120 Working load limit 2-leg symmetrical 0°–45° [t] 84 Working load limit 2-leg symmetrical 45°–60° [t] 60 Working load limit 2-leg asymmetrical [t] 60 Working load limit 3/4-leg symmetrical 0°–45° [t] 126 Working load limit 3/4-leg symmetrical 45°–60° [t] 90 Working load limit 3 or 4 leg asymmetrical [t] 60
Working load limit [kg]
30000
Thread diameter metric M
M 64
Reference no.
707069
-
Details
ASW SNB MEGADSS+-30T-35T-M64X6-EL100MM
Reference no. 707069 Working load limit [kg] 30000 Thread length K [mm] 100 pitch [mm] 6 Inner wrench size AF2 [mm] 36 Tightening torque MA [Nm] 600 Body width B 278 Ø of contact surface E 140 Clear height T [mm] 186 Clearance W [mm] 143 Ring section diameter F 69 Base height J [mm] 127 Weight approx. [kg] 42 Thread diameter metric M M 64 Working load limit single-leg with cross bar 0° [t] 30 Working load limit single-leg with cross bar 90° [t] 30 Working load limit 2-leg with cross bar 0° [t] 60 Working load limit 2-leg with cross bar 90° [t] 60 Working load limit 2-leg symmetrical 0°–45° [t] 42 Working load limit 2-leg symmetrical 45°–60° [t] 30 Working load limit 2-leg asymmetrical [t] 30 Working load limit 3/4-leg symmetrical 0°–45° [t] 63 Working load limit 3/4-leg symmetrical 45°–60° [t] 45 Working load limit 3 or 4 leg asymmetrical [t] 30
Working load limit [kg]
35000
Thread diameter metric M
M 72
Reference no.
707070
-
Details
ASW SNB MEGADSS+-35T-40T-M72X6-EL110MM
Reference no. 707070 Working load limit [kg] 35000 Thread length K [mm] 110 pitch [mm] 6 Inner wrench size AF2 [mm] 36 Tightening torque MA [Nm] 700 Body width B 278 Ø of contact surface E 140 Clear height T [mm] 186 Clearance W [mm] 143 Ring section diameter F 69 Base height J [mm] 127 Weight approx. [kg] 43 Thread diameter metric M M 72 Working load limit single-leg with cross bar 0° [t] 35 Working load limit single-leg with cross bar 90° [t] 35 Working load limit 2-leg with cross bar 0° [t] 70 Working load limit 2-leg with cross bar 90° [t] 70 Working load limit 2-leg symmetrical 0°–45° [t] 49 Working load limit 2-leg symmetrical 45°–60° [t] 35 Working load limit 2-leg asymmetrical [t] 35 Working load limit 3/4-leg symmetrical 0°–45° [t] 73.5 Working load limit 3/4-leg symmetrical 45°–60° [t] 52.5 Working load limit 3 or 4 leg asymmetrical [t] 35
Working load limit [kg]
40000
Thread diameter metric M
M 80
Reference no.
707071
-
Details
Mega-SNB bolt-on swivel-40.0t -M80x6-paint-GwLg.120mm
Reference no. 707071 Working load limit [kg] 40000 Thread length K [mm] 120 pitch [mm] 6 Inner wrench size AF2 [mm] 36 Tightening torque MA [Nm] 800 Body width B 278 Ø of contact surface E 140 Clear height T [mm] 186 Clearance W [mm] 143 Ring section diameter F 69 Base height J [mm] 127 Weight approx. [kg] 44.5 Thread diameter metric M M 80 Working load limit single-leg with cross bar 0° [t] 40 Working load limit single-leg with cross bar 90° [t] 40 Working load limit 2-leg with cross bar 0° [t] 80 Working load limit 2-leg with cross bar 90° [t] 80 Working load limit 2-leg symmetrical 0°–45° [t] 56 Working load limit 2-leg symmetrical 45°–60° [t] 40 Working load limit 2-leg asymmetrical [t] 40 Working load limit 3/4-leg symmetrical 0°–45° [t] 84 Working load limit 3/4-leg symmetrical 45°–60° [t] 60 Working load limit 3 or 4 leg asymmetrical [t] 40
Working load limit [kg]
50000
Thread diameter metric M
M 90
Reference no.
707072
-
Details
ASW SNB MEGADSS+-50T-60T-M90X6-EL135MM
Reference no. 707072 Working load limit [kg] 50000 Thread length K [mm] 135 pitch [mm] 6 Inner wrench size AF2 [mm] 36 Tightening torque MA [Nm] 900 Body width B 278 Ø of contact surface E 140 Clear height T [mm] 186 Clearance W [mm] 143 Ring section diameter F 69 Base height J [mm] 127 Weight approx. [kg] 46.5 Thread diameter metric M M 90 Working load limit single-leg with cross bar 0° [t] 50 Working load limit single-leg with cross bar 90° [t] 50 Working load limit 2-leg with cross bar 0° [t] 100 Working load limit 2-leg with cross bar 90° [t] 100 Working load limit 2-leg symmetrical 0°–45° [t] 70 Working load limit 2-leg symmetrical 45°–60° [t] 50 Working load limit 2-leg asymmetrical [t] 50 Working load limit 3/4-leg symmetrical 0°–45° [t] 105 Working load limit 3/4-leg symmetrical 45°–60° [t] 75 Working load limit 3 or 4 leg asymmetrical [t] 50
Working load limit [kg]
60000
Thread diameter metric M
M 100
Reference no.
707073
-
Details
Mega-SNB bolt-on swivel-60.0t -M100x6-paint-GwLg.150mm
Reference no. 707073 Working load limit [kg] 60000 Thread length K [mm] 150 pitch [mm] 6 Inner wrench size AF2 [mm] 36 Tightening torque MA [Nm] 1000 Body width B 278 Ø of contact surface E 140 Clear height T [mm] 186 Clearance W [mm] 143 Ring section diameter F 69 Base height J [mm] 127 Weight approx. [kg] 49 Thread diameter metric M M 100 Working load limit single-leg with cross bar 0° [t] 60 Working load limit single-leg with cross bar 90° [t] 60 Working load limit 2-leg with cross bar 0° [t] 120 Working load limit 2-leg with cross bar 90° [t] 120 Working load limit 2-leg symmetrical 0°–45° [t] 84 Working load limit 2-leg symmetrical 45°–60° [t] 60 Working load limit 2-leg asymmetrical [t] 60 Working load limit 3/4-leg symmetrical 0°–45° [t] 126 Working load limit 3/4-leg symmetrical 45°–60° [t] 90 Working load limit 3 or 4 leg asymmetrical [t] 60
