AP0 attachment point

AP0 attachment point

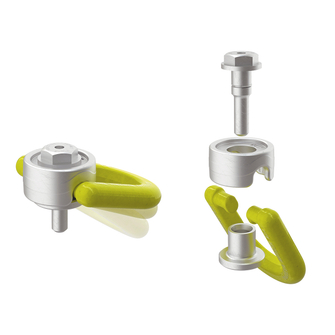

Swivelling lifting point with toolless detachable stirrup for easy suspension of rings or other attachment device. Intelligent alternative to the conventional eye bolt.
Technical data

Quality grade

  • 10

Operating temperature

  • –40 °C to +200 °C
  • reduced carrying capacities outside this range

Standard

  • EN 1677-1

Marking

  • Batch number

Safety factor

  • 4

Rotation

  • 360° (not under load)

Tilting

  • 180°

Load angle

  • ±90°
Safety

Please note the admissible load angle.
Options
  • A selection of the options available on request can be found below. Please contact us for your individual offer!

Thread options

  • Variable thread lengths
  • with UNC thread

Labelling options

  • with individual serial number or labelling
Product variants
Working load limit [kg]
Thread diameter metric M
Reference no.
Details
  • 400
    M 8
    166194
    ASW AP0-RLP-0.4T-M8X1.25-EL16MM
    Reference no. 166194
    Working load limit [kg] 400

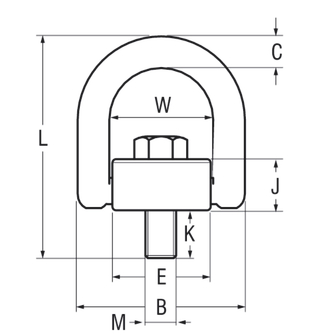

    Overall length L [mm] 90
    Thread length K [mm] 16
    Tightening torque MA [Nm] 10
    Body width B 64
    Stirrup height C [mm] 12
    Ø of contact surface E 40
    Clear height T [mm] 35
    Clearance W [mm] 42
    Base height J [mm] 27
    Weight approx. [kg] 0.3
    Thread diameter metric M M 8
    Working load limit single-leg with cross bar 0° [t] 0.8
    Working load limit single-leg with cross bar 90° [t] 0.4
    Working load limit 2-leg with cross bar 0° [t] 1.6
    Working load limit 2-leg with cross bar 90° [t] 0.8
    Working load limit 2-leg symmetrical 0°–45° [t] 0.5
    Working load limit 2-leg symmetrical 45°–60° [t] 0.4
    Working load limit 2-leg asymmetrical [t] 0.4
    Working load limit 3/4-leg symmetrical 0°–45° [t] 0.8
    Working load limit 3/4-leg symmetrical 45°–60° [t] 0.6
    Working load limit 3 or 4 leg asymmetrical [t] 0.4
  • 700
    M 10
    166195
    ASW AP0-RLP-0.70T-M10X1.5-EL16MM
    Reference no. 166195
    Working load limit [kg] 700
    Overall length L [mm] 90
    Thread length K [mm] 16
    Tightening torque MA [Nm] 15
    Body width B 64
    Stirrup height C [mm] 12
    Ø of contact surface E 40
    Clear height T [mm] 35
    Clearance W [mm] 42
    Base height J [mm] 27
    Weight approx. [kg] 0.3
    Thread diameter metric M M 10
    Working load limit single-leg with cross bar 0° [t] 1.2
    Working load limit single-leg with cross bar 90° [t] 0.7
    Working load limit 2-leg with cross bar 0° [t] 2.4
    Working load limit 2-leg with cross bar 90° [t] 1.4
    Working load limit 2-leg symmetrical 0°–45° [t] 0.9
    Working load limit 2-leg symmetrical 45°–60° [t] 0.7
    Working load limit 2-leg asymmetrical [t] 0.7
    Working load limit 3/4-leg symmetrical 0°–45° [t] 1.4
    Working load limit 3/4-leg symmetrical 45°–60° [t] 1
    Working load limit 3 or 4 leg asymmetrical [t] 0.7
  • 1200
    M 12
    166196
    ASW AP0-RLP-1.2T-M12X1.75-EL25MM
    Reference no. 166196
    Working load limit [kg] 1200
    Overall length L [mm] 132
    Thread length K [mm] 25
    Tightening torque MA [Nm] 27
    Body width B 91
    Stirrup height C [mm] 19
    Ø of contact surface E 54
    Clear height T [mm] 46
    Clearance W [mm] 57
    Base height J [mm] 42
    Weight approx. [kg] 0.96
    Thread diameter metric M M 12
    Working load limit single-leg with cross bar 0° [t] 2
    Working load limit single-leg with cross bar 90° [t] 1.2
    Working load limit 2-leg with cross bar 0° [t] 4
    Working load limit 2-leg with cross bar 90° [t] 2.4
    Working load limit 2-leg symmetrical 0°–45° [t] 1.6
    Working load limit 2-leg symmetrical 45°–60° [t] 1.2
    Working load limit 2-leg asymmetrical [t] 1.2
    Working load limit 3/4-leg symmetrical 0°–45° [t] 2.5
    Working load limit 3/4-leg symmetrical 45°–60° [t] 1.8
    Working load limit 3 or 4 leg asymmetrical [t] 1.2
  • 2000
    M 16
    166197
    ASW AP0-RLP-2T-M16X2-EL25MM
    Reference no. 166197
    Working load limit [kg] 2000
    Overall length L [mm] 132
    Thread length K [mm] 25
    Tightening torque MA [Nm] 60
    Body width B 91
    Stirrup height C [mm] 19
    Ø of contact surface E 54
    Clear height T [mm] 46
    Clearance W [mm] 57
    Base height J [mm] 42
    Weight approx. [kg] 1.02
    Thread diameter metric M M 16
    Working load limit single-leg with cross bar 0° [t] 3.2
    Working load limit single-leg with cross bar 90° [t] 2
    Working load limit 2-leg with cross bar 0° [t] 6.4
    Working load limit 2-leg with cross bar 90° [t] 4
    Working load limit 2-leg symmetrical 0°–45° [t] 2.8
    Working load limit 2-leg symmetrical 45°–60° [t] 2
    Working load limit 2-leg asymmetrical [t] 2
    Working load limit 3/4-leg symmetrical 0°–45° [t] 4.2
    Working load limit 3/4-leg symmetrical 45°–60° [t] 3
    Working load limit 3 or 4 leg asymmetrical [t] 2
  • 2800
    M 20
    166198
    ASW AP0-RLP-2.80T-M20X2.5-EL36MM
    Reference no. 166198
    Working load limit [kg] 2800
    Overall length L [mm] 174
    Thread length K [mm] 36
    Tightening torque MA [Nm] 90
    Body width B 133
    Stirrup height C [mm] 28
    Ø of contact surface E 80
    Clear height T [mm] 55
    Clearance W [mm] 83
    Base height J [mm] 55
    Weight approx. [kg] 2.851
    Thread diameter metric M M 20
    Working load limit single-leg with cross bar 0° [t] 5.6
    Working load limit single-leg with cross bar 90° [t] 2.8
    Working load limit 2-leg with cross bar 0° [t] 11.2
    Working load limit 2-leg with cross bar 90° [t] 5.6
    Working load limit 2-leg symmetrical 0°–45° [t] 3.9
    Working load limit 2-leg symmetrical 45°–60° [t] 2.8
    Working load limit 2-leg asymmetrical [t] 2.8
    Working load limit 3/4-leg symmetrical 0°–45° [t] 5.8
    Working load limit 3/4-leg symmetrical 45°–60° [t] 4.2
    Working load limit 3 or 4 leg asymmetrical [t] 2.8
  • 4600
    M 24
    166199
    ASW AP0-RLP-4.6T-M24X3-EL36MM
    Reference no. 166199
    Working load limit [kg] 4600
    Overall length L [mm] 174
    Thread length K [mm] 36
    Tightening torque MA [Nm] 135
    Body width B 133
    Stirrup height C [mm] 28
    Ø of contact surface E 80
    Clear height T [mm] 55
    Clearance W [mm] 83
    Base height J [mm] 55
    Weight approx. [kg] 2.9
    Thread diameter metric M M 24
    Working load limit single-leg with cross bar 0° [t] 8
    Working load limit single-leg with cross bar 90° [t] 4.6
    Working load limit 2-leg with cross bar 0° [t] 16
    Working load limit 2-leg with cross bar 90° [t] 9.2
    Working load limit 2-leg symmetrical 0°–45° [t] 6.4
    Working load limit 2-leg symmetrical 45°–60° [t] 4.6
    Working load limit 2-leg asymmetrical [t] 4.6
    Working load limit 3/4-leg symmetrical 0°–45° [t] 9.6
    Working load limit 3/4-leg symmetrical 45°–60° [t] 6.9
    Working load limit 3 or 4 leg asymmetrical [t] 4.6
  • 6000
    M 30
    200053
    ASW AP0-RLP-6T-M30X3.5-EL58MM
    Reference no. 200053
    Working load limit [kg] 6000
    Overall length L [mm] 227.5
    Thread length K [mm] 58
    Tightening torque MA [Nm] 270
    Body width B 182
    Stirrup height C [mm] 34
    Ø of contact surface E 114
    Clear height T [mm] 70
    Clearance W [mm] 114
    Base height J [mm] 56
    Weight approx. [kg] 7
    Thread diameter metric M M 30
    Working load limit single-leg with cross bar 0° [t] 12
    Working load limit single-leg with cross bar 90° [t] 6
    Working load limit 2-leg with cross bar 0° [t] 24
    Working load limit 2-leg with cross bar 90° [t] 12
    Working load limit 2-leg symmetrical 0°–45° [t] 8.4
    Working load limit 2-leg symmetrical 45°–60° [t] 6
    Working load limit 2-leg asymmetrical [t] 6
    Working load limit 3/4-leg symmetrical 0°–45° [t] 12.6
    Working load limit 3/4-leg symmetrical 45°–60° [t] 9
    Working load limit 3 or 4 leg asymmetrical [t] 6
  • 8000
    M 36
    200054
    ASW AP0-RLP-8T-M36X4-EL58MM
    Reference no. 200054
    Working load limit [kg] 8000
    Overall length L [mm] 239
    Thread length K [mm] 58
    Tightening torque MA [Nm] 320
    Body width B 182
    Stirrup height C [mm] 34
    Ø of contact surface E 114
    Clear height T [mm] 70
    Clearance W [mm] 114
    Base height J [mm] 56
    Weight approx. [kg] 7.3
    Thread diameter metric M M 36
    Working load limit single-leg with cross bar 0° [t] 14
    Working load limit single-leg with cross bar 90° [t] 8
    Working load limit 2-leg with cross bar 0° [t] 28
    Working load limit 2-leg with cross bar 90° [t] 16
    Working load limit 2-leg symmetrical 0°–45° [t] 11.2
    Working load limit 2-leg symmetrical 45°–60° [t] 8
    Working load limit 2-leg asymmetrical [t] 8
    Working load limit 3/4-leg symmetrical 0°–45° [t] 16.8
    Working load limit 3/4-leg symmetrical 45°–60° [t] 12
    Working load limit 3 or 4 leg asymmetrical [t] 8
  • 14000
    M 42
    217120
    ASW AP0-RLP-14T-M42X4.5-EL81MM
    Reference no. 217120
    Working load limit [kg] 14000
    Overall length L [mm] 290.9
    Thread length K [mm] 81
    Tightening torque MA [Nm] 600
    Body width B 229
    Stirrup height C [mm] 40.4
    Ø of contact surface E 149
    Clear height T [mm] 91
    Clearance W [mm] 149
    Base height J [mm] 70
    Weight approx. [kg] 14
    Thread diameter metric M M 42
    Working load limit single-leg with cross bar 0° [t] 16
    Working load limit single-leg with cross bar 90° [t] 14
    Working load limit 2-leg with cross bar 0° [t] 32
    Working load limit 2-leg with cross bar 90° [t] 28
    Working load limit 2-leg symmetrical 0°–45° [t] 19.6
    Working load limit 2-leg symmetrical 45°–60° [t] 14
    Working load limit 2-leg asymmetrical [t] 14
    Working load limit 3/4-leg symmetrical 0°–45° [t] 29.4
    Working load limit 3/4-leg symmetrical 45°–60° [t] 21
    Working load limit 3 or 4 leg asymmetrical [t] 14
  • 16000
    M 48
    217121
    ASW AP0-RLP-16T-M48X5-EL81MM
    Reference no. 217121
    Working load limit [kg] 16000
    Overall length L [mm] 300.9
    Thread length K [mm] 81
    Tightening torque MA [Nm] 800
    Body width B 229
    Stirrup height C [mm] 40.4
    Ø of contact surface E 149
    Clear height T [mm] 91
    Clearance W [mm] 149
    Base height J [mm] 70
    Weight approx. [kg] 14.5
    Thread diameter metric M M 48
    Working load limit single-leg with cross bar 0° [t] 20
    Working load limit single-leg with cross bar 90° [t] 16
    Working load limit 2-leg with cross bar 0° [t] 40
    Working load limit 2-leg with cross bar 90° [t] 32
    Working load limit 2-leg symmetrical 0°–45° [t] 22.4
    Working load limit 2-leg symmetrical 45°–60° [t] 16
    Working load limit 2-leg asymmetrical [t] 16
    Working load limit 3/4-leg symmetrical 0°–45° [t] 33.6
    Working load limit 3/4-leg symmetrical 45°–60° [t] 24
    Working load limit 3 or 4 leg asymmetrical [t] 16
Working load limit [kg] 400
Thread diameter metric M M 8
Reference no. 166194
  • Details
    ASW AP0-RLP-0.4T-M8X1.25-EL16MM
    Reference no. 166194
    Working load limit [kg] 400
    Overall length L [mm] 90
    Thread length K [mm] 16
    Tightening torque MA [Nm] 10
    Body width B 64
    Stirrup height C [mm] 12
    Ø of contact surface E 40
    Clear height T [mm] 35
    Clearance W [mm] 42
    Base height J [mm] 27
    Weight approx. [kg] 0.3
    Thread diameter metric M M 8
    Working load limit single-leg with cross bar 0° [t] 0.8
    Working load limit single-leg with cross bar 90° [t] 0.4
    Working load limit 2-leg with cross bar 0° [t] 1.6
    Working load limit 2-leg with cross bar 90° [t] 0.8
    Working load limit 2-leg symmetrical 0°–45° [t] 0.5
    Working load limit 2-leg symmetrical 45°–60° [t] 0.4
    Working load limit 2-leg asymmetrical [t] 0.4
    Working load limit 3/4-leg symmetrical 0°–45° [t] 0.8
    Working load limit 3/4-leg symmetrical 45°–60° [t] 0.6
    Working load limit 3 or 4 leg asymmetrical [t] 0.4
Working load limit [kg] 700
Thread diameter metric M M 10
Reference no. 166195
  • Details
    ASW AP0-RLP-0.70T-M10X1.5-EL16MM
    Reference no. 166195
    Working load limit [kg] 700
    Overall length L [mm] 90
    Thread length K [mm] 16
    Tightening torque MA [Nm] 15
    Body width B 64
    Stirrup height C [mm] 12
    Ø of contact surface E 40
    Clear height T [mm] 35
    Clearance W [mm] 42
    Base height J [mm] 27
    Weight approx. [kg] 0.3
    Thread diameter metric M M 10
    Working load limit single-leg with cross bar 0° [t] 1.2
    Working load limit single-leg with cross bar 90° [t] 0.7
    Working load limit 2-leg with cross bar 0° [t] 2.4
    Working load limit 2-leg with cross bar 90° [t] 1.4
    Working load limit 2-leg symmetrical 0°–45° [t] 0.9
    Working load limit 2-leg symmetrical 45°–60° [t] 0.7
    Working load limit 2-leg asymmetrical [t] 0.7
    Working load limit 3/4-leg symmetrical 0°–45° [t] 1.4
    Working load limit 3/4-leg symmetrical 45°–60° [t] 1
    Working load limit 3 or 4 leg asymmetrical [t] 0.7
Working load limit [kg] 1200
Thread diameter metric M M 12
Reference no. 166196
  • Details
    ASW AP0-RLP-1.2T-M12X1.75-EL25MM
    Reference no. 166196
    Working load limit [kg] 1200
    Overall length L [mm] 132
    Thread length K [mm] 25
    Tightening torque MA [Nm] 27
    Body width B 91
    Stirrup height C [mm] 19
    Ø of contact surface E 54
    Clear height T [mm] 46
    Clearance W [mm] 57
    Base height J [mm] 42
    Weight approx. [kg] 0.96
    Thread diameter metric M M 12
    Working load limit single-leg with cross bar 0° [t] 2
    Working load limit single-leg with cross bar 90° [t] 1.2
    Working load limit 2-leg with cross bar 0° [t] 4
    Working load limit 2-leg with cross bar 90° [t] 2.4
    Working load limit 2-leg symmetrical 0°–45° [t] 1.6
    Working load limit 2-leg symmetrical 45°–60° [t] 1.2
    Working load limit 2-leg asymmetrical [t] 1.2
    Working load limit 3/4-leg symmetrical 0°–45° [t] 2.5
    Working load limit 3/4-leg symmetrical 45°–60° [t] 1.8
    Working load limit 3 or 4 leg asymmetrical [t] 1.2
Working load limit [kg] 2000
Thread diameter metric M M 16
Reference no. 166197
  • Details
    ASW AP0-RLP-2T-M16X2-EL25MM
    Reference no. 166197
    Working load limit [kg] 2000
    Overall length L [mm] 132
    Thread length K [mm] 25
    Tightening torque MA [Nm] 60
    Body width B 91
    Stirrup height C [mm] 19
    Ø of contact surface E 54
    Clear height T [mm] 46
    Clearance W [mm] 57
    Base height J [mm] 42
    Weight approx. [kg] 1.02
    Thread diameter metric M M 16
    Working load limit single-leg with cross bar 0° [t] 3.2
    Working load limit single-leg with cross bar 90° [t] 2
    Working load limit 2-leg with cross bar 0° [t] 6.4
    Working load limit 2-leg with cross bar 90° [t] 4
    Working load limit 2-leg symmetrical 0°–45° [t] 2.8
    Working load limit 2-leg symmetrical 45°–60° [t] 2
    Working load limit 2-leg asymmetrical [t] 2
    Working load limit 3/4-leg symmetrical 0°–45° [t] 4.2
    Working load limit 3/4-leg symmetrical 45°–60° [t] 3
    Working load limit 3 or 4 leg asymmetrical [t] 2
Working load limit [kg] 2800
Thread diameter metric M M 20
Reference no. 166198
  • Details
    ASW AP0-RLP-2.80T-M20X2.5-EL36MM
    Reference no. 166198
    Working load limit [kg] 2800
    Overall length L [mm] 174
    Thread length K [mm] 36
    Tightening torque MA [Nm] 90
    Body width B 133
    Stirrup height C [mm] 28
    Ø of contact surface E 80
    Clear height T [mm] 55
    Clearance W [mm] 83
    Base height J [mm] 55
    Weight approx. [kg] 2.851
    Thread diameter metric M M 20
    Working load limit single-leg with cross bar 0° [t] 5.6
    Working load limit single-leg with cross bar 90° [t] 2.8
    Working load limit 2-leg with cross bar 0° [t] 11.2
    Working load limit 2-leg with cross bar 90° [t] 5.6
    Working load limit 2-leg symmetrical 0°–45° [t] 3.9
    Working load limit 2-leg symmetrical 45°–60° [t] 2.8
    Working load limit 2-leg asymmetrical [t] 2.8
    Working load limit 3/4-leg symmetrical 0°–45° [t] 5.8
    Working load limit 3/4-leg symmetrical 45°–60° [t] 4.2
    Working load limit 3 or 4 leg asymmetrical [t] 2.8
Working load limit [kg] 4600
Thread diameter metric M M 24
Reference no. 166199
  • Details
    ASW AP0-RLP-4.6T-M24X3-EL36MM
    Reference no. 166199
    Working load limit [kg] 4600
    Overall length L [mm] 174
    Thread length K [mm] 36
    Tightening torque MA [Nm] 135
    Body width B 133
    Stirrup height C [mm] 28
    Ø of contact surface E 80
    Clear height T [mm] 55
    Clearance W [mm] 83
    Base height J [mm] 55
    Weight approx. [kg] 2.9
    Thread diameter metric M M 24
    Working load limit single-leg with cross bar 0° [t] 8
    Working load limit single-leg with cross bar 90° [t] 4.6
    Working load limit 2-leg with cross bar 0° [t] 16
    Working load limit 2-leg with cross bar 90° [t] 9.2
    Working load limit 2-leg symmetrical 0°–45° [t] 6.4
    Working load limit 2-leg symmetrical 45°–60° [t] 4.6
    Working load limit 2-leg asymmetrical [t] 4.6
    Working load limit 3/4-leg symmetrical 0°–45° [t] 9.6
    Working load limit 3/4-leg symmetrical 45°–60° [t] 6.9
    Working load limit 3 or 4 leg asymmetrical [t] 4.6
Working load limit [kg] 6000
Thread diameter metric M M 30
Reference no. 200053
  • Details
    ASW AP0-RLP-6T-M30X3.5-EL58MM
    Reference no. 200053
    Working load limit [kg] 6000
    Overall length L [mm] 227.5
    Thread length K [mm] 58
    Tightening torque MA [Nm] 270
    Body width B 182
    Stirrup height C [mm] 34
    Ø of contact surface E 114
    Clear height T [mm] 70
    Clearance W [mm] 114
    Base height J [mm] 56
    Weight approx. [kg] 7
    Thread diameter metric M M 30
    Working load limit single-leg with cross bar 0° [t] 12
    Working load limit single-leg with cross bar 90° [t] 6
    Working load limit 2-leg with cross bar 0° [t] 24
    Working load limit 2-leg with cross bar 90° [t] 12
    Working load limit 2-leg symmetrical 0°–45° [t] 8.4
    Working load limit 2-leg symmetrical 45°–60° [t] 6
    Working load limit 2-leg asymmetrical [t] 6
    Working load limit 3/4-leg symmetrical 0°–45° [t] 12.6
    Working load limit 3/4-leg symmetrical 45°–60° [t] 9
    Working load limit 3 or 4 leg asymmetrical [t] 6
Working load limit [kg] 8000
Thread diameter metric M M 36
Reference no. 200054
  • Details
    ASW AP0-RLP-8T-M36X4-EL58MM
    Reference no. 200054
    Working load limit [kg] 8000
    Overall length L [mm] 239
    Thread length K [mm] 58
    Tightening torque MA [Nm] 320
    Body width B 182
    Stirrup height C [mm] 34
    Ø of contact surface E 114
    Clear height T [mm] 70
    Clearance W [mm] 114
    Base height J [mm] 56
    Weight approx. [kg] 7.3
    Thread diameter metric M M 36
    Working load limit single-leg with cross bar 0° [t] 14
    Working load limit single-leg with cross bar 90° [t] 8
    Working load limit 2-leg with cross bar 0° [t] 28
    Working load limit 2-leg with cross bar 90° [t] 16
    Working load limit 2-leg symmetrical 0°–45° [t] 11.2
    Working load limit 2-leg symmetrical 45°–60° [t] 8
    Working load limit 2-leg asymmetrical [t] 8
    Working load limit 3/4-leg symmetrical 0°–45° [t] 16.8
    Working load limit 3/4-leg symmetrical 45°–60° [t] 12
    Working load limit 3 or 4 leg asymmetrical [t] 8
Working load limit [kg] 14000
Thread diameter metric M M 42
Reference no. 217120
  • Details
    ASW AP0-RLP-14T-M42X4.5-EL81MM
    Reference no. 217120
    Working load limit [kg] 14000
    Overall length L [mm] 290.9
    Thread length K [mm] 81
    Tightening torque MA [Nm] 600
    Body width B 229
    Stirrup height C [mm] 40.4
    Ø of contact surface E 149
    Clear height T [mm] 91
    Clearance W [mm] 149
    Base height J [mm] 70
    Weight approx. [kg] 14
    Thread diameter metric M M 42
    Working load limit single-leg with cross bar 0° [t] 16
    Working load limit single-leg with cross bar 90° [t] 14
    Working load limit 2-leg with cross bar 0° [t] 32
    Working load limit 2-leg with cross bar 90° [t] 28
    Working load limit 2-leg symmetrical 0°–45° [t] 19.6
    Working load limit 2-leg symmetrical 45°–60° [t] 14
    Working load limit 2-leg asymmetrical [t] 14
    Working load limit 3/4-leg symmetrical 0°–45° [t] 29.4
    Working load limit 3/4-leg symmetrical 45°–60° [t] 21
    Working load limit 3 or 4 leg asymmetrical [t] 14
Working load limit [kg] 16000
Thread diameter metric M M 48
Reference no. 217121
  • Details
    ASW AP0-RLP-16T-M48X5-EL81MM
    Reference no. 217121
    Working load limit [kg] 16000
    Overall length L [mm] 300.9
    Thread length K [mm] 81
    Tightening torque MA [Nm] 800
    Body width B 229
    Stirrup height C [mm] 40.4
    Ø of contact surface E 149
    Clear height T [mm] 91
    Clearance W [mm] 149
    Base height J [mm] 70
    Weight approx. [kg] 14.5
    Thread diameter metric M M 48
    Working load limit single-leg with cross bar 0° [t] 20
    Working load limit single-leg with cross bar 90° [t] 16
    Working load limit 2-leg with cross bar 0° [t] 40
    Working load limit 2-leg with cross bar 90° [t] 32
    Working load limit 2-leg symmetrical 0°–45° [t] 22.4
    Working load limit 2-leg symmetrical 45°–60° [t] 16
    Working load limit 2-leg asymmetrical [t] 16
    Working load limit 3/4-leg symmetrical 0°–45° [t] 33.6
    Working load limit 3/4-leg symmetrical 45°–60° [t] 24
    Working load limit 3 or 4 leg asymmetrical [t] 16
Downloads

Design / Engineering

CAD 3D

Download
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Tel. +49 8331 937-9623
Fax +49 8331 937-380
E-Mail verkauf-azs@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
 Service centre
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Academy
Tel. +49 8331 937-462
E-Mail academy@pfeifer.de
Web www.pfeifer.info
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
France
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +33 676 54 42 68 / +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Poland
 PFEIFER Technika Linowa i Dźwigowa Sp. z o.o.
ul. Wrocławska 68
55-330 Krępice k/Wrocławia
Tel. +48 71 30 23 700
E-Mail info@pfeifer.pl
Web www.pfeifer.pl
 Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
