LBP attachment eye thread

LBP attachment eye thread

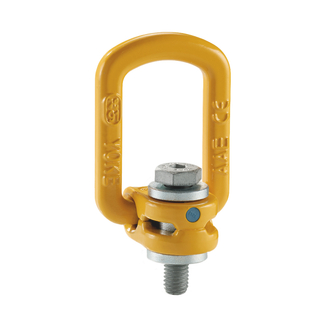

Rotating attachment eye thread, optimally suited for lateral attachment at low cost.
Technical data

Quality grade

  • 10

Operating temperature

  • –40 °C to +200 °C

Standard

  • EN 1677-1

Certification

  • H-stamp

Marking

  • Batch number

Safety factor

  • 4

Rotation

  • 360° (not under load)

Tilting

  • 180°

Load angle

  • 0–90°
Safety

Please note the admissible load angle.
Options
  • A selection of the options available on request can be found below. Please contact us for your individual offer!
Product variants
Working load limit [kg]
Thread diameter metric M
Reference no.
Details
  • 300
    M 8
    259900
    ALB LBP LBO-0.3T-M8X1.25-EL11MM
    Reference no. 259900
    Working load limit [kg] 300

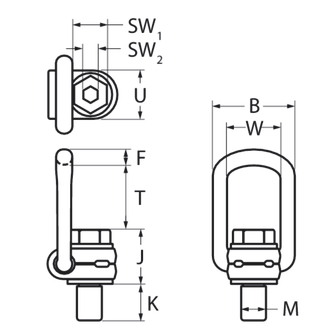

    Thread length K [mm] 11
    Outer wrench size AF1 [mm] 13
    Inner wrench size AF2 [mm] 6
    Body width B 55
    Clear height T [mm] 40
    Clearance W [mm] 35
    Ring section diameter F 10
    Base width U [mm] 30
    Base height J [mm] 35
    Weight approx. [kg] 0.2
    Thread diameter metric M M 8
    Working load limit single-leg with cross bar 0° [t] 0.3
    Working load limit single-leg with cross bar 90° [t] 0.3
    Working load limit 2-leg with cross bar 0° [t] 0.6
    Working load limit 2-leg with cross bar 90° [t] 0.6
    Working load limit 2-leg symmetrical 0°–45° [t] 0.42
    Working load limit 2-leg symmetrical 45°–60° [t] 0.3
    Working load limit 2-leg asymmetrical [t] 0.3
    Working load limit 3/4-leg symmetrical 0°–45° [t] 0.63
    Working load limit 3/4-leg symmetrical 45°–60° [t] 0.45
    Working load limit 3 or 4 leg asymmetrical [t] 0.3
  • 630
    M 10
    259901
    ALB LBP LBO-0.63T-M10X1.5-EL16MM
    Reference no. 259901
    Working load limit [kg] 630
    Thread length K [mm] 16
    Outer wrench size AF1 [mm] 17
    Inner wrench size AF2 [mm] 6
    Body width B 55
    Clear height T [mm] 39
    Clearance W [mm] 35
    Ring section diameter F 10
    Base width U [mm] 30
    Base height J [mm] 36
    Weight approx. [kg] 0.3
    Thread diameter metric M M 10
    Working load limit single-leg with cross bar 0° [t] 0.63
    Working load limit single-leg with cross bar 90° [t] 0.63
    Working load limit 2-leg with cross bar 0° [t] 1.26
    Working load limit 2-leg with cross bar 90° [t] 1.26
    Working load limit 2-leg symmetrical 0°–45° [t] 0.88
    Working load limit 2-leg symmetrical 45°–60° [t] 0.63
    Working load limit 2-leg asymmetrical [t] 0.63
    Working load limit 3/4-leg symmetrical 0°–45° [t] 1.32
    Working load limit 3/4-leg symmetrical 45°–60° [t] 0.95
    Working load limit 3 or 4 leg asymmetrical [t] 0.63
  • 1000
    M 12
    259902
    ALB LBP LBO-1T-M12X1.75-EL18MM
    Reference no. 259902
    Working load limit [kg] 1000
    Thread length K [mm] 18
    Outer wrench size AF1 [mm] 19
    Inner wrench size AF2 [mm] 8
    Body width B 57
    Clear height T [mm] 40
    Clearance W [mm] 37
    Ring section diameter F 14
    Base width U [mm] 33
    Base height J [mm] 44
    Weight approx. [kg] 0.5
    Thread diameter metric M M 12
    Working load limit single-leg with cross bar 0° [t] 1
    Working load limit single-leg with cross bar 90° [t] 1
    Working load limit 2-leg with cross bar 0° [t] 2
    Working load limit 2-leg with cross bar 90° [t] 2
    Working load limit 2-leg symmetrical 0°–45° [t] 1.4
    Working load limit 2-leg symmetrical 45°–60° [t] 1
    Working load limit 2-leg asymmetrical [t] 1
    Working load limit 3/4-leg symmetrical 0°–45° [t] 2.1
    Working load limit 3/4-leg symmetrical 45°–60° [t] 1.5
    Working load limit 3 or 4 leg asymmetrical [t] 1
  • 1200
    M 14
    260337
    ALB LBP LBO-1.2T-M14X2-EL21MM
    Reference no. 260337
    Working load limit [kg] 1200
    Thread length K [mm] 21
    Outer wrench size AF1 [mm] 22
    Inner wrench size AF2 [mm] 10
    Body width B 57
    Clear height T [mm] 39
    Clearance W [mm] 37
    Ring section diameter F 14
    Base width U [mm] 33
    Base height J [mm] 45
    Weight approx. [kg] 0.5
    Thread diameter metric M M 14
    Working load limit single-leg with cross bar 0° [t] 1.2
    Working load limit single-leg with cross bar 90° [t] 1.2
    Working load limit 2-leg with cross bar 0° [t] 2.4
    Working load limit 2-leg with cross bar 90° [t] 2.4
    Working load limit 2-leg symmetrical 0°–45° [t] 1.7
    Working load limit 2-leg symmetrical 45°–60° [t] 1.2
    Working load limit 2-leg asymmetrical [t] 1.2
    Working load limit 3/4-leg symmetrical 0°–45° [t] 2.5
    Working load limit 3/4-leg symmetrical 45°–60° [t] 1.8
    Working load limit 3 or 4 leg asymmetrical [t] 1.2
  • 1500
    M 16
    259903
    ALB LBP LBO-1.5T-M16X2.0-EL24MM
    Reference no. 259903
    Working load limit [kg] 1500
    Thread length K [mm] 24
    Outer wrench size AF1 [mm] 24
    Inner wrench size AF2 [mm] 10
    Body width B 57
    Clear height T [mm] 38
    Clearance W [mm] 37
    Ring section diameter F 14
    Base width U [mm] 33
    Base height J [mm] 46
    Weight approx. [kg] 0.5
    Thread diameter metric M M 16
    Working load limit single-leg with cross bar 0° [t] 1.5
    Working load limit single-leg with cross bar 90° [t] 1.5
    Working load limit 2-leg with cross bar 0° [t] 3
    Working load limit 2-leg with cross bar 90° [t] 3
    Working load limit 2-leg symmetrical 0°–45° [t] 2.1
    Working load limit 2-leg symmetrical 45°–60° [t] 1.5
    Working load limit 2-leg asymmetrical [t] 1.5
    Working load limit 3/4-leg symmetrical 0°–45° [t] 3.1
    Working load limit 3/4-leg symmetrical 45°–60° [t] 2.2
    Working load limit 3 or 4 leg asymmetrical [t] 1.5
  • 2000
    M 18
    260338
    ALB LBP LBO-2T-M18X2.5-EL26MM
    Reference no. 260338
    Working load limit [kg] 2000
    Thread length K [mm] 26
    Outer wrench size AF1 [mm] 30
    Inner wrench size AF2 [mm] 12
    Body width B 82
    Clear height T [mm] 66
    Clearance W [mm] 54
    Ring section diameter F 17
    Base width U [mm] 50
    Base height J [mm] 57
    Weight approx. [kg] 1.3
    Thread diameter metric M M 18
    Working load limit single-leg with cross bar 0° [t] 2
    Working load limit single-leg with cross bar 90° [t] 2
    Working load limit 2-leg with cross bar 0° [t] 4
    Working load limit 2-leg with cross bar 90° [t] 4
    Working load limit 2-leg symmetrical 0°–45° [t] 2.8
    Working load limit 2-leg symmetrical 45°–60° [t] 2
    Working load limit 2-leg asymmetrical [t] 2
    Working load limit 3/4-leg symmetrical 0°–45° [t] 4.2
    Working load limit 3/4-leg symmetrical 45°–60° [t] 3
    Working load limit 3 or 4 leg asymmetrical [t] 2
  • 2500
    M 20
    259904
    ALB LBP LBO-2.5T-M20X2.5-EL30MM
    Reference no. 259904
    Working load limit [kg] 2500
    Thread length K [mm] 30
    Outer wrench size AF1 [mm] 30
    Inner wrench size AF2 [mm] 12
    Body width B 82
    Clear height T [mm] 66
    Clearance W [mm] 54
    Ring section diameter F 17
    Base width U [mm] 50
    Base height J [mm] 57
    Weight approx. [kg] 1.3
    Thread diameter metric M M 20
    Working load limit single-leg with cross bar 0° [t] 2.5
    Working load limit single-leg with cross bar 90° [t] 2.5
    Working load limit 2-leg with cross bar 0° [t] 5
    Working load limit 2-leg with cross bar 90° [t] 5
    Working load limit 2-leg symmetrical 0°–45° [t] 3.5
    Working load limit 2-leg symmetrical 45°–60° [t] 2.5
    Working load limit 2-leg asymmetrical [t] 2.5
    Working load limit 3/4-leg symmetrical 0°–45° [t] 5.2
    Working load limit 3/4-leg symmetrical 45°–60° [t] 3.7
    Working load limit 3 or 4 leg asymmetrical [t] 2.5
  • 4000
    M 24
    259905
    ALB LBP LBO-4T-M24X3-EL36MM
    Reference no. 259905
    Working load limit [kg] 4000
    Thread length K [mm] 36
    Outer wrench size AF1 [mm] 36
    Inner wrench size AF2 [mm] 14
    Body width B 82
    Clear height T [mm] 64
    Clearance W [mm] 54
    Ring section diameter F 17
    Base width U [mm] 50
    Base height J [mm] 59
    Weight approx. [kg] 1.4
    Thread diameter metric M M 24
    Working load limit single-leg with cross bar 0° [t] 4
    Working load limit single-leg with cross bar 90° [t] 4
    Working load limit 2-leg with cross bar 0° [t] 8
    Working load limit 2-leg with cross bar 90° [t] 8
    Working load limit 2-leg symmetrical 0°–45° [t] 5.6
    Working load limit 2-leg symmetrical 45°–60° [t] 4
    Working load limit 2-leg asymmetrical [t] 4
    Working load limit 3/4-leg symmetrical 0°–45° [t] 8.4
    Working load limit 3/4-leg symmetrical 45°–60° [t] 6
    Working load limit 3 or 4 leg asymmetrical [t] 4
  • 4000
    M 27
    259906
    ALB LBP LBO-4T-M27X3-EL38MM
    Reference no. 259906
    Working load limit [kg] 4000
    Thread length K [mm] 38
    Outer wrench size AF1 [mm] 41
    Inner wrench size AF2 [mm] 17
    Body width B 99
    Clear height T [mm] 68
    Clearance W [mm] 65
    Ring section diameter F 23
    Base width U [mm] 60
    Base height J [mm] 79
    Weight approx. [kg] 2.8
    Thread diameter metric M M 27
    Working load limit single-leg with cross bar 0° [t] 4
    Working load limit single-leg with cross bar 90° [t] 4
    Working load limit 2-leg with cross bar 0° [t] 8
    Working load limit 2-leg with cross bar 90° [t] 8
    Working load limit 2-leg symmetrical 0°–45° [t] 5.6
    Working load limit 2-leg symmetrical 45°–60° [t] 4
    Working load limit 2-leg asymmetrical [t] 4
    Working load limit 3/4-leg symmetrical 0°–45° [t] 8.4
    Working load limit 3/4-leg symmetrical 45°–60° [t] 6
    Working load limit 3 or 4 leg asymmetrical [t] 4
  • 5000
    M 30
    259907
    ALB LBP LBO-5T-M30X3.5-EL48MM
    Reference no. 259907
    Working load limit [kg] 5000
    Thread length K [mm] 48
    Outer wrench size AF1 [mm] 46
    Inner wrench size AF2 [mm] 17
    Body width B 99
    Clear height T [mm] 66
    Clearance W [mm] 65
    Ring section diameter F 23
    Base width U [mm] 60
    Base height J [mm] 81
    Weight approx. [kg] 3.1
    Thread diameter metric M M 30
    Working load limit single-leg with cross bar 0° [t] 5
    Working load limit single-leg with cross bar 90° [t] 5
    Working load limit 2-leg with cross bar 0° [t] 10
    Working load limit 2-leg with cross bar 90° [t] 10
    Working load limit 2-leg symmetrical 0°–45° [t] 7
    Working load limit 2-leg symmetrical 45°–60° [t] 5
    Working load limit 2-leg asymmetrical [t] 5
    Working load limit 3/4-leg symmetrical 0°–45° [t] 10.5
    Working load limit 3/4-leg symmetrical 45°–60° [t] 7.5
    Working load limit 3 or 4 leg asymmetrical [t] 5
  • 7000
    M 36
    259908
    ALB LBP LBO-7T-M36X4-EL54MM
    Reference no. 259908
    Working load limit [kg] 7000
    Thread length K [mm] 54
    Outer wrench size AF1 [mm] 55
    Inner wrench size AF2 [mm] 22
    Body width B 99
    Clear height T [mm] 74
    Clearance W [mm] 65
    Ring section diameter F 23
    Base width U [mm] 60
    Base height J [mm] 75
    Weight approx. [kg] 3.3
    Thread diameter metric M M 36
    Working load limit single-leg with cross bar 0° [t] 7
    Working load limit single-leg with cross bar 90° [t] 7
    Working load limit 2-leg with cross bar 0° [t] 14
    Working load limit 2-leg with cross bar 90° [t] 14
    Working load limit 2-leg symmetrical 0°–45° [t] 9.8
    Working load limit 2-leg symmetrical 45°–60° [t] 7
    Working load limit 2-leg asymmetrical [t] 7
    Working load limit 3/4-leg symmetrical 0°–45° [t] 14.7
    Working load limit 3/4-leg symmetrical 45°–60° [t] 10.5
    Working load limit 3 or 4 leg asymmetrical [t] 7
  • 8000
    M 36
    259909
    ALB LBP LBO-8T-M36X4-EL62MM
    Reference no. 259909
    Working load limit [kg] 8000
    Thread length K [mm] 62
    Outer wrench size AF1 [mm] 55
    Inner wrench size AF2 [mm] 22
    Body width B 124
    Clear height T [mm] 97
    Clearance W [mm] 85
    Ring section diameter F 27
    Base width U [mm] 77
    Base height J [mm] 101
    Weight approx. [kg] 5.8
    Thread diameter metric M M 36
    Working load limit single-leg with cross bar 0° [t] 8
    Working load limit single-leg with cross bar 90° [t] 8
    Working load limit 2-leg with cross bar 0° [t] 16
    Working load limit 2-leg with cross bar 90° [t] 16
    Working load limit 2-leg symmetrical 0°–45° [t] 11.2
    Working load limit 2-leg symmetrical 45°–60° [t] 8
    Working load limit 2-leg asymmetrical [t] 8
    Working load limit 3/4-leg symmetrical 0°–45° [t] 16.8
    Working load limit 3/4-leg symmetrical 45°–60° [t] 12
    Working load limit 3 or 4 leg asymmetrical [t] 8
  • 10000
    M 42
    259910
    ALB LBP LBO-10T-M42X4.5-EL72MM
    Reference no. 259910
    Working load limit [kg] 10000
    Thread length K [mm] 72
    Outer wrench size AF1 [mm] 65
    Inner wrench size AF2 [mm] 24
    Body width B 124
    Clear height T [mm] 94
    Clearance W [mm] 85
    Ring section diameter F 27
    Base width U [mm] 77
    Base height J [mm] 104
    Weight approx. [kg] 6.3
    Thread diameter metric M M 42
    Working load limit single-leg with cross bar 0° [t] 10
    Working load limit single-leg with cross bar 90° [t] 10
    Working load limit 2-leg with cross bar 0° [t] 20
    Working load limit 2-leg with cross bar 90° [t] 20
    Working load limit 2-leg symmetrical 0°–45° [t] 14
    Working load limit 2-leg symmetrical 45°–60° [t] 10
    Working load limit 2-leg asymmetrical [t] 10
    Working load limit 3/4-leg symmetrical 0°–45° [t] 21
    Working load limit 3/4-leg symmetrical 45°–60° [t] 15
    Working load limit 3 or 4 leg asymmetrical [t] 10
  • 15000
    M 42
    259911
    ALB LBP LBO-15T-M42X4.5-EL63MM
    Reference no. 259911
    Working load limit [kg] 15000
    Thread length K [mm] 63
    Outer wrench size AF1 [mm] 65
    Inner wrench size AF2 [mm] 24
    Body width B 158
    Clear height T [mm] 108
    Clearance W [mm] 104
    Ring section diameter F 36
    Base width U [mm] 95
    Base height J [mm] 112
    Weight approx. [kg] 10.8
    Thread diameter metric M M 42
    Working load limit single-leg with cross bar 0° [t] 15
    Working load limit single-leg with cross bar 90° [t] 15
    Working load limit 2-leg with cross bar 0° [t] 30
    Working load limit 2-leg with cross bar 90° [t] 30
    Working load limit 2-leg symmetrical 0°–45° [t] 21
    Working load limit 2-leg symmetrical 45°–60° [t] 15
    Working load limit 2-leg asymmetrical [t] 15
    Working load limit 3/4-leg symmetrical 0°–45° [t] 31.5
    Working load limit 3/4-leg symmetrical 45°–60° [t] 22.5
    Working load limit 3 or 4 leg asymmetrical [t] 15
  • 20000
    M 48
    259912
    ALB LBP LBO-20T-M48X5-EL72MM
    Reference no. 259912
    Working load limit [kg] 20000
    Thread length K [mm] 72
    Outer wrench size AF1 [mm] 75
    Inner wrench size AF2 [mm] 27
    Body width B 158
    Clear height T [mm] 103
    Clearance W [mm] 104
    Ring section diameter F 36
    Base width U [mm] 95
    Base height J [mm] 120
    Weight approx. [kg] 11.6
    Thread diameter metric M M 48
    Working load limit single-leg with cross bar 0° [t] 20
    Working load limit single-leg with cross bar 90° [t] 20
    Working load limit 2-leg with cross bar 0° [t] 40
    Working load limit 2-leg with cross bar 90° [t] 40
    Working load limit 2-leg symmetrical 0°–45° [t] 28
    Working load limit 2-leg symmetrical 45°–60° [t] 20
    Working load limit 2-leg asymmetrical [t] 20
    Working load limit 3/4-leg symmetrical 0°–45° [t] 42
    Working load limit 3/4-leg symmetrical 45°–60° [t] 30
    Working load limit 3 or 4 leg asymmetrical [t] 20
Working load limit [kg] 300
Thread diameter metric M M 8
Reference no. 259900
  • Details
    ALB LBP LBO-0.3T-M8X1.25-EL11MM
    Reference no. 259900
    Working load limit [kg] 300
    Thread length K [mm] 11
    Outer wrench size AF1 [mm] 13
    Inner wrench size AF2 [mm] 6
    Body width B 55
    Clear height T [mm] 40
    Clearance W [mm] 35
    Ring section diameter F 10
    Base width U [mm] 30
    Base height J [mm] 35
    Weight approx. [kg] 0.2
    Thread diameter metric M M 8
    Working load limit single-leg with cross bar 0° [t] 0.3
    Working load limit single-leg with cross bar 90° [t] 0.3
    Working load limit 2-leg with cross bar 0° [t] 0.6
    Working load limit 2-leg with cross bar 90° [t] 0.6
    Working load limit 2-leg symmetrical 0°–45° [t] 0.42
    Working load limit 2-leg symmetrical 45°–60° [t] 0.3
    Working load limit 2-leg asymmetrical [t] 0.3
    Working load limit 3/4-leg symmetrical 0°–45° [t] 0.63
    Working load limit 3/4-leg symmetrical 45°–60° [t] 0.45
    Working load limit 3 or 4 leg asymmetrical [t] 0.3
Working load limit [kg] 630
Thread diameter metric M M 10
Reference no. 259901
  • Details
    ALB LBP LBO-0.63T-M10X1.5-EL16MM
    Reference no. 259901
    Working load limit [kg] 630
    Thread length K [mm] 16
    Outer wrench size AF1 [mm] 17
    Inner wrench size AF2 [mm] 6
    Body width B 55
    Clear height T [mm] 39
    Clearance W [mm] 35
    Ring section diameter F 10
    Base width U [mm] 30
    Base height J [mm] 36
    Weight approx. [kg] 0.3
    Thread diameter metric M M 10
    Working load limit single-leg with cross bar 0° [t] 0.63
    Working load limit single-leg with cross bar 90° [t] 0.63
    Working load limit 2-leg with cross bar 0° [t] 1.26
    Working load limit 2-leg with cross bar 90° [t] 1.26
    Working load limit 2-leg symmetrical 0°–45° [t] 0.88
    Working load limit 2-leg symmetrical 45°–60° [t] 0.63
    Working load limit 2-leg asymmetrical [t] 0.63
    Working load limit 3/4-leg symmetrical 0°–45° [t] 1.32
    Working load limit 3/4-leg symmetrical 45°–60° [t] 0.95
    Working load limit 3 or 4 leg asymmetrical [t] 0.63
Working load limit [kg] 1000
Thread diameter metric M M 12
Reference no. 259902
  • Details
    ALB LBP LBO-1T-M12X1.75-EL18MM
    Reference no. 259902
    Working load limit [kg] 1000
    Thread length K [mm] 18
    Outer wrench size AF1 [mm] 19
    Inner wrench size AF2 [mm] 8
    Body width B 57
    Clear height T [mm] 40
    Clearance W [mm] 37
    Ring section diameter F 14
    Base width U [mm] 33
    Base height J [mm] 44
    Weight approx. [kg] 0.5
    Thread diameter metric M M 12
    Working load limit single-leg with cross bar 0° [t] 1
    Working load limit single-leg with cross bar 90° [t] 1
    Working load limit 2-leg with cross bar 0° [t] 2
    Working load limit 2-leg with cross bar 90° [t] 2
    Working load limit 2-leg symmetrical 0°–45° [t] 1.4
    Working load limit 2-leg symmetrical 45°–60° [t] 1
    Working load limit 2-leg asymmetrical [t] 1
    Working load limit 3/4-leg symmetrical 0°–45° [t] 2.1
    Working load limit 3/4-leg symmetrical 45°–60° [t] 1.5
    Working load limit 3 or 4 leg asymmetrical [t] 1
Working load limit [kg] 1200
Thread diameter metric M M 14
Reference no. 260337
  • Details
    ALB LBP LBO-1.2T-M14X2-EL21MM
    Reference no. 260337
    Working load limit [kg] 1200
    Thread length K [mm] 21
    Outer wrench size AF1 [mm] 22
    Inner wrench size AF2 [mm] 10
    Body width B 57
    Clear height T [mm] 39
    Clearance W [mm] 37
    Ring section diameter F 14
    Base width U [mm] 33
    Base height J [mm] 45
    Weight approx. [kg] 0.5
    Thread diameter metric M M 14
    Working load limit single-leg with cross bar 0° [t] 1.2
    Working load limit single-leg with cross bar 90° [t] 1.2
    Working load limit 2-leg with cross bar 0° [t] 2.4
    Working load limit 2-leg with cross bar 90° [t] 2.4
    Working load limit 2-leg symmetrical 0°–45° [t] 1.7
    Working load limit 2-leg symmetrical 45°–60° [t] 1.2
    Working load limit 2-leg asymmetrical [t] 1.2
    Working load limit 3/4-leg symmetrical 0°–45° [t] 2.5
    Working load limit 3/4-leg symmetrical 45°–60° [t] 1.8
    Working load limit 3 or 4 leg asymmetrical [t] 1.2
Working load limit [kg] 1500
Thread diameter metric M M 16
Reference no. 259903
  • Details
    ALB LBP LBO-1.5T-M16X2.0-EL24MM
    Reference no. 259903
    Working load limit [kg] 1500
    Thread length K [mm] 24
    Outer wrench size AF1 [mm] 24
    Inner wrench size AF2 [mm] 10
    Body width B 57
    Clear height T [mm] 38
    Clearance W [mm] 37
    Ring section diameter F 14
    Base width U [mm] 33
    Base height J [mm] 46
    Weight approx. [kg] 0.5
    Thread diameter metric M M 16
    Working load limit single-leg with cross bar 0° [t] 1.5
    Working load limit single-leg with cross bar 90° [t] 1.5
    Working load limit 2-leg with cross bar 0° [t] 3
    Working load limit 2-leg with cross bar 90° [t] 3
    Working load limit 2-leg symmetrical 0°–45° [t] 2.1
    Working load limit 2-leg symmetrical 45°–60° [t] 1.5
    Working load limit 2-leg asymmetrical [t] 1.5
    Working load limit 3/4-leg symmetrical 0°–45° [t] 3.1
    Working load limit 3/4-leg symmetrical 45°–60° [t] 2.2
    Working load limit 3 or 4 leg asymmetrical [t] 1.5
Working load limit [kg] 2000
Thread diameter metric M M 18
Reference no. 260338
  • Details
    ALB LBP LBO-2T-M18X2.5-EL26MM
    Reference no. 260338
    Working load limit [kg] 2000
    Thread length K [mm] 26
    Outer wrench size AF1 [mm] 30
    Inner wrench size AF2 [mm] 12
    Body width B 82
    Clear height T [mm] 66
    Clearance W [mm] 54
    Ring section diameter F 17
    Base width U [mm] 50
    Base height J [mm] 57
    Weight approx. [kg] 1.3
    Thread diameter metric M M 18
    Working load limit single-leg with cross bar 0° [t] 2
    Working load limit single-leg with cross bar 90° [t] 2
    Working load limit 2-leg with cross bar 0° [t] 4
    Working load limit 2-leg with cross bar 90° [t] 4
    Working load limit 2-leg symmetrical 0°–45° [t] 2.8
    Working load limit 2-leg symmetrical 45°–60° [t] 2
    Working load limit 2-leg asymmetrical [t] 2
    Working load limit 3/4-leg symmetrical 0°–45° [t] 4.2
    Working load limit 3/4-leg symmetrical 45°–60° [t] 3
    Working load limit 3 or 4 leg asymmetrical [t] 2
Working load limit [kg] 2500
Thread diameter metric M M 20
Reference no. 259904
  • Details
    ALB LBP LBO-2.5T-M20X2.5-EL30MM
    Reference no. 259904
    Working load limit [kg] 2500
    Thread length K [mm] 30
    Outer wrench size AF1 [mm] 30
    Inner wrench size AF2 [mm] 12
    Body width B 82
    Clear height T [mm] 66
    Clearance W [mm] 54
    Ring section diameter F 17
    Base width U [mm] 50
    Base height J [mm] 57
    Weight approx. [kg] 1.3
    Thread diameter metric M M 20
    Working load limit single-leg with cross bar 0° [t] 2.5
    Working load limit single-leg with cross bar 90° [t] 2.5
    Working load limit 2-leg with cross bar 0° [t] 5
    Working load limit 2-leg with cross bar 90° [t] 5
    Working load limit 2-leg symmetrical 0°–45° [t] 3.5
    Working load limit 2-leg symmetrical 45°–60° [t] 2.5
    Working load limit 2-leg asymmetrical [t] 2.5
    Working load limit 3/4-leg symmetrical 0°–45° [t] 5.2
    Working load limit 3/4-leg symmetrical 45°–60° [t] 3.7
    Working load limit 3 or 4 leg asymmetrical [t] 2.5
Working load limit [kg] 4000
Thread diameter metric M M 24
Reference no. 259905
  • Details
    ALB LBP LBO-4T-M24X3-EL36MM
    Reference no. 259905
    Working load limit [kg] 4000
    Thread length K [mm] 36
    Outer wrench size AF1 [mm] 36
    Inner wrench size AF2 [mm] 14
    Body width B 82
    Clear height T [mm] 64
    Clearance W [mm] 54
    Ring section diameter F 17
    Base width U [mm] 50
    Base height J [mm] 59
    Weight approx. [kg] 1.4
    Thread diameter metric M M 24
    Working load limit single-leg with cross bar 0° [t] 4
    Working load limit single-leg with cross bar 90° [t] 4
    Working load limit 2-leg with cross bar 0° [t] 8
    Working load limit 2-leg with cross bar 90° [t] 8
    Working load limit 2-leg symmetrical 0°–45° [t] 5.6
    Working load limit 2-leg symmetrical 45°–60° [t] 4
    Working load limit 2-leg asymmetrical [t] 4
    Working load limit 3/4-leg symmetrical 0°–45° [t] 8.4
    Working load limit 3/4-leg symmetrical 45°–60° [t] 6
    Working load limit 3 or 4 leg asymmetrical [t] 4
Working load limit [kg] 4000
Thread diameter metric M M 27
Reference no. 259906
  • Details
    ALB LBP LBO-4T-M27X3-EL38MM
    Reference no. 259906
    Working load limit [kg] 4000
    Thread length K [mm] 38
    Outer wrench size AF1 [mm] 41
    Inner wrench size AF2 [mm] 17
    Body width B 99
    Clear height T [mm] 68
    Clearance W [mm] 65
    Ring section diameter F 23
    Base width U [mm] 60
    Base height J [mm] 79
    Weight approx. [kg] 2.8
    Thread diameter metric M M 27
    Working load limit single-leg with cross bar 0° [t] 4
    Working load limit single-leg with cross bar 90° [t] 4
    Working load limit 2-leg with cross bar 0° [t] 8
    Working load limit 2-leg with cross bar 90° [t] 8
    Working load limit 2-leg symmetrical 0°–45° [t] 5.6
    Working load limit 2-leg symmetrical 45°–60° [t] 4
    Working load limit 2-leg asymmetrical [t] 4
    Working load limit 3/4-leg symmetrical 0°–45° [t] 8.4
    Working load limit 3/4-leg symmetrical 45°–60° [t] 6
    Working load limit 3 or 4 leg asymmetrical [t] 4
Working load limit [kg] 5000
Thread diameter metric M M 30
Reference no. 259907
  • Details
    ALB LBP LBO-5T-M30X3.5-EL48MM
    Reference no. 259907
    Working load limit [kg] 5000
    Thread length K [mm] 48
    Outer wrench size AF1 [mm] 46
    Inner wrench size AF2 [mm] 17
    Body width B 99
    Clear height T [mm] 66
    Clearance W [mm] 65
    Ring section diameter F 23
    Base width U [mm] 60
    Base height J [mm] 81
    Weight approx. [kg] 3.1
    Thread diameter metric M M 30
    Working load limit single-leg with cross bar 0° [t] 5
    Working load limit single-leg with cross bar 90° [t] 5
    Working load limit 2-leg with cross bar 0° [t] 10
    Working load limit 2-leg with cross bar 90° [t] 10
    Working load limit 2-leg symmetrical 0°–45° [t] 7
    Working load limit 2-leg symmetrical 45°–60° [t] 5
    Working load limit 2-leg asymmetrical [t] 5
    Working load limit 3/4-leg symmetrical 0°–45° [t] 10.5
    Working load limit 3/4-leg symmetrical 45°–60° [t] 7.5
    Working load limit 3 or 4 leg asymmetrical [t] 5
Working load limit [kg] 7000
Thread diameter metric M M 36
Reference no. 259908
  • Details
    ALB LBP LBO-7T-M36X4-EL54MM
    Reference no. 259908
    Working load limit [kg] 7000
    Thread length K [mm] 54
    Outer wrench size AF1 [mm] 55
    Inner wrench size AF2 [mm] 22
    Body width B 99
    Clear height T [mm] 74
    Clearance W [mm] 65
    Ring section diameter F 23
    Base width U [mm] 60
    Base height J [mm] 75
    Weight approx. [kg] 3.3
    Thread diameter metric M M 36
    Working load limit single-leg with cross bar 0° [t] 7
    Working load limit single-leg with cross bar 90° [t] 7
    Working load limit 2-leg with cross bar 0° [t] 14
    Working load limit 2-leg with cross bar 90° [t] 14
    Working load limit 2-leg symmetrical 0°–45° [t] 9.8
    Working load limit 2-leg symmetrical 45°–60° [t] 7
    Working load limit 2-leg asymmetrical [t] 7
    Working load limit 3/4-leg symmetrical 0°–45° [t] 14.7
    Working load limit 3/4-leg symmetrical 45°–60° [t] 10.5
    Working load limit 3 or 4 leg asymmetrical [t] 7
Working load limit [kg] 8000
Thread diameter metric M M 36
Reference no. 259909
  • Details
    ALB LBP LBO-8T-M36X4-EL62MM
    Reference no. 259909
    Working load limit [kg] 8000
    Thread length K [mm] 62
    Outer wrench size AF1 [mm] 55
    Inner wrench size AF2 [mm] 22
    Body width B 124
    Clear height T [mm] 97
    Clearance W [mm] 85
    Ring section diameter F 27
    Base width U [mm] 77
    Base height J [mm] 101
    Weight approx. [kg] 5.8
    Thread diameter metric M M 36
    Working load limit single-leg with cross bar 0° [t] 8
    Working load limit single-leg with cross bar 90° [t] 8
    Working load limit 2-leg with cross bar 0° [t] 16
    Working load limit 2-leg with cross bar 90° [t] 16
    Working load limit 2-leg symmetrical 0°–45° [t] 11.2
    Working load limit 2-leg symmetrical 45°–60° [t] 8
    Working load limit 2-leg asymmetrical [t] 8
    Working load limit 3/4-leg symmetrical 0°–45° [t] 16.8
    Working load limit 3/4-leg symmetrical 45°–60° [t] 12
    Working load limit 3 or 4 leg asymmetrical [t] 8
Working load limit [kg] 10000
Thread diameter metric M M 42
Reference no. 259910
  • Details
    ALB LBP LBO-10T-M42X4.5-EL72MM
    Reference no. 259910
    Working load limit [kg] 10000
    Thread length K [mm] 72
    Outer wrench size AF1 [mm] 65
    Inner wrench size AF2 [mm] 24
    Body width B 124
    Clear height T [mm] 94
    Clearance W [mm] 85
    Ring section diameter F 27
    Base width U [mm] 77
    Base height J [mm] 104
    Weight approx. [kg] 6.3
    Thread diameter metric M M 42
    Working load limit single-leg with cross bar 0° [t] 10
    Working load limit single-leg with cross bar 90° [t] 10
    Working load limit 2-leg with cross bar 0° [t] 20
    Working load limit 2-leg with cross bar 90° [t] 20
    Working load limit 2-leg symmetrical 0°–45° [t] 14
    Working load limit 2-leg symmetrical 45°–60° [t] 10
    Working load limit 2-leg asymmetrical [t] 10
    Working load limit 3/4-leg symmetrical 0°–45° [t] 21
    Working load limit 3/4-leg symmetrical 45°–60° [t] 15
    Working load limit 3 or 4 leg asymmetrical [t] 10
Working load limit [kg] 15000
Thread diameter metric M M 42
Reference no. 259911
  • Details
    ALB LBP LBO-15T-M42X4.5-EL63MM
    Reference no. 259911
    Working load limit [kg] 15000
    Thread length K [mm] 63
    Outer wrench size AF1 [mm] 65
    Inner wrench size AF2 [mm] 24
    Body width B 158
    Clear height T [mm] 108
    Clearance W [mm] 104
    Ring section diameter F 36
    Base width U [mm] 95
    Base height J [mm] 112
    Weight approx. [kg] 10.8
    Thread diameter metric M M 42
    Working load limit single-leg with cross bar 0° [t] 15
    Working load limit single-leg with cross bar 90° [t] 15
    Working load limit 2-leg with cross bar 0° [t] 30
    Working load limit 2-leg with cross bar 90° [t] 30
    Working load limit 2-leg symmetrical 0°–45° [t] 21
    Working load limit 2-leg symmetrical 45°–60° [t] 15
    Working load limit 2-leg asymmetrical [t] 15
    Working load limit 3/4-leg symmetrical 0°–45° [t] 31.5
    Working load limit 3/4-leg symmetrical 45°–60° [t] 22.5
    Working load limit 3 or 4 leg asymmetrical [t] 15
Working load limit [kg] 20000
Thread diameter metric M M 48
Reference no. 259912
  • Details
    ALB LBP LBO-20T-M48X5-EL72MM
    Reference no. 259912
    Working load limit [kg] 20000
    Thread length K [mm] 72
    Outer wrench size AF1 [mm] 75
    Inner wrench size AF2 [mm] 27
    Body width B 158
    Clear height T [mm] 103
    Clearance W [mm] 104
    Ring section diameter F 36
    Base width U [mm] 95
    Base height J [mm] 120
    Weight approx. [kg] 11.6
    Thread diameter metric M M 48
    Working load limit single-leg with cross bar 0° [t] 20
    Working load limit single-leg with cross bar 90° [t] 20
    Working load limit 2-leg with cross bar 0° [t] 40
    Working load limit 2-leg with cross bar 90° [t] 40
    Working load limit 2-leg symmetrical 0°–45° [t] 28
    Working load limit 2-leg symmetrical 45°–60° [t] 20
    Working load limit 2-leg asymmetrical [t] 20
    Working load limit 3/4-leg symmetrical 0°–45° [t] 42
    Working load limit 3/4-leg symmetrical 45°–60° [t] 30
    Working load limit 3 or 4 leg asymmetrical [t] 20
Downloads

Design / Engineering

CAD 3D

Download
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Tel. +49 8331 937-9623
Fax +49 8331 937-380
E-Mail verkauf-azs@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
 Service centre
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Academy
Tel. +49 8331 937-462
E-Mail academy@pfeifer.de
Web www.pfeifer.info
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
France
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +33 676 54 42 68 / +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Poland
 PFEIFER Technika Linowa i Dźwigowa Sp. z o.o.
ul. Wrocławska 68
55-330 Krępice k/Wrocławia
Tel. +48 71 30 23 700
E-Mail info@pfeifer.pl
Web www.pfeifer.pl
 Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
