Pro attachment eye thread

Pro attachment eye thread

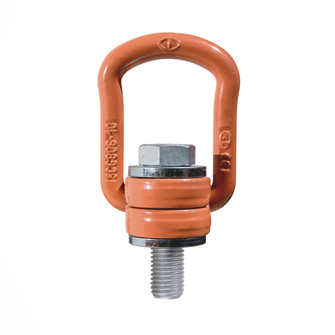

Superior quality rotating attachment eye with large stirrup, optimally suited for lateral attachment at top price.
Technical data

Quality grade

  • 10

Operating temperature

  • –40 °C to +200 °C
  • reduced carrying capacities outside this range

Standard

  • EN 1677-1

Certification

  • H-stamp

Marking

  • Batch number

Safety factor

  • 4

Rotation

  • 360° (not under load)

Tilting

  • 180°

Load angle

  • 0–120°
Safety

Please note the admissible load angle.
Options
  • A selection of the options available on request can be found below. Please contact us for your individual offer!

Thread options

  • Variable thread lengths
  • with UNC thread
  • special threads

Labelling options

  • with RFID chip
  • with individual serial number or labelling
Product variants
Working load limit [kg]
Thread diameter metric M
Reference no.
Details
  • 300
    M 8
    232400
    ALB LPR C806X-0.3T-M8X1.25 -EL15MM
    Reference no. 232400
    Working load limit [kg] 300
    Thread length K [mm] 15

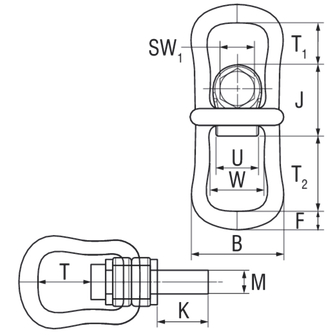

    Outer wrench size AF1 [mm] 13
    Tightening torque MA [Nm] 30
    Body width B 57
    Clear height T [mm] 43
    Clearance W [mm] 34
    Ring section diameter F 10
    Base width U [mm] 24
    Base height J [mm] 41
    Clear span base stirrup T1 [mm] 35
    Clear span base stirrup T2 [mm] 51
    Weight approx. [kg] 0.275
    Thread diameter metric M M 8
    Working load limit single-leg with cross bar 0° [t] 0.3
    Working load limit single-leg with cross bar 90° [t] 0.3
    Working load limit 2-leg with cross bar 0° [t] 0.6
    Working load limit 2-leg with cross bar 90° [t] 0.6
    Working load limit 2-leg symmetrical 0°–45° [t] 0.42
    Working load limit 2-leg symmetrical 45°–60° [t] 0.3
    Working load limit 2-leg asymmetrical [t] 0.3
    Working load limit 3/4-leg symmetrical 0°–45° [t] 0.63
    Working load limit 3/4-leg symmetrical 45°–60° [t] 0.45
    Working load limit 3 or 4 leg asymmetrical [t] 0.3
  • 630
    M 10
    232401
    ALB LPR C806X-0.63T-M10X1.5 -EL15MM
    Reference no. 232401
    Working load limit [kg] 630
    Thread length K [mm] 15
    Outer wrench size AF1 [mm] 17
    Tightening torque MA [Nm] 60
    Body width B 57
    Clear height T [mm] 42
    Clearance W [mm] 34
    Ring section diameter F 10
    Base width U [mm] 24
    Base height J [mm] 41
    Clear span base stirrup T1 [mm] 35
    Clear span base stirrup T2 [mm] 51
    Weight approx. [kg] 0.29
    Thread diameter metric M M 10
    Working load limit single-leg with cross bar 0° [t] 0.63
    Working load limit single-leg with cross bar 90° [t] 0.63
    Working load limit 2-leg with cross bar 0° [t] 1.26
    Working load limit 2-leg with cross bar 90° [t] 1.2
    Working load limit 2-leg symmetrical 0°–45° [t] 0.88
    Working load limit 2-leg symmetrical 45°–60° [t] 0.63
    Working load limit 2-leg asymmetrical [t] 0.63
    Working load limit 3/4-leg symmetrical 0°–45° [t] 1.32
    Working load limit 3/4-leg symmetrical 45°–60° [t] 0.95
    Working load limit 3 or 4 leg asymmetrical [t] 0.63
  • 1350
    M 12
    701931
    ALB LPR C806XHT-1.35T-M12X1.75-EL23MM
    Reference no. 701931
    Working load limit [kg] 1350
    Thread length K [mm] 23
    Outer wrench size AF1 [mm] 19
    Body width B 66
    Clear height T [mm] 40
    Clearance W [mm] 38
    Ring section diameter F 13.5
    Base width U [mm] 30
    Base height J [mm] 50
    Clear span base stirrup T1 [mm] 28
    Clear span base stirrup T2 [mm] 52
    Weight approx. [kg] 0.5
    Thread diameter metric M M 12
    Working load limit single-leg with cross bar 0° [t] 1.35
    Working load limit single-leg with cross bar 90° [t] 1.35
    Working load limit 2-leg with cross bar 0° [t] 2.7
    Working load limit 2-leg with cross bar 90° [t] 2.7
    Working load limit 2-leg symmetrical 0°–45° [t] 1.89
    Working load limit 2-leg symmetrical 45°–60° [t] 1.35
    Working load limit 2-leg asymmetrical [t] 1.35
    Working load limit 3/4-leg symmetrical 0°–45° [t] 2.83
    Working load limit 3/4-leg symmetrical 45°–60° [t] 2.03
    Working load limit 3 or 4 leg asymmetrical [t] 1.35
  • 2000
    M 16
    701932
    ALB LPR C806XHT-2T-M16X2-EL24MM
    Reference no. 701932
    Working load limit [kg] 2000
    Thread length K [mm] 31
    Outer wrench size AF1 [mm] 30
    Body width B 87
    Clear height T [mm] 54
    Clearance W [mm] 55
    Ring section diameter F 16
    Base width U [mm] 48
    Base height J [mm] 68
    Clear span base stirrup T1 [mm] 36
    Clear span base stirrup T2 [mm] 71
    Weight approx. [kg] 0.51
    Thread diameter metric M M 16
    Working load limit single-leg with cross bar 0° [t] 3.5
    Working load limit single-leg with cross bar 90° [t] 3.5
    Working load limit 2-leg with cross bar 0° [t] 7
    Working load limit 2-leg with cross bar 90° [t] 7
    Working load limit 2-leg symmetrical 0°–45° [t] 4.9
    Working load limit 2-leg symmetrical 45°–60° [t] 3.5
    Working load limit 2-leg asymmetrical [t] 3.5
    Working load limit 3/4-leg symmetrical 0°–45° [t] 7.35
    Working load limit 3/4-leg symmetrical 45°–60° [t] 5.25
    Working load limit 3 or 4 leg asymmetrical [t] 3.5
  • 3500
    M 20
    701933
    ALB LPR C806XHT-3.5T-M20X2.5-EL31MM
    Reference no. 701933
    Working load limit [kg] 3500
    Thread length K [mm] 31
    Outer wrench size AF1 [mm] 30
    Body width B 87
    Clear height T [mm] 54
    Clearance W [mm] 55
    Ring section diameter F 16
    Base width U [mm] 48
    Base height J [mm] 68
    Clear span base stirrup T1 [mm] 36
    Clear span base stirrup T2 [mm] 71
    Weight approx. [kg] 1.25
    Thread diameter metric M M 20
    Working load limit single-leg with cross bar 0° [t] 3.5
    Working load limit single-leg with cross bar 90° [t] 3.5
    Working load limit 2-leg with cross bar 0° [t] 7
    Working load limit 2-leg with cross bar 90° [t] 7
    Working load limit 2-leg symmetrical 0°–45° [t] 4.9
    Working load limit 2-leg symmetrical 45°–60° [t] 3.5
    Working load limit 2-leg asymmetrical [t] 3.5
    Working load limit 3/4-leg symmetrical 0°–45° [t] 7.35
    Working load limit 3/4-leg symmetrical 45°–60° [t] 5.25
    Working load limit 3 or 4 leg asymmetrical [t] 3.5
  • 4000
    M 27
    232406
    ALB LPR C806X-4T-M27X3 -EL37MM
    Reference no. 232406
    Working load limit [kg] 4000
    Thread length K [mm] 37
    Outer wrench size AF1 [mm] 41
    Tightening torque MA [Nm] 400
    Body width B 109
    Clear height T [mm] 64
    Clearance W [mm] 66
    Ring section diameter F 22.5
    Base width U [mm] 54
    Base height J [mm] 91
    Clear span base stirrup T1 [mm] 47
    Clear span base stirrup T2 [mm] 86
    Weight approx. [kg] 3.15
    Thread diameter metric M M 27
    Working load limit single-leg with cross bar 0° [t] 4
    Working load limit single-leg with cross bar 90° [t] 4
    Working load limit 2-leg with cross bar 0° [t] 8
    Working load limit 2-leg with cross bar 90° [t] 8
    Working load limit 2-leg symmetrical 0°–45° [t] 5.6
    Working load limit 2-leg symmetrical 45°–60° [t] 4
    Working load limit 2-leg asymmetrical [t] 4
    Working load limit 3/4-leg symmetrical 0°–45° [t] 8.4
    Working load limit 3/4-leg symmetrical 45°–60° [t] 6
    Working load limit 3 or 4 leg asymmetrical [t] 4
  • 4500
    M 24
    701934
    ALB LPR C806XHT-4.5T-M24X3-EL37MM
    Reference no. 701934
    Working load limit [kg] 4500
    Thread length K [mm] 37
    Outer wrench size AF1 [mm] 36
    Body width B 87
    Clear height T [mm] 51
    Clearance W [mm] 55
    Ring section diameter F 16
    Base width U [mm] 48
    Base height J [mm] 68
    Clear span base stirrup T1 [mm] 36
    Clear span base stirrup T2 [mm] 71
    Weight approx. [kg] 1.3
    Thread diameter metric M M 24
    Working load limit single-leg with cross bar 0° [t] 4.5
    Working load limit single-leg with cross bar 90° [t] 4.5
    Working load limit 2-leg with cross bar 0° [t] 9
    Working load limit 2-leg with cross bar 90° [t] 9
    Working load limit 2-leg symmetrical 0°–45° [t] 6.3
    Working load limit 2-leg symmetrical 45°–60° [t] 4.5
    Working load limit 2-leg asymmetrical [t] 4.5
    Working load limit 3/4-leg symmetrical 0°–45° [t] 9.5
    Working load limit 3/4-leg symmetrical 45°–60° [t] 6.75
    Working load limit 3 or 4 leg asymmetrical [t] 4.5
  • 6700
    M 30
    701935
    ALB LPR C806XHT-6.7T-M30X3.5-EL45MM
    Reference no. 701935
    Working load limit [kg] 6700
    Thread length K [mm] 45
    Outer wrench size AF1 [mm] 46
    Tightening torque MA [Nm] 500
    Body width B 109
    Clear height T [mm] 62
    Clearance W [mm] 66
    Ring section diameter F 22.5
    Base width U [mm] 54
    Base height J [mm] 91
    Clear span base stirrup T1 [mm] 47
    Clear span base stirrup T2 [mm] 86
    Weight approx. [kg] 3.25
    Thread diameter metric M M 30
    Working load limit single-leg with cross bar 0° [t] 5
    Working load limit single-leg with cross bar 90° [t] 5
    Working load limit 2-leg with cross bar 0° [t] 10
    Working load limit 2-leg with cross bar 90° [t] 10
    Working load limit 2-leg symmetrical 0°–45° [t] 7
    Working load limit 2-leg symmetrical 45°–60° [t] 5
    Working load limit 2-leg asymmetrical [t] 5
    Working load limit 3/4-leg symmetrical 0°–45° [t] 10.5
    Working load limit 3/4-leg symmetrical 45°–60° [t] 7.5
    Working load limit 3 or 4 leg asymmetrical [t] 5
  • 7000
    M 36
    283927
    ALB LPR C806X-7T-M36X4 -EL50MM
    Reference no. 283927
    Working load limit [kg] 7000
    Thread length K [mm] 50
    Outer wrench size AF1 [mm] 55
    Tightening torque MA [Nm] 700
    Body width B 109
    Clear height T [mm] 60
    Clearance W [mm] 66
    Ring section diameter F 22.5
    Base width U [mm] 54
    Base height J [mm] 91
    Clear span base stirrup T1 [mm] 43
    Clear span base stirrup T2 [mm] 86
    Weight approx. [kg] 3.3
    Thread diameter metric M M 36
    Working load limit single-leg with cross bar 0° [t] 7
    Working load limit single-leg with cross bar 90° [t] 7
    Working load limit 2-leg with cross bar 0° [t] 14
    Working load limit 2-leg with cross bar 90° [t] 14
    Working load limit 2-leg symmetrical 0°–45° [t] 9.8
    Working load limit 2-leg symmetrical 45°–60° [t] 7
    Working load limit 2-leg asymmetrical [t] 7
    Working load limit 3/4-leg symmetrical 0°–45° [t] 14.7
    Working load limit 3/4-leg symmetrical 45°–60° [t] 10.4
    Working load limit 3 or 4 leg asymmetrical [t] 7
  • 8000
    M 36
    232408
    ALB LPR C806XHT-8T-M36X4 -EL59MM
    Reference no. 232408
    Working load limit [kg] 8000
    Thread length K [mm] 59
    Outer wrench size AF1 [mm] 55
    Tightening torque MA [Nm] 800
    Body width B 136
    Clear height T [mm] 88
    Clearance W [mm] 78
    Ring section diameter F 28
    Base width U [mm] 62
    Base height J [mm] 108
    Clear span base stirrup T1 [mm] 74
    Clear span base stirrup T2 [mm] 115
    Weight approx. [kg] 5.9
    Thread diameter metric M M 36
    Working load limit single-leg with cross bar 0° [t] 8
    Working load limit single-leg with cross bar 90° [t] 8
    Working load limit 2-leg with cross bar 0° [t] 16
    Working load limit 2-leg with cross bar 90° [t] 16
    Working load limit 2-leg symmetrical 0°–45° [t] 11.2
    Working load limit 2-leg symmetrical 45°–60° [t] 8
    Working load limit 2-leg asymmetrical [t] 8
    Working load limit 3/4-leg symmetrical 0°–45° [t] 16.8
    Working load limit 3/4-leg symmetrical 45°–60° [t] 12
    Working load limit 3 or 4 leg asymmetrical [t] 8
  • 10000
    M 42
    283928
    ALB LPR C806X-10T-M42X4.5 -EL75MM
    Reference no. 283928
    Working load limit [kg] 10000
    Thread length K [mm] 75
    Outer wrench size AF1 [mm] 65
    Tightening torque MA [Nm] 925
    Body width B 136
    Clear height T [mm] 86
    Clearance W [mm] 78
    Ring section diameter F 28
    Base width U [mm] 62
    Base height J [mm] 108
    Clear span base stirrup T1 [mm] 70
    Clear span base stirrup T2 [mm] 115
    Weight approx. [kg] 6.5
    Thread diameter metric M M 42
    Working load limit single-leg with cross bar 0° [t] 10
    Working load limit single-leg with cross bar 90° [t] 10
    Working load limit 2-leg with cross bar 0° [t] 20
    Working load limit 2-leg with cross bar 90° [t] 20
    Working load limit 2-leg symmetrical 0°–45° [t] 14
    Working load limit 2-leg symmetrical 45°–60° [t] 10
    Working load limit 2-leg asymmetrical [t] 10
    Working load limit 3/4-leg symmetrical 0°–45° [t] 21
    Working load limit 3/4-leg symmetrical 45°–60° [t] 15
    Working load limit 3 or 4 leg asymmetrical [t] 10
  • 15000
    M 42
    232409
    ALB LPR C806XHT-15T-M42X4.5 -EL63MM
    Reference no. 232409
    Working load limit [kg] 15000
    Thread length K [mm] 63
    Outer wrench size AF1 [mm] 65
    Tightening torque MA [Nm] 1500
    Body width B 169
    Clear height T [mm] 121
    Clearance W [mm] 97
    Ring section diameter F 36
    Base width U [mm] 68
    Base height J [mm] 131
    Clear span base stirrup T1 [mm] 97
    Clear span base stirrup T2 [mm] 151
    Weight approx. [kg] 11.2
    Thread diameter metric M M 42
    Working load limit single-leg with cross bar 0° [t] 15
    Working load limit single-leg with cross bar 90° [t] 15
    Working load limit 2-leg with cross bar 0° [t] 30
    Working load limit 2-leg with cross bar 90° [t] 30
    Working load limit 2-leg symmetrical 0°–45° [t] 21
    Working load limit 2-leg symmetrical 45°–60° [t] 15
    Working load limit 2-leg asymmetrical [t] 15
    Working load limit 3/4-leg symmetrical 0°–45° [t] 31.5
    Working load limit 3/4-leg symmetrical 45°–60° [t] 22.5
    Working load limit 3 or 4 leg asymmetrical [t] 15
  • 20000
    M 48
    232410
    ALB LPR C806XHT-20T-M48X5 -EL71MM
    Reference no. 232410
    Working load limit [kg] 20000
    Thread length K [mm] 71
    Outer wrench size AF1 [mm] 75
    Tightening torque MA [Nm] 2000
    Body width B 169
    Clear height T [mm] 117
    Clearance W [mm] 97
    Ring section diameter F 36
    Base width U [mm] 68
    Base height J [mm] 131
    Clear span base stirrup T1 [mm] 93
    Clear span base stirrup T2 [mm] 151
    Weight approx. [kg] 11.6
    Thread diameter metric M M 48
    Working load limit single-leg with cross bar 0° [t] 20
    Working load limit single-leg with cross bar 90° [t] 20
    Working load limit 2-leg with cross bar 0° [t] 40
    Working load limit 2-leg with cross bar 90° [t] 40
    Working load limit 2-leg symmetrical 0°–45° [t] 28
    Working load limit 2-leg symmetrical 45°–60° [t] 20
    Working load limit 2-leg asymmetrical [t] 20
    Working load limit 3/4-leg symmetrical 0°–45° [t] 42
    Working load limit 3/4-leg symmetrical 45°–60° [t] 30
    Working load limit 3 or 4 leg asymmetrical [t] 20
Working load limit [kg] 300
Thread diameter metric M M 8
Reference no. 232400
  • Details
    ALB LPR C806X-0.3T-M8X1.25 -EL15MM
    Reference no. 232400
    Working load limit [kg] 300
    Thread length K [mm] 15
    Outer wrench size AF1 [mm] 13
    Tightening torque MA [Nm] 30
    Body width B 57
    Clear height T [mm] 43
    Clearance W [mm] 34
    Ring section diameter F 10
    Base width U [mm] 24
    Base height J [mm] 41
    Clear span base stirrup T1 [mm] 35
    Clear span base stirrup T2 [mm] 51
    Weight approx. [kg] 0.275
    Thread diameter metric M M 8
    Working load limit single-leg with cross bar 0° [t] 0.3
    Working load limit single-leg with cross bar 90° [t] 0.3
    Working load limit 2-leg with cross bar 0° [t] 0.6
    Working load limit 2-leg with cross bar 90° [t] 0.6
    Working load limit 2-leg symmetrical 0°–45° [t] 0.42
    Working load limit 2-leg symmetrical 45°–60° [t] 0.3
    Working load limit 2-leg asymmetrical [t] 0.3
    Working load limit 3/4-leg symmetrical 0°–45° [t] 0.63
    Working load limit 3/4-leg symmetrical 45°–60° [t] 0.45
    Working load limit 3 or 4 leg asymmetrical [t] 0.3
Working load limit [kg] 630
Thread diameter metric M M 10
Reference no. 232401
  • Details
    ALB LPR C806X-0.63T-M10X1.5 -EL15MM
    Reference no. 232401
    Working load limit [kg] 630
    Thread length K [mm] 15
    Outer wrench size AF1 [mm] 17
    Tightening torque MA [Nm] 60
    Body width B 57
    Clear height T [mm] 42
    Clearance W [mm] 34
    Ring section diameter F 10
    Base width U [mm] 24
    Base height J [mm] 41
    Clear span base stirrup T1 [mm] 35
    Clear span base stirrup T2 [mm] 51
    Weight approx. [kg] 0.29
    Thread diameter metric M M 10
    Working load limit single-leg with cross bar 0° [t] 0.63
    Working load limit single-leg with cross bar 90° [t] 0.63
    Working load limit 2-leg with cross bar 0° [t] 1.26
    Working load limit 2-leg with cross bar 90° [t] 1.2
    Working load limit 2-leg symmetrical 0°–45° [t] 0.88
    Working load limit 2-leg symmetrical 45°–60° [t] 0.63
    Working load limit 2-leg asymmetrical [t] 0.63
    Working load limit 3/4-leg symmetrical 0°–45° [t] 1.32
    Working load limit 3/4-leg symmetrical 45°–60° [t] 0.95
    Working load limit 3 or 4 leg asymmetrical [t] 0.63
Working load limit [kg] 1350
Thread diameter metric M M 12
Reference no. 701931
  • Details
    ALB LPR C806XHT-1.35T-M12X1.75-EL23MM
    Reference no. 701931
    Working load limit [kg] 1350
    Thread length K [mm] 23
    Outer wrench size AF1 [mm] 19
    Body width B 66
    Clear height T [mm] 40
    Clearance W [mm] 38
    Ring section diameter F 13.5
    Base width U [mm] 30
    Base height J [mm] 50
    Clear span base stirrup T1 [mm] 28
    Clear span base stirrup T2 [mm] 52
    Weight approx. [kg] 0.5
    Thread diameter metric M M 12
    Working load limit single-leg with cross bar 0° [t] 1.35
    Working load limit single-leg with cross bar 90° [t] 1.35
    Working load limit 2-leg with cross bar 0° [t] 2.7
    Working load limit 2-leg with cross bar 90° [t] 2.7
    Working load limit 2-leg symmetrical 0°–45° [t] 1.89
    Working load limit 2-leg symmetrical 45°–60° [t] 1.35
    Working load limit 2-leg asymmetrical [t] 1.35
    Working load limit 3/4-leg symmetrical 0°–45° [t] 2.83
    Working load limit 3/4-leg symmetrical 45°–60° [t] 2.03
    Working load limit 3 or 4 leg asymmetrical [t] 1.35
Working load limit [kg] 2000
Thread diameter metric M M 16
Reference no. 701932
  • Details
    ALB LPR C806XHT-2T-M16X2-EL24MM
    Reference no. 701932
    Working load limit [kg] 2000
    Thread length K [mm] 31
    Outer wrench size AF1 [mm] 30
    Body width B 87
    Clear height T [mm] 54
    Clearance W [mm] 55
    Ring section diameter F 16
    Base width U [mm] 48
    Base height J [mm] 68
    Clear span base stirrup T1 [mm] 36
    Clear span base stirrup T2 [mm] 71
    Weight approx. [kg] 0.51
    Thread diameter metric M M 16
    Working load limit single-leg with cross bar 0° [t] 3.5
    Working load limit single-leg with cross bar 90° [t] 3.5
    Working load limit 2-leg with cross bar 0° [t] 7
    Working load limit 2-leg with cross bar 90° [t] 7
    Working load limit 2-leg symmetrical 0°–45° [t] 4.9
    Working load limit 2-leg symmetrical 45°–60° [t] 3.5
    Working load limit 2-leg asymmetrical [t] 3.5
    Working load limit 3/4-leg symmetrical 0°–45° [t] 7.35
    Working load limit 3/4-leg symmetrical 45°–60° [t] 5.25
    Working load limit 3 or 4 leg asymmetrical [t] 3.5
Working load limit [kg] 3500
Thread diameter metric M M 20
Reference no. 701933
  • Details
    ALB LPR C806XHT-3.5T-M20X2.5-EL31MM
    Reference no. 701933
    Working load limit [kg] 3500
    Thread length K [mm] 31
    Outer wrench size AF1 [mm] 30
    Body width B 87
    Clear height T [mm] 54
    Clearance W [mm] 55
    Ring section diameter F 16
    Base width U [mm] 48
    Base height J [mm] 68
    Clear span base stirrup T1 [mm] 36
    Clear span base stirrup T2 [mm] 71
    Weight approx. [kg] 1.25
    Thread diameter metric M M 20
    Working load limit single-leg with cross bar 0° [t] 3.5
    Working load limit single-leg with cross bar 90° [t] 3.5
    Working load limit 2-leg with cross bar 0° [t] 7
    Working load limit 2-leg with cross bar 90° [t] 7
    Working load limit 2-leg symmetrical 0°–45° [t] 4.9
    Working load limit 2-leg symmetrical 45°–60° [t] 3.5
    Working load limit 2-leg asymmetrical [t] 3.5
    Working load limit 3/4-leg symmetrical 0°–45° [t] 7.35
    Working load limit 3/4-leg symmetrical 45°–60° [t] 5.25
    Working load limit 3 or 4 leg asymmetrical [t] 3.5
Working load limit [kg] 4000
Thread diameter metric M M 27
Reference no. 232406
  • Details
    ALB LPR C806X-4T-M27X3 -EL37MM
    Reference no. 232406
    Working load limit [kg] 4000
    Thread length K [mm] 37
    Outer wrench size AF1 [mm] 41
    Tightening torque MA [Nm] 400
    Body width B 109
    Clear height T [mm] 64
    Clearance W [mm] 66
    Ring section diameter F 22.5
    Base width U [mm] 54
    Base height J [mm] 91
    Clear span base stirrup T1 [mm] 47
    Clear span base stirrup T2 [mm] 86
    Weight approx. [kg] 3.15
    Thread diameter metric M M 27
    Working load limit single-leg with cross bar 0° [t] 4
    Working load limit single-leg with cross bar 90° [t] 4
    Working load limit 2-leg with cross bar 0° [t] 8
    Working load limit 2-leg with cross bar 90° [t] 8
    Working load limit 2-leg symmetrical 0°–45° [t] 5.6
    Working load limit 2-leg symmetrical 45°–60° [t] 4
    Working load limit 2-leg asymmetrical [t] 4
    Working load limit 3/4-leg symmetrical 0°–45° [t] 8.4
    Working load limit 3/4-leg symmetrical 45°–60° [t] 6
    Working load limit 3 or 4 leg asymmetrical [t] 4
Working load limit [kg] 4500
Thread diameter metric M M 24
Reference no. 701934
  • Details
    ALB LPR C806XHT-4.5T-M24X3-EL37MM
    Reference no. 701934
    Working load limit [kg] 4500
    Thread length K [mm] 37
    Outer wrench size AF1 [mm] 36
    Body width B 87
    Clear height T [mm] 51
    Clearance W [mm] 55
    Ring section diameter F 16
    Base width U [mm] 48
    Base height J [mm] 68
    Clear span base stirrup T1 [mm] 36
    Clear span base stirrup T2 [mm] 71
    Weight approx. [kg] 1.3
    Thread diameter metric M M 24
    Working load limit single-leg with cross bar 0° [t] 4.5
    Working load limit single-leg with cross bar 90° [t] 4.5
    Working load limit 2-leg with cross bar 0° [t] 9
    Working load limit 2-leg with cross bar 90° [t] 9
    Working load limit 2-leg symmetrical 0°–45° [t] 6.3
    Working load limit 2-leg symmetrical 45°–60° [t] 4.5
    Working load limit 2-leg asymmetrical [t] 4.5
    Working load limit 3/4-leg symmetrical 0°–45° [t] 9.5
    Working load limit 3/4-leg symmetrical 45°–60° [t] 6.75
    Working load limit 3 or 4 leg asymmetrical [t] 4.5
Working load limit [kg] 6700
Thread diameter metric M M 30
Reference no. 701935
  • Details
    ALB LPR C806XHT-6.7T-M30X3.5-EL45MM
    Reference no. 701935
    Working load limit [kg] 6700
    Thread length K [mm] 45
    Outer wrench size AF1 [mm] 46
    Tightening torque MA [Nm] 500
    Body width B 109
    Clear height T [mm] 62
    Clearance W [mm] 66
    Ring section diameter F 22.5
    Base width U [mm] 54
    Base height J [mm] 91
    Clear span base stirrup T1 [mm] 47
    Clear span base stirrup T2 [mm] 86
    Weight approx. [kg] 3.25
    Thread diameter metric M M 30
    Working load limit single-leg with cross bar 0° [t] 5
    Working load limit single-leg with cross bar 90° [t] 5
    Working load limit 2-leg with cross bar 0° [t] 10
    Working load limit 2-leg with cross bar 90° [t] 10
    Working load limit 2-leg symmetrical 0°–45° [t] 7
    Working load limit 2-leg symmetrical 45°–60° [t] 5
    Working load limit 2-leg asymmetrical [t] 5
    Working load limit 3/4-leg symmetrical 0°–45° [t] 10.5
    Working load limit 3/4-leg symmetrical 45°–60° [t] 7.5
    Working load limit 3 or 4 leg asymmetrical [t] 5
Working load limit [kg] 7000
Thread diameter metric M M 36
Reference no. 283927
  • Details
    ALB LPR C806X-7T-M36X4 -EL50MM
    Reference no. 283927
    Working load limit [kg] 7000
    Thread length K [mm] 50
    Outer wrench size AF1 [mm] 55
    Tightening torque MA [Nm] 700
    Body width B 109
    Clear height T [mm] 60
    Clearance W [mm] 66
    Ring section diameter F 22.5
    Base width U [mm] 54
    Base height J [mm] 91
    Clear span base stirrup T1 [mm] 43
    Clear span base stirrup T2 [mm] 86
    Weight approx. [kg] 3.3
    Thread diameter metric M M 36
    Working load limit single-leg with cross bar 0° [t] 7
    Working load limit single-leg with cross bar 90° [t] 7
    Working load limit 2-leg with cross bar 0° [t] 14
    Working load limit 2-leg with cross bar 90° [t] 14
    Working load limit 2-leg symmetrical 0°–45° [t] 9.8
    Working load limit 2-leg symmetrical 45°–60° [t] 7
    Working load limit 2-leg asymmetrical [t] 7
    Working load limit 3/4-leg symmetrical 0°–45° [t] 14.7
    Working load limit 3/4-leg symmetrical 45°–60° [t] 10.4
    Working load limit 3 or 4 leg asymmetrical [t] 7
Working load limit [kg] 8000
Thread diameter metric M M 36
Reference no. 232408
  • Details
    ALB LPR C806XHT-8T-M36X4 -EL59MM
    Reference no. 232408
    Working load limit [kg] 8000
    Thread length K [mm] 59
    Outer wrench size AF1 [mm] 55
    Tightening torque MA [Nm] 800
    Body width B 136
    Clear height T [mm] 88
    Clearance W [mm] 78
    Ring section diameter F 28
    Base width U [mm] 62
    Base height J [mm] 108
    Clear span base stirrup T1 [mm] 74
    Clear span base stirrup T2 [mm] 115
    Weight approx. [kg] 5.9
    Thread diameter metric M M 36
    Working load limit single-leg with cross bar 0° [t] 8
    Working load limit single-leg with cross bar 90° [t] 8
    Working load limit 2-leg with cross bar 0° [t] 16
    Working load limit 2-leg with cross bar 90° [t] 16
    Working load limit 2-leg symmetrical 0°–45° [t] 11.2
    Working load limit 2-leg symmetrical 45°–60° [t] 8
    Working load limit 2-leg asymmetrical [t] 8
    Working load limit 3/4-leg symmetrical 0°–45° [t] 16.8
    Working load limit 3/4-leg symmetrical 45°–60° [t] 12
    Working load limit 3 or 4 leg asymmetrical [t] 8
Working load limit [kg] 10000
Thread diameter metric M M 42
Reference no. 283928
  • Details
    ALB LPR C806X-10T-M42X4.5 -EL75MM
    Reference no. 283928
    Working load limit [kg] 10000
    Thread length K [mm] 75
    Outer wrench size AF1 [mm] 65
    Tightening torque MA [Nm] 925
    Body width B 136
    Clear height T [mm] 86
    Clearance W [mm] 78
    Ring section diameter F 28
    Base width U [mm] 62
    Base height J [mm] 108
    Clear span base stirrup T1 [mm] 70
    Clear span base stirrup T2 [mm] 115
    Weight approx. [kg] 6.5
    Thread diameter metric M M 42
    Working load limit single-leg with cross bar 0° [t] 10
    Working load limit single-leg with cross bar 90° [t] 10
    Working load limit 2-leg with cross bar 0° [t] 20
    Working load limit 2-leg with cross bar 90° [t] 20
    Working load limit 2-leg symmetrical 0°–45° [t] 14
    Working load limit 2-leg symmetrical 45°–60° [t] 10
    Working load limit 2-leg asymmetrical [t] 10
    Working load limit 3/4-leg symmetrical 0°–45° [t] 21
    Working load limit 3/4-leg symmetrical 45°–60° [t] 15
    Working load limit 3 or 4 leg asymmetrical [t] 10
Working load limit [kg] 15000
Thread diameter metric M M 42
Reference no. 232409
  • Details
    ALB LPR C806XHT-15T-M42X4.5 -EL63MM
    Reference no. 232409
    Working load limit [kg] 15000
    Thread length K [mm] 63
    Outer wrench size AF1 [mm] 65
    Tightening torque MA [Nm] 1500
    Body width B 169
    Clear height T [mm] 121
    Clearance W [mm] 97
    Ring section diameter F 36
    Base width U [mm] 68
    Base height J [mm] 131
    Clear span base stirrup T1 [mm] 97
    Clear span base stirrup T2 [mm] 151
    Weight approx. [kg] 11.2
    Thread diameter metric M M 42
    Working load limit single-leg with cross bar 0° [t] 15
    Working load limit single-leg with cross bar 90° [t] 15
    Working load limit 2-leg with cross bar 0° [t] 30
    Working load limit 2-leg with cross bar 90° [t] 30
    Working load limit 2-leg symmetrical 0°–45° [t] 21
    Working load limit 2-leg symmetrical 45°–60° [t] 15
    Working load limit 2-leg asymmetrical [t] 15
    Working load limit 3/4-leg symmetrical 0°–45° [t] 31.5
    Working load limit 3/4-leg symmetrical 45°–60° [t] 22.5
    Working load limit 3 or 4 leg asymmetrical [t] 15
Working load limit [kg] 20000
Thread diameter metric M M 48
Reference no. 232410
  • Details
    ALB LPR C806XHT-20T-M48X5 -EL71MM
    Reference no. 232410
    Working load limit [kg] 20000
    Thread length K [mm] 71
    Outer wrench size AF1 [mm] 75
    Tightening torque MA [Nm] 2000
    Body width B 169
    Clear height T [mm] 117
    Clearance W [mm] 97
    Ring section diameter F 36
    Base width U [mm] 68
    Base height J [mm] 131
    Clear span base stirrup T1 [mm] 93
    Clear span base stirrup T2 [mm] 151
    Weight approx. [kg] 11.6
    Thread diameter metric M M 48
    Working load limit single-leg with cross bar 0° [t] 20
    Working load limit single-leg with cross bar 90° [t] 20
    Working load limit 2-leg with cross bar 0° [t] 40
    Working load limit 2-leg with cross bar 90° [t] 40
    Working load limit 2-leg symmetrical 0°–45° [t] 28
    Working load limit 2-leg symmetrical 45°–60° [t] 20
    Working load limit 2-leg asymmetrical [t] 20
    Working load limit 3/4-leg symmetrical 0°–45° [t] 42
    Working load limit 3/4-leg symmetrical 45°–60° [t] 30
    Working load limit 3 or 4 leg asymmetrical [t] 20
Downloads

Design / Engineering

CAD 3D

Download
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Tel. +49 8331 937-9623
Fax +49 8331 937-380
E-Mail verkauf-azs@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
 Service centre
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Academy
Tel. +49 8331 937-462
E-Mail academy@pfeifer.de
Web www.pfeifer.info
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
France
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +33 676 54 42 68 / +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Poland
 PFEIFER Technika Linowa i Dźwigowa Sp. z o.o.
ul. Wrocławska 68
55-330 Krępice k/Wrocławia
Tel. +48 71 30 23 700
E-Mail info@pfeifer.pl
Web www.pfeifer.pl
 Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
