Pro eye bolt

Pro eye bolt

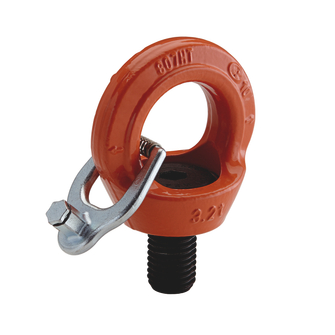

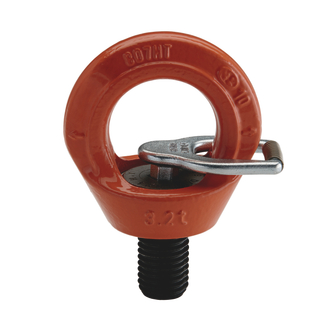

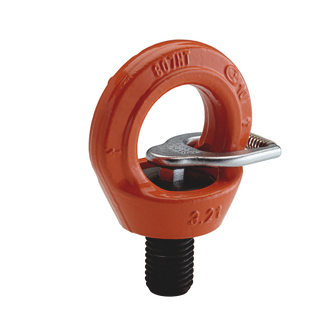

High-quality rotating eye bolt with integrated installation spanner plate for quick and easy installation. Intelligent alternative to the conventional eye bolt.
Technical data

Quality grade

  • 10

Operating temperature

  • –40 °C to +200 °C
  • reduced carrying capacities outside this range

Standard

  • EN 1677-1

Certification

  • H-stamp

Marking

  • Batch number

Safety factor

  • 4

Rotation

  • 360° (not under load)

Tilting

  • rigid
Safety

Please note the admissible load angle.
Options
  • A selection of the options available on request can be found below. Please contact us for your individual offer!

Thread options

  • with internal thread (caution: other dimensions of the load ring)
  • with special thread length (caution: other dimensions of the load ring)
  • with UNC thread

Labelling options

  • with RFID chip
  • with individual serial number or labelling
Product variants
Working load limit [kg]
Thread diameter metric M
Reference no.
Details
  • 300
    M 8
    291008
    ARS DRP C807XHT-0.3T-M8X1.25-EL12MM
    Reference no. 291008
    Working load limit [kg] 300

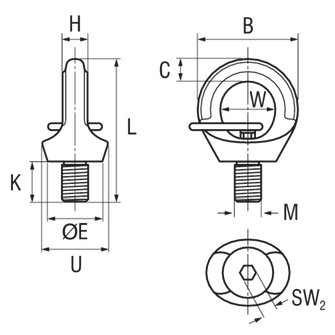

    Overall length L [mm] 58
    Thread length K [mm] 12
    Inner wrench size AF2 [mm] 6
    Tightening torque MA [Nm] 8
    Body width B 47
    Stirrup width H 9
    Stirrup height C [mm] 11
    Ø of contact surface E 25
    Clearance W [mm] 25
    Base width U [mm] 30
    Weight approx. [kg] 0.12
    Thread diameter metric M M 8
    Working load limit single-leg with cross bar 0° [t] 1
    Working load limit single-leg with cross bar 90° [t] 0.3
    Working load limit 2-leg with cross bar 0° [t] 2
    Working load limit 2-leg with cross bar 90° [t] 0.6
    Working load limit 2-leg symmetrical 0°–45° [t] 0.42
    Working load limit 2-leg symmetrical 45°–60° [t] 0.3
    Working load limit 2-leg asymmetrical [t] 0.3
    Working load limit 3/4-leg symmetrical 0°–45° [t] 0.63
    Working load limit 3/4-leg symmetrical 45°–60° [t] 0.45
    Working load limit 3 or 4 leg asymmetrical [t] 0.3
  • 400
    M 10
    291009
    ARS DRP C807XHT-0.4T-M10X1.5-EL16MM
    Reference no. 291009
    Working load limit [kg] 400
    Overall length L [mm] 61
    Thread length K [mm] 15
    Inner wrench size AF2 [mm] 6
    Tightening torque MA [Nm] 16
    Body width B 47
    Stirrup width H 9
    Stirrup height C [mm] 11
    Ø of contact surface E 25
    Clearance W [mm] 25
    Base width U [mm] 30
    Weight approx. [kg] 0.18
    Thread diameter metric M M 10
    Working load limit single-leg with cross bar 0° [t] 1
    Working load limit single-leg with cross bar 90° [t] 0.4
    Working load limit 2-leg with cross bar 0° [t] 2
    Working load limit 2-leg with cross bar 90° [t] 0.8
    Working load limit 2-leg symmetrical 0°–45° [t] 0.56
    Working load limit 2-leg symmetrical 45°–60° [t] 0.4
    Working load limit 2-leg asymmetrical [t] 0.4
    Working load limit 3/4-leg symmetrical 0°–45° [t] 0.84
    Working load limit 3/4-leg symmetrical 45°–60° [t] 0.6
    Working load limit 3 or 4 leg asymmetrical [t] 0.4
  • 750
    M 12
    291010
    ARS DRP C807XHT-0.75T-M12X1.75-EL18MM
    Reference no. 291010
    Working load limit [kg] 750
    Overall length L [mm] 73.5
    Thread length K [mm] 18
    Inner wrench size AF2 [mm] 7
    Tightening torque MA [Nm] 25
    Body width B 55.5
    Stirrup width H 11.5
    Stirrup height C [mm] 12.5
    Ø of contact surface E 30
    Clearance W [mm] 30
    Base width U [mm] 36.5
    Weight approx. [kg] 0.2
    Thread diameter metric M M 12
    Working load limit single-leg with cross bar 0° [t] 2
    Working load limit single-leg with cross bar 90° [t] 0.75
    Working load limit 2-leg with cross bar 0° [t] 4
    Working load limit 2-leg with cross bar 90° [t] 1.5
    Working load limit 2-leg symmetrical 0°–45° [t] 1
    Working load limit 2-leg symmetrical 45°–60° [t] 0.75
    Working load limit 2-leg asymmetrical [t] 0.75
    Working load limit 3/4-leg symmetrical 0°–45° [t] 1.6
    Working load limit 3/4-leg symmetrical 45°–60° [t] 1.12
    Working load limit 3 or 4 leg asymmetrical [t] 0.75
  • 750
    M 14
    291011
    ARS DRP C807XHT-0.75T-M14X2-EL18MM
    Reference no. 291011
    Working load limit [kg] 750
    Overall length L [mm] 73.5
    Thread length K [mm] 18
    Inner wrench size AF2 [mm] 7
    Tightening torque MA [Nm] 30
    Body width B 55.5
    Stirrup width H 11.5
    Stirrup height C [mm] 12.5
    Ø of contact surface E 30
    Clearance W [mm] 30
    Base width U [mm] 36.5
    Weight approx. [kg] 0.2
    Thread diameter metric M M 14
    Working load limit single-leg with cross bar 0° [t] 2
    Working load limit single-leg with cross bar 90° [t] 0.75
    Working load limit 2-leg with cross bar 0° [t] 4
    Working load limit 2-leg with cross bar 90° [t] 1.5
    Working load limit 2-leg symmetrical 0°–45° [t] 1
    Working load limit 2-leg symmetrical 45°–60° [t] 0.75
    Working load limit 2-leg asymmetrical [t] 0.75
    Working load limit 3/4-leg symmetrical 0°–45° [t] 1.6
    Working load limit 3/4-leg symmetrical 45°–60° [t] 1.12
    Working load limit 3 or 4 leg asymmetrical [t] 0.75
  • 1500
    M 16
    291012
    ARS DRP C807XHT-1.5T-M16X2-EL24MM
    Reference no. 291012
    Working load limit [kg] 1500
    Overall length L [mm] 88
    Thread length K [mm] 24
    Inner wrench size AF2 [mm] 8
    Tightening torque MA [Nm] 60
    Body width B 64.5
    Stirrup width H 15.7
    Stirrup height C [mm] 14.5
    Ø of contact surface E 35
    Clearance W [mm] 35
    Base width U [mm] 41.8
    Weight approx. [kg] 0.35
    Thread diameter metric M M 16
    Working load limit single-leg with cross bar 0° [t] 4
    Working load limit single-leg with cross bar 90° [t] 1.5
    Working load limit 2-leg with cross bar 0° [t] 8
    Working load limit 2-leg with cross bar 90° [t] 3
    Working load limit 2-leg symmetrical 0°–45° [t] 2
    Working load limit 2-leg symmetrical 45°–60° [t] 1.5
    Working load limit 2-leg asymmetrical [t] 1.5
    Working load limit 3/4-leg symmetrical 0°–45° [t] 3.15
    Working load limit 3/4-leg symmetrical 45°–60° [t] 2.25
    Working load limit 3 or 4 leg asymmetrical [t] 1.5
  • 1500
    M 18
    291013
    ARS DRP C807XHT-1.5T-M18X2.5-EL24MM
    Reference no. 291013
    Working load limit [kg] 1500
    Overall length L [mm] 88
    Thread length K [mm] 24
    Inner wrench size AF2 [mm] 8
    Tightening torque MA [Nm] 70
    Body width B 64.5
    Stirrup width H 15.7
    Stirrup height C [mm] 14.5
    Ø of contact surface E 35
    Clearance W [mm] 35
    Base width U [mm] 41.8
    Weight approx. [kg] 0.35
    Thread diameter metric M M 18
    Working load limit single-leg with cross bar 0° [t] 4
    Working load limit single-leg with cross bar 90° [t] 1.5
    Working load limit 2-leg with cross bar 0° [t] 8
    Working load limit 2-leg with cross bar 90° [t] 3
    Working load limit 2-leg symmetrical 0°–45° [t] 2
    Working load limit 2-leg symmetrical 45°–60° [t] 1.5
    Working load limit 2-leg asymmetrical [t] 1.5
    Working load limit 3/4-leg symmetrical 0°–45° [t] 3.15
    Working load limit 3/4-leg symmetrical 45°–60° [t] 2.25
    Working load limit 3 or 4 leg asymmetrical [t] 1.5
  • 2300
    M 20
    291014
    ARS DRP C807XHT-2.3T-M20X2.5-EL30MM
    Reference no. 291014
    Working load limit [kg] 2300
    Overall length L [mm] 104
    Thread length K [mm] 30
    Inner wrench size AF2 [mm] 10
    Tightening torque MA [Nm] 110
    Body width B 74.5
    Stirrup width H 18
    Stirrup height C [mm] 16
    Ø of contact surface E 42
    Clearance W [mm] 40
    Base width U [mm] 51.5
    Weight approx. [kg] 0.6
    Thread diameter metric M M 20
    Working load limit single-leg with cross bar 0° [t] 6
    Working load limit single-leg with cross bar 90° [t] 2.3
    Working load limit 2-leg with cross bar 0° [t] 12
    Working load limit 2-leg with cross bar 90° [t] 4.6
    Working load limit 2-leg symmetrical 0°–45° [t] 3.22
    Working load limit 2-leg symmetrical 45°–60° [t] 2.3
    Working load limit 2-leg asymmetrical [t] 2.3
    Working load limit 3/4-leg symmetrical 0°–45° [t] 4.83
    Working load limit 3/4-leg symmetrical 45°–60° [t] 3.45
    Working load limit 3 or 4 leg asymmetrical [t] 2.3
  • 2300
    M 22
    291015
    ARS DRP C807XHT-2.3T-M22X2.5-EL30MM
    Reference no. 291015
    Working load limit [kg] 2300
    Overall length L [mm] 104
    Thread length K [mm] 30
    Inner wrench size AF2 [mm] 10
    Tightening torque MA [Nm] 120
    Body width B 74.5
    Stirrup width H 18
    Stirrup height C [mm] 16
    Ø of contact surface E 42
    Clearance W [mm] 40
    Base width U [mm] 51.5
    Weight approx. [kg] 0.6
    Thread diameter metric M M 22
    Working load limit single-leg with cross bar 0° [t] 6
    Working load limit single-leg with cross bar 90° [t] 2.3
    Working load limit 2-leg with cross bar 0° [t] 12
    Working load limit 2-leg with cross bar 90° [t] 4.6
    Working load limit 2-leg symmetrical 0°–45° [t] 3.22
    Working load limit 2-leg symmetrical 45°–60° [t] 2.3
    Working load limit 2-leg asymmetrical [t] 2.3
    Working load limit 3/4-leg symmetrical 0°–45° [t] 4.83
    Working load limit 3/4-leg symmetrical 45°–60° [t] 3.45
    Working load limit 3 or 4 leg asymmetrical [t] 2.3
  • 3200
    M 24
    291016
    ARS DRP C807XHT-3.2T-M24X3-EL36MM
    Reference no. 291016
    Working load limit [kg] 3200
    Overall length L [mm] 125.5
    Thread length K [mm] 36
    Inner wrench size AF2 [mm] 12
    Tightening torque MA [Nm] 195
    Body width B 90
    Stirrup width H 22
    Stirrup height C [mm] 20.5
    Ø of contact surface E 50
    Clearance W [mm] 49
    Base width U [mm] 58
    Weight approx. [kg] 1
    Thread diameter metric M M 24
    Working load limit single-leg with cross bar 0° [t] 8
    Working load limit single-leg with cross bar 90° [t] 3.2
    Working load limit 2-leg with cross bar 0° [t] 16
    Working load limit 2-leg with cross bar 90° [t] 6.4
    Working load limit 2-leg symmetrical 0°–45° [t] 4.48
    Working load limit 2-leg symmetrical 45°–60° [t] 3.2
    Working load limit 2-leg asymmetrical [t] 3.2
    Working load limit 3/4-leg symmetrical 0°–45° [t] 6.7
    Working load limit 3/4-leg symmetrical 45°–60° [t] 4.8
    Working load limit 3 or 4 leg asymmetrical [t] 3.2
  • 3200
    M 27
    291017
    ARS DRP C807XHT-3.2T-M27X3-EL36MM
    Reference no. 291017
    Working load limit [kg] 3200
    Overall length L [mm] 125.5
    Thread length K [mm] 36
    Inner wrench size AF2 [mm] 12
    Tightening torque MA [Nm] 240
    Body width B 90
    Stirrup width H 22
    Stirrup height C [mm] 20.5
    Ø of contact surface E 50
    Clearance W [mm] 49
    Base width U [mm] 58
    Weight approx. [kg] 1
    Thread diameter metric M M 27
    Working load limit single-leg with cross bar 0° [t] 8
    Working load limit single-leg with cross bar 90° [t] 3.2
    Working load limit 2-leg with cross bar 0° [t] 16
    Working load limit 2-leg with cross bar 90° [t] 6.4
    Working load limit 2-leg symmetrical 0°–45° [t] 4.48
    Working load limit 2-leg symmetrical 45°–60° [t] 3.2
    Working load limit 2-leg asymmetrical [t] 3.2
    Working load limit 3/4-leg symmetrical 0°–45° [t] 6.7
    Working load limit 3/4-leg symmetrical 45°–60° [t] 4.8
    Working load limit 3 or 4 leg asymmetrical [t] 3.2
  • 4500
    M 30
    291018
    ARS DRP C807XHT-4.5T-M30X3.5-EL43MM
    Reference no. 291018
    Working load limit [kg] 4500
    Overall length L [mm] 156.5
    Thread length K [mm] 45
    Inner wrench size AF2 [mm] 17
    Tightening torque MA [Nm] 320
    Body width B 111
    Stirrup width H 28
    Stirrup height C [mm] 25.5
    Ø of contact surface E 66
    Clearance W [mm] 60
    Base width U [mm] 73
    Weight approx. [kg] 2
    Thread diameter metric M M 30
    Working load limit single-leg with cross bar 0° [t] 12
    Working load limit single-leg with cross bar 90° [t] 4.5
    Working load limit 2-leg with cross bar 0° [t] 24
    Working load limit 2-leg with cross bar 90° [t] 9
    Working load limit 2-leg symmetrical 0°–45° [t] 6.3
    Working load limit 2-leg symmetrical 45°–60° [t] 4.5
    Working load limit 2-leg asymmetrical [t] 4.5
    Working load limit 3/4-leg symmetrical 0°–45° [t] 9.4
    Working load limit 3/4-leg symmetrical 45°–60° [t] 6.7
    Working load limit 3 or 4 leg asymmetrical [t] 4.5
  • 4500
    M 33
    291019
    ARS DRP C807XHT-4.5T-M33X3.5-EL43MM
    Reference no. 291019
    Working load limit [kg] 4500
    Overall length L [mm] 156.5
    Thread length K [mm] 45
    Inner wrench size AF2 [mm] 17
    Tightening torque MA [Nm] 350
    Body width B 111
    Stirrup width H 28
    Stirrup height C [mm] 25.5
    Ø of contact surface E 66
    Clearance W [mm] 60
    Base width U [mm] 73
    Weight approx. [kg] 2
    Thread diameter metric M M 33
    Working load limit single-leg with cross bar 0° [t] 12
    Working load limit single-leg with cross bar 90° [t] 4.5
    Working load limit 2-leg with cross bar 0° [t] 24
    Working load limit 2-leg with cross bar 90° [t] 9
    Working load limit 2-leg symmetrical 0°–45° [t] 6.3
    Working load limit 2-leg symmetrical 45°–60° [t] 4.5
    Working load limit 2-leg asymmetrical [t] 4.5
    Working load limit 3/4-leg symmetrical 0°–45° [t] 9.4
    Working load limit 3/4-leg symmetrical 45°–60° [t] 6.7
    Working load limit 3 or 4 leg asymmetrical [t] 4.5
  • 7000
    M 36
    291020
    ARS DRP C807XHT-7T-M36X4-EL54MM
    Reference no. 291020
    Working load limit [kg] 7000
    Overall length L [mm] 193
    Thread length K [mm] 54
    Inner wrench size AF2 [mm] 22
    Tightening torque MA [Nm] 585
    Body width B 135
    Stirrup width H 32
    Stirrup height C [mm] 32
    Ø of contact surface E 75
    Clearance W [mm] 74
    Base width U [mm] 96.5
    Weight approx. [kg] 3.4
    Thread diameter metric M M 36
    Working load limit single-leg with cross bar 0° [t] 16
    Working load limit single-leg with cross bar 90° [t] 7
    Working load limit 2-leg with cross bar 0° [t] 32
    Working load limit 2-leg with cross bar 90° [t] 14
    Working load limit 2-leg symmetrical 0°–45° [t] 9.8
    Working load limit 2-leg symmetrical 45°–60° [t] 7
    Working load limit 2-leg asymmetrical [t] 7
    Working load limit 3/4-leg symmetrical 0°–45° [t] 14.7
    Working load limit 3/4-leg symmetrical 45°–60° [t] 10.5
    Working load limit 3 or 4 leg asymmetrical [t] 7
  • 9000
    M 42
    291021
    ARS DRP C807XHT-9T-M42X4.5-EL64MM
    Reference no. 291021
    Working load limit [kg] 9000
    Overall length L [mm] 221
    Thread length K [mm] 63
    Inner wrench size AF2 [mm] 24
    Tightening torque MA [Nm] 920
    Body width B 158
    Stirrup width H 40.5
    Stirrup height C [mm] 38
    Ø of contact surface E 85
    Clearance W [mm] 82
    Base width U [mm] 110
    Weight approx. [kg] 5.7
    Thread diameter metric M M 42
    Working load limit single-leg with cross bar 0° [t] 24
    Working load limit single-leg with cross bar 90° [t] 9
    Working load limit 2-leg with cross bar 0° [t] 45
    Working load limit 2-leg with cross bar 90° [t] 18
    Working load limit 2-leg symmetrical 0°–45° [t] 12.6
    Working load limit 2-leg symmetrical 45°–60° [t] 9
    Working load limit 2-leg asymmetrical [t] 9
    Working load limit 3/4-leg symmetrical 0°–45° [t] 18.9
    Working load limit 3/4-leg symmetrical 45°–60° [t] 13.5
    Working load limit 3 or 4 leg asymmetrical [t] 9
  • 12000
    M 48
    291022
    ARS DRP C807XHT-12T-M48X5-EL72MM
    Reference no. 291022
    Working load limit [kg] 12000
    Overall length L [mm] 254
    Thread length K [mm] 72
    Inner wrench size AF2 [mm] 27
    Tightening torque MA [Nm] 1590
    Body width B 179
    Stirrup width H 44
    Stirrup height C [mm] 43
    Ø of contact surface E 100
    Clearance W [mm] 95
    Base width U [mm] 124.5
    Weight approx. [kg] 8.5
    Thread diameter metric M M 48
    Working load limit single-leg with cross bar 0° [t] 32
    Working load limit single-leg with cross bar 90° [t] 12
    Working load limit 2-leg with cross bar 0° [t] 64
    Working load limit 2-leg with cross bar 90° [t] 24
    Working load limit 2-leg symmetrical 0°–45° [t] 16.8
    Working load limit 2-leg symmetrical 45°–60° [t] 12
    Working load limit 2-leg asymmetrical [t] 12
    Working load limit 3/4-leg symmetrical 0°–45° [t] 25.2
    Working load limit 3/4-leg symmetrical 45°–60° [t] 18
    Working load limit 3 or 4 leg asymmetrical [t] 12
Working load limit [kg] 300
Thread diameter metric M M 8
Reference no. 291008
  • Details
    ARS DRP C807XHT-0.3T-M8X1.25-EL12MM
    Reference no. 291008
    Working load limit [kg] 300
    Overall length L [mm] 58
    Thread length K [mm] 12
    Inner wrench size AF2 [mm] 6
    Tightening torque MA [Nm] 8
    Body width B 47
    Stirrup width H 9
    Stirrup height C [mm] 11
    Ø of contact surface E 25
    Clearance W [mm] 25
    Base width U [mm] 30
    Weight approx. [kg] 0.12
    Thread diameter metric M M 8
    Working load limit single-leg with cross bar 0° [t] 1
    Working load limit single-leg with cross bar 90° [t] 0.3
    Working load limit 2-leg with cross bar 0° [t] 2
    Working load limit 2-leg with cross bar 90° [t] 0.6
    Working load limit 2-leg symmetrical 0°–45° [t] 0.42
    Working load limit 2-leg symmetrical 45°–60° [t] 0.3
    Working load limit 2-leg asymmetrical [t] 0.3
    Working load limit 3/4-leg symmetrical 0°–45° [t] 0.63
    Working load limit 3/4-leg symmetrical 45°–60° [t] 0.45
    Working load limit 3 or 4 leg asymmetrical [t] 0.3
Working load limit [kg] 400
Thread diameter metric M M 10
Reference no. 291009
  • Details
    ARS DRP C807XHT-0.4T-M10X1.5-EL16MM
    Reference no. 291009
    Working load limit [kg] 400
    Overall length L [mm] 61
    Thread length K [mm] 15
    Inner wrench size AF2 [mm] 6
    Tightening torque MA [Nm] 16
    Body width B 47
    Stirrup width H 9
    Stirrup height C [mm] 11
    Ø of contact surface E 25
    Clearance W [mm] 25
    Base width U [mm] 30
    Weight approx. [kg] 0.18
    Thread diameter metric M M 10
    Working load limit single-leg with cross bar 0° [t] 1
    Working load limit single-leg with cross bar 90° [t] 0.4
    Working load limit 2-leg with cross bar 0° [t] 2
    Working load limit 2-leg with cross bar 90° [t] 0.8
    Working load limit 2-leg symmetrical 0°–45° [t] 0.56
    Working load limit 2-leg symmetrical 45°–60° [t] 0.4
    Working load limit 2-leg asymmetrical [t] 0.4
    Working load limit 3/4-leg symmetrical 0°–45° [t] 0.84
    Working load limit 3/4-leg symmetrical 45°–60° [t] 0.6
    Working load limit 3 or 4 leg asymmetrical [t] 0.4
Working load limit [kg] 750
Thread diameter metric M M 12
Reference no. 291010
  • Details
    ARS DRP C807XHT-0.75T-M12X1.75-EL18MM
    Reference no. 291010
    Working load limit [kg] 750
    Overall length L [mm] 73.5
    Thread length K [mm] 18
    Inner wrench size AF2 [mm] 7
    Tightening torque MA [Nm] 25
    Body width B 55.5
    Stirrup width H 11.5
    Stirrup height C [mm] 12.5
    Ø of contact surface E 30
    Clearance W [mm] 30
    Base width U [mm] 36.5
    Weight approx. [kg] 0.2
    Thread diameter metric M M 12
    Working load limit single-leg with cross bar 0° [t] 2
    Working load limit single-leg with cross bar 90° [t] 0.75
    Working load limit 2-leg with cross bar 0° [t] 4
    Working load limit 2-leg with cross bar 90° [t] 1.5
    Working load limit 2-leg symmetrical 0°–45° [t] 1
    Working load limit 2-leg symmetrical 45°–60° [t] 0.75
    Working load limit 2-leg asymmetrical [t] 0.75
    Working load limit 3/4-leg symmetrical 0°–45° [t] 1.6
    Working load limit 3/4-leg symmetrical 45°–60° [t] 1.12
    Working load limit 3 or 4 leg asymmetrical [t] 0.75
Working load limit [kg] 750
Thread diameter metric M M 14
Reference no. 291011
  • Details
    ARS DRP C807XHT-0.75T-M14X2-EL18MM
    Reference no. 291011
    Working load limit [kg] 750
    Overall length L [mm] 73.5
    Thread length K [mm] 18
    Inner wrench size AF2 [mm] 7
    Tightening torque MA [Nm] 30
    Body width B 55.5
    Stirrup width H 11.5
    Stirrup height C [mm] 12.5
    Ø of contact surface E 30
    Clearance W [mm] 30
    Base width U [mm] 36.5
    Weight approx. [kg] 0.2
    Thread diameter metric M M 14
    Working load limit single-leg with cross bar 0° [t] 2
    Working load limit single-leg with cross bar 90° [t] 0.75
    Working load limit 2-leg with cross bar 0° [t] 4
    Working load limit 2-leg with cross bar 90° [t] 1.5
    Working load limit 2-leg symmetrical 0°–45° [t] 1
    Working load limit 2-leg symmetrical 45°–60° [t] 0.75
    Working load limit 2-leg asymmetrical [t] 0.75
    Working load limit 3/4-leg symmetrical 0°–45° [t] 1.6
    Working load limit 3/4-leg symmetrical 45°–60° [t] 1.12
    Working load limit 3 or 4 leg asymmetrical [t] 0.75
Working load limit [kg] 1500
Thread diameter metric M M 16
Reference no. 291012
  • Details
    ARS DRP C807XHT-1.5T-M16X2-EL24MM
    Reference no. 291012
    Working load limit [kg] 1500
    Overall length L [mm] 88
    Thread length K [mm] 24
    Inner wrench size AF2 [mm] 8
    Tightening torque MA [Nm] 60
    Body width B 64.5
    Stirrup width H 15.7
    Stirrup height C [mm] 14.5
    Ø of contact surface E 35
    Clearance W [mm] 35
    Base width U [mm] 41.8
    Weight approx. [kg] 0.35
    Thread diameter metric M M 16
    Working load limit single-leg with cross bar 0° [t] 4
    Working load limit single-leg with cross bar 90° [t] 1.5
    Working load limit 2-leg with cross bar 0° [t] 8
    Working load limit 2-leg with cross bar 90° [t] 3
    Working load limit 2-leg symmetrical 0°–45° [t] 2
    Working load limit 2-leg symmetrical 45°–60° [t] 1.5
    Working load limit 2-leg asymmetrical [t] 1.5
    Working load limit 3/4-leg symmetrical 0°–45° [t] 3.15
    Working load limit 3/4-leg symmetrical 45°–60° [t] 2.25
    Working load limit 3 or 4 leg asymmetrical [t] 1.5
Working load limit [kg] 1500
Thread diameter metric M M 18
Reference no. 291013
  • Details
    ARS DRP C807XHT-1.5T-M18X2.5-EL24MM
    Reference no. 291013
    Working load limit [kg] 1500
    Overall length L [mm] 88
    Thread length K [mm] 24
    Inner wrench size AF2 [mm] 8
    Tightening torque MA [Nm] 70
    Body width B 64.5
    Stirrup width H 15.7
    Stirrup height C [mm] 14.5
    Ø of contact surface E 35
    Clearance W [mm] 35
    Base width U [mm] 41.8
    Weight approx. [kg] 0.35
    Thread diameter metric M M 18
    Working load limit single-leg with cross bar 0° [t] 4
    Working load limit single-leg with cross bar 90° [t] 1.5
    Working load limit 2-leg with cross bar 0° [t] 8
    Working load limit 2-leg with cross bar 90° [t] 3
    Working load limit 2-leg symmetrical 0°–45° [t] 2
    Working load limit 2-leg symmetrical 45°–60° [t] 1.5
    Working load limit 2-leg asymmetrical [t] 1.5
    Working load limit 3/4-leg symmetrical 0°–45° [t] 3.15
    Working load limit 3/4-leg symmetrical 45°–60° [t] 2.25
    Working load limit 3 or 4 leg asymmetrical [t] 1.5
Working load limit [kg] 2300
Thread diameter metric M M 20
Reference no. 291014
  • Details
    ARS DRP C807XHT-2.3T-M20X2.5-EL30MM
    Reference no. 291014
    Working load limit [kg] 2300
    Overall length L [mm] 104
    Thread length K [mm] 30
    Inner wrench size AF2 [mm] 10
    Tightening torque MA [Nm] 110
    Body width B 74.5
    Stirrup width H 18
    Stirrup height C [mm] 16
    Ø of contact surface E 42
    Clearance W [mm] 40
    Base width U [mm] 51.5
    Weight approx. [kg] 0.6
    Thread diameter metric M M 20
    Working load limit single-leg with cross bar 0° [t] 6
    Working load limit single-leg with cross bar 90° [t] 2.3
    Working load limit 2-leg with cross bar 0° [t] 12
    Working load limit 2-leg with cross bar 90° [t] 4.6
    Working load limit 2-leg symmetrical 0°–45° [t] 3.22
    Working load limit 2-leg symmetrical 45°–60° [t] 2.3
    Working load limit 2-leg asymmetrical [t] 2.3
    Working load limit 3/4-leg symmetrical 0°–45° [t] 4.83
    Working load limit 3/4-leg symmetrical 45°–60° [t] 3.45
    Working load limit 3 or 4 leg asymmetrical [t] 2.3
Working load limit [kg] 2300
Thread diameter metric M M 22
Reference no. 291015
  • Details
    ARS DRP C807XHT-2.3T-M22X2.5-EL30MM
    Reference no. 291015
    Working load limit [kg] 2300
    Overall length L [mm] 104
    Thread length K [mm] 30
    Inner wrench size AF2 [mm] 10
    Tightening torque MA [Nm] 120
    Body width B 74.5
    Stirrup width H 18
    Stirrup height C [mm] 16
    Ø of contact surface E 42
    Clearance W [mm] 40
    Base width U [mm] 51.5
    Weight approx. [kg] 0.6
    Thread diameter metric M M 22
    Working load limit single-leg with cross bar 0° [t] 6
    Working load limit single-leg with cross bar 90° [t] 2.3
    Working load limit 2-leg with cross bar 0° [t] 12
    Working load limit 2-leg with cross bar 90° [t] 4.6
    Working load limit 2-leg symmetrical 0°–45° [t] 3.22
    Working load limit 2-leg symmetrical 45°–60° [t] 2.3
    Working load limit 2-leg asymmetrical [t] 2.3
    Working load limit 3/4-leg symmetrical 0°–45° [t] 4.83
    Working load limit 3/4-leg symmetrical 45°–60° [t] 3.45
    Working load limit 3 or 4 leg asymmetrical [t] 2.3
Working load limit [kg] 3200
Thread diameter metric M M 24
Reference no. 291016
  • Details
    ARS DRP C807XHT-3.2T-M24X3-EL36MM
    Reference no. 291016
    Working load limit [kg] 3200
    Overall length L [mm] 125.5
    Thread length K [mm] 36
    Inner wrench size AF2 [mm] 12
    Tightening torque MA [Nm] 195
    Body width B 90
    Stirrup width H 22
    Stirrup height C [mm] 20.5
    Ø of contact surface E 50
    Clearance W [mm] 49
    Base width U [mm] 58
    Weight approx. [kg] 1
    Thread diameter metric M M 24
    Working load limit single-leg with cross bar 0° [t] 8
    Working load limit single-leg with cross bar 90° [t] 3.2
    Working load limit 2-leg with cross bar 0° [t] 16
    Working load limit 2-leg with cross bar 90° [t] 6.4
    Working load limit 2-leg symmetrical 0°–45° [t] 4.48
    Working load limit 2-leg symmetrical 45°–60° [t] 3.2
    Working load limit 2-leg asymmetrical [t] 3.2
    Working load limit 3/4-leg symmetrical 0°–45° [t] 6.7
    Working load limit 3/4-leg symmetrical 45°–60° [t] 4.8
    Working load limit 3 or 4 leg asymmetrical [t] 3.2
Working load limit [kg] 3200
Thread diameter metric M M 27
Reference no. 291017
  • Details
    ARS DRP C807XHT-3.2T-M27X3-EL36MM
    Reference no. 291017
    Working load limit [kg] 3200
    Overall length L [mm] 125.5
    Thread length K [mm] 36
    Inner wrench size AF2 [mm] 12
    Tightening torque MA [Nm] 240
    Body width B 90
    Stirrup width H 22
    Stirrup height C [mm] 20.5
    Ø of contact surface E 50
    Clearance W [mm] 49
    Base width U [mm] 58
    Weight approx. [kg] 1
    Thread diameter metric M M 27
    Working load limit single-leg with cross bar 0° [t] 8
    Working load limit single-leg with cross bar 90° [t] 3.2
    Working load limit 2-leg with cross bar 0° [t] 16
    Working load limit 2-leg with cross bar 90° [t] 6.4
    Working load limit 2-leg symmetrical 0°–45° [t] 4.48
    Working load limit 2-leg symmetrical 45°–60° [t] 3.2
    Working load limit 2-leg asymmetrical [t] 3.2
    Working load limit 3/4-leg symmetrical 0°–45° [t] 6.7
    Working load limit 3/4-leg symmetrical 45°–60° [t] 4.8
    Working load limit 3 or 4 leg asymmetrical [t] 3.2
Working load limit [kg] 4500
Thread diameter metric M M 30
Reference no. 291018
  • Details
    ARS DRP C807XHT-4.5T-M30X3.5-EL43MM
    Reference no. 291018
    Working load limit [kg] 4500
    Overall length L [mm] 156.5
    Thread length K [mm] 45
    Inner wrench size AF2 [mm] 17
    Tightening torque MA [Nm] 320
    Body width B 111
    Stirrup width H 28
    Stirrup height C [mm] 25.5
    Ø of contact surface E 66
    Clearance W [mm] 60
    Base width U [mm] 73
    Weight approx. [kg] 2
    Thread diameter metric M M 30
    Working load limit single-leg with cross bar 0° [t] 12
    Working load limit single-leg with cross bar 90° [t] 4.5
    Working load limit 2-leg with cross bar 0° [t] 24
    Working load limit 2-leg with cross bar 90° [t] 9
    Working load limit 2-leg symmetrical 0°–45° [t] 6.3
    Working load limit 2-leg symmetrical 45°–60° [t] 4.5
    Working load limit 2-leg asymmetrical [t] 4.5
    Working load limit 3/4-leg symmetrical 0°–45° [t] 9.4
    Working load limit 3/4-leg symmetrical 45°–60° [t] 6.7
    Working load limit 3 or 4 leg asymmetrical [t] 4.5
Working load limit [kg] 4500
Thread diameter metric M M 33
Reference no. 291019
  • Details
    ARS DRP C807XHT-4.5T-M33X3.5-EL43MM
    Reference no. 291019
    Working load limit [kg] 4500
    Overall length L [mm] 156.5
    Thread length K [mm] 45
    Inner wrench size AF2 [mm] 17
    Tightening torque MA [Nm] 350
    Body width B 111
    Stirrup width H 28
    Stirrup height C [mm] 25.5
    Ø of contact surface E 66
    Clearance W [mm] 60
    Base width U [mm] 73
    Weight approx. [kg] 2
    Thread diameter metric M M 33
    Working load limit single-leg with cross bar 0° [t] 12
    Working load limit single-leg with cross bar 90° [t] 4.5
    Working load limit 2-leg with cross bar 0° [t] 24
    Working load limit 2-leg with cross bar 90° [t] 9
    Working load limit 2-leg symmetrical 0°–45° [t] 6.3
    Working load limit 2-leg symmetrical 45°–60° [t] 4.5
    Working load limit 2-leg asymmetrical [t] 4.5
    Working load limit 3/4-leg symmetrical 0°–45° [t] 9.4
    Working load limit 3/4-leg symmetrical 45°–60° [t] 6.7
    Working load limit 3 or 4 leg asymmetrical [t] 4.5
Working load limit [kg] 7000
Thread diameter metric M M 36
Reference no. 291020
  • Details
    ARS DRP C807XHT-7T-M36X4-EL54MM
    Reference no. 291020
    Working load limit [kg] 7000
    Overall length L [mm] 193
    Thread length K [mm] 54
    Inner wrench size AF2 [mm] 22
    Tightening torque MA [Nm] 585
    Body width B 135
    Stirrup width H 32
    Stirrup height C [mm] 32
    Ø of contact surface E 75
    Clearance W [mm] 74
    Base width U [mm] 96.5
    Weight approx. [kg] 3.4
    Thread diameter metric M M 36
    Working load limit single-leg with cross bar 0° [t] 16
    Working load limit single-leg with cross bar 90° [t] 7
    Working load limit 2-leg with cross bar 0° [t] 32
    Working load limit 2-leg with cross bar 90° [t] 14
    Working load limit 2-leg symmetrical 0°–45° [t] 9.8
    Working load limit 2-leg symmetrical 45°–60° [t] 7
    Working load limit 2-leg asymmetrical [t] 7
    Working load limit 3/4-leg symmetrical 0°–45° [t] 14.7
    Working load limit 3/4-leg symmetrical 45°–60° [t] 10.5
    Working load limit 3 or 4 leg asymmetrical [t] 7
Working load limit [kg] 9000
Thread diameter metric M M 42
Reference no. 291021
  • Details
    ARS DRP C807XHT-9T-M42X4.5-EL64MM
    Reference no. 291021
    Working load limit [kg] 9000
    Overall length L [mm] 221
    Thread length K [mm] 63
    Inner wrench size AF2 [mm] 24
    Tightening torque MA [Nm] 920
    Body width B 158
    Stirrup width H 40.5
    Stirrup height C [mm] 38
    Ø of contact surface E 85
    Clearance W [mm] 82
    Base width U [mm] 110
    Weight approx. [kg] 5.7
    Thread diameter metric M M 42
    Working load limit single-leg with cross bar 0° [t] 24
    Working load limit single-leg with cross bar 90° [t] 9
    Working load limit 2-leg with cross bar 0° [t] 45
    Working load limit 2-leg with cross bar 90° [t] 18
    Working load limit 2-leg symmetrical 0°–45° [t] 12.6
    Working load limit 2-leg symmetrical 45°–60° [t] 9
    Working load limit 2-leg asymmetrical [t] 9
    Working load limit 3/4-leg symmetrical 0°–45° [t] 18.9
    Working load limit 3/4-leg symmetrical 45°–60° [t] 13.5
    Working load limit 3 or 4 leg asymmetrical [t] 9
Working load limit [kg] 12000
Thread diameter metric M M 48
Reference no. 291022
  • Details
    ARS DRP C807XHT-12T-M48X5-EL72MM
    Reference no. 291022
    Working load limit [kg] 12000
    Overall length L [mm] 254
    Thread length K [mm] 72
    Inner wrench size AF2 [mm] 27
    Tightening torque MA [Nm] 1590
    Body width B 179
    Stirrup width H 44
    Stirrup height C [mm] 43
    Ø of contact surface E 100
    Clearance W [mm] 95
    Base width U [mm] 124.5
    Weight approx. [kg] 8.5
    Thread diameter metric M M 48
    Working load limit single-leg with cross bar 0° [t] 32
    Working load limit single-leg with cross bar 90° [t] 12
    Working load limit 2-leg with cross bar 0° [t] 64
    Working load limit 2-leg with cross bar 90° [t] 24
    Working load limit 2-leg symmetrical 0°–45° [t] 16.8
    Working load limit 2-leg symmetrical 45°–60° [t] 12
    Working load limit 2-leg asymmetrical [t] 12
    Working load limit 3/4-leg symmetrical 0°–45° [t] 25.2
    Working load limit 3/4-leg symmetrical 45°–60° [t] 18
    Working load limit 3 or 4 leg asymmetrical [t] 12
Downloads

Design / Engineering

CAD 3D

Download
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Tel. +49 8331 937-9623
Fax +49 8331 937-380
E-Mail verkauf-azs@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
 Service centre
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Academy
Tel. +49 8331 937-462
E-Mail academy@pfeifer.de
Web www.pfeifer.info
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
France
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +33 676 54 42 68 / +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Poland
 PFEIFER Technika Linowa i Dźwigowa Sp. z o.o.
ul. Wrocławska 68
55-330 Krępice k/Wrocławia
Tel. +48 71 30 23 700
E-Mail info@pfeifer.pl
Web www.pfeifer.pl
 Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
