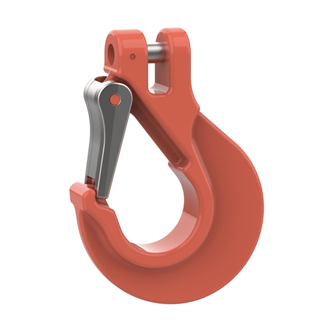

HIT PRO 1-CBXB coupling load hook grade 10

HIT PRO 1-CBXB coupling load hook grade 10
Special load hook with direct connection, larger jaw size, forged standard-compliant safety latch and narrow hook base for hooking smaller lifting points and connecting devices. As end hook or suspension hook with large jaw size for high loads and for connecting thicker diameters, rings, widths and breadths.
Technical data

Quality grade

  • 10

Operating temperature

  • –40 °C to +200 °C = 100 % working load limit; +200 °C to +300 °C = 90 % working load limit; +300 °C to +380 °C = 60 % working load limit

Standard

  • on the basis of DIN EN 1677

Certification

  • H-stamp

Marking

  • Batch number

Safety factor

  • 4

Surface

  • powder-coated

Technical note

  • For direct connection to the chain by means of coupling connection.
Product variants
Working load limit [kg]
for nominal chain thickness [mm]
Reference no.
Details
  • 2500
    8
    711770
    B1H 10B-KPL-H-CBXB-2.5T-8MM-MW34-111
    Reference no. 711770
    Working load limit [kg] 2500
    for nominal chain thickness [mm] 8

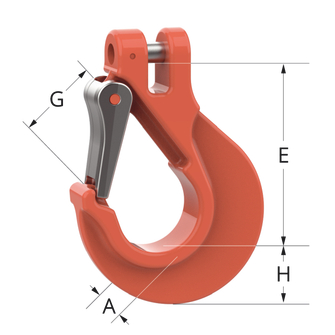

    Hook opening width G [mm] 34
    hook base height H [mm] 29
    Hook thickness A [mm] 19.5
    Distance suspension point E [mm] 111
    Weight approx. [kg] 0.93
  • 4000
    10
    711771
    B1H 10B-KPL-H-CBXB-4T-10MM-MW39-122.5
    Reference no. 711771
    Working load limit [kg] 4000
    for nominal chain thickness [mm] 10
    Hook opening width G [mm] 39
    hook base height H [mm] 33
    Hook thickness A [mm] 27.5
    Distance suspension point E [mm] 122.5
    Weight approx. [kg] 1.6
Working load limit [kg] 2500
for nominal chain thickness [mm] 8
Reference no. 711770
  • Details
    B1H 10B-KPL-H-CBXB-2.5T-8MM-MW34-111
    Reference no. 711770
    Working load limit [kg] 2500
    for nominal chain thickness [mm] 8
    Hook opening width G [mm] 34
    hook base height H [mm] 29
    Hook thickness A [mm] 19.5
    Distance suspension point E [mm] 111
    Weight approx. [kg] 0.93
Working load limit [kg] 4000
for nominal chain thickness [mm] 10
Reference no. 711771
  • Details
    B1H 10B-KPL-H-CBXB-4T-10MM-MW39-122.5
    Reference no. 711771
    Working load limit [kg] 4000
    for nominal chain thickness [mm] 10
    Hook opening width G [mm] 39
    hook base height H [mm] 33
    Hook thickness A [mm] 27.5
    Distance suspension point E [mm] 122.5
    Weight approx. [kg] 1.6
Downloads

Applications

Application table

Download

Poster

"Poster ""Discarding time criteria""" Overview of the discarding time criteria for wire rope slings, lifting straps, round slings and chain slings.
Download
