HIT PRO 1-CDFXA hanging set, quality grade 10 – 2-leg with shortener

HIT PRO 1-CDFXA hanging set, quality grade 10 – 2-leg with shortener

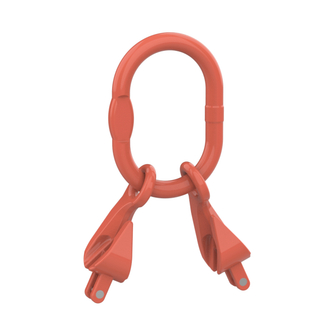

Standard suspension link with direct connection, can be shortened, from 2 t to 14 t.
Technical data

Quality grade

  • 10

Operating temperature

  • –40 °C to +200 °C = 100 % working load limit; +200 °C to +300 °C = 90 % working load limit; +300 °C to +380 °C = 60 % working load limit

Standard

  • on the basis of DIN EN 1677

Certification

  • H-stamp

Marking

  • Batch number

Safety factor

  • 4

Surface

  • powder-coated

Technical note

  • For direct connection to the chain by means of coupling connection.

Type

  • Standard
Product variants
Working load limit 0–45° [kg]
Working load limit 45–60° [kg]
Reference no.
Details
  • 2000
    1400
    304211
    B1A 10B-CDFXA-ST-2-6MM-110X60
    Reference no. 304211
    Working load limit 0–45° 2000
    Working load limit 45–60° 1400
    for nominal chain thickness 2-leg 6
    Single crane hook up to no. (DIN 15401) 2.5
    Double crane hook up to no. (DIN 15402) 4

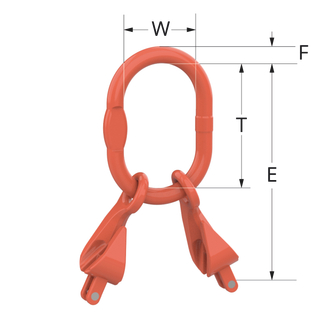

    Ring section diameter F 13
    Clear height T [mm] 110
    Clearance W 60
    Distance suspension point E [mm] 195
    Weight approx. [kg] 0.95
  • 3550
    2500
    304212
    B1A 10B-CDFXA-ST-2-8MM-135X75
    Reference no. 304212
    Working load limit 0–45° 3550
    Working load limit 45–60° 2500
    for nominal chain thickness 2-leg 8
    Single crane hook up to no. (DIN 15401) 5
    Double crane hook up to no. (DIN 15402) 6
    Ring section diameter F 18
    Clear height T [mm] 135
    Clearance W 75
    Distance suspension point E [mm] 255
    Weight approx. [kg] 2.2
  • 5600
    4000
    304213
    B1A 10B-CDFXA-ST-2-10MM-160X90
    Reference no. 304213
    Working load limit 0–45° 5600
    Working load limit 45–60° 4000
    for nominal chain thickness 2-leg 10
    Single crane hook up to no. (DIN 15401) 6
    Double crane hook up to no. (DIN 15402) 8
    Ring section diameter F 22
    Clear height T [mm] 160
    Clearance W 90
    Distance suspension point E [mm] 320
    Weight approx. [kg] 4
  • 9500
    6700
    304214
    B1A 10B-CDFXA-ST-2-13MM-180X100
    Reference no. 304214
    Working load limit 0–45° 9500
    Working load limit 45–60° 6700
    for nominal chain thickness 2-leg 13
    Single crane hook up to no. (DIN 15401) 8
    Double crane hook up to no. (DIN 15402) 10
    Ring section diameter F 26
    Clear height T [mm] 180
    Clearance W 100
    Distance suspension point E [mm] 382
    Weight approx. [kg] 7.7
  • 14000
    10000
    304215
    B1A 10B-CDFXA-ST-2-16MM-200X110
    Reference no. 304215
    Working load limit 0–45° 14000
    Working load limit 45–60° 10000
    for nominal chain thickness 2-leg 16
    Single crane hook up to no. (DIN 15401) 10
    Double crane hook up to no. (DIN 15402) 12
    Ring section diameter F 32
    Clear height T [mm] 200
    Clearance W 110
    Distance suspension point E [mm] 430
    Weight approx. [kg] 13.5
Working load limit 0–45° 2000
Working load limit 45–60° 1400
Reference no. 304211
  • Details
    B1A 10B-CDFXA-ST-2-6MM-110X60
    Reference no. 304211
    Working load limit 0–45° 2000
    Working load limit 45–60° 1400
    for nominal chain thickness 2-leg 6
    Single crane hook up to no. (DIN 15401) 2.5
    Double crane hook up to no. (DIN 15402) 4
    Ring section diameter F 13
    Clear height T [mm] 110
    Clearance W 60
    Distance suspension point E [mm] 195
    Weight approx. [kg] 0.95
Working load limit 0–45° 3550
Working load limit 45–60° 2500
Reference no. 304212
  • Details
    B1A 10B-CDFXA-ST-2-8MM-135X75
    Reference no. 304212
    Working load limit 0–45° 3550
    Working load limit 45–60° 2500
    for nominal chain thickness 2-leg 8
    Single crane hook up to no. (DIN 15401) 5
    Double crane hook up to no. (DIN 15402) 6
    Ring section diameter F 18
    Clear height T [mm] 135
    Clearance W 75
    Distance suspension point E [mm] 255
    Weight approx. [kg] 2.2
Working load limit 0–45° 5600
Working load limit 45–60° 4000
Reference no. 304213
  • Details
    B1A 10B-CDFXA-ST-2-10MM-160X90
    Reference no. 304213
    Working load limit 0–45° 5600
    Working load limit 45–60° 4000
    for nominal chain thickness 2-leg 10
    Single crane hook up to no. (DIN 15401) 6
    Double crane hook up to no. (DIN 15402) 8
    Ring section diameter F 22
    Clear height T [mm] 160
    Clearance W 90
    Distance suspension point E [mm] 320
    Weight approx. [kg] 4
Working load limit 0–45° 9500
Working load limit 45–60° 6700
Reference no. 304214
  • Details
    B1A 10B-CDFXA-ST-2-13MM-180X100
    Reference no. 304214
    Working load limit 0–45° 9500
    Working load limit 45–60° 6700
    for nominal chain thickness 2-leg 13
    Single crane hook up to no. (DIN 15401) 8
    Double crane hook up to no. (DIN 15402) 10
    Ring section diameter F 26
    Clear height T [mm] 180
    Clearance W 100
    Distance suspension point E [mm] 382
    Weight approx. [kg] 7.7
Working load limit 0–45° 14000
Working load limit 45–60° 10000
Reference no. 304215
  • Details
    B1A 10B-CDFXA-ST-2-16MM-200X110
    Reference no. 304215
    Working load limit 0–45° 14000
    Working load limit 45–60° 10000
    for nominal chain thickness 2-leg 16
    Single crane hook up to no. (DIN 15401) 10
    Double crane hook up to no. (DIN 15402) 12
    Ring section diameter F 32
    Clear height T [mm] 200
    Clearance W 110
    Distance suspension point E [mm] 430
    Weight approx. [kg] 13.5
