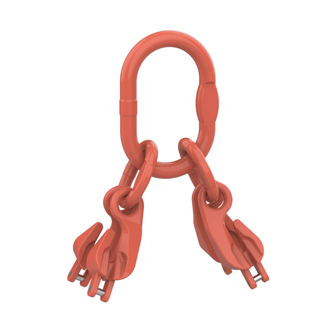

HIT PRO 1-CDFXA hanging set, quality grade 10 – 4-leg – with shortener

HIT PRO 1-CDFXA hanging set, quality grade 10 – 4-leg – with shortener
Standard suspension link with direct connection, can be shortened, from 3 t to 21.2 t.
Technical data

Quality grade

  • 10

Operating temperature

  • –40 °C to +200 °C = 100 % working load limit; +200 °C to +300 °C = 90 % working load limit; +300 °C to +380 °C = 60 % working load limit

Standard

  • on the basis of DIN EN 1677

Certification

  • H-stamp

Marking

  • Batch number

Safety factor

  • 4

Surface

  • powder-coated

Technical note

  • For direct connection to the chain by means of coupling connection.

Type

  • Standard
Product variants
Working load limit 0–45° [kg]
Working load limit 45–60° [kg]
Reference no.
Details
  • 3000
    2120
    304217
    B1A 10B-CDFXA-ST-4-6MM-135X75
    Reference no. 304217
    Working load limit 0–45° 3000
    Working load limit 45–60° 2120
    for nominal chain thickness 3-/4-leg 6
    Single crane hook up to no. (DIN 15401) 5
    Double crane hook up to no. (DIN 15402) 6

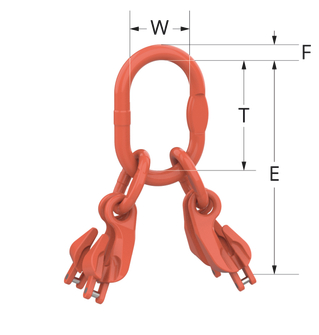

    Ring section diameter F 18
    Clear height T [mm] 135
    Clearance W 75
    Distance suspension point E [mm] 270
    Weight approx. [kg] 2.5
  • 5300
    3750
    304218
    B1A 10B-CDFXA-ST-4-8MM-160X90
    Reference no. 304218
    Working load limit 0–45° 5300
    Working load limit 45–60° 3750
    for nominal chain thickness 3-/4-leg 8
    Single crane hook up to no. (DIN 15401) 6
    Double crane hook up to no. (DIN 15402) 8
    Ring section diameter F 22
    Clear height T [mm] 160
    Clearance W 90
    Distance suspension point E [mm] 350
    Weight approx. [kg] 4.7
  • 8000
    6000
    304219
    B1A 10B-CDFXA-ST-4-10MM-180X100
    Reference no. 304219
    Working load limit 0–45° 8000
    Working load limit 45–60° 6000
    for nominal chain thickness 3-/4-leg 10
    Single crane hook up to no. (DIN 15401) 8
    Double crane hook up to no. (DIN 15402) 10
    Ring section diameter F 26
    Clear height T [mm] 180
    Clearance W 100
    Distance suspension point E [mm] 425
    Weight approx. [kg] 8.6
  • 14000
    10000
    304220
    B1A 10B-CDFXA-ST-4-13MM-200X110
    Reference no. 304220
    Working load limit 0–45° 14000
    Working load limit 45–60° 10000
    for nominal chain thickness 3-/4-leg 13
    Single crane hook up to no. (DIN 15401) 10
    Double crane hook up to no. (DIN 15402) 12
    Ring section diameter F 32
    Clear height T [mm] 200
    Clearance W 110
    Distance suspension point E [mm] 520
    Weight approx. [kg] 17
  • 21200
    15000
    304221
    B1A 10B-CDFXA-ST-4-16MM-260X140
    Reference no. 304221
    Working load limit 0–45° 21200
    Working load limit 45–60° 15000
    for nominal chain thickness 3-/4-leg 16
    Single crane hook up to no. (DIN 15401) 16
    Double crane hook up to no. (DIN 15402) 20
    Ring section diameter F 36
    Clear height T [mm] 260
    Clearance W 140
    Distance suspension point E [mm] 635
    Weight approx. [kg] 29
Working load limit 0–45° 3000
Working load limit 45–60° 2120
Reference no. 304217
  • Details
    B1A 10B-CDFXA-ST-4-6MM-135X75
    Reference no. 304217
    Working load limit 0–45° 3000
    Working load limit 45–60° 2120
    for nominal chain thickness 3-/4-leg 6
    Single crane hook up to no. (DIN 15401) 5
    Double crane hook up to no. (DIN 15402) 6
    Ring section diameter F 18
    Clear height T [mm] 135
    Clearance W 75
    Distance suspension point E [mm] 270
    Weight approx. [kg] 2.5
Working load limit 0–45° 5300
Working load limit 45–60° 3750
Reference no. 304218
  • Details
    B1A 10B-CDFXA-ST-4-8MM-160X90
    Reference no. 304218
    Working load limit 0–45° 5300
    Working load limit 45–60° 3750
    for nominal chain thickness 3-/4-leg 8
    Single crane hook up to no. (DIN 15401) 6
    Double crane hook up to no. (DIN 15402) 8
    Ring section diameter F 22
    Clear height T [mm] 160
    Clearance W 90
    Distance suspension point E [mm] 350
    Weight approx. [kg] 4.7
Working load limit 0–45° 8000
Working load limit 45–60° 6000
Reference no. 304219
  • Details
    B1A 10B-CDFXA-ST-4-10MM-180X100
    Reference no. 304219
    Working load limit 0–45° 8000
    Working load limit 45–60° 6000
    for nominal chain thickness 3-/4-leg 10
    Single crane hook up to no. (DIN 15401) 8
    Double crane hook up to no. (DIN 15402) 10
    Ring section diameter F 26
    Clear height T [mm] 180
    Clearance W 100
    Distance suspension point E [mm] 425
    Weight approx. [kg] 8.6
Working load limit 0–45° 14000
Working load limit 45–60° 10000
Reference no. 304220
  • Details
    B1A 10B-CDFXA-ST-4-13MM-200X110
    Reference no. 304220
    Working load limit 0–45° 14000
    Working load limit 45–60° 10000
    for nominal chain thickness 3-/4-leg 13
    Single crane hook up to no. (DIN 15401) 10
    Double crane hook up to no. (DIN 15402) 12
    Ring section diameter F 32
    Clear height T [mm] 200
    Clearance W 110
    Distance suspension point E [mm] 520
    Weight approx. [kg] 17
Working load limit 0–45° 21200
Working load limit 45–60° 15000
Reference no. 304221
  • Details
    B1A 10B-CDFXA-ST-4-16MM-260X140
    Reference no. 304221
    Working load limit 0–45° 21200
    Working load limit 45–60° 15000
    for nominal chain thickness 3-/4-leg 16
    Single crane hook up to no. (DIN 15401) 16
    Double crane hook up to no. (DIN 15402) 20
    Ring section diameter F 36
    Clear height T [mm] 260
    Clearance W 140
    Distance suspension point E [mm] 635
    Weight approx. [kg] 29
Downloads

Applications

Application table

Download

Poster

"Poster ""Discarding time criteria""" Overview of the discarding time criteria for wire rope slings, lifting straps, round slings and chain slings.
