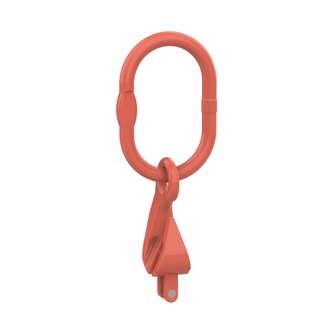

HIT PRO 1-CDFXA hanging set, quality grade 10 – single-leg – with shortener

HIT PRO 1-CDFXA hanging set, quality grade 10 – single-leg – with shortener
Standard suspension link with direct connection, can be shortened, from 1.4 t to 10 t.
Technical data

Quality grade

  • 10

Operating temperature

  • –40 °C to +200 °C = 100 % working load limit; +200 °C to +300 °C = 90 % working load limit; +300 °C to +380 °C = 60 % working load limit

Standard

  • on the basis of DIN EN 1677

Certification

  • H-stamp

Marking

  • Batch number

Safety factor

  • 4

Surface

  • powder-coated

Technical note

  • For direct connection to the chain by means of coupling connection.

Type

  • Standard
Product variants
Working load limit 0° [kg]
Reference no.
Details
  • 1400
    304191
    B1A 10B-CDFXA-ST-1-6MM-110X60
    Reference no. 304191
    Working load limit 0° [kg] 1400
    for nominal chain thickness single-leg 6
    Single crane hook up to no. (DIN 15401) 2.5
    Double crane hook up to no. (DIN 15402) 2.5
    Ring section diameter F 13

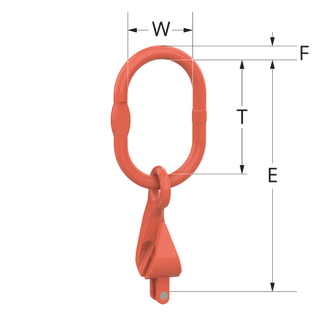

    Clear height T [mm] 110
    Clearance W 60
    Distance suspension point E [mm] 195
    Weight approx. [kg] 0.6
  • 2500
    304192
    B1A 10B-CDFXA-ST-1-8MM-110X60
    Reference no. 304192
    Working load limit 0° [kg] 2500
    for nominal chain thickness single-leg 8
    Single crane hook up to no. (DIN 15401) 2.5
    Double crane hook up to no. (DIN 15402) 5
    Ring section diameter F 16
    Clear height T [mm] 110
    Clearance W 60
    Distance suspension point E [mm] 232
    Weight approx. [kg] 1.2
  • 4000
    304193
    B1A 10B-CDFXA-ST-1-10MM-135X75
    Reference no. 304193
    Working load limit 0° [kg] 4000
    for nominal chain thickness single-leg 10
    Single crane hook up to no. (DIN 15401) 5
    Double crane hook up to no. (DIN 15402) 6
    Ring section diameter F 18
    Clear height T [mm] 135
    Clearance W 75
    Distance suspension point E [mm] 295
    Weight approx. [kg] 2
  • 6700
    304194
    B1A 10B-CDFXA-ST-1-13MM-160X90
    Reference no. 304194
    Working load limit 0° [kg] 6700
    for nominal chain thickness single-leg 13
    Single crane hook up to no. (DIN 15401) 6
    Double crane hook up to no. (DIN 15402) 8
    Ring section diameter F 22
    Clear height T [mm] 160
    Clearance W 90
    Distance suspension point E [mm] 364
    Weight approx. [kg] 4.3
  • 10000
    304195
    B1A 10B-CDFXA-ST-1-16MM-180X100
    Reference no. 304195
    Working load limit 0° [kg] 10000
    for nominal chain thickness single-leg 16
    Single crane hook up to no. (DIN 15401) 8
    Double crane hook up to no. (DIN 15402) 10
    Ring section diameter F 26
    Clear height T [mm] 180
    Clearance W 100
    Distance suspension point E [mm] 412
    Weight approx. [kg] 7.3
Working load limit 0° [kg] 1400
Reference no. 304191
  • Details
    B1A 10B-CDFXA-ST-1-6MM-110X60
    Reference no. 304191
    Working load limit 0° [kg] 1400
    for nominal chain thickness single-leg 6
    Single crane hook up to no. (DIN 15401) 2.5
    Double crane hook up to no. (DIN 15402) 2.5
    Ring section diameter F 13
    Clear height T [mm] 110
    Clearance W 60
    Distance suspension point E [mm] 195
    Weight approx. [kg] 0.6
Working load limit 0° [kg] 2500
Reference no. 304192
  • Details
    B1A 10B-CDFXA-ST-1-8MM-110X60
    Reference no. 304192
    Working load limit 0° [kg] 2500
    for nominal chain thickness single-leg 8
    Single crane hook up to no. (DIN 15401) 2.5
    Double crane hook up to no. (DIN 15402) 5
    Ring section diameter F 16
    Clear height T [mm] 110
    Clearance W 60
    Distance suspension point E [mm] 232
    Weight approx. [kg] 1.2
Working load limit 0° [kg] 4000
Reference no. 304193
  • Details
    B1A 10B-CDFXA-ST-1-10MM-135X75
    Reference no. 304193
    Working load limit 0° [kg] 4000
    for nominal chain thickness single-leg 10
    Single crane hook up to no. (DIN 15401) 5
    Double crane hook up to no. (DIN 15402) 6
    Ring section diameter F 18
    Clear height T [mm] 135
    Clearance W 75
    Distance suspension point E [mm] 295
    Weight approx. [kg] 2
Working load limit 0° [kg] 6700
Reference no. 304194
  • Details
    B1A 10B-CDFXA-ST-1-13MM-160X90
    Reference no. 304194
    Working load limit 0° [kg] 6700
    for nominal chain thickness single-leg 13
    Single crane hook up to no. (DIN 15401) 6
    Double crane hook up to no. (DIN 15402) 8
    Ring section diameter F 22
    Clear height T [mm] 160
    Clearance W 90
    Distance suspension point E [mm] 364
    Weight approx. [kg] 4.3
Working load limit 0° [kg] 10000
Reference no. 304195
  • Details
    B1A 10B-CDFXA-ST-1-16MM-180X100
    Reference no. 304195
    Working load limit 0° [kg] 10000
    for nominal chain thickness single-leg 16
    Single crane hook up to no. (DIN 15401) 8
    Double crane hook up to no. (DIN 15402) 10
    Ring section diameter F 26
    Clear height T [mm] 180
    Clearance W 100
    Distance suspension point E [mm] 412
    Weight approx. [kg] 7.3
Downloads

Applications

Application table

Download

Poster

"Poster ""Discarding time criteria""" Overview of the discarding time criteria for wire rope slings, lifting straps, round slings and chain slings.
Download
