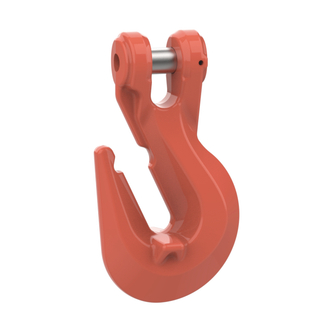

HIT PRO 1-CFX coupling parallel hook, quality grade 10

HIT PRO 1-CFX coupling parallel hook, quality grade 10
Enables the simple and safe shortening of chain slings with direct connection, from 1.4 t to 19 t. For shortening and for loops that must not tighten themselves.
Technical data

Quality grade

  • 10

Operating temperature

  • –40 °C to +200 °C = 100 % working load limit; +200 °C to +300 °C = 90 % working load limit; +300 °C to +380 °C = 60 % working load limit

Standard

  • on the basis of DIN EN 1677

Certification

  • H-stamp

Marking

  • Batch number

Safety factor

  • 4

Surface

  • powder-coated
Product variants
Working load limit [kg]
for nominal chain thickness [mm]
Reference no.
Details
  • 1400
    6
    207579
    B1V 10B-KPL-P-H-CFX-1.40T-6MM
    Reference no. 207579
    Working load limit [kg] 1400
    for nominal chain thickness [mm] 6

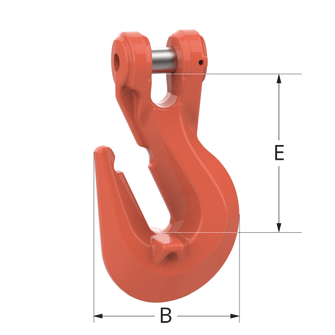

    Component width B [mm] 47
    Distance suspension point E [mm] 51.5
    Weight approx. [kg] 0.2
  • 2500
    8
    207580
    B1V 10B-KPL-P-H-CFX-2.50T-8MM
    Reference no. 207580
    Working load limit [kg] 2500
    for nominal chain thickness [mm] 8
    Component width B [mm] 59
    Distance suspension point E [mm] 65
    Weight approx. [kg] 0.44
  • 4000
    10
    207581
    B1V 10B-KPL-P-H-CFX-4.00T-10MM
    Reference no. 207581
    Working load limit [kg] 4000
    for nominal chain thickness [mm] 10
    Component width B [mm] 76
    Distance suspension point E [mm] 79.9
    Weight approx. [kg] 0.96
  • 6700
    13
    207582
    B1V 10B-KPL-P-H-CFX-6.70T-13MM
    Reference no. 207582
    Working load limit [kg] 6700
    for nominal chain thickness [mm] 13
    Component width B [mm] 99
    Distance suspension point E [mm] 105.4
    Weight approx. [kg] 2.1
  • 10000
    16
    207583
    B1V 10B-KPL-P-H-CFX-10T-16MM
    Reference no. 207583
    Working load limit [kg] 10000
    for nominal chain thickness [mm] 16
    Component width B [mm] 122
    Distance suspension point E [mm] 111.8
    Weight approx. [kg] 3.4
  • 16000
    20
    207584
    B1V 10B-KPL-P-H-CFX-16T-20MM
    Reference no. 207584
    Working load limit [kg] 16000
    for nominal chain thickness [mm] 20
    Component width B [mm] 152
    Distance suspension point E [mm] 118
    Weight approx. [kg] 5.2
  • 19000
    22
    207585
    B1V 10B-KPL-P-H-CFX-19T-22MM
    Reference no. 207585
    Working load limit [kg] 19000
    for nominal chain thickness [mm] 22
    Component width B [mm] 158
    Distance suspension point E [mm] 154
    Weight approx. [kg] 7.8
Working load limit [kg] 1400
for nominal chain thickness [mm] 6
Reference no. 207579
  • Details
    B1V 10B-KPL-P-H-CFX-1.40T-6MM
    Reference no. 207579
    Working load limit [kg] 1400
    for nominal chain thickness [mm] 6
    Component width B [mm] 47
    Distance suspension point E [mm] 51.5
    Weight approx. [kg] 0.2
Working load limit [kg] 2500
for nominal chain thickness [mm] 8
Reference no. 207580
  • Details
    B1V 10B-KPL-P-H-CFX-2.50T-8MM
    Reference no. 207580
    Working load limit [kg] 2500
    for nominal chain thickness [mm] 8
    Component width B [mm] 59
    Distance suspension point E [mm] 65
    Weight approx. [kg] 0.44
Working load limit [kg] 4000
for nominal chain thickness [mm] 10
Reference no. 207581
  • Details
    B1V 10B-KPL-P-H-CFX-4.00T-10MM
    Reference no. 207581
    Working load limit [kg] 4000
    for nominal chain thickness [mm] 10
    Component width B [mm] 76
    Distance suspension point E [mm] 79.9
    Weight approx. [kg] 0.96
Working load limit [kg] 6700
for nominal chain thickness [mm] 13
Reference no. 207582
  • Details
    B1V 10B-KPL-P-H-CFX-6.70T-13MM
    Reference no. 207582
    Working load limit [kg] 6700
    for nominal chain thickness [mm] 13
    Component width B [mm] 99
    Distance suspension point E [mm] 105.4
    Weight approx. [kg] 2.1
Working load limit [kg] 10000
for nominal chain thickness [mm] 16
Reference no. 207583
  • Details
    B1V 10B-KPL-P-H-CFX-10T-16MM
    Reference no. 207583
    Working load limit [kg] 10000
    for nominal chain thickness [mm] 16
    Component width B [mm] 122
    Distance suspension point E [mm] 111.8
    Weight approx. [kg] 3.4
Working load limit [kg] 16000
for nominal chain thickness [mm] 20
Reference no. 207584
  • Details
    B1V 10B-KPL-P-H-CFX-16T-20MM
    Reference no. 207584
    Working load limit [kg] 16000
    for nominal chain thickness [mm] 20
    Component width B [mm] 152
    Distance suspension point E [mm] 118
    Weight approx. [kg] 5.2
Working load limit [kg] 19000
for nominal chain thickness [mm] 22
Reference no. 207585
  • Details
    B1V 10B-KPL-P-H-CFX-19T-22MM
    Reference no. 207585
    Working load limit [kg] 19000
    for nominal chain thickness [mm] 22
    Component width B [mm] 158
    Distance suspension point E [mm] 154
    Weight approx. [kg] 7.8
Downloads

Applications

Application table

Download

Poster

"Poster ""Discarding time criteria""" Overview of the discarding time criteria for wire rope slings, lifting straps, round slings and chain slings.
