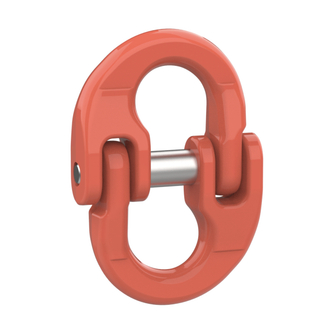

HIT PRO 1-CLX universal connecting link, quality grade 10

HIT PRO 1-CLX universal connecting link, quality grade 10
Fast connection of attachment components, from 1.4 t to 19 t.
Technical data

Quality grade

  • 10

Operating temperature

  • –40 °C to +200 °C = 100 % working load limit; +200 °C to +300 °C = 90 % working load limit; +300 °C to +380 °C = 60 % working load limit

Standard

  • on the basis of DIN EN 1677

Certification

  • H-stamp

Marking

  • Batch number

Safety factor

  • 4

Surface

  • powder-coated

Type

  • Standard
Product variants
Working load limit [kg]
for nominal chain thickness [mm]
Reference no.
Details
  • 1400
    6
    207540
    B1G 10B-CLX-1.40T-6MM-45
    Reference no. 207540
    Working load limit [kg] 1400
    for nominal chain thickness [mm] 6

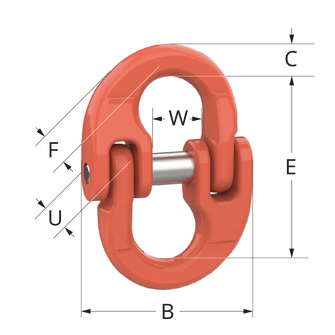

    Ring section diameter F 7.5
    Clearance W 18
    Component width B [mm] 41.1
    Stirrup height C [mm] 8
    Body thickness U 11
    Distance suspension point E [mm] 45
    Weight approx. [kg] 0.07
  • 2500
    8
    207541
    B1G 10B-CLX-2.50T-8MM-62
    Reference no. 207541
    Working load limit [kg] 2500
    for nominal chain thickness [mm] 8
    Ring section diameter F 10
    Clearance W 23.5
    Component width B [mm] 55.3
    Stirrup height C [mm] 11.5
    Body thickness U 15
    Distance suspension point E [mm] 62
    Weight approx. [kg] 0.2
  • 4000
    10
    207542
    B1G 10B-CLX-4T-10MM-72
    Reference no. 207542
    Working load limit [kg] 4000
    for nominal chain thickness [mm] 10
    Ring section diameter F 12.6
    Clearance W 27.5
    Component width B [mm] 65.8
    Stirrup height C [mm] 12.6
    Body thickness U 18
    Distance suspension point E [mm] 72
    Weight approx. [kg] 0.35
  • 6700
    13
    207543
    B1G 10B-CLX-6.70T-13MM-87
    Reference no. 207543
    Working load limit [kg] 6700
    for nominal chain thickness [mm] 13
    Ring section diameter F 16.7
    Clearance W 33.3
    Component width B [mm] 82.5
    Stirrup height C [mm] 19
    Body thickness U 23
    Distance suspension point E [mm] 87.3
    Weight approx. [kg] 0.74
  • 10000
    16
    207544
    B1G 10B-CLX-10T-16MM-105
    Reference no. 207544
    Working load limit [kg] 10000
    for nominal chain thickness [mm] 16
    Ring section diameter F 20.6
    Clearance W 39.5
    Component width B [mm] 109.3
    Stirrup height C [mm] 20.6
    Body thickness U 29
    Distance suspension point E [mm] 105
    Weight approx. [kg] 1.16
  • 16000
    20
    207545
    B1G 10B-CLX-16T-20MM-113
    Reference no. 207545
    Working load limit [kg] 16000
    for nominal chain thickness [mm] 20
    Ring section diameter F 23.5
    Clearance W 49.5
    Component width B [mm] 128.3
    Stirrup height C [mm] 29.5
    Body thickness U 37
    Distance suspension point E [mm] 118
    Weight approx. [kg] 2.5
  • 19000
    22
    207546
    B1G 10B-CLX-19T-22MM-133
    Reference no. 207546
    Working load limit [kg] 19000
    for nominal chain thickness [mm] 22
    Ring section diameter F 27
    Clearance W 57.9
    Component width B [mm] 152.4
    Stirrup height C [mm] 29
    Body thickness U 37
    Distance suspension point E [mm] 137.5
    Weight approx. [kg] 3.1
  • 26500
    26
    279695
    B1G 10B-CLX-26.50T-26MM-192
    Reference no. 279695
    Working load limit [kg] 26500
    for nominal chain thickness [mm] 26
    Ring section diameter F 30
    Clearance W 73.9
    Component width B [mm] 183.4
    Stirrup height C [mm] 40
    Body thickness U 47
    Distance suspension point E [mm] 195.5
    Weight approx. [kg] 6.8
  • 40000
    32
    502295
    B1G 10B-CLX-40T-32MM-206
    Reference no. 502295
    Working load limit [kg] 40000
    for nominal chain thickness [mm] 32
    Ring section diameter F 35
    Clearance W 94.1
    Component width B [mm] 218.1
    Stirrup height C [mm] 47
    Body thickness U 56
    Distance suspension point E [mm] 206
    Weight approx. [kg] 11.5
Working load limit [kg] 1400
for nominal chain thickness [mm] 6
Reference no. 207540
  • Details
    B1G 10B-CLX-1.40T-6MM-45
    Reference no. 207540
    Working load limit [kg] 1400
    for nominal chain thickness [mm] 6
    Ring section diameter F 7.5
    Clearance W 18
    Component width B [mm] 41.1
    Stirrup height C [mm] 8
    Body thickness U 11
    Distance suspension point E [mm] 45
    Weight approx. [kg] 0.07
Working load limit [kg] 2500
for nominal chain thickness [mm] 8
Reference no. 207541
  • Details
    B1G 10B-CLX-2.50T-8MM-62
    Reference no. 207541
    Working load limit [kg] 2500
    for nominal chain thickness [mm] 8
    Ring section diameter F 10
    Clearance W 23.5
    Component width B [mm] 55.3
    Stirrup height C [mm] 11.5
    Body thickness U 15
    Distance suspension point E [mm] 62
    Weight approx. [kg] 0.2
Working load limit [kg] 4000
for nominal chain thickness [mm] 10
Reference no. 207542
  • Details
    B1G 10B-CLX-4T-10MM-72
    Reference no. 207542
    Working load limit [kg] 4000
    for nominal chain thickness [mm] 10
    Ring section diameter F 12.6
    Clearance W 27.5
    Component width B [mm] 65.8
    Stirrup height C [mm] 12.6
    Body thickness U 18
    Distance suspension point E [mm] 72
    Weight approx. [kg] 0.35
Working load limit [kg] 6700
for nominal chain thickness [mm] 13
Reference no. 207543
  • Details
    B1G 10B-CLX-6.70T-13MM-87
    Reference no. 207543
    Working load limit [kg] 6700
    for nominal chain thickness [mm] 13
    Ring section diameter F 16.7
    Clearance W 33.3
    Component width B [mm] 82.5
    Stirrup height C [mm] 19
    Body thickness U 23
    Distance suspension point E [mm] 87.3
    Weight approx. [kg] 0.74
Working load limit [kg] 10000
for nominal chain thickness [mm] 16
Reference no. 207544
  • Details
    B1G 10B-CLX-10T-16MM-105
    Reference no. 207544
    Working load limit [kg] 10000
    for nominal chain thickness [mm] 16
    Ring section diameter F 20.6
    Clearance W 39.5
    Component width B [mm] 109.3
    Stirrup height C [mm] 20.6
    Body thickness U 29
    Distance suspension point E [mm] 105
    Weight approx. [kg] 1.16
Working load limit [kg] 16000
for nominal chain thickness [mm] 20
Reference no. 207545
  • Details
    B1G 10B-CLX-16T-20MM-113
    Reference no. 207545
    Working load limit [kg] 16000
    for nominal chain thickness [mm] 20
    Ring section diameter F 23.5
    Clearance W 49.5
    Component width B [mm] 128.3
    Stirrup height C [mm] 29.5
    Body thickness U 37
    Distance suspension point E [mm] 118
    Weight approx. [kg] 2.5
Working load limit [kg] 19000
for nominal chain thickness [mm] 22
Reference no. 207546
  • Details
    B1G 10B-CLX-19T-22MM-133
    Reference no. 207546
    Working load limit [kg] 19000
    for nominal chain thickness [mm] 22
    Ring section diameter F 27
    Clearance W 57.9
    Component width B [mm] 152.4
    Stirrup height C [mm] 29
    Body thickness U 37
    Distance suspension point E [mm] 137.5
    Weight approx. [kg] 3.1
Working load limit [kg] 26500
for nominal chain thickness [mm] 26
Reference no. 279695
  • Details
    B1G 10B-CLX-26.50T-26MM-192
    Reference no. 279695
    Working load limit [kg] 26500
    for nominal chain thickness [mm] 26
    Ring section diameter F 30
    Clearance W 73.9
    Component width B [mm] 183.4
    Stirrup height C [mm] 40
    Body thickness U 47
    Distance suspension point E [mm] 195.5
    Weight approx. [kg] 6.8
Working load limit [kg] 40000
for nominal chain thickness [mm] 32
Reference no. 502295
  • Details
    B1G 10B-CLX-40T-32MM-206
    Reference no. 502295
    Working load limit [kg] 40000
    for nominal chain thickness [mm] 32
    Ring section diameter F 35
    Clearance W 94.1
    Component width B [mm] 218.1
    Stirrup height C [mm] 47
    Body thickness U 56
    Distance suspension point E [mm] 206
    Weight approx. [kg] 11.5
