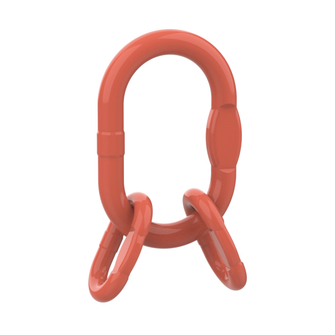

HIT PRO 1-CMCX hanging set, quality grade 10 – 3 to 4-leg

HIT PRO 1-CMCX hanging set, quality grade 10 – 3 to 4-leg
Standard suspension link for single and 4-leg chain slings. Connected with component connector.
Technical data

Quality grade

  • 10

Operating temperature

  • –40 °C to +200 °C = 100 % working load limit; +200 °C to +300 °C = 90 % working load limit; +300 °C to +380 °C = 60 % working load limit

Standard

  • on the basis of DIN EN 1677

Certification

  • H-stamp

Marking

  • Batch number

Safety factor

  • 4

Surface

  • powder-coated

Technical note

  • Connection to the chain sling is done by means of HIT PRO CW / CWP universal connecting link.

Type

  • Standard
Product variants
Working load limit 0–45° [kg]
Working load limit 45–60° [kg]
Reference no.
Details
  • 3000
    2120
    207664
    B1A 10B-CMCX-ST-3/4-6MM-135X75
    Reference no. 207664
    Working load limit 0–45° 3000
    Working load limit 45–60° 2120
    for nominal chain thickness 3-/4-leg 6
    Single crane hook up to no. (DIN 15401) 5
    Double crane hook up to no. (DIN 15402) 6

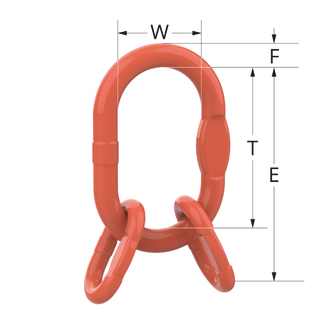

    Ring section diameter F 18
    Clear height T [mm] 135
    Clearance W 75
    Distance suspension point E [mm] 189
    Weight approx. [kg] 1.315
  • 5300
    3750
    207665
    B1A 10B-CMCX-ST-3/4-8MM-160X90
    Reference no. 207665
    Working load limit 0–45° 5300
    Working load limit 45–60° 3750
    for nominal chain thickness 3-/4-leg 8
    Single crane hook up to no. (DIN 15401) 6
    Double crane hook up to no. (DIN 15402) 8
    Ring section diameter F 22
    Clear height T [mm] 160
    Clearance W 90
    Distance suspension point E [mm] 230
    Weight approx. [kg] 2.32
  • 8000
    6000
    207666
    B1A 10B-CMCX-ST-3/4-10MM-180X100
    Reference no. 207666
    Working load limit 0–45° 8000
    Working load limit 45–60° 6000
    for nominal chain thickness 3-/4-leg 10
    Single crane hook up to no. (DIN 15401) 8
    Double crane hook up to no. (DIN 15402) 10
    Ring section diameter F 26
    Clear height T [mm] 180
    Clearance W 100
    Distance suspension point E [mm] 265
    Weight approx. [kg] 3.52
  • 14000
    10000
    207667
    B1A 10B-CMCX-ST-3/4-13MM-200X110
    Reference no. 207667
    Working load limit 0–45° 14000
    Working load limit 45–60° 10000
    for nominal chain thickness 3-/4-leg 13
    Single crane hook up to no. (DIN 15401) 10
    Double crane hook up to no. (DIN 15402) 12
    Ring section diameter F 32
    Clear height T [mm] 200
    Clearance W 110
    Distance suspension point E [mm] 315
    Weight approx. [kg] 6.26
  • 21200
    15000
    207668
    B1A 10B-CMCX-ST-3/4-16MM-260X140
    Reference no. 207668
    Working load limit 0–45° 21200
    Working load limit 45–60° 15000
    for nominal chain thickness 3-/4-leg 16
    Single crane hook up to no. (DIN 15401) 16
    Double crane hook up to no. (DIN 15402) 20
    Ring section diameter F 36
    Clear height T [mm] 260
    Clearance W 140
    Distance suspension point E [mm] 400
    Weight approx. [kg] 9.56
  • 33600
    24000
    207669
    B1A 10B-CMCX-ST-3/4-20MM-350X190
    Reference no. 207669
    Working load limit 0–45° 33600
    Working load limit 45–60° 24000
    for nominal chain thickness 3-/4-leg 20
    Single crane hook up to no. (DIN 15401) 32
    Double crane hook up to no. (DIN 15402) 40
    Ring section diameter F 50
    Clear height T [mm] 350
    Clearance W 190
    Distance suspension point E [mm] 500
    Weight approx. [kg] 22.65
  • 40000
    28000
    207670
    B1A 10B-CMCX-ST-3/4-22MM-350X190
    Reference no. 207670
    Working load limit 0–45° 40000
    Working load limit 45–60° 28000
    for nominal chain thickness 3-/4-leg 22
    Single crane hook up to no. (DIN 15401) 32
    Double crane hook up to no. (DIN 15402) 40
    Ring section diameter F 50
    Clear height T [mm] 350
    Clearance W 190
    Distance suspension point E [mm] 520
    Weight approx. [kg] 25.19
  • 56000
    39750
    502163
    B1A 10B-CMCX-ST-3/4-26MM-400X200
    Reference no. 502163
    Working load limit 0–45° 56000
    Working load limit 45–60° 39750
    for nominal chain thickness 3-/4-leg 26
    Single crane hook up to no. (DIN 15401) 32
    Double crane hook up to no. (DIN 15402) 40
    Ring section diameter F 57
    Clear height T [mm] 400
    Clearance W 200
    Distance suspension point E [mm] 570
    Weight approx. [kg] 36.01
Working load limit 0–45° 3000
Working load limit 45–60° 2120
Reference no. 207664
  • Details
    B1A 10B-CMCX-ST-3/4-6MM-135X75
    Reference no. 207664
    Working load limit 0–45° 3000
    Working load limit 45–60° 2120
    for nominal chain thickness 3-/4-leg 6
    Single crane hook up to no. (DIN 15401) 5
    Double crane hook up to no. (DIN 15402) 6
    Ring section diameter F 18
    Clear height T [mm] 135
    Clearance W 75
    Distance suspension point E [mm] 189
    Weight approx. [kg] 1.315
Working load limit 0–45° 5300
Working load limit 45–60° 3750
Reference no. 207665
  • Details
    B1A 10B-CMCX-ST-3/4-8MM-160X90
    Reference no. 207665
    Working load limit 0–45° 5300
    Working load limit 45–60° 3750
    for nominal chain thickness 3-/4-leg 8
    Single crane hook up to no. (DIN 15401) 6
    Double crane hook up to no. (DIN 15402) 8
    Ring section diameter F 22
    Clear height T [mm] 160
    Clearance W 90
    Distance suspension point E [mm] 230
    Weight approx. [kg] 2.32
Working load limit 0–45° 8000
Working load limit 45–60° 6000
Reference no. 207666
  • Details
    B1A 10B-CMCX-ST-3/4-10MM-180X100
    Reference no. 207666
    Working load limit 0–45° 8000
    Working load limit 45–60° 6000
    for nominal chain thickness 3-/4-leg 10
    Single crane hook up to no. (DIN 15401) 8
    Double crane hook up to no. (DIN 15402) 10
    Ring section diameter F 26
    Clear height T [mm] 180
    Clearance W 100
    Distance suspension point E [mm] 265
    Weight approx. [kg] 3.52
Working load limit 0–45° 14000
Working load limit 45–60° 10000
Reference no. 207667
  • Details
    B1A 10B-CMCX-ST-3/4-13MM-200X110
    Reference no. 207667
    Working load limit 0–45° 14000
    Working load limit 45–60° 10000
    for nominal chain thickness 3-/4-leg 13
    Single crane hook up to no. (DIN 15401) 10
    Double crane hook up to no. (DIN 15402) 12
    Ring section diameter F 32
    Clear height T [mm] 200
    Clearance W 110
    Distance suspension point E [mm] 315
    Weight approx. [kg] 6.26
Working load limit 0–45° 21200
Working load limit 45–60° 15000
Reference no. 207668
  • Details
    B1A 10B-CMCX-ST-3/4-16MM-260X140
    Reference no. 207668
    Working load limit 0–45° 21200
    Working load limit 45–60° 15000
    for nominal chain thickness 3-/4-leg 16
    Single crane hook up to no. (DIN 15401) 16
    Double crane hook up to no. (DIN 15402) 20
    Ring section diameter F 36
    Clear height T [mm] 260
    Clearance W 140
    Distance suspension point E [mm] 400
    Weight approx. [kg] 9.56
Working load limit 0–45° 33600
Working load limit 45–60° 24000
Reference no. 207669
  • Details
    B1A 10B-CMCX-ST-3/4-20MM-350X190
    Reference no. 207669
    Working load limit 0–45° 33600
    Working load limit 45–60° 24000
    for nominal chain thickness 3-/4-leg 20
    Single crane hook up to no. (DIN 15401) 32
    Double crane hook up to no. (DIN 15402) 40
    Ring section diameter F 50
    Clear height T [mm] 350
    Clearance W 190
    Distance suspension point E [mm] 500
    Weight approx. [kg] 22.65
Working load limit 0–45° 40000
Working load limit 45–60° 28000
Reference no. 207670
  • Details
    B1A 10B-CMCX-ST-3/4-22MM-350X190
    Reference no. 207670
    Working load limit 0–45° 40000
    Working load limit 45–60° 28000
    for nominal chain thickness 3-/4-leg 22
    Single crane hook up to no. (DIN 15401) 32
    Double crane hook up to no. (DIN 15402) 40
    Ring section diameter F 50
    Clear height T [mm] 350
    Clearance W 190
    Distance suspension point E [mm] 520
    Weight approx. [kg] 25.19
Working load limit 0–45° 56000
Working load limit 45–60° 39750
Reference no. 502163
  • Details
    B1A 10B-CMCX-ST-3/4-26MM-400X200
    Reference no. 502163
    Working load limit 0–45° 56000
    Working load limit 45–60° 39750
    for nominal chain thickness 3-/4-leg 26
    Single crane hook up to no. (DIN 15401) 32
    Double crane hook up to no. (DIN 15402) 40
    Ring section diameter F 57
    Clear height T [mm] 400
    Clearance W 200
    Distance suspension point E [mm] 570
    Weight approx. [kg] 36.01
