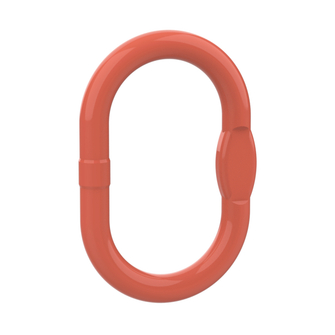

HIT PRO 1 CMX suspension link, quality grade 10 – 1 to 2-leg

HIT PRO 1 CMX suspension link, quality grade 10 – 1 to 2-leg
Standard suspension link, from 2 t to 22.4 t. Connected with component connector.
Technical data

Quality grade

  • 10

Operating temperature

  • –40 °C to +200 °C = 100 % working load limit; +200 °C to +300 °C = 90 % working load limit; +300 °C to +380 °C = 60 % working load limit

Standard

  • on the basis of DIN EN 1677

Certification

  • H-stamp

Marking

  • Batch number

Safety factor

  • 4

Surface

  • powder-coated

Technical note

  • Connection to the chain sling is done by means of HIT PRO CW / CWP universal connecting link.

Type

  • Standard
Product variants
Working load limit 0° [kg]
Working load limit 0–45° [kg]
Reference no.
Details
  • 1900
    2000
    207655
    B1A 10B-CMX0706-ST-1/2-7MM/6-110X60
    Reference no. 207655
    Working load limit 0° [kg] 1900
    Working load limit 0–45° 2000
    for nominal chain thickness single-leg 6
    for nominal chain thickness 2-leg 6
    Single crane hook up to no. (DIN 15401) 2.5
    Double crane hook up to no. (DIN 15402) 4

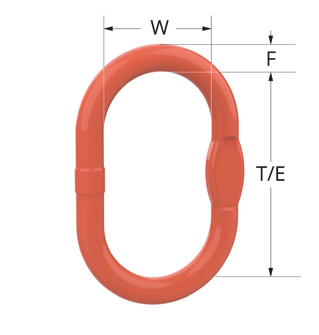

    Ring section diameter F 13
    Clear height T [mm] 110
    Clearance W 60
    Distance suspension point E [mm] 110
    Weight approx. [kg] 0.34
  • 2500
    2650
    207656
    B1A 10B-CMX0807-ST-1/2-8MM/7-110X60
    Reference no. 207656
    Working load limit 0° [kg] 2500
    Working load limit 0–45° 2650
    for nominal chain thickness single-leg 8
    for nominal chain thickness 2-leg 6
    Single crane hook up to no. (DIN 15401) 2.5
    Double crane hook up to no. (DIN 15402) 4
    Ring section diameter F 16
    Clear height T [mm] 110
    Clearance W 60
    Distance suspension point E [mm] 110
    Weight approx. [kg] 0.53
  • 4000
    3550
    207657
    B1A 10B-CMX1008-ST-1/2-10MM/8-135X75
    Reference no. 207657
    Working load limit 0° [kg] 4000
    Working load limit 0–45° 3550
    for nominal chain thickness single-leg 10
    for nominal chain thickness 2-leg 8
    Single crane hook up to no. (DIN 15401) 5
    Double crane hook up to no. (DIN 15402) 6
    Ring section diameter F 18
    Clear height T [mm] 135
    Clearance W 75
    Distance suspension point E [mm] 135
    Weight approx. [kg] 0.92
  • 6700
    5600
    207658
    B1A 10B-CMX1310-ST-1/2-13MM/10-160X90
    Reference no. 207658
    Working load limit 0° [kg] 6700
    Working load limit 0–45° 5600
    for nominal chain thickness single-leg 13
    for nominal chain thickness 2-leg 10
    Single crane hook up to no. (DIN 15401) 6
    Double crane hook up to no. (DIN 15402) 8
    Ring section diameter F 22
    Clear height T [mm] 160
    Clearance W 90
    Distance suspension point E [mm] 160
    Weight approx. [kg] 1.6
  • 10000
    9500
    207659
    B1A 10B-CMX1613-ST-1/2-16MM/13-180X100
    Reference no. 207659
    Working load limit 0° [kg] 10000
    Working load limit 0–45° 9500
    for nominal chain thickness single-leg 16
    for nominal chain thickness 2-leg 13
    Single crane hook up to no. (DIN 15401) 8
    Double crane hook up to no. (DIN 15402) 10
    Ring section diameter F 26
    Clear height T [mm] 180
    Clearance W 100
    Distance suspension point E [mm] 180
    Weight approx. [kg] 2.46
  • 12500
    14000
    207660
    B1A 10B-CMX1816-ST-1/2-18MM/16-200X110
    Reference no. 207660
    Working load limit 0° [kg] 12500
    Working load limit 0–45° 14000
    for nominal chain thickness single-leg 18
    for nominal chain thickness 2-leg 16
    Single crane hook up to no. (DIN 15401) 10
    Double crane hook up to no. (DIN 15402) 12
    Ring section diameter F 32
    Clear height T [mm] 200
    Clearance W 110
    Distance suspension point E [mm] 200
    Weight approx. [kg] 4.14
  • 19000
    22400
    207662
    B1A 10B-CMX2220-ST-1/2-22MM/20-300X160
    Reference no. 207662
    Working load limit 0° [kg] 19000
    Working load limit 0–45° 22400
    for nominal chain thickness single-leg 22
    for nominal chain thickness 2-leg 20
    Single crane hook up to no. (DIN 15401) 16
    Double crane hook up to no. (DIN 15402) 20
    Ring section diameter F 40
    Clear height T [mm] 300
    Clearance W 160
    Distance suspension point E [mm] 300
    Weight approx. [kg] 8.95
  • 26500
    26500
    207663
    B1A 10B-CMX2622-ST-1/2-26MM/22-340X180
    Reference no. 207663
    Working load limit 0° [kg] 26500
    Working load limit 0–45° 26500
    for nominal chain thickness single-leg 26
    for nominal chain thickness 2-leg 22
    Single crane hook up to no. (DIN 15401) 25
    Double crane hook up to no. (DIN 15402) 32
    Ring section diameter F 45
    Clear height T [mm] 340
    Clearance W 180
    Distance suspension point E [mm] 340
    Weight approx. [kg] 12.82
  • 40000
    37100
    259496
    B1A 10B-CMX3226-ST-1/2-32MM/26-350X190
    Reference no. 259496
    Working load limit 0° [kg] 40000
    Working load limit 0–45° 37100
    for nominal chain thickness single-leg 32
    for nominal chain thickness 2-leg 26
    Single crane hook up to no. (DIN 15401) 32
    Double crane hook up to no. (DIN 15402) 40
    Ring section diameter F 51
    Clear height T [mm] 350
    Clearance W 190
    Distance suspension point E [mm] 350
    Weight approx. [kg] 16.55
Working load limit 0° [kg] 1900
Working load limit 0–45° 2000
Reference no. 207655
  • Details
    B1A 10B-CMX0706-ST-1/2-7MM/6-110X60
    Reference no. 207655
    Working load limit 0° [kg] 1900
    Working load limit 0–45° 2000
    for nominal chain thickness single-leg 6
    for nominal chain thickness 2-leg 6
    Single crane hook up to no. (DIN 15401) 2.5
    Double crane hook up to no. (DIN 15402) 4
    Ring section diameter F 13
    Clear height T [mm] 110
    Clearance W 60
    Distance suspension point E [mm] 110
    Weight approx. [kg] 0.34
Working load limit 0° [kg] 2500
Working load limit 0–45° 2650
Reference no. 207656
  • Details
    B1A 10B-CMX0807-ST-1/2-8MM/7-110X60
    Reference no. 207656
    Working load limit 0° [kg] 2500
    Working load limit 0–45° 2650
    for nominal chain thickness single-leg 8
    for nominal chain thickness 2-leg 6
    Single crane hook up to no. (DIN 15401) 2.5
    Double crane hook up to no. (DIN 15402) 4
    Ring section diameter F 16
    Clear height T [mm] 110
    Clearance W 60
    Distance suspension point E [mm] 110
    Weight approx. [kg] 0.53
Working load limit 0° [kg] 4000
Working load limit 0–45° 3550
Reference no. 207657
  • Details
    B1A 10B-CMX1008-ST-1/2-10MM/8-135X75
    Reference no. 207657
    Working load limit 0° [kg] 4000
    Working load limit 0–45° 3550
    for nominal chain thickness single-leg 10
    for nominal chain thickness 2-leg 8
    Single crane hook up to no. (DIN 15401) 5
    Double crane hook up to no. (DIN 15402) 6
    Ring section diameter F 18
    Clear height T [mm] 135
    Clearance W 75
    Distance suspension point E [mm] 135
    Weight approx. [kg] 0.92
Working load limit 0° [kg] 6700
Working load limit 0–45° 5600
Reference no. 207658
  • Details
    B1A 10B-CMX1310-ST-1/2-13MM/10-160X90
    Reference no. 207658
    Working load limit 0° [kg] 6700
    Working load limit 0–45° 5600
    for nominal chain thickness single-leg 13
    for nominal chain thickness 2-leg 10
    Single crane hook up to no. (DIN 15401) 6
    Double crane hook up to no. (DIN 15402) 8
    Ring section diameter F 22
    Clear height T [mm] 160
    Clearance W 90
    Distance suspension point E [mm] 160
    Weight approx. [kg] 1.6
Working load limit 0° [kg] 10000
Working load limit 0–45° 9500
Reference no. 207659
  • Details
    B1A 10B-CMX1613-ST-1/2-16MM/13-180X100
    Reference no. 207659
    Working load limit 0° [kg] 10000
    Working load limit 0–45° 9500
    for nominal chain thickness single-leg 16
    for nominal chain thickness 2-leg 13
    Single crane hook up to no. (DIN 15401) 8
    Double crane hook up to no. (DIN 15402) 10
    Ring section diameter F 26
    Clear height T [mm] 180
    Clearance W 100
    Distance suspension point E [mm] 180
    Weight approx. [kg] 2.46
Working load limit 0° [kg] 12500
Working load limit 0–45° 14000
Reference no. 207660
  • Details
    B1A 10B-CMX1816-ST-1/2-18MM/16-200X110
    Reference no. 207660
    Working load limit 0° [kg] 12500
    Working load limit 0–45° 14000
    for nominal chain thickness single-leg 18
    for nominal chain thickness 2-leg 16
    Single crane hook up to no. (DIN 15401) 10
    Double crane hook up to no. (DIN 15402) 12
    Ring section diameter F 32
    Clear height T [mm] 200
    Clearance W 110
    Distance suspension point E [mm] 200
    Weight approx. [kg] 4.14
Working load limit 0° [kg] 19000
Working load limit 0–45° 22400
Reference no. 207662
  • Details
    B1A 10B-CMX2220-ST-1/2-22MM/20-300X160
    Reference no. 207662
    Working load limit 0° [kg] 19000
    Working load limit 0–45° 22400
    for nominal chain thickness single-leg 22
    for nominal chain thickness 2-leg 20
    Single crane hook up to no. (DIN 15401) 16
    Double crane hook up to no. (DIN 15402) 20
    Ring section diameter F 40
    Clear height T [mm] 300
    Clearance W 160
    Distance suspension point E [mm] 300
    Weight approx. [kg] 8.95
Working load limit 0° [kg] 26500
Working load limit 0–45° 26500
Reference no. 207663
  • Details
    B1A 10B-CMX2622-ST-1/2-26MM/22-340X180
    Reference no. 207663
    Working load limit 0° [kg] 26500
    Working load limit 0–45° 26500
    for nominal chain thickness single-leg 26
    for nominal chain thickness 2-leg 22
    Single crane hook up to no. (DIN 15401) 25
    Double crane hook up to no. (DIN 15402) 32
    Ring section diameter F 45
    Clear height T [mm] 340
    Clearance W 180
    Distance suspension point E [mm] 340
    Weight approx. [kg] 12.82
Working load limit 0° [kg] 40000
Working load limit 0–45° 37100
Reference no. 259496
  • Details
    B1A 10B-CMX3226-ST-1/2-32MM/26-350X190
    Reference no. 259496
    Working load limit 0° [kg] 40000
    Working load limit 0–45° 37100
    for nominal chain thickness single-leg 32
    for nominal chain thickness 2-leg 26
    Single crane hook up to no. (DIN 15401) 32
    Double crane hook up to no. (DIN 15402) 40
    Ring section diameter F 51
    Clear height T [mm] 350
    Clearance W 190
    Distance suspension point E [mm] 350
    Weight approx. [kg] 16.55
Downloads

Applications

Application table

Download

Poster

"Poster ""Discarding time criteria""" Overview of the discarding time criteria for wire rope slings, lifting straps, round slings and chain slings.
Download
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Tel. +49 8331 937-9623
Fax +49 8331 937-380
E-Mail verkauf-azs@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
 Service centre
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Academy
Tel. +49 8331 937-462
E-Mail academy@pfeifer.de
Web www.pfeifer.info
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
France
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +33 676 54 42 68 / +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Poland
 PFEIFER Technika Linowa i Dźwigowa Sp. z o.o.
ul. Wrocławska 68
55-330 Krępice k/Wrocławia
Tel. +48 71 30 23 700
E-Mail info@pfeifer.pl
Web www.pfeifer.pl
 Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
