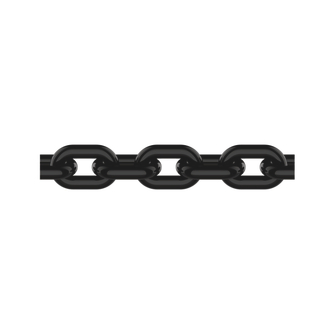

HIT PRO 1-round steel chain GK10

HIT PRO 1-round steel chain GK10
Quality chain sling for installation into chain suspension gear. KTL coating for corrosion protection
Technical data

Quality grade

  • 10

Operating temperature

  • –40 °C to +200 °C = 100 % working load limit; +200 °C to +300 °C = 90 % working load limit; +300 °C to +380 °C = 60 % working load limit

Standard

  • Based on DIN EN 818

Certification

  • H-stamp

Marking

  • Batch number
  • Quality grade no.

Safety factor

  • 4

Surface

  • cathodic dip-paint coating

Colour

  • black
Product variants
Working load limit [kg]
Reference no.
Details
  • 1400
    701860
    B1M 10F-EN818-380°-1.4T-6MM-18MM-2.5M
    Reference no. 701860
    Working load limit [kg] 1400

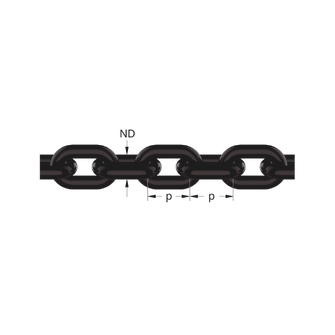

    Nominal size of chain ND [mm] 6
    Chain pitch p 18
    Section length AL 2.5
    Weight approx. [kg] 2.4
  • 1400
    701861
    B1M 10F-EN818-380°-1.4T-6MM-18MM-5M
    Reference no. 701861
    Working load limit [kg] 1400
    Nominal size of chain ND [mm] 6
    Chain pitch p 18
    Section length AL 5
    Weight approx. [kg] 4.8
  • 1400
    701862
    B1M 10F-EN818-380°-1.4T-6MM-18MM-10M
    Reference no. 701862
    Working load limit [kg] 1400
    Nominal size of chain ND [mm] 6
    Chain pitch p 18
    Section length AL 10
    Weight approx. [kg] 9.6
  • 1400
    701863
    B1M 10F-EN818-380°-1.4T-6MM-18MM-15M
    Reference no. 701863
    Working load limit [kg] 1400
    Nominal size of chain ND [mm] 6
    Chain pitch p 18
    Section length AL 15
    Weight approx. [kg] 14.4
  • 1400
    701864
    B1M 10F-EN818-380°-1.4T-6MM-18MM-20M
    Reference no. 701864
    Working load limit [kg] 1400
    Nominal size of chain ND [mm] 6
    Chain pitch p 18
    Section length AL 20
    Weight approx. [kg] 19.2
  • 1400
    701865
    B1M 10F-EN818-380°-1.4T-6MM-18MM-30M
    Reference no. 701865
    Working load limit [kg] 1400
    Nominal size of chain ND [mm] 6
    Chain pitch p 18
    Section length AL 30
    Weight approx. [kg] 28.8
  • 1400
    701866
    B1M 10F-EN818-380°-1.4T-6MM-18MM-40M
    Reference no. 701866
    Working load limit [kg] 1400
    Nominal size of chain ND [mm] 6
    Chain pitch p 18
    Section length AL 40
    Weight approx. [kg] 38.4
  • 1400
    701867
    B1M 10F-EN818-380°-1.4T-6MM-18MM-50M
    Reference no. 701867
    Working load limit [kg] 1400
    Nominal size of chain ND [mm] 6
    Chain pitch p 18
    Section length AL 50
    Weight approx. [kg] 123
  • 2500
    701785
    B1M 10F-EN818-380°-2.5T-8MM-24MM-2.5M
    Reference no. 701785
    Working load limit [kg] 2500
    Nominal size of chain ND [mm] 8
    Chain pitch p 24
    Section length AL 2.5
    Weight approx. [kg] 3.93
  • 2500
    701787
    B1M 10F-EN818-380°-2.5T-8MM-24MM-2.5M
    Reference no. 701787
    Working load limit [kg] 2500
    Nominal size of chain ND [mm] 8
    Chain pitch p 24
    Section length AL 5
    Weight approx. [kg] 7.85
  • 2500
    701788
    B1M 10F-EN818-380°-2.5T-8MM-24MM-10M
    Reference no. 701788
    Working load limit [kg] 2500
    Nominal size of chain ND [mm] 8
    Chain pitch p 24
    Section length AL 10
    Weight approx. [kg] 15.7
  • 2500
    701789
    B1M 10F-EN818-380°-2.5T-8MM-24MM-15M
    Reference no. 701789
    Working load limit [kg] 2500
    Nominal size of chain ND [mm] 8
    Chain pitch p 24
    Section length AL 15
    Weight approx. [kg] 23.55
  • 2500
    701791
    B1M 10F-EN818-380°-2.5T-8MM-24MM-20M
    Reference no. 701791
    Working load limit [kg] 2500
    Nominal size of chain ND [mm] 8
    Chain pitch p 24
    Section length AL 20
    Weight approx. [kg] 31.4
  • 2500
    701792
    B1M 10F-EN818-380°-2.5T-8MM-24MM-30M
    Reference no. 701792
    Working load limit [kg] 2500
    Nominal size of chain ND [mm] 8
    Chain pitch p 24
    Section length AL 30
    Weight approx. [kg] 47.1
  • 2500
    701793
    B1M 10F-EN818-380°-2.5T-8MM-24MM-40M
    Reference no. 701793
    Working load limit [kg] 2500
    Nominal size of chain ND [mm] 8
    Chain pitch p 24
    Section length AL 40
    Weight approx. [kg] 62.8
  • 2500
    701794
    B1M 10F-EN818-380°-2.5T-8MM-24MM-50M
    Reference no. 701794
    Working load limit [kg] 2500
    Nominal size of chain ND [mm] 8
    Chain pitch p 24
    Section length AL 50
    Weight approx. [kg] 78.5
  • 4000
    701795
    B1M 10F-EN818-380°-4T-10MM-30MM-2.5M
    Reference no. 701795
    Working load limit [kg] 4000
    Nominal size of chain ND [mm] 10
    Chain pitch p 30
    Section length AL 2.5
    Weight approx. [kg] 6.15
  • 4000
    701796
    B1M 10F-EN818-380°-4T-10MM-30MM-5M
    Reference no. 701796
    Working load limit [kg] 4000
    Nominal size of chain ND [mm] 10
    Chain pitch p 30
    Section length AL 5
    Weight approx. [kg] 12.3
  • 4000
    701797
    B1M 10F-EN818-380°-4T-10MM-30MM-10M
    Reference no. 701797
    Working load limit [kg] 4000
    Nominal size of chain ND [mm] 10
    Chain pitch p 30
    Section length AL 10
    Weight approx. [kg] 24.6
  • 4000
    701802
    B1M 10F-EN818-380°-4T-10MM-30MM-15M
    Reference no. 701802
    Working load limit [kg] 4000
    Nominal size of chain ND [mm] 10
    Chain pitch p 30
    Section length AL 15
    Weight approx. [kg] 36.9
  • 4000
    701803
    B1M 10F-EN818-380°-4T-10MM-30MM-20M
    Reference no. 701803
    Working load limit [kg] 4000
    Nominal size of chain ND [mm] 10
    Chain pitch p 30
    Section length AL 20
    Weight approx. [kg] 49.2
  • 4000
    701804
    B1M 10F-EN818-380°-4T-10MM-30MM-30M
    Reference no. 701804
    Working load limit [kg] 4000
    Nominal size of chain ND [mm] 10
    Chain pitch p 30
    Section length AL 30
    Weight approx. [kg] 73.8
  • 4000
    701805
    B1M 10F-EN818-380°-4T-10MM-30MM-40M
    Reference no. 701805
    Working load limit [kg] 4000
    Nominal size of chain ND [mm] 10
    Chain pitch p 30
    Section length AL 40
    Weight approx. [kg] 98.4
  • 4000
    701806
    B1M 10F-EN818-380°-4T-10MM-30MM-50M
    Reference no. 701806
    Working load limit [kg] 4000
    Nominal size of chain ND [mm] 10
    Chain pitch p 30
    Section length AL 50
    Weight approx. [kg] 123
  • 6700
    701786
    B1M 10F-EN818-380°-6.70T-13MM-39MM-2.5M
    Reference no. 701786
    Working load limit [kg] 6700
    Nominal size of chain ND [mm] 13
    Chain pitch p 39
    Section length AL 2.5
    Weight approx. [kg] 10.45
  • 6700
    701790
    B1M 10F-EN818-380°-6.70T-13MM-39MM-5M
    Reference no. 701790
    Working load limit [kg] 6700
    Nominal size of chain ND [mm] 13
    Chain pitch p 39
    Section length AL 5
    Weight approx. [kg] 20.9
  • 6700
    701813
    B1M 10F-EN818-380°-6.70T-13MM-39MM-10M
    Reference no. 701813
    Working load limit [kg] 6700
    Nominal size of chain ND [mm] 13
    Chain pitch p 39
    Section length AL 10
    Weight approx. [kg] 41.8
  • 6700
    701814
    B1M 10F-EN818-380°-6.70T-13MM-39MM-15M
    Reference no. 701814
    Working load limit [kg] 6700
    Nominal size of chain ND [mm] 13
    Chain pitch p 39
    Section length AL 15
    Weight approx. [kg] 62.7
  • 6700
    701815
    B1M 10F-EN818-380°-6.70T-13MM-39MM-20M
    Reference no. 701815
    Working load limit [kg] 6700
    Nominal size of chain ND [mm] 13
    Chain pitch p 39
    Section length AL 20
    Weight approx. [kg] 83.6
  • 6700
    701817
    B1M 10F-EN818-380°-6.70T-13MM-39MM-30M
    Reference no. 701817
    Working load limit [kg] 6700
    Nominal size of chain ND [mm] 13
    Chain pitch p 39
    Section length AL 30
    Weight approx. [kg] 125.4
  • 6700
    701818
    B1M 10F-EN818-380°-6.70T-13MM-39MM-40M
    Reference no. 701818
    Working load limit [kg] 6700
    Nominal size of chain ND [mm] 13
    Chain pitch p 39
    Section length AL 40
    Weight approx. [kg] 167.2
  • 6700
    701820
    B1M 10F-EN818-380°-6.70T-13MM-39MM-50M
    Reference no. 701820
    Working load limit [kg] 6700
    Nominal size of chain ND [mm] 13
    Chain pitch p 39
    Section length AL 50
    Weight approx. [kg] 209
  • 10000
    701822
    B1M 10F-EN818-380°-10T-16MM-48MM-2.5M
    Reference no. 701822
    Working load limit [kg] 10000
    Nominal size of chain ND [mm] 16
    Chain pitch p 48
    Section length AL 2.5
    Weight approx. [kg] 15.7
  • 10000
    701824
    B1M 10F-EN818-380°-10T-16MM-48MM-5M
    Reference no. 701824
    Working load limit [kg] 10000
    Nominal size of chain ND [mm] 16
    Chain pitch p 48
    Section length AL 5
    Weight approx. [kg] 31.4
  • 10000
    701826
    B1M 10F-EN818-380°-10T-16MM-48 MM-10M
    Reference no. 701826
    Working load limit [kg] 10000
    Nominal size of chain ND [mm] 16
    Chain pitch p 48
    Section length AL 10
    Weight approx. [kg] 62.8
  • 10000
    701828
    B1M 10F-EN818-380°-10T-16MM-48MM-15M
    Reference no. 701828
    Working load limit [kg] 10000
    Nominal size of chain ND [mm] 16
    Chain pitch p 48
    Section length AL 15
    Weight approx. [kg] 94.2
  • 10000
    701831
    B1M 10F-EN818-380°-10T-16MM-48MM-20M
    Reference no. 701831
    Working load limit [kg] 10000
    Nominal size of chain ND [mm] 16
    Chain pitch p 48
    Section length AL 20
    Weight approx. [kg] 125.6
  • 10000
    701832
    B1M 10F-EN818-380°-10T-16MM-48 MM-25M
    Reference no. 701832
    Working load limit [kg] 10000
    Nominal size of chain ND [mm] 16
    Chain pitch p 48
    Section length AL 25
    Weight approx. [kg] 157
  • 14000
    702021
    B1M 10F-EN818-380°-14T-20MM-60MM-2.5M
    Reference no. 702021
    Working load limit [kg] 14000
    Nominal size of chain ND [mm] 19
    Chain pitch p 57
    Section length AL 2.5
    Weight approx. [kg] 22.3
  • 14000
    702022
    B1M 10F-EN818-380°-14T-20MM-60MM-5M
    Reference no. 702022
    Working load limit [kg] 14000
    Nominal size of chain ND [mm] 19
    Chain pitch p 57
    Section length AL 5
    Weight approx. [kg] 44.6
  • 14000
    702023
    B1M 10F-EN818-380°-14T-20MM-60MM-10M
    Reference no. 702023
    Working load limit [kg] 14000
    Nominal size of chain ND [mm] 19
    Chain pitch p 57
    Section length AL 10
    Weight approx. [kg] 89.2
  • 14000
    702024
    B1M 10F-EN818-380°-14T-20MM-60MM-15M
    Reference no. 702024
    Working load limit [kg] 14000
    Nominal size of chain ND [mm] 19
    Chain pitch p 57
    Section length AL 15
    Weight approx. [kg] 133.8
  • 14000
    702025
    B1M 10F-EN818-380°-14T-20MM-60MM-20M
    Reference no. 702025
    Working load limit [kg] 14000
    Nominal size of chain ND [mm] 19
    Chain pitch p 57
    Section length AL 20
    Weight approx. [kg] 178.4
  • 14000
    702026
    B1M 10F-EN818-380°-14T-20MM-60MM-25M
    Reference no. 702026
    Working load limit [kg] 14000
    Nominal size of chain ND [mm] 19
    Chain pitch p 57
    Section length AL 25
    Weight approx. [kg] 223
  • 19000
    701834
    B1M 10F-EN818-380°-19T-22MM-66MM-2.5M
    Reference no. 701834
    Working load limit [kg] 19000
    Nominal size of chain ND [mm] 22
    Chain pitch p 66
    Section length AL 2.5
    Weight approx. [kg] 29.7
  • 19000
    701839
    B1M 10F-EN818-380°-19T-22MM-66MM-5M
    Reference no. 701839
    Working load limit [kg] 19000
    Nominal size of chain ND [mm] 22
    Chain pitch p 66
    Section length AL 5
    Weight approx. [kg] 59.4
  • 19000
    701841
    B1M 10F-EN818-380°-19T-22MM-66MM-10M
    Reference no. 701841
    Working load limit [kg] 19000
    Nominal size of chain ND [mm] 22
    Chain pitch p 66
    Section length AL 10
    Weight approx. [kg] 118.8
  • 19000
    701843
    B1M 10F-EN818-380°-19T-22MM-66MM-15M
    Reference no. 701843
    Working load limit [kg] 19000
    Nominal size of chain ND [mm] 22
    Chain pitch p 66
    Section length AL 15
    Weight approx. [kg] 178.2
  • 19000
    701844
    B1M 10F-EN818-380°-19T-22MM-66MM-20M
    Reference no. 701844
    Working load limit [kg] 19000
    Nominal size of chain ND [mm] 22
    Chain pitch p 66
    Section length AL 20
    Weight approx. [kg] 237.6
  • 19000
    701846
    B1M 10F-EN818-380°-19T-22MM-66MM-25M
    Reference no. 701846
    Working load limit [kg] 19000
    Nominal size of chain ND [mm] 22
    Chain pitch p 66
    Section length AL 25
    Weight approx. [kg] 297
Working load limit [kg] 1400
Reference no. 701860
  • Details
    B1M 10F-EN818-380°-1.4T-6MM-18MM-2.5M
    Reference no. 701860
    Working load limit [kg] 1400
    Nominal size of chain ND [mm] 6
    Chain pitch p 18
    Section length AL 2.5
    Weight approx. [kg] 2.4
Working load limit [kg] 1400
Reference no. 701861
  • Details
    B1M 10F-EN818-380°-1.4T-6MM-18MM-5M
    Reference no. 701861
    Working load limit [kg] 1400
    Nominal size of chain ND [mm] 6
    Chain pitch p 18
    Section length AL 5
    Weight approx. [kg] 4.8
Working load limit [kg] 1400
Reference no. 701862
  • Details
    B1M 10F-EN818-380°-1.4T-6MM-18MM-10M
    Reference no. 701862
    Working load limit [kg] 1400
    Nominal size of chain ND [mm] 6
    Chain pitch p 18
    Section length AL 10
    Weight approx. [kg] 9.6
Working load limit [kg] 1400
Reference no. 701863
  • Details
    B1M 10F-EN818-380°-1.4T-6MM-18MM-15M
    Reference no. 701863
    Working load limit [kg] 1400
    Nominal size of chain ND [mm] 6
    Chain pitch p 18
    Section length AL 15
    Weight approx. [kg] 14.4
Working load limit [kg] 1400
Reference no. 701864
  • Details
    B1M 10F-EN818-380°-1.4T-6MM-18MM-20M
    Reference no. 701864
    Working load limit [kg] 1400
    Nominal size of chain ND [mm] 6
    Chain pitch p 18
    Section length AL 20
    Weight approx. [kg] 19.2
Working load limit [kg] 1400
Reference no. 701865
  • Details
    B1M 10F-EN818-380°-1.4T-6MM-18MM-30M
    Reference no. 701865
    Working load limit [kg] 1400
    Nominal size of chain ND [mm] 6
    Chain pitch p 18
    Section length AL 30
    Weight approx. [kg] 28.8
Working load limit [kg] 1400
Reference no. 701866
  • Details
    B1M 10F-EN818-380°-1.4T-6MM-18MM-40M
    Reference no. 701866
    Working load limit [kg] 1400
    Nominal size of chain ND [mm] 6
    Chain pitch p 18
    Section length AL 40
    Weight approx. [kg] 38.4
Working load limit [kg] 1400
Reference no. 701867
  • Details
    B1M 10F-EN818-380°-1.4T-6MM-18MM-50M
    Reference no. 701867
    Working load limit [kg] 1400
    Nominal size of chain ND [mm] 6
    Chain pitch p 18
    Section length AL 50
    Weight approx. [kg] 123
Working load limit [kg] 2500
Reference no. 701785
  • Details
    B1M 10F-EN818-380°-2.5T-8MM-24MM-2.5M
    Reference no. 701785
    Working load limit [kg] 2500
    Nominal size of chain ND [mm] 8
    Chain pitch p 24
    Section length AL 2.5
    Weight approx. [kg] 3.93
Working load limit [kg] 2500
Reference no. 701787
  • Details
    B1M 10F-EN818-380°-2.5T-8MM-24MM-2.5M
    Reference no. 701787
    Working load limit [kg] 2500
    Nominal size of chain ND [mm] 8
    Chain pitch p 24
    Section length AL 5
    Weight approx. [kg] 7.85
Working load limit [kg] 2500
Reference no. 701788
  • Details
    B1M 10F-EN818-380°-2.5T-8MM-24MM-10M
    Reference no. 701788
    Working load limit [kg] 2500
    Nominal size of chain ND [mm] 8
    Chain pitch p 24
    Section length AL 10
    Weight approx. [kg] 15.7
Working load limit [kg] 2500
Reference no. 701789
  • Details
    B1M 10F-EN818-380°-2.5T-8MM-24MM-15M
    Reference no. 701789
    Working load limit [kg] 2500
    Nominal size of chain ND [mm] 8
    Chain pitch p 24
    Section length AL 15
    Weight approx. [kg] 23.55
Working load limit [kg] 2500
Reference no. 701791
  • Details
    B1M 10F-EN818-380°-2.5T-8MM-24MM-20M
    Reference no. 701791
    Working load limit [kg] 2500
    Nominal size of chain ND [mm] 8
    Chain pitch p 24
    Section length AL 20
    Weight approx. [kg] 31.4
Working load limit [kg] 2500
Reference no. 701792
  • Details
    B1M 10F-EN818-380°-2.5T-8MM-24MM-30M
    Reference no. 701792
    Working load limit [kg] 2500
    Nominal size of chain ND [mm] 8
    Chain pitch p 24
    Section length AL 30
    Weight approx. [kg] 47.1
Working load limit [kg] 2500
Reference no. 701793
  • Details
    B1M 10F-EN818-380°-2.5T-8MM-24MM-40M
    Reference no. 701793
    Working load limit [kg] 2500
    Nominal size of chain ND [mm] 8
    Chain pitch p 24
    Section length AL 40
    Weight approx. [kg] 62.8
Working load limit [kg] 2500
Reference no. 701794
  • Details
    B1M 10F-EN818-380°-2.5T-8MM-24MM-50M
    Reference no. 701794
    Working load limit [kg] 2500
    Nominal size of chain ND [mm] 8
    Chain pitch p 24
    Section length AL 50
    Weight approx. [kg] 78.5
Working load limit [kg] 4000
Reference no. 701795
  • Details
    B1M 10F-EN818-380°-4T-10MM-30MM-2.5M
    Reference no. 701795
    Working load limit [kg] 4000
    Nominal size of chain ND [mm] 10
    Chain pitch p 30
    Section length AL 2.5
    Weight approx. [kg] 6.15
Working load limit [kg] 4000
Reference no. 701796
  • Details
    B1M 10F-EN818-380°-4T-10MM-30MM-5M
    Reference no. 701796
    Working load limit [kg] 4000
    Nominal size of chain ND [mm] 10
    Chain pitch p 30
    Section length AL 5
    Weight approx. [kg] 12.3
Working load limit [kg] 4000
Reference no. 701797
  • Details
    B1M 10F-EN818-380°-4T-10MM-30MM-10M
    Reference no. 701797
    Working load limit [kg] 4000
    Nominal size of chain ND [mm] 10
    Chain pitch p 30
    Section length AL 10
    Weight approx. [kg] 24.6
Working load limit [kg] 4000
Reference no. 701802
  • Details
    B1M 10F-EN818-380°-4T-10MM-30MM-15M
    Reference no. 701802
    Working load limit [kg] 4000
    Nominal size of chain ND [mm] 10
    Chain pitch p 30
    Section length AL 15
    Weight approx. [kg] 36.9
Working load limit [kg] 4000
Reference no. 701803
  • Details
    B1M 10F-EN818-380°-4T-10MM-30MM-20M
    Reference no. 701803
    Working load limit [kg] 4000
    Nominal size of chain ND [mm] 10
    Chain pitch p 30
    Section length AL 20
    Weight approx. [kg] 49.2
Working load limit [kg] 4000
Reference no. 701804
  • Details
    B1M 10F-EN818-380°-4T-10MM-30MM-30M
    Reference no. 701804
    Working load limit [kg] 4000
    Nominal size of chain ND [mm] 10
    Chain pitch p 30
    Section length AL 30
    Weight approx. [kg] 73.8
Working load limit [kg] 4000
Reference no. 701805
  • Details
    B1M 10F-EN818-380°-4T-10MM-30MM-40M
    Reference no. 701805
    Working load limit [kg] 4000
    Nominal size of chain ND [mm] 10
    Chain pitch p 30
    Section length AL 40
    Weight approx. [kg] 98.4
Working load limit [kg] 4000
Reference no. 701806
  • Details
    B1M 10F-EN818-380°-4T-10MM-30MM-50M
    Reference no. 701806
    Working load limit [kg] 4000
    Nominal size of chain ND [mm] 10
    Chain pitch p 30
    Section length AL 50
    Weight approx. [kg] 123
Working load limit [kg] 6700
Reference no. 701786
  • Details
    B1M 10F-EN818-380°-6.70T-13MM-39MM-2.5M
    Reference no. 701786
    Working load limit [kg] 6700
    Nominal size of chain ND [mm] 13
    Chain pitch p 39
    Section length AL 2.5
    Weight approx. [kg] 10.45
Working load limit [kg] 6700
Reference no. 701790
  • Details
    B1M 10F-EN818-380°-6.70T-13MM-39MM-5M
    Reference no. 701790
    Working load limit [kg] 6700
    Nominal size of chain ND [mm] 13
    Chain pitch p 39
    Section length AL 5
    Weight approx. [kg] 20.9
Working load limit [kg] 6700
Reference no. 701813
  • Details
    B1M 10F-EN818-380°-6.70T-13MM-39MM-10M
    Reference no. 701813
    Working load limit [kg] 6700
    Nominal size of chain ND [mm] 13
    Chain pitch p 39
    Section length AL 10
    Weight approx. [kg] 41.8
Working load limit [kg] 6700
Reference no. 701814
  • Details
    B1M 10F-EN818-380°-6.70T-13MM-39MM-15M
    Reference no. 701814
    Working load limit [kg] 6700
    Nominal size of chain ND [mm] 13
    Chain pitch p 39
    Section length AL 15
    Weight approx. [kg] 62.7
Working load limit [kg] 6700
Reference no. 701815
  • Details
    B1M 10F-EN818-380°-6.70T-13MM-39MM-20M
    Reference no. 701815
    Working load limit [kg] 6700
    Nominal size of chain ND [mm] 13
    Chain pitch p 39
    Section length AL 20
    Weight approx. [kg] 83.6
Working load limit [kg] 6700
Reference no. 701817
  • Details
    B1M 10F-EN818-380°-6.70T-13MM-39MM-30M
    Reference no. 701817
    Working load limit [kg] 6700
    Nominal size of chain ND [mm] 13
    Chain pitch p 39
    Section length AL 30
    Weight approx. [kg] 125.4
Working load limit [kg] 6700
Reference no. 701818
  • Details
    B1M 10F-EN818-380°-6.70T-13MM-39MM-40M
    Reference no. 701818
    Working load limit [kg] 6700
    Nominal size of chain ND [mm] 13
    Chain pitch p 39
    Section length AL 40
    Weight approx. [kg] 167.2
Working load limit [kg] 6700
Reference no. 701820
  • Details
    B1M 10F-EN818-380°-6.70T-13MM-39MM-50M
    Reference no. 701820
    Working load limit [kg] 6700
    Nominal size of chain ND [mm] 13
    Chain pitch p 39
    Section length AL 50
    Weight approx. [kg] 209
Working load limit [kg] 10000
Reference no. 701822
  • Details
    B1M 10F-EN818-380°-10T-16MM-48MM-2.5M
    Reference no. 701822
    Working load limit [kg] 10000
    Nominal size of chain ND [mm] 16
    Chain pitch p 48
    Section length AL 2.5
    Weight approx. [kg] 15.7
Working load limit [kg] 10000
Reference no. 701824
  • Details
    B1M 10F-EN818-380°-10T-16MM-48MM-5M
    Reference no. 701824
    Working load limit [kg] 10000
    Nominal size of chain ND [mm] 16
    Chain pitch p 48
    Section length AL 5
    Weight approx. [kg] 31.4
Working load limit [kg] 10000
Reference no. 701826
  • Details
    B1M 10F-EN818-380°-10T-16MM-48 MM-10M
    Reference no. 701826
    Working load limit [kg] 10000
    Nominal size of chain ND [mm] 16
    Chain pitch p 48
    Section length AL 10
    Weight approx. [kg] 62.8
Working load limit [kg] 10000
Reference no. 701828
  • Details
    B1M 10F-EN818-380°-10T-16MM-48MM-15M
    Reference no. 701828
    Working load limit [kg] 10000
    Nominal size of chain ND [mm] 16
    Chain pitch p 48
    Section length AL 15
    Weight approx. [kg] 94.2
Working load limit [kg] 10000
Reference no. 701831
  • Details
    B1M 10F-EN818-380°-10T-16MM-48MM-20M
    Reference no. 701831
    Working load limit [kg] 10000
    Nominal size of chain ND [mm] 16
    Chain pitch p 48
    Section length AL 20
    Weight approx. [kg] 125.6
Working load limit [kg] 10000
Reference no. 701832
  • Details
    B1M 10F-EN818-380°-10T-16MM-48 MM-25M
    Reference no. 701832
    Working load limit [kg] 10000
    Nominal size of chain ND [mm] 16
    Chain pitch p 48
    Section length AL 25
    Weight approx. [kg] 157
Working load limit [kg] 14000
Reference no. 702021
  • Details
    B1M 10F-EN818-380°-14T-20MM-60MM-2.5M
    Reference no. 702021
    Working load limit [kg] 14000
    Nominal size of chain ND [mm] 19
    Chain pitch p 57
    Section length AL 2.5
    Weight approx. [kg] 22.3
Working load limit [kg] 14000
Reference no. 702022
  • Details
    B1M 10F-EN818-380°-14T-20MM-60MM-5M
    Reference no. 702022
    Working load limit [kg] 14000
    Nominal size of chain ND [mm] 19
    Chain pitch p 57
    Section length AL 5
    Weight approx. [kg] 44.6
Working load limit [kg] 14000
Reference no. 702023
  • Details
    B1M 10F-EN818-380°-14T-20MM-60MM-10M
    Reference no. 702023
    Working load limit [kg] 14000
    Nominal size of chain ND [mm] 19
    Chain pitch p 57
    Section length AL 10
    Weight approx. [kg] 89.2
Working load limit [kg] 14000
Reference no. 702024
  • Details
    B1M 10F-EN818-380°-14T-20MM-60MM-15M
    Reference no. 702024
    Working load limit [kg] 14000
    Nominal size of chain ND [mm] 19
    Chain pitch p 57
    Section length AL 15
    Weight approx. [kg] 133.8
Working load limit [kg] 14000
Reference no. 702025
  • Details
    B1M 10F-EN818-380°-14T-20MM-60MM-20M
    Reference no. 702025
    Working load limit [kg] 14000
    Nominal size of chain ND [mm] 19
    Chain pitch p 57
    Section length AL 20
    Weight approx. [kg] 178.4
Working load limit [kg] 14000
Reference no. 702026
  • Details
    B1M 10F-EN818-380°-14T-20MM-60MM-25M
    Reference no. 702026
    Working load limit [kg] 14000
    Nominal size of chain ND [mm] 19
    Chain pitch p 57
    Section length AL 25
    Weight approx. [kg] 223
Working load limit [kg] 19000
Reference no. 701834
  • Details
    B1M 10F-EN818-380°-19T-22MM-66MM-2.5M
    Reference no. 701834
    Working load limit [kg] 19000
    Nominal size of chain ND [mm] 22
    Chain pitch p 66
    Section length AL 2.5
    Weight approx. [kg] 29.7
Working load limit [kg] 19000
Reference no. 701839
  • Details
    B1M 10F-EN818-380°-19T-22MM-66MM-5M
    Reference no. 701839
    Working load limit [kg] 19000
    Nominal size of chain ND [mm] 22
    Chain pitch p 66
    Section length AL 5
    Weight approx. [kg] 59.4
Working load limit [kg] 19000
Reference no. 701841
  • Details
    B1M 10F-EN818-380°-19T-22MM-66MM-10M
    Reference no. 701841
    Working load limit [kg] 19000
    Nominal size of chain ND [mm] 22
    Chain pitch p 66
    Section length AL 10
    Weight approx. [kg] 118.8
Working load limit [kg] 19000
Reference no. 701843
  • Details
    B1M 10F-EN818-380°-19T-22MM-66MM-15M
    Reference no. 701843
    Working load limit [kg] 19000
    Nominal size of chain ND [mm] 22
    Chain pitch p 66
    Section length AL 15
    Weight approx. [kg] 178.2
Working load limit [kg] 19000
Reference no. 701844
  • Details
    B1M 10F-EN818-380°-19T-22MM-66MM-20M
    Reference no. 701844
    Working load limit [kg] 19000
    Nominal size of chain ND [mm] 22
    Chain pitch p 66
    Section length AL 20
    Weight approx. [kg] 237.6
Working load limit [kg] 19000
Reference no. 701846
  • Details
    B1M 10F-EN818-380°-19T-22MM-66MM-25M
    Reference no. 701846
    Working load limit [kg] 19000
    Nominal size of chain ND [mm] 22
    Chain pitch p 66
    Section length AL 25
    Weight approx. [kg] 297
Downloads

Applications

Application table

Download

Poster

"Poster ""Discarding time criteria""" Overview of the discarding time criteria for wire rope slings, lifting straps, round slings and chain slings.
Download

Design / Engineering

CAD 3D

Download
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Tel. +49 8331 937-9623
Fax +49 8331 937-380
E-Mail verkauf-azs@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
 Service centre
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Academy
Tel. +49 8331 937-462
E-Mail academy@pfeifer.de
Web www.pfeifer.info
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
France
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +33 676 54 42 68 / +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Poland
 PFEIFER Technika Linowa i Dźwigowa Sp. z o.o.
ul. Wrocławska 68
55-330 Krępice k/Wrocławia
Tel. +48 71 30 23 700
E-Mail info@pfeifer.pl
Web www.pfeifer.pl
 Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
