HIT PRO 1-XDK extra-large hanging set

HIT PRO 1-XDK extra-large hanging set

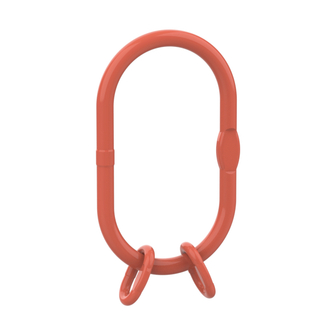

Suspension link with large interior width especially for large crane hooks for 2-leg chain slings. Connected with component connector.
Technical data

Quality grade

  • 10

Operating temperature

  • –40 °C to +200 °C = 100 % working load limit; +200 °C to +300 °C = 90 % working load limit; +300 °C to +380 °C = 60 % working load limit

Standard

  • on the basis of DIN EN 1677

Certification

  • H-stamp

Marking

  • Batch number

Safety factor

  • 4

Surface

  • powder-coated

Technical note

  • Connection to the chain sling is done by means of HIT PRO CW universal connecting link.
  • Approved for installation in rope suspension gear.
  • With two transition links.

Type

  • Oversize
Product variants
Working load limit 0° [kg]
Working load limit 0–45° [kg]
Working load limit 45–60° [kg]
for nominal chain thickness [mm]
Reference no.
Details
  • 2500
    5300
    3750
    8
    711766
    B1A 10B-XDK-ST-1-2-4-8MM-5.3T-340X180
    Reference no. 711766
    Working load limit 0° [kg] 2500
    Working load limit 0–45° 5300
    Working load limit 45–60° 3750
    for nominal chain thickness [mm] 8
    Single crane hook up to no. (DIN 15401) 25
    Double crane hook up to no. (DIN 15402) 32

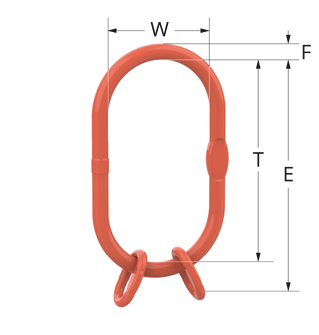

    Ring section diameter F 30
    Clear height T [mm] 340
    Clearance W 180
    Distance suspension point E [mm] 450
    Weight approx. [kg] 6.53
  • 4000
    8000
    6000
    10
    711767
    B1A 10B-XDK-ST-1-2-4-10MM-8T-340X180
    Reference no. 711767
    Working load limit 0° [kg] 4000
    Working load limit 0–45° 8000
    Working load limit 45–60° 6000
    for nominal chain thickness [mm] 10
    Single crane hook up to no. (DIN 15401) 25
    Double crane hook up to no. (DIN 15402) 32
    Ring section diameter F 30
    Clear height T [mm] 340
    Clearance W 180
    Distance suspension point E [mm] 475
    Weight approx. [kg] 7.07
  • 6700
    14000
    10000
    13
    711768
    B1A 10B-XDK-ST-1-2-4-13MM-14T-340X180
    Reference no. 711768
    Working load limit 0° [kg] 6700
    Working load limit 0–45° 14000
    Working load limit 45–60° 10000
    for nominal chain thickness [mm] 13
    Single crane hook up to no. (DIN 15401) 25
    Double crane hook up to no. (DIN 15402) 32
    Ring section diameter F 40
    Clear height T [mm] 340
    Clearance W 180
    Distance suspension point E [mm] 500
    Weight approx. [kg] 13
  • 10000
    21200
    15000
    16
    711769
    B1A 10B-XDK-ST-1-2-4-16MM-21.2T-340X180
    Reference no. 711769
    Working load limit 0° [kg] 10000
    Working load limit 0–45° 21200
    Working load limit 45–60° 15000
    for nominal chain thickness [mm] 16
    Single crane hook up to no. (DIN 15401) 25
    Double crane hook up to no. (DIN 15402) 32
    Ring section diameter F 40
    Clear height T [mm] 340
    Clearance W 180
    Distance suspension point E [mm] 520
    Weight approx. [kg] 14.59
Working load limit 0° [kg] 2500
Working load limit 0–45° 5300
Working load limit 45–60° 3750
for nominal chain thickness [mm] 8
Reference no. 711766
  • Details
    B1A 10B-XDK-ST-1-2-4-8MM-5.3T-340X180
    Reference no. 711766
    Working load limit 0° [kg] 2500
    Working load limit 0–45° 5300
    Working load limit 45–60° 3750
    for nominal chain thickness [mm] 8
    Single crane hook up to no. (DIN 15401) 25
    Double crane hook up to no. (DIN 15402) 32
    Ring section diameter F 30
    Clear height T [mm] 340
    Clearance W 180
    Distance suspension point E [mm] 450
    Weight approx. [kg] 6.53
Working load limit 0° [kg] 4000
Working load limit 0–45° 8000
Working load limit 45–60° 6000
for nominal chain thickness [mm] 10
Reference no. 711767
  • Details
    B1A 10B-XDK-ST-1-2-4-10MM-8T-340X180
    Reference no. 711767
    Working load limit 0° [kg] 4000
    Working load limit 0–45° 8000
    Working load limit 45–60° 6000
    for nominal chain thickness [mm] 10
    Single crane hook up to no. (DIN 15401) 25
    Double crane hook up to no. (DIN 15402) 32
    Ring section diameter F 30
    Clear height T [mm] 340
    Clearance W 180
    Distance suspension point E [mm] 475
    Weight approx. [kg] 7.07
Working load limit 0° [kg] 6700
Working load limit 0–45° 14000
Working load limit 45–60° 10000
for nominal chain thickness [mm] 13
Reference no. 711768
  • Details
    B1A 10B-XDK-ST-1-2-4-13MM-14T-340X180
    Reference no. 711768
    Working load limit 0° [kg] 6700
    Working load limit 0–45° 14000
    Working load limit 45–60° 10000
    for nominal chain thickness [mm] 13
    Single crane hook up to no. (DIN 15401) 25
    Double crane hook up to no. (DIN 15402) 32
    Ring section diameter F 40
    Clear height T [mm] 340
    Clearance W 180
    Distance suspension point E [mm] 500
    Weight approx. [kg] 13
Working load limit 0° [kg] 10000
Working load limit 0–45° 21200
Working load limit 45–60° 15000
for nominal chain thickness [mm] 16
Reference no. 711769
  • Details
    B1A 10B-XDK-ST-1-2-4-16MM-21.2T-340X180
    Reference no. 711769
    Working load limit 0° [kg] 10000
    Working load limit 0–45° 21200
    Working load limit 45–60° 15000
    for nominal chain thickness [mm] 16
    Single crane hook up to no. (DIN 15401) 25
    Double crane hook up to no. (DIN 15402) 32
    Ring section diameter F 40
    Clear height T [mm] 340
    Clearance W 180
    Distance suspension point E [mm] 520
    Weight approx. [kg] 14.59
