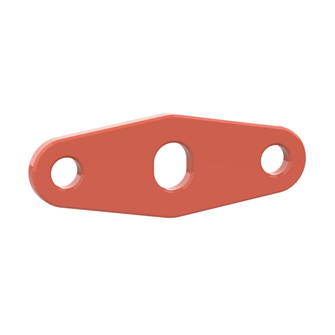

HIT PRO-balancing rocker

HIT PRO-balancing rocker
Balancing rocker to increase of the working load limit in the 4-leg suspension gear. The balancing rocker compensates for the admissible length tolerances of chain legs in 4-leg assemblies, achieving working load limits with 4 load-bearing legs and symmetrical loading. Rotating the rocker by 180° can double the service life.
Technical data

Quality grade

  • 10

Operating temperature

  • –40 °C to +200 °C = 100 % working load limit; +200 °C to +300 °C = 90 % working load limit; +300 °C to +380 °C = 60 % working load limit

Standard

  • on the basis of DIN EN 1677

Certification

  • H-stamp

Marking

  • Batch number

Safety factor

  • 4

Surface

  • powder-coated

Colour

  • orange

Technical note

  • Connection to the chain sling is done by means of HIT PRO CW / CWP universal connecting link.
Product variants
Working load limit 0–45° [kg]
Working load limit 45–60° [kg]
for nominal chain thickness [mm]
Reference no.
Details
  • 2000
    1400
    6
    258969
    B1W 10A-AWIPPE-SYMM-2T-6MM
    Reference no. 258969
    Working load limit 0–45° 2000
    Working load limit 45–60° 1400
    for nominal chain thickness [mm] 6

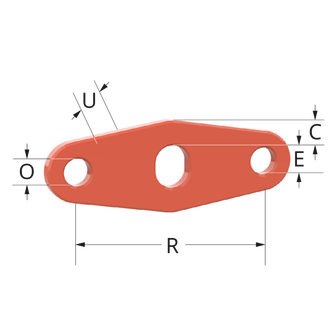

    Stirrup height C [mm] 11
    Body thickness U 10
    Eye width O 9
    Hole spacing R [mm] 148
    Distance suspension point E [mm] 35
    Weight approx. [kg] 0.54
  • 3550
    2500
    8
    258970
    B1W 10A-AWIPPE-SYMM-3.55T-8MM
    Reference no. 258970
    Working load limit 0–45° 3550
    Working load limit 45–60° 2500
    for nominal chain thickness [mm] 8
    Stirrup height C [mm] 15.5
    Body thickness U 15
    Eye width O 14
    Hole spacing R [mm] 210
    Distance suspension point E [mm] 51
    Weight approx. [kg] 1.75
  • 5600
    4000
    10
    258971
    B1W 10A-AWIPPE-SYMM-5.60T-10MM
    Reference no. 258971
    Working load limit 0–45° 5600
    Working load limit 45–60° 4000
    for nominal chain thickness [mm] 10
    Stirrup height C [mm] 23
    Body thickness U 15
    Eye width O 15.5
    Hole spacing R [mm] 180
    Distance suspension point E [mm] 32
    Weight approx. [kg] 1.56
  • 9500
    6700
    13
    258972
    B1W 10A-AWIPPE-SYMM-9.50T-13MM
    Reference no. 258972
    Working load limit 0–45° 9500
    Working load limit 45–60° 6700
    for nominal chain thickness [mm] 13
    Stirrup height C [mm] 27
    Body thickness U 20
    Eye width O 20
    Hole spacing R [mm] 240
    Distance suspension point E [mm] 53
    Weight approx. [kg] 3.6
  • 14000
    10000
    16
    258973
    B1W 10A-AWIPPE-SYMM-14T-16MM
    Reference no. 258973
    Working load limit 0–45° 14000
    Working load limit 45–60° 10000
    for nominal chain thickness [mm] 16
    Stirrup height C [mm] 32
    Body thickness U 25
    Eye width O 25
    Hole spacing R [mm] 300
    Distance suspension point E [mm] 77
    Weight approx. [kg] 7.18
  • 20000
    14000
    19
    283536
    B1W 10A-AWIPPE-SYMM-20T-19MM
    Reference no. 283536
    Working load limit 0–45° 20000
    Working load limit 45–60° 14000
    for nominal chain thickness [mm] 19
    Stirrup height C [mm] 45
    Body thickness U 30
    Eye width O 30
    Hole spacing R [mm] 390
    Distance suspension point E [mm] 79
    Weight approx. [kg] 13.2
  • 26500
    19000
    22
    283538
    B1W 10A-AWIPPE-SYMM-26.50T-22MM
    Reference no. 283538
    Working load limit 0–45° 26500
    Working load limit 45–60° 19000
    for nominal chain thickness [mm] 22
    Stirrup height C [mm] 50
    Body thickness U 30
    Eye width O 35
    Hole spacing R [mm] 350
    Distance suspension point E [mm] 124
    Weight approx. [kg] 15
  • 37500
    26500
    26
    283539
    B1W 10A-AWIPPE-SYMM-37.50T-26MM
    Reference no. 283539
    Working load limit 0–45° 37500
    Working load limit 45–60° 26500
    for nominal chain thickness [mm] 26
    Stirrup height C [mm] 60
    Body thickness U 40
    Eye width O 40
    Hole spacing R [mm] 400
    Distance suspension point E [mm] 130
    Weight approx. [kg] 25.6
Working load limit 0–45° 2000
Working load limit 45–60° 1400
for nominal chain thickness [mm] 6
Reference no. 258969
  • Details
    B1W 10A-AWIPPE-SYMM-2T-6MM
    Reference no. 258969
    Working load limit 0–45° 2000
    Working load limit 45–60° 1400
    for nominal chain thickness [mm] 6
    Stirrup height C [mm] 11
    Body thickness U 10
    Eye width O 9
    Hole spacing R [mm] 148
    Distance suspension point E [mm] 35
    Weight approx. [kg] 0.54
Working load limit 0–45° 3550
Working load limit 45–60° 2500
for nominal chain thickness [mm] 8
Reference no. 258970
  • Details
    B1W 10A-AWIPPE-SYMM-3.55T-8MM
    Reference no. 258970
    Working load limit 0–45° 3550
    Working load limit 45–60° 2500
    for nominal chain thickness [mm] 8
    Stirrup height C [mm] 15.5
    Body thickness U 15
    Eye width O 14
    Hole spacing R [mm] 210
    Distance suspension point E [mm] 51
    Weight approx. [kg] 1.75
Working load limit 0–45° 5600
Working load limit 45–60° 4000
for nominal chain thickness [mm] 10
Reference no. 258971
  • Details
    B1W 10A-AWIPPE-SYMM-5.60T-10MM
    Reference no. 258971
    Working load limit 0–45° 5600
    Working load limit 45–60° 4000
    for nominal chain thickness [mm] 10
    Stirrup height C [mm] 23
    Body thickness U 15
    Eye width O 15.5
    Hole spacing R [mm] 180
    Distance suspension point E [mm] 32
    Weight approx. [kg] 1.56
Working load limit 0–45° 9500
Working load limit 45–60° 6700
for nominal chain thickness [mm] 13
Reference no. 258972
  • Details
    B1W 10A-AWIPPE-SYMM-9.50T-13MM
    Reference no. 258972
    Working load limit 0–45° 9500
    Working load limit 45–60° 6700
    for nominal chain thickness [mm] 13
    Stirrup height C [mm] 27
    Body thickness U 20
    Eye width O 20
    Hole spacing R [mm] 240
    Distance suspension point E [mm] 53
    Weight approx. [kg] 3.6
Working load limit 0–45° 14000
Working load limit 45–60° 10000
for nominal chain thickness [mm] 16
Reference no. 258973
  • Details
    B1W 10A-AWIPPE-SYMM-14T-16MM
    Reference no. 258973
    Working load limit 0–45° 14000
    Working load limit 45–60° 10000
    for nominal chain thickness [mm] 16
    Stirrup height C [mm] 32
    Body thickness U 25
    Eye width O 25
    Hole spacing R [mm] 300
    Distance suspension point E [mm] 77
    Weight approx. [kg] 7.18
Working load limit 0–45° 20000
Working load limit 45–60° 14000
for nominal chain thickness [mm] 19
Reference no. 283536
  • Details
    B1W 10A-AWIPPE-SYMM-20T-19MM
    Reference no. 283536
    Working load limit 0–45° 20000
    Working load limit 45–60° 14000
    for nominal chain thickness [mm] 19
    Stirrup height C [mm] 45
    Body thickness U 30
    Eye width O 30
    Hole spacing R [mm] 390
    Distance suspension point E [mm] 79
    Weight approx. [kg] 13.2
Working load limit 0–45° 26500
Working load limit 45–60° 19000
for nominal chain thickness [mm] 22
Reference no. 283538
  • Details
    B1W 10A-AWIPPE-SYMM-26.50T-22MM
    Reference no. 283538
    Working load limit 0–45° 26500
    Working load limit 45–60° 19000
    for nominal chain thickness [mm] 22
    Stirrup height C [mm] 50
    Body thickness U 30
    Eye width O 35
    Hole spacing R [mm] 350
    Distance suspension point E [mm] 124
    Weight approx. [kg] 15
Working load limit 0–45° 37500
Working load limit 45–60° 26500
for nominal chain thickness [mm] 26
Reference no. 283539
  • Details
    B1W 10A-AWIPPE-SYMM-37.50T-26MM
    Reference no. 283539
    Working load limit 0–45° 37500
    Working load limit 45–60° 26500
    for nominal chain thickness [mm] 26
    Stirrup height C [mm] 60
    Body thickness U 40
    Eye width O 40
    Hole spacing R [mm] 400
    Distance suspension point E [mm] 130
    Weight approx. [kg] 25.6
Downloads

Applications

Application table

Download

Poster

"Poster ""Discarding time criteria""" Overview of the discarding time criteria for wire rope slings, lifting straps, round slings and chain slings.
