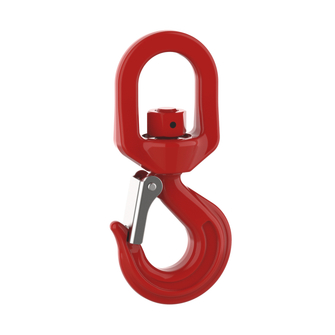

C7GC swivel eye hook with safety pin

C7GC swivel eye hook with safety pin
Thimble suitable for rotation under load. Standard load hook with direct connection and standard-compliant forged safety catch. As end hook for quick and easy connection of the chain sling to the load or load-lifting attachments.
Technical data

Quality grade

  • 8

Operating temperature

  • –40 °C to +100 °C
  • reduced carrying capacities outside this range

Standard

  • DIN EN 1677

Certification

  • H-stamp

Marking

  • Batch number

Safety factor

  • 4

Surface

  • coated

Colour

  • red
Product variants
Working load limit [kg]
for nominal chain thickness [mm]
Reference no.
Details
  • 1250
    6
    707579
    LWH-SWIV-C7GC-U-LAST-1.25T-MW21-E137MM
    Reference no. 707579
    Working load limit [kg] 1250
    for nominal chain thickness [mm] 6

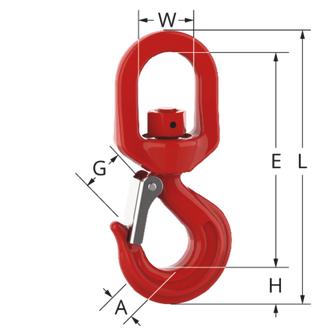

    Overall length L [mm] 159
    Clearance W 38
    Hook opening width G [mm] 21
    hook base height H [mm] 22
    Hook thickness A [mm] 17
    Distance suspension point E [mm] 137
    Weight approx. [kg] 0.78
  • 1600
    7
    707580
    LWH-SWIV-C7GC-U-LAST-1.60T-MW24-E144MM
    Reference no. 707580
    Working load limit [kg] 1600
    for nominal chain thickness [mm] 7
    Overall length L [mm] 167.5
    Clearance W 38
    Hook opening width G [mm] 24
    hook base height H [mm] 23.5
    Hook thickness A [mm] 19
    Distance suspension point E [mm] 144
    Weight approx. [kg] 0.94
  • 2500
    8
    707581
    LWH-SWIV-C7GC-U-LAST-2.50T-MW25-E171MM
    Reference no. 707581
    Working load limit [kg] 2500
    for nominal chain thickness [mm] 8
    Overall length L [mm] 198
    Clearance W 47
    Hook opening width G [mm] 25.5
    hook base height H [mm] 28
    Hook thickness A [mm] 24
    Distance suspension point E [mm] 170
    Weight approx. [kg] 1.58
  • 3200
    10
    707582
    LWH-SWIV-C7GC-U-LAST-3.20T-MW28-E176MM
    Reference no. 707582
    Working load limit [kg] 3200
    for nominal chain thickness [mm] 10
    Overall length L [mm] 207
    Clearance W 47
    Hook opening width G [mm] 28.5
    hook base height H [mm] 31
    Hook thickness A [mm] 26
    Distance suspension point E [mm] 176
    Weight approx. [kg] 1.9
  • 5400
    13
    707583
    LWH-SWIV-C7GC-U-LAST-5.40T-MW36-E214MM
    Reference no. 707583
    Working load limit [kg] 5400
    for nominal chain thickness [mm] 13
    Overall length L [mm] 252.5
    Clearance W 58
    Hook opening width G [mm] 36.5
    hook base height H [mm] 38.5
    Hook thickness A [mm] 31.5
    Distance suspension point E [mm] 214
    Weight approx. [kg] 3.65
  • 8000
    16
    707584
    LWH-SWIV-C7GC-U-LAST-8.00T-MW45-E268MM
    Reference no. 707584
    Working load limit [kg] 8000
    for nominal chain thickness [mm] 16
    Overall length L [mm] 318.5
    Clearance W 71
    Hook opening width G [mm] 45.5
    hook base height H [mm] 50.5
    Hook thickness A [mm] 39
    Distance suspension point E [mm] 268
    Weight approx. [kg] 5.87
  • 11500
    19
    707585
    LWH-SWIV-C7GC-U-LAST-11.5T-MW55-E311MM
    Reference no. 707585
    Working load limit [kg] 11500
    for nominal chain thickness [mm] 19
    Overall length L [mm] 375
    Clearance W 81
    Hook opening width G [mm] 55.5
    hook base height H [mm] 61
    Hook thickness A [mm] 45
    Distance suspension point E [mm] 314
    Weight approx. [kg] 9.75
Working load limit [kg] 1250
for nominal chain thickness [mm] 6
Reference no. 707579
  • Details
    LWH-SWIV-C7GC-U-LAST-1.25T-MW21-E137MM
    Reference no. 707579
    Working load limit [kg] 1250
    for nominal chain thickness [mm] 6
    Overall length L [mm] 159
    Clearance W 38
    Hook opening width G [mm] 21
    hook base height H [mm] 22
    Hook thickness A [mm] 17
    Distance suspension point E [mm] 137
    Weight approx. [kg] 0.78
Working load limit [kg] 1600
for nominal chain thickness [mm] 7
Reference no. 707580
  • Details
    LWH-SWIV-C7GC-U-LAST-1.60T-MW24-E144MM
    Reference no. 707580
    Working load limit [kg] 1600
    for nominal chain thickness [mm] 7
    Overall length L [mm] 167.5
    Clearance W 38
    Hook opening width G [mm] 24
    hook base height H [mm] 23.5
    Hook thickness A [mm] 19
    Distance suspension point E [mm] 144
    Weight approx. [kg] 0.94
Working load limit [kg] 2500
for nominal chain thickness [mm] 8
Reference no. 707581
  • Details
    LWH-SWIV-C7GC-U-LAST-2.50T-MW25-E171MM
    Reference no. 707581
    Working load limit [kg] 2500
    for nominal chain thickness [mm] 8
    Overall length L [mm] 198
    Clearance W 47
    Hook opening width G [mm] 25.5
    hook base height H [mm] 28
    Hook thickness A [mm] 24
    Distance suspension point E [mm] 170
    Weight approx. [kg] 1.58
Working load limit [kg] 3200
for nominal chain thickness [mm] 10
Reference no. 707582
  • Details
    LWH-SWIV-C7GC-U-LAST-3.20T-MW28-E176MM
    Reference no. 707582
    Working load limit [kg] 3200
    for nominal chain thickness [mm] 10
    Overall length L [mm] 207
    Clearance W 47
    Hook opening width G [mm] 28.5
    hook base height H [mm] 31
    Hook thickness A [mm] 26
    Distance suspension point E [mm] 176
    Weight approx. [kg] 1.9
Working load limit [kg] 5400
for nominal chain thickness [mm] 13
Reference no. 707583
  • Details
    LWH-SWIV-C7GC-U-LAST-5.40T-MW36-E214MM
    Reference no. 707583
    Working load limit [kg] 5400
    for nominal chain thickness [mm] 13
    Overall length L [mm] 252.5
    Clearance W 58
    Hook opening width G [mm] 36.5
    hook base height H [mm] 38.5
    Hook thickness A [mm] 31.5
    Distance suspension point E [mm] 214
    Weight approx. [kg] 3.65
Working load limit [kg] 8000
for nominal chain thickness [mm] 16
Reference no. 707584
  • Details
    LWH-SWIV-C7GC-U-LAST-8.00T-MW45-E268MM
    Reference no. 707584
    Working load limit [kg] 8000
    for nominal chain thickness [mm] 16
    Overall length L [mm] 318.5
    Clearance W 71
    Hook opening width G [mm] 45.5
    hook base height H [mm] 50.5
    Hook thickness A [mm] 39
    Distance suspension point E [mm] 268
    Weight approx. [kg] 5.87
Working load limit [kg] 11500
for nominal chain thickness [mm] 19
Reference no. 707585
  • Details
    LWH-SWIV-C7GC-U-LAST-11.5T-MW55-E311MM
    Reference no. 707585
    Working load limit [kg] 11500
    for nominal chain thickness [mm] 19
    Overall length L [mm] 375
    Clearance W 81
    Hook opening width G [mm] 55.5
    hook base height H [mm] 61
    Hook thickness A [mm] 45
    Distance suspension point E [mm] 314
    Weight approx. [kg] 9.75
