Container hook grade 8

Container hook grade 8

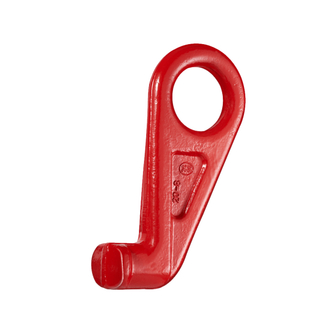

Container hooks made of high-strength grade 8 quenched and tempered steel. Container hooks are adaptive end components for chain slings for lifting and transporting ISO containers. The right/left versions are for the angled stop, the straight version for the vertical stop. Always 4 hooks must be used.
Technical data

Quality grade

  • 8

Operating temperature

  • –40 °C to +200 °C = 100 % working load limit; +200 °C to +300 °C = 90 % working load limit; +300 °C to +400 °C = 75 % working load limit

Standard

  • DIN EN 1677-1

Certification

  • H-stamp

Marking

  • Batch number
  • Quality grade no.

Safety factor

  • 4

Colour

  • red
Product variants
Working load limit [kg]
for nominal chain thickness [mm]
Type
Reference no.
Details
  • 12500
    20
    right hand
    705404
    LHC-CH-KENNZ-V-12.5T-45°-RIGHT
    Reference no. 705404
    Working load limit [kg] 12500
    for nominal chain thickness [mm] 20
    Type right hand

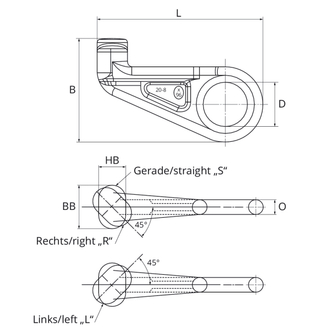

    Overall length L [mm] 265
    Component width B [mm] 166
    Eye Ø D [mm] 70
    Eye width O 25
    Bolt width BB 75
    Bolt height HB 48
    Weight approx. [kg] 4
  • 12500
    20
    left hand
    705405
    LHC-CH-KENNZ-V-12.5T-45°-LEFT
    Reference no. 705405
    Working load limit [kg] 12500
    for nominal chain thickness [mm] 20
    Type left hand
    Overall length L [mm] 265
    Component width B [mm] 166
    Eye Ø D [mm] 70
    Eye width O 25
    Bolt width BB 75
    Bolt height HB 48
    Weight approx. [kg] 4
  • 12500
    20
    straight
    705406
    LHC-CH-KENNZ-V-12.5T-0°-STRAIGHT
    Reference no. 705406
    Working load limit [kg] 12500
    for nominal chain thickness [mm] 20
    Type straight
    Overall length L [mm] 265
    Component width B [mm] 166
    Eye Ø D [mm] 70
    Eye width O 25
    Bolt width BB 75
    Bolt height HB 48
    Weight approx. [kg] 4
Working load limit [kg] 12500
for nominal chain thickness [mm] 20
Type right hand
Reference no. 705404
  • Details
    LHC-CH-KENNZ-V-12.5T-45°-RIGHT
    Reference no. 705404
    Working load limit [kg] 12500
    for nominal chain thickness [mm] 20
    Type right hand
    Overall length L [mm] 265
    Component width B [mm] 166
    Eye Ø D [mm] 70
    Eye width O 25
    Bolt width BB 75
    Bolt height HB 48
    Weight approx. [kg] 4
Working load limit [kg] 12500
for nominal chain thickness [mm] 20
Type left hand
Reference no. 705405
  • Details
    LHC-CH-KENNZ-V-12.5T-45°-LEFT
    Reference no. 705405
    Working load limit [kg] 12500
    for nominal chain thickness [mm] 20
    Type left hand
    Overall length L [mm] 265
    Component width B [mm] 166
    Eye Ø D [mm] 70
    Eye width O 25
    Bolt width BB 75
    Bolt height HB 48
    Weight approx. [kg] 4
Working load limit [kg] 12500
for nominal chain thickness [mm] 20
Type straight
Reference no. 705406
  • Details
    LHC-CH-KENNZ-V-12.5T-0°-STRAIGHT
    Reference no. 705406
    Working load limit [kg] 12500
    for nominal chain thickness [mm] 20
    Type straight
    Overall length L [mm] 265
    Component width B [mm] 166
    Eye Ø D [mm] 70
    Eye width O 25
    Bolt width BB 75
    Bolt height HB 48
    Weight approx. [kg] 4
Downloads

Applications

Application table

Download

Original operating manual

Download

Poster

"Poster ""Discarding time criteria""" Overview of the discarding time criteria for wire rope slings, lifting straps, round slings and chain slings.
