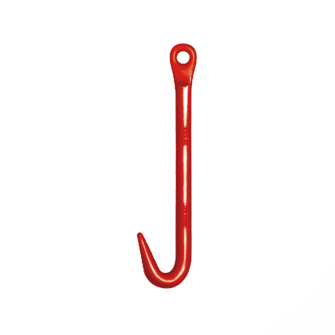

HIT-BM reinforcement steel mesh hook

HIT-BM reinforcement steel mesh hook
Hook specially designed for the transport of reinforcement steel meshes with a thickness of max. 50 mm and apertures of 30 mm x 60 mm.
Technical data

Quality grade

  • 8

Operating temperature

  • –40 °C to +200 °C
  • reduced carrying capacities outside this range

Marking

  • Batch number

Surface

  • powder-coated

Colour

  • red
Product variants
Working load limit [kg]
for nominal chain thickness [mm]
Reference no.
Details
  • 2000
    8
    119620
    LHB-BM-GK8-2.0T-7/8MM-200X50x30MM
    Reference no. 119620
    Working load limit [kg] 2000
    for nominal chain thickness [mm] 8
    Clear height T [mm] 30
    Clearance W 19
    Fork tine thickness Z 50
    Distance suspension point E [mm] 200
    Weight approx. [kg] 0.7
  • 3150
    10
    217257
    LHB-BM-GK8-3.15T-10MM-271X95x20MM
    Reference no. 217257
    Working load limit [kg] 3150
    for nominal chain thickness [mm] 10
    Clear height T [mm] 39
    Clearance W 27
    Fork tine thickness Z 65
    Distance suspension point E [mm] 260
    Weight approx. [kg] 1.5
  • 3150
    10
    705407
    LHB-BM-10-3.15T-21X21MM-63X24M M-GK8-TMH
    Reference no. 705407
    Working load limit [kg] 3150
    for nominal chain thickness [mm] 10
    Clear height T [mm] 21
    Clearance W 21
    Fork tine thickness Z 65
    Distance suspension point E [mm] 360
    Weight approx. [kg] 1.6
Working load limit [kg] 2000
for nominal chain thickness [mm] 8
Reference no. 119620
  • Details
    LHB-BM-GK8-2.0T-7/8MM-200X50x30MM
    Reference no. 119620
    Working load limit [kg] 2000
    for nominal chain thickness [mm] 8
    Clear height T [mm] 30
    Clearance W 19
    Fork tine thickness Z 50
    Distance suspension point E [mm] 200
    Weight approx. [kg] 0.7
Working load limit [kg] 3150
for nominal chain thickness [mm] 10
Reference no. 217257
  • Details
    LHB-BM-GK8-3.15T-10MM-271X95x20MM
    Reference no. 217257
    Working load limit [kg] 3150
    for nominal chain thickness [mm] 10
    Clear height T [mm] 39
    Clearance W 27
    Fork tine thickness Z 65
    Distance suspension point E [mm] 260
    Weight approx. [kg] 1.5
Working load limit [kg] 3150
for nominal chain thickness [mm] 10
Reference no. 705407
  • Details
    LHB-BM-10-3.15T-21X21MM-63X24M M-GK8-TMH
    Reference no. 705407
    Working load limit [kg] 3150
    for nominal chain thickness [mm] 10
    Clear height T [mm] 21
    Clearance W 21
    Fork tine thickness Z 65
    Distance suspension point E [mm] 360
    Weight approx. [kg] 1.6
Downloads

Applications

Application table

Download

Poster

"Poster ""Discarding time criteria""" Overview of the discarding time criteria for wire rope slings, lifting straps, round slings and chain slings.
