HIT-Medium tolerance round steel chain, quality grade 8

HIT-Medium tolerance round steel chain, quality grade 8
Chain quality, grade 8 in accordance with DIN EN 818-2
Technical data

Quality grade

  • 8

Operating temperature

  • –40 °C to +200 °C = 100 % working load limit; +200 °C to +300 °C = 90 % working load limit; +300 °C to +400 °C = 75 % working load limit

Standard

  • Chain: DIN EN 818

Certification

  • H-stamp

Marking

  • Quality grade no.

Safety factor

  • 4

Surface

  • coated

Colour

  • black
Product variants
Working load limit [kg]
Reference no.
Details
  • 1120
    701752
    B8M 80F-EN818-1.12T-6MM-18MM-BK-2.5M
    Reference no. 701752
    Working load limit [kg] 1120

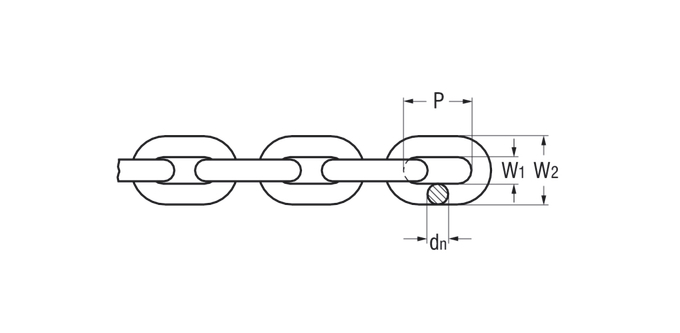

    Nominal size of chain ND [mm] 6
    Chain pitch p 18
    Chain link interior width min w1 7.8
    Chain link width, max. w2 22.2
    Section length AL 2.5
    Weight approx. [kg] 2
  • 1120
    701755
    B8M 80F-EN818-1.12T-6MM-18MM-BK-5M
    Reference no. 701755
    Working load limit [kg] 1120
    Nominal size of chain ND [mm] 6
    Chain pitch p 18
    Chain link interior width min w1 7.8
    Chain link width, max. w2 22.2
    Section length AL 5
    Weight approx. [kg] 4
  • 1120
    701759
    B8M 80F-EN818-1.12T-6MM-18MM-BK-10M
    Reference no. 701759
    Working load limit [kg] 1120
    Nominal size of chain ND [mm] 6
    Chain pitch p 18
    Chain link interior width min w1 7.8
    Chain link width, max. w2 22.2
    Section length AL 10
    Weight approx. [kg] 8
  • 1120
    701760
    B8M 80F-EN818-1.12T-6MM-18MM-BK-15M
    Reference no. 701760
    Working load limit [kg] 1120
    Nominal size of chain ND [mm] 6
    Chain pitch p 18
    Chain link interior width min w1 7.8
    Chain link width, max. w2 22.2
    Section length AL 15
    Weight approx. [kg] 12
  • 1120
    701761
    B8M 80F-EN818-1.12T-6MM-18MM-BK-20M
    Reference no. 701761
    Working load limit [kg] 1120
    Nominal size of chain ND [mm] 6
    Chain pitch p 18
    Chain link interior width min w1 7.8
    Chain link width, max. w2 22.2
    Section length AL 20
    Weight approx. [kg] 16
  • 1120
    701765
    B8M 80F-EN818-1.12T-6MM-18MM-BK-30M
    Reference no. 701765
    Working load limit [kg] 1120
    Nominal size of chain ND [mm] 6
    Chain pitch p 18
    Chain link interior width min w1 7.8
    Chain link width, max. w2 22.2
    Section length AL 30
    Weight approx. [kg] 24
  • 1120
    701766
    B8M 80F-EN818-1.12T-6MM-18MM-BK-40M
    Reference no. 701766
    Working load limit [kg] 1120
    Nominal size of chain ND [mm] 6
    Chain pitch p 18
    Chain link interior width min w1 7.8
    Chain link width, max. w2 22.2
    Section length AL 40
    Weight approx. [kg] 32
  • 1120
    701767
    B8M 80F-EN818-1.12T-6MM-18MM-BK-50M
    Reference no. 701767
    Working load limit [kg] 1120
    Nominal size of chain ND [mm] 6
    Chain pitch p 18
    Chain link interior width min w1 7.8
    Chain link width, max. w2 22.2
    Section length AL 50
    Weight approx. [kg] 40
  • 2000
    701770
    B8M 80F-EN818-2T-8MM-24MM-BK-2.5M
    Reference no. 701770
    Working load limit [kg] 2000
    Nominal size of chain ND [mm] 8
    Chain pitch p 24
    Chain link interior width min w1 10.4
    Chain link width, max. w2 29.6
    Section length AL 2.5
    Weight approx. [kg] 3.5
  • 2000
    701771
    B8M 80F-EN818-2T-8MM-24MM-BK-5M
    Reference no. 701771
    Working load limit [kg] 2000
    Nominal size of chain ND [mm] 8
    Chain pitch p 24
    Chain link interior width min w1 10.4
    Chain link width, max. w2 29.6
    Section length AL 5
    Weight approx. [kg] 7
  • 2000
    701772
    B8M 80F-EN818-2T-8MM-24MM-BK-10M
    Reference no. 701772
    Working load limit [kg] 2000
    Nominal size of chain ND [mm] 8
    Chain pitch p 24
    Chain link interior width min w1 10.4
    Chain link width, max. w2 29.6
    Section length AL 10
    Weight approx. [kg] 14
  • 2000
    701773
    B8M 80F-EN818-2T-8MM-24MM-BK-15M
    Reference no. 701773
    Working load limit [kg] 2000
    Nominal size of chain ND [mm] 8
    Chain pitch p 24
    Chain link interior width min w1 10.4
    Chain link width, max. w2 29.6
    Section length AL 15
    Weight approx. [kg] 21
  • 2000
    701774
    B8M 80F-EN818-2T-8MM-24MM-BK-20M
    Reference no. 701774
    Working load limit [kg] 2000
    Nominal size of chain ND [mm] 8
    Chain pitch p 24
    Chain link interior width min w1 10.4
    Chain link width, max. w2 29.6
    Section length AL 20
    Weight approx. [kg] 28
  • 2000
    701775
    B8M 80F-EN818-2T-8MM-24MM-BK-30M
    Reference no. 701775
    Working load limit [kg] 2000
    Nominal size of chain ND [mm] 8
    Chain pitch p 24
    Chain link interior width min w1 10.4
    Chain link width, max. w2 29.6
    Section length AL 30
    Weight approx. [kg] 42
  • 2000
    701776
    B8M 80F-EN818-2T-8MM-24MM-BK-40M
    Reference no. 701776
    Working load limit [kg] 2000
    Nominal size of chain ND [mm] 8
    Chain pitch p 24
    Chain link interior width min w1 10.4
    Chain link width, max. w2 29.6
    Section length AL 40
    Weight approx. [kg] 56
  • 2000
    701777
    B8M 80F-EN818-2T-8MM-24MM-BK-50M
    Reference no. 701777
    Working load limit [kg] 2000
    Nominal size of chain ND [mm] 8
    Chain pitch p 24
    Chain link interior width min w1 10.4
    Chain link width, max. w2 29.6
    Section length AL 50
    Weight approx. [kg] 70
  • 3150
    701816
    B8M 80F-EN818-3.15T-10MM-30MM-BK-2.5M
    Reference no. 701816
    Working load limit [kg] 3150
    Nominal size of chain ND [mm] 10
    Chain pitch p 30
    Chain link interior width min w1 13
    Chain link width, max. w2 37
    Section length AL 2.5
    Weight approx. [kg] 5.5
  • 3150
    701819
    B8M 80F-EN818-3.15T-10MM-30MM-BK-5M
    Reference no. 701819
    Working load limit [kg] 3150
    Nominal size of chain ND [mm] 10
    Chain pitch p 30
    Chain link interior width min w1 13
    Chain link width, max. w2 37
    Section length AL 5
    Weight approx. [kg] 11
  • 3150
    701823
    B8M 80F-EN818-3.15T-10MM-30MM-BK-10M
    Reference no. 701823
    Working load limit [kg] 3150
    Nominal size of chain ND [mm] 10
    Chain pitch p 30
    Chain link interior width min w1 13
    Chain link width, max. w2 37
    Section length AL 10
    Weight approx. [kg] 22
  • 3150
    701827
    B8M 80F-EN818-3.15T-10MM-30MM-BK-15M
    Reference no. 701827
    Working load limit [kg] 3150
    Nominal size of chain ND [mm] 10
    Chain pitch p 30
    Chain link interior width min w1 13
    Chain link width, max. w2 37
    Section length AL 15
    Weight approx. [kg] 33
  • 3150
    701829
    B8M 80F-EN818-3.15T-10MM-30MM-BK-20M
    Reference no. 701829
    Working load limit [kg] 3150
    Nominal size of chain ND [mm] 10
    Chain pitch p 30
    Chain link interior width min w1 13
    Chain link width, max. w2 37
    Section length AL 20
    Weight approx. [kg] 44
  • 3150
    701830
    B8M 80F-EN818-3.15T-10MM-30MM-BK-30M
    Reference no. 701830
    Working load limit [kg] 3150
    Nominal size of chain ND [mm] 10
    Chain pitch p 30
    Chain link interior width min w1 13
    Chain link width, max. w2 37
    Section length AL 30
    Weight approx. [kg] 66
  • 3150
    701833
    B8M 80F-EN818-3.15T-10MM-30MM-BK-40M
    Reference no. 701833
    Working load limit [kg] 3150
    Nominal size of chain ND [mm] 10
    Chain pitch p 30
    Chain link interior width min w1 13
    Chain link width, max. w2 37
    Section length AL 40
    Weight approx. [kg] 88
  • 3150
    701835
    B8M 80F-EN818-3.15T-10MM-30MM-BK-50M
    Reference no. 701835
    Working load limit [kg] 3150
    Nominal size of chain ND [mm] 10
    Chain pitch p 30
    Chain link interior width min w1 13
    Chain link width, max. w2 37
    Section length AL 50
    Weight approx. [kg] 110
  • 5300
    701837
    B8M 80F-EN818-5.30T-13MM-39MM-BK-2.5M
    Reference no. 701837
    Working load limit [kg] 5300
    Nominal size of chain ND [mm] 13
    Chain pitch p 39
    Chain link interior width min w1 16.9
    Chain link width, max. w2 48.1
    Section length AL 2.5
    Weight approx. [kg] 9.5
  • 5300
    701838
    B8M 80F-EN818-5.30T-13MM-39MM-BK-5M
    Reference no. 701838
    Working load limit [kg] 5300
    Nominal size of chain ND [mm] 13
    Chain pitch p 39
    Chain link interior width min w1 16.9
    Chain link width, max. w2 48.1
    Section length AL 5
    Weight approx. [kg] 19
  • 5300
    701840
    B8M 80F-EN818-5.30T-13MM-39MM-BK-10M
    Reference no. 701840
    Working load limit [kg] 5300
    Nominal size of chain ND [mm] 13
    Chain pitch p 39
    Chain link interior width min w1 16.9
    Chain link width, max. w2 48.1
    Section length AL 10
    Weight approx. [kg] 38
  • 5300
    701842
    B8M 80F-EN818-5.30T-13MM-39MM-BK-15M
    Reference no. 701842
    Working load limit [kg] 5300
    Nominal size of chain ND [mm] 13
    Chain pitch p 39
    Chain link interior width min w1 16.9
    Chain link width, max. w2 48.1
    Section length AL 15
    Weight approx. [kg] 57
  • 5300
    701845
    B8M 80F-EN818-5.30T-13MM-39MM-BK-20M
    Reference no. 701845
    Working load limit [kg] 5300
    Nominal size of chain ND [mm] 13
    Chain pitch p 39
    Chain link interior width min w1 16.9
    Chain link width, max. w2 48.1
    Section length AL 20
    Weight approx. [kg] 76
  • 5300
    701847
    B8M 80F-EN818-5.30T-13MM-39MM-BK-30M
    Reference no. 701847
    Working load limit [kg] 5300
    Nominal size of chain ND [mm] 13
    Chain pitch p 39
    Chain link interior width min w1 16.9
    Chain link width, max. w2 48.1
    Section length AL 30
    Weight approx. [kg] 114
  • 5300
    701848
    B8M 80F-EN818-5.30T-13MM-39MM-BK-40M
    Reference no. 701848
    Working load limit [kg] 5300
    Nominal size of chain ND [mm] 13
    Chain pitch p 39
    Chain link interior width min w1 16.9
    Chain link width, max. w2 48.1
    Section length AL 40
    Weight approx. [kg] 152
  • 5300
    701849
    B8M 80F-EN818-5.30T-13MM-39MM-BK-50M
    Reference no. 701849
    Working load limit [kg] 5300
    Nominal size of chain ND [mm] 13
    Chain pitch p 39
    Chain link interior width min w1 16.9
    Chain link width, max. w2 48.1
    Section length AL 50
    Weight approx. [kg] 190
  • 8000
    701851
    B8M 80F-EN818-8T-16MM-48MM-BK-2.5M
    Reference no. 701851
    Working load limit [kg] 8000
    Nominal size of chain ND [mm] 16
    Chain pitch p 48
    Chain link interior width min w1 20.8
    Chain link width, max. w2 59.2
    Section length AL 2.5
    Weight approx. [kg] 14.25
  • 8000
    701852
    B8M 80F-EN818-8T-16MM-48MM-BK-5M
    Reference no. 701852
    Working load limit [kg] 8000
    Nominal size of chain ND [mm] 16
    Chain pitch p 48
    Chain link interior width min w1 20.8
    Chain link width, max. w2 59.2
    Section length AL 5
    Weight approx. [kg] 28.5
  • 8000
    701853
    B8M 80F-EN818-8T-16MM-48MM-BK-10M
    Reference no. 701853
    Working load limit [kg] 8000
    Nominal size of chain ND [mm] 16
    Chain pitch p 48
    Chain link interior width min w1 20.8
    Chain link width, max. w2 59.2
    Section length AL 10
    Weight approx. [kg] 57
  • 8000
    701854
    B8M 80F-EN818-8T-16MM-48MM-BK-15M
    Reference no. 701854
    Working load limit [kg] 8000
    Nominal size of chain ND [mm] 16
    Chain pitch p 48
    Chain link interior width min w1 20.8
    Chain link width, max. w2 59.2
    Section length AL 15
    Weight approx. [kg] 85.5
  • 8000
    701855
    B8M 80F-EN818-8T-16MM-48MM-BK-20M
    Reference no. 701855
    Working load limit [kg] 8000
    Nominal size of chain ND [mm] 16
    Chain pitch p 48
    Chain link interior width min w1 20.8
    Chain link width, max. w2 59.2
    Section length AL 20
    Weight approx. [kg] 114
  • 8000
    701856
    B8M 80F-EN818-8T-16MM-48MM-BK-30M
    Reference no. 701856
    Working load limit [kg] 8000
    Nominal size of chain ND [mm] 16
    Chain pitch p 48
    Chain link interior width min w1 20.8
    Chain link width, max. w2 59.2
    Section length AL 30
    Weight approx. [kg] 171
  • 8000
    701857
    B8M 80F-EN818-8T-16MM-48MM-BK-40M
    Reference no. 701857
    Working load limit [kg] 8000
    Nominal size of chain ND [mm] 16
    Chain pitch p 48
    Chain link interior width min w1 20.8
    Chain link width, max. w2 59.2
    Section length AL 40
    Weight approx. [kg] 228
  • 8000
    701858
    B8M 80F-EN818-8T-16MM-48MM-BK-50M
    Reference no. 701858
    Working load limit [kg] 8000
    Nominal size of chain ND [mm] 16
    Chain pitch p 48
    Chain link interior width min w1 20.8
    Chain link width, max. w2 59.2
    Section length AL 50
    Weight approx. [kg] 285
Working load limit [kg] 1120
Reference no. 701752
  • Details
    B8M 80F-EN818-1.12T-6MM-18MM-BK-2.5M
    Reference no. 701752
    Working load limit [kg] 1120
    Nominal size of chain ND [mm] 6
    Chain pitch p 18
    Chain link interior width min w1 7.8
    Chain link width, max. w2 22.2
    Section length AL 2.5
    Weight approx. [kg] 2
Working load limit [kg] 1120
Reference no. 701755
  • Details
    B8M 80F-EN818-1.12T-6MM-18MM-BK-5M
    Reference no. 701755
    Working load limit [kg] 1120
    Nominal size of chain ND [mm] 6
    Chain pitch p 18
    Chain link interior width min w1 7.8
    Chain link width, max. w2 22.2
    Section length AL 5
    Weight approx. [kg] 4
Working load limit [kg] 1120
Reference no. 701759
  • Details
    B8M 80F-EN818-1.12T-6MM-18MM-BK-10M
    Reference no. 701759
    Working load limit [kg] 1120
    Nominal size of chain ND [mm] 6
    Chain pitch p 18
    Chain link interior width min w1 7.8
    Chain link width, max. w2 22.2
    Section length AL 10
    Weight approx. [kg] 8
Working load limit [kg] 1120
Reference no. 701760
  • Details
    B8M 80F-EN818-1.12T-6MM-18MM-BK-15M
    Reference no. 701760
    Working load limit [kg] 1120
    Nominal size of chain ND [mm] 6
    Chain pitch p 18
    Chain link interior width min w1 7.8
    Chain link width, max. w2 22.2
    Section length AL 15
    Weight approx. [kg] 12
Working load limit [kg] 1120
Reference no. 701761
  • Details
    B8M 80F-EN818-1.12T-6MM-18MM-BK-20M
    Reference no. 701761
    Working load limit [kg] 1120
    Nominal size of chain ND [mm] 6
    Chain pitch p 18
    Chain link interior width min w1 7.8
    Chain link width, max. w2 22.2
    Section length AL 20
    Weight approx. [kg] 16
Working load limit [kg] 1120
Reference no. 701765
  • Details
    B8M 80F-EN818-1.12T-6MM-18MM-BK-30M
    Reference no. 701765
    Working load limit [kg] 1120
    Nominal size of chain ND [mm] 6
    Chain pitch p 18
    Chain link interior width min w1 7.8
    Chain link width, max. w2 22.2
    Section length AL 30
    Weight approx. [kg] 24
Working load limit [kg] 1120
Reference no. 701766
  • Details
    B8M 80F-EN818-1.12T-6MM-18MM-BK-40M
    Reference no. 701766
    Working load limit [kg] 1120
    Nominal size of chain ND [mm] 6
    Chain pitch p 18
    Chain link interior width min w1 7.8
    Chain link width, max. w2 22.2
    Section length AL 40
    Weight approx. [kg] 32
Working load limit [kg] 1120
Reference no. 701767
  • Details
    B8M 80F-EN818-1.12T-6MM-18MM-BK-50M
    Reference no. 701767
    Working load limit [kg] 1120
    Nominal size of chain ND [mm] 6
    Chain pitch p 18
    Chain link interior width min w1 7.8
    Chain link width, max. w2 22.2
    Section length AL 50
    Weight approx. [kg] 40
Working load limit [kg] 2000
Reference no. 701770
  • Details
    B8M 80F-EN818-2T-8MM-24MM-BK-2.5M
    Reference no. 701770
    Working load limit [kg] 2000
    Nominal size of chain ND [mm] 8
    Chain pitch p 24
    Chain link interior width min w1 10.4
    Chain link width, max. w2 29.6
    Section length AL 2.5
    Weight approx. [kg] 3.5
Working load limit [kg] 2000
Reference no. 701771
  • Details
    B8M 80F-EN818-2T-8MM-24MM-BK-5M
    Reference no. 701771
    Working load limit [kg] 2000
    Nominal size of chain ND [mm] 8
    Chain pitch p 24
    Chain link interior width min w1 10.4
    Chain link width, max. w2 29.6
    Section length AL 5
    Weight approx. [kg] 7
Working load limit [kg] 2000
Reference no. 701772
  • Details
    B8M 80F-EN818-2T-8MM-24MM-BK-10M
    Reference no. 701772
    Working load limit [kg] 2000
    Nominal size of chain ND [mm] 8
    Chain pitch p 24
    Chain link interior width min w1 10.4
    Chain link width, max. w2 29.6
    Section length AL 10
    Weight approx. [kg] 14
Working load limit [kg] 2000
Reference no. 701773
  • Details
    B8M 80F-EN818-2T-8MM-24MM-BK-15M
    Reference no. 701773
    Working load limit [kg] 2000
    Nominal size of chain ND [mm] 8
    Chain pitch p 24
    Chain link interior width min w1 10.4
    Chain link width, max. w2 29.6
    Section length AL 15
    Weight approx. [kg] 21
Working load limit [kg] 2000
Reference no. 701774
  • Details
    B8M 80F-EN818-2T-8MM-24MM-BK-20M
    Reference no. 701774
    Working load limit [kg] 2000
    Nominal size of chain ND [mm] 8
    Chain pitch p 24
    Chain link interior width min w1 10.4
    Chain link width, max. w2 29.6
    Section length AL 20
    Weight approx. [kg] 28
Working load limit [kg] 2000
Reference no. 701775
  • Details
    B8M 80F-EN818-2T-8MM-24MM-BK-30M
    Reference no. 701775
    Working load limit [kg] 2000
    Nominal size of chain ND [mm] 8
    Chain pitch p 24
    Chain link interior width min w1 10.4
    Chain link width, max. w2 29.6
    Section length AL 30
    Weight approx. [kg] 42
Working load limit [kg] 2000
Reference no. 701776
  • Details
    B8M 80F-EN818-2T-8MM-24MM-BK-40M
    Reference no. 701776
    Working load limit [kg] 2000
    Nominal size of chain ND [mm] 8
    Chain pitch p 24
    Chain link interior width min w1 10.4
    Chain link width, max. w2 29.6
    Section length AL 40
    Weight approx. [kg] 56
Working load limit [kg] 2000
Reference no. 701777
  • Details
    B8M 80F-EN818-2T-8MM-24MM-BK-50M
    Reference no. 701777
    Working load limit [kg] 2000
    Nominal size of chain ND [mm] 8
    Chain pitch p 24
    Chain link interior width min w1 10.4
    Chain link width, max. w2 29.6
    Section length AL 50
    Weight approx. [kg] 70
Working load limit [kg] 3150
Reference no. 701816
  • Details
    B8M 80F-EN818-3.15T-10MM-30MM-BK-2.5M
    Reference no. 701816
    Working load limit [kg] 3150
    Nominal size of chain ND [mm] 10
    Chain pitch p 30
    Chain link interior width min w1 13
    Chain link width, max. w2 37
    Section length AL 2.5
    Weight approx. [kg] 5.5
Working load limit [kg] 3150
Reference no. 701819
  • Details
    B8M 80F-EN818-3.15T-10MM-30MM-BK-5M
    Reference no. 701819
    Working load limit [kg] 3150
    Nominal size of chain ND [mm] 10
    Chain pitch p 30
    Chain link interior width min w1 13
    Chain link width, max. w2 37
    Section length AL 5
    Weight approx. [kg] 11
Working load limit [kg] 3150
Reference no. 701823
  • Details
    B8M 80F-EN818-3.15T-10MM-30MM-BK-10M
    Reference no. 701823
    Working load limit [kg] 3150
    Nominal size of chain ND [mm] 10
    Chain pitch p 30
    Chain link interior width min w1 13
    Chain link width, max. w2 37
    Section length AL 10
    Weight approx. [kg] 22
Working load limit [kg] 3150
Reference no. 701827
  • Details
    B8M 80F-EN818-3.15T-10MM-30MM-BK-15M
    Reference no. 701827
    Working load limit [kg] 3150
    Nominal size of chain ND [mm] 10
    Chain pitch p 30
    Chain link interior width min w1 13
    Chain link width, max. w2 37
    Section length AL 15
    Weight approx. [kg] 33
Working load limit [kg] 3150
Reference no. 701829
  • Details
    B8M 80F-EN818-3.15T-10MM-30MM-BK-20M
    Reference no. 701829
    Working load limit [kg] 3150
    Nominal size of chain ND [mm] 10
    Chain pitch p 30
    Chain link interior width min w1 13
    Chain link width, max. w2 37
    Section length AL 20
    Weight approx. [kg] 44
Working load limit [kg] 3150
Reference no. 701830
  • Details
    B8M 80F-EN818-3.15T-10MM-30MM-BK-30M
    Reference no. 701830
    Working load limit [kg] 3150
    Nominal size of chain ND [mm] 10
    Chain pitch p 30
    Chain link interior width min w1 13
    Chain link width, max. w2 37
    Section length AL 30
    Weight approx. [kg] 66
Working load limit [kg] 3150
Reference no. 701833
  • Details
    B8M 80F-EN818-3.15T-10MM-30MM-BK-40M
    Reference no. 701833
    Working load limit [kg] 3150
    Nominal size of chain ND [mm] 10
    Chain pitch p 30
    Chain link interior width min w1 13
    Chain link width, max. w2 37
    Section length AL 40
    Weight approx. [kg] 88
Working load limit [kg] 3150
Reference no. 701835
  • Details
    B8M 80F-EN818-3.15T-10MM-30MM-BK-50M
    Reference no. 701835
    Working load limit [kg] 3150
    Nominal size of chain ND [mm] 10
    Chain pitch p 30
    Chain link interior width min w1 13
    Chain link width, max. w2 37
    Section length AL 50
    Weight approx. [kg] 110
Working load limit [kg] 5300
Reference no. 701837
  • Details
    B8M 80F-EN818-5.30T-13MM-39MM-BK-2.5M
    Reference no. 701837
    Working load limit [kg] 5300
    Nominal size of chain ND [mm] 13
    Chain pitch p 39
    Chain link interior width min w1 16.9
    Chain link width, max. w2 48.1
    Section length AL 2.5
    Weight approx. [kg] 9.5
Working load limit [kg] 5300
Reference no. 701838
  • Details
    B8M 80F-EN818-5.30T-13MM-39MM-BK-5M
    Reference no. 701838
    Working load limit [kg] 5300
    Nominal size of chain ND [mm] 13
    Chain pitch p 39
    Chain link interior width min w1 16.9
    Chain link width, max. w2 48.1
    Section length AL 5
    Weight approx. [kg] 19
Working load limit [kg] 5300
Reference no. 701840
  • Details
    B8M 80F-EN818-5.30T-13MM-39MM-BK-10M
    Reference no. 701840
    Working load limit [kg] 5300
    Nominal size of chain ND [mm] 13
    Chain pitch p 39
    Chain link interior width min w1 16.9
    Chain link width, max. w2 48.1
    Section length AL 10
    Weight approx. [kg] 38
Working load limit [kg] 5300
Reference no. 701842
  • Details
    B8M 80F-EN818-5.30T-13MM-39MM-BK-15M
    Reference no. 701842
    Working load limit [kg] 5300
    Nominal size of chain ND [mm] 13
    Chain pitch p 39
    Chain link interior width min w1 16.9
    Chain link width, max. w2 48.1
    Section length AL 15
    Weight approx. [kg] 57
Working load limit [kg] 5300
Reference no. 701845
  • Details
    B8M 80F-EN818-5.30T-13MM-39MM-BK-20M
    Reference no. 701845
    Working load limit [kg] 5300
    Nominal size of chain ND [mm] 13
    Chain pitch p 39
    Chain link interior width min w1 16.9
    Chain link width, max. w2 48.1
    Section length AL 20
    Weight approx. [kg] 76
Working load limit [kg] 5300
Reference no. 701847
  • Details
    B8M 80F-EN818-5.30T-13MM-39MM-BK-30M
    Reference no. 701847
    Working load limit [kg] 5300
    Nominal size of chain ND [mm] 13
    Chain pitch p 39
    Chain link interior width min w1 16.9
    Chain link width, max. w2 48.1
    Section length AL 30
    Weight approx. [kg] 114
Working load limit [kg] 5300
Reference no. 701848
  • Details
    B8M 80F-EN818-5.30T-13MM-39MM-BK-40M
    Reference no. 701848
    Working load limit [kg] 5300
    Nominal size of chain ND [mm] 13
    Chain pitch p 39
    Chain link interior width min w1 16.9
    Chain link width, max. w2 48.1
    Section length AL 40
    Weight approx. [kg] 152
Working load limit [kg] 5300
Reference no. 701849
  • Details
    B8M 80F-EN818-5.30T-13MM-39MM-BK-50M
    Reference no. 701849
    Working load limit [kg] 5300
    Nominal size of chain ND [mm] 13
    Chain pitch p 39
    Chain link interior width min w1 16.9
    Chain link width, max. w2 48.1
    Section length AL 50
    Weight approx. [kg] 190
Working load limit [kg] 8000
Reference no. 701851
  • Details
    B8M 80F-EN818-8T-16MM-48MM-BK-2.5M
    Reference no. 701851
    Working load limit [kg] 8000
    Nominal size of chain ND [mm] 16
    Chain pitch p 48
    Chain link interior width min w1 20.8
    Chain link width, max. w2 59.2
    Section length AL 2.5
    Weight approx. [kg] 14.25
Working load limit [kg] 8000
Reference no. 701852
  • Details
    B8M 80F-EN818-8T-16MM-48MM-BK-5M
    Reference no. 701852
    Working load limit [kg] 8000
    Nominal size of chain ND [mm] 16
    Chain pitch p 48
    Chain link interior width min w1 20.8
    Chain link width, max. w2 59.2
    Section length AL 5
    Weight approx. [kg] 28.5
Working load limit [kg] 8000
Reference no. 701853
  • Details
    B8M 80F-EN818-8T-16MM-48MM-BK-10M
    Reference no. 701853
    Working load limit [kg] 8000
    Nominal size of chain ND [mm] 16
    Chain pitch p 48
    Chain link interior width min w1 20.8
    Chain link width, max. w2 59.2
    Section length AL 10
    Weight approx. [kg] 57
Working load limit [kg] 8000
Reference no. 701854
  • Details
    B8M 80F-EN818-8T-16MM-48MM-BK-15M
    Reference no. 701854
    Working load limit [kg] 8000
    Nominal size of chain ND [mm] 16
    Chain pitch p 48
    Chain link interior width min w1 20.8
    Chain link width, max. w2 59.2
    Section length AL 15
    Weight approx. [kg] 85.5
Working load limit [kg] 8000
Reference no. 701855
  • Details
    B8M 80F-EN818-8T-16MM-48MM-BK-20M
    Reference no. 701855
    Working load limit [kg] 8000
    Nominal size of chain ND [mm] 16
    Chain pitch p 48
    Chain link interior width min w1 20.8
    Chain link width, max. w2 59.2
    Section length AL 20
    Weight approx. [kg] 114
Working load limit [kg] 8000
Reference no. 701856
  • Details
    B8M 80F-EN818-8T-16MM-48MM-BK-30M
    Reference no. 701856
    Working load limit [kg] 8000
    Nominal size of chain ND [mm] 16
    Chain pitch p 48
    Chain link interior width min w1 20.8
    Chain link width, max. w2 59.2
    Section length AL 30
    Weight approx. [kg] 171
Working load limit [kg] 8000
Reference no. 701857
  • Details
    B8M 80F-EN818-8T-16MM-48MM-BK-40M
    Reference no. 701857
    Working load limit [kg] 8000
    Nominal size of chain ND [mm] 16
    Chain pitch p 48
    Chain link interior width min w1 20.8
    Chain link width, max. w2 59.2
    Section length AL 40
    Weight approx. [kg] 228
Working load limit [kg] 8000
Reference no. 701858
  • Details
    B8M 80F-EN818-8T-16MM-48MM-BK-50M
    Reference no. 701858
    Working load limit [kg] 8000
    Nominal size of chain ND [mm] 16
    Chain pitch p 48
    Chain link interior width min w1 20.8
    Chain link width, max. w2 59.2
    Section length AL 50
    Weight approx. [kg] 285
Downloads

Applications

Application table

Download

Poster

"Poster ""Discarding time criteria""" Overview of the discarding time criteria for wire rope slings, lifting straps, round slings and chain slings.
Download
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Tel. +49 8331 937-9623
Fax +49 8331 937-380
E-Mail verkauf-azs@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
 Service centre
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Academy
Tel. +49 8331 937-462
E-Mail academy@pfeifer.de
Web www.pfeifer.info
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
France
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +33 676 54 42 68 / +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Poland
 PFEIFER Technika Linowa i Dźwigowa Sp. z o.o.
ul. Wrocławska 68
55-330 Krępice k/Wrocławia
Tel. +48 71 30 23 700
E-Mail info@pfeifer.pl
Web www.pfeifer.pl
 Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
