HIT suspension link GA8 3 to 4-leg

HIT suspension link GA8 3 to 4-leg

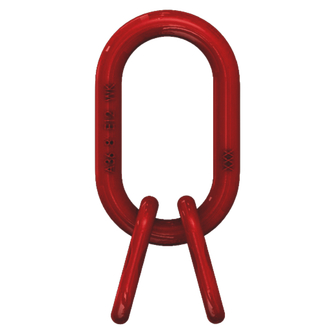

Standard suspension link for single and 4-leg chain slings. Connected with component connector.
Technical data

Quality grade

  • 8

Operating temperature

  • –40 °C to +200 °C

Standard

  • DIN EN 1677-4

Certification

  • H-stamp

Marking

  • Quality grade no.
  • Batch number

Safety factor

  • 4

Surface

  • coated
Product variants
Working load limit [kg]
Working load limit 0–45° [kg]
Working load limit 45–60° [kg]
Reference no.
Details
  • 6700
    6700
    4750
    502168
    B8A 80A-GA-WK-ST-3/4-10MM-10MM-180x100
    Reference no. 502168
    Working load limit [kg] 6700
    Working load limit 0–45° 6700
    Working load limit 45–60° 4750
    for nominal chain thickness 3-/4-leg 10
    Single crane hook up to no. (DIN 15401) 8
    Double crane hook up to no. (DIN 15402) 10

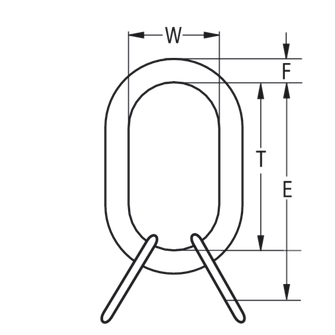

    Ring section diameter F 26
    Clear height T [mm] 180
    Clearance W 100
    Distance suspension point E [mm] 265
    Weight approx. [kg] 3.225
  • 11200
    11200
    8000
    502170
    B8A 80A-GA-WK-ST-3/4-13MM-13MM-200x110
    Reference no. 502170
    Working load limit [kg] 11200
    Working load limit 0–45° 11200
    Working load limit 45–60° 8000
    for nominal chain thickness 3-/4-leg 13
    Single crane hook up to no. (DIN 15401) 10
    Double crane hook up to no. (DIN 15402) 12
    Ring section diameter F 32
    Clear height T [mm] 200
    Clearance W 110
    Distance suspension point E [mm] 315
    Weight approx. [kg] 6.1
  • 17000
    17000
    11800
    502172
    B8A 80A-GA-WK-ST-3/4-16MM-16MM-260x140
    Reference no. 502172
    Working load limit [kg] 17000
    Working load limit 0–45° 17000
    Working load limit 45–60° 11800
    for nominal chain thickness 3-/4-leg 16
    Single crane hook up to no. (DIN 15401) 16
    Double crane hook up to no. (DIN 15402) 20
    Ring section diameter F 36
    Clear height T [mm] 260
    Clearance W 140
    Distance suspension point E [mm] 400
    Weight approx. [kg] 9.98
  • 26500
    26500
    19000
    502174
    B8A 80A-GA-WK-ST-3/4-20MM-20MM-350x190
    Reference no. 502174
    Working load limit [kg] 26500
    Working load limit 0–45° 26500
    Working load limit 45–60° 19000
    for nominal chain thickness 3-/4-leg 20
    Single crane hook up to no. (DIN 15401) 32
    Double crane hook up to no. (DIN 15402) 40
    Ring section diameter F 51
    Clear height T [mm] 350
    Clearance W 190
    Distance suspension point E [mm] 500
    Weight approx. [kg] 22.6
Working load limit [kg] 6700
Working load limit 0–45° 6700
Working load limit 45–60° 4750
Reference no. 502168
  • Details
    B8A 80A-GA-WK-ST-3/4-10MM-10MM-180x100
    Reference no. 502168
    Working load limit [kg] 6700
    Working load limit 0–45° 6700
    Working load limit 45–60° 4750
    for nominal chain thickness 3-/4-leg 10
    Single crane hook up to no. (DIN 15401) 8
    Double crane hook up to no. (DIN 15402) 10
    Ring section diameter F 26
    Clear height T [mm] 180
    Clearance W 100
    Distance suspension point E [mm] 265
    Weight approx. [kg] 3.225
Working load limit [kg] 11200
Working load limit 0–45° 11200
Working load limit 45–60° 8000
Reference no. 502170
  • Details
    B8A 80A-GA-WK-ST-3/4-13MM-13MM-200x110
    Reference no. 502170
    Working load limit [kg] 11200
    Working load limit 0–45° 11200
    Working load limit 45–60° 8000
    for nominal chain thickness 3-/4-leg 13
    Single crane hook up to no. (DIN 15401) 10
    Double crane hook up to no. (DIN 15402) 12
    Ring section diameter F 32
    Clear height T [mm] 200
    Clearance W 110
    Distance suspension point E [mm] 315
    Weight approx. [kg] 6.1
Working load limit [kg] 17000
Working load limit 0–45° 17000
Working load limit 45–60° 11800
Reference no. 502172
  • Details
    B8A 80A-GA-WK-ST-3/4-16MM-16MM-260x140
    Reference no. 502172
    Working load limit [kg] 17000
    Working load limit 0–45° 17000
    Working load limit 45–60° 11800
    for nominal chain thickness 3-/4-leg 16
    Single crane hook up to no. (DIN 15401) 16
    Double crane hook up to no. (DIN 15402) 20
    Ring section diameter F 36
    Clear height T [mm] 260
    Clearance W 140
    Distance suspension point E [mm] 400
    Weight approx. [kg] 9.98
Working load limit [kg] 26500
Working load limit 0–45° 26500
Working load limit 45–60° 19000
Reference no. 502174
  • Details
    B8A 80A-GA-WK-ST-3/4-20MM-20MM-350x190
    Reference no. 502174
    Working load limit [kg] 26500
    Working load limit 0–45° 26500
    Working load limit 45–60° 19000
    for nominal chain thickness 3-/4-leg 20
    Single crane hook up to no. (DIN 15401) 32
    Double crane hook up to no. (DIN 15402) 40
    Ring section diameter F 51
    Clear height T [mm] 350
    Clearance W 190
    Distance suspension point E [mm] 500
    Weight approx. [kg] 22.6
