HIT suspension link RA8 1 to 2-leg

HIT suspension link RA8 1 to 2-leg

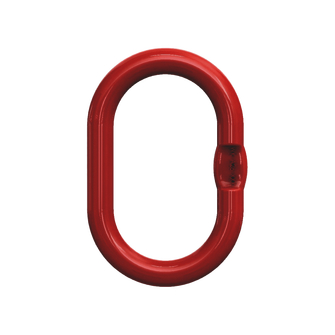

Standard suspension link for single and 2-leg chain slings. Connected with component connector.
Technical data

Quality grade

  • 8

Operating temperature

  • –40 °C to +200 °C

Standard

  • DIN EN 1677-4

Certification

  • H-stamp

Marking

  • Quality grade no.
  • Batch number

Safety factor

  • 4

Surface

  • coated
Product variants
Working load limit [kg]
Reference no.
Details
  • 3150
    502182
    B8A 80A-RA-WK-ST-1/2-10MM-8MM-135x75
    Reference no. 502182
    Working load limit [kg] 3150
    for nominal chain thickness single-leg 10
    for nominal chain thickness 2-leg 8
    Single crane hook up to no. (DIN 15401) 5
    Double crane hook up to no. (DIN 15402) 6

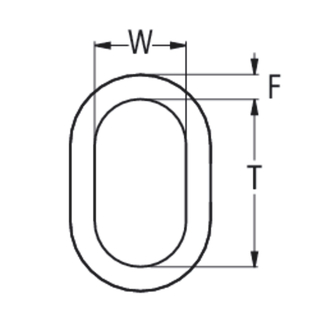

    Ring section diameter F 18
    Clear height T [mm] 135
    Clearance W 75
    Distance suspension point E [mm] 135
    Weight approx. [kg] 0.83
  • 5300
    502184
    B8A 80A-RA-WK-ST-1/2-13MM-10MM-160x90
    Reference no. 502184
    Working load limit [kg] 5300
    for nominal chain thickness single-leg 13
    for nominal chain thickness 2-leg 10
    Single crane hook up to no. (DIN 15401) 6
    Double crane hook up to no. (DIN 15402) 8
    Ring section diameter F 22
    Clear height T [mm] 160
    Clearance W 90
    Distance suspension point E [mm] 160
    Weight approx. [kg] 1.5
  • 8000
    502186
    B8A 80A-RA-WK-ST-1/2-16MM-13MM-180x100
    Reference no. 502186
    Working load limit [kg] 8000
    for nominal chain thickness single-leg 16
    for nominal chain thickness 2-leg 13
    Single crane hook up to no. (DIN 15401) 8
    Double crane hook up to no. (DIN 15402) 10
    Ring section diameter F 26
    Clear height T [mm] 180
    Clearance W 100
    Distance suspension point E [mm] 180
    Weight approx. [kg] 2.193
  • 12500
    502188
    B8A 80A-RA-WK-ST-1/2-18MM-16MM-200x110
    Reference no. 502188
    Working load limit [kg] 12500
    for nominal chain thickness single-leg 18
    for nominal chain thickness 2-leg 16
    Single crane hook up to no. (DIN 15401) 10
    Double crane hook up to no. (DIN 15402) 12
    Ring section diameter F 32
    Clear height T [mm] 200
    Clearance W 110
    Distance suspension point E [mm] 200
    Weight approx. [kg] 3.95
  • 16000
    502190
    B8A 80A-RA-WK-ST-1/2-20MM-18MM-260x140
    Reference no. 502190
    Working load limit [kg] 16000
    for nominal chain thickness single-leg 20
    for nominal chain thickness 2-leg 18
    Single crane hook up to no. (DIN 15401) 16
    Double crane hook up to no. (DIN 15402) 20
    Ring section diameter F 36
    Clear height T [mm] 260
    Clearance W 140
    Distance suspension point E [mm] 260
    Weight approx. [kg] 6.34
  • 18000
    502192
    B8A 80A-RA-WK-ST-1/2-22MM-20MM-300x160
    Reference no. 502192
    Working load limit [kg] 18000
    for nominal chain thickness single-leg 22
    for nominal chain thickness 2-leg 20
    Single crane hook up to no. (DIN 15401) 16
    Double crane hook up to no. (DIN 15402) 20
    Ring section diameter F 40
    Clear height T [mm] 300
    Clearance W 160
    Distance suspension point E [mm] 300
    Weight approx. [kg] 8.96
Working load limit [kg] 3150
Reference no. 502182
  • Details
    B8A 80A-RA-WK-ST-1/2-10MM-8MM-135x75
    Reference no. 502182
    Working load limit [kg] 3150
    for nominal chain thickness single-leg 10
    for nominal chain thickness 2-leg 8
    Single crane hook up to no. (DIN 15401) 5
    Double crane hook up to no. (DIN 15402) 6
    Ring section diameter F 18
    Clear height T [mm] 135
    Clearance W 75
    Distance suspension point E [mm] 135
    Weight approx. [kg] 0.83
Working load limit [kg] 5300
Reference no. 502184
  • Details
    B8A 80A-RA-WK-ST-1/2-13MM-10MM-160x90
    Reference no. 502184
    Working load limit [kg] 5300
    for nominal chain thickness single-leg 13
    for nominal chain thickness 2-leg 10
    Single crane hook up to no. (DIN 15401) 6
    Double crane hook up to no. (DIN 15402) 8
    Ring section diameter F 22
    Clear height T [mm] 160
    Clearance W 90
    Distance suspension point E [mm] 160
    Weight approx. [kg] 1.5
Working load limit [kg] 8000
Reference no. 502186
  • Details
    B8A 80A-RA-WK-ST-1/2-16MM-13MM-180x100
    Reference no. 502186
    Working load limit [kg] 8000
    for nominal chain thickness single-leg 16
    for nominal chain thickness 2-leg 13
    Single crane hook up to no. (DIN 15401) 8
    Double crane hook up to no. (DIN 15402) 10
    Ring section diameter F 26
    Clear height T [mm] 180
    Clearance W 100
    Distance suspension point E [mm] 180
    Weight approx. [kg] 2.193
Working load limit [kg] 12500
Reference no. 502188
  • Details
    B8A 80A-RA-WK-ST-1/2-18MM-16MM-200x110
    Reference no. 502188
    Working load limit [kg] 12500
    for nominal chain thickness single-leg 18
    for nominal chain thickness 2-leg 16
    Single crane hook up to no. (DIN 15401) 10
    Double crane hook up to no. (DIN 15402) 12
    Ring section diameter F 32
    Clear height T [mm] 200
    Clearance W 110
    Distance suspension point E [mm] 200
    Weight approx. [kg] 3.95
Working load limit [kg] 16000
Reference no. 502190
  • Details
    B8A 80A-RA-WK-ST-1/2-20MM-18MM-260x140
    Reference no. 502190
    Working load limit [kg] 16000
    for nominal chain thickness single-leg 20
    for nominal chain thickness 2-leg 18
    Single crane hook up to no. (DIN 15401) 16
    Double crane hook up to no. (DIN 15402) 20
    Ring section diameter F 36
    Clear height T [mm] 260
    Clearance W 140
    Distance suspension point E [mm] 260
    Weight approx. [kg] 6.34
Working load limit [kg] 18000
Reference no. 502192
  • Details
    B8A 80A-RA-WK-ST-1/2-22MM-20MM-300x160
    Reference no. 502192
    Working load limit [kg] 18000
    for nominal chain thickness single-leg 22
    for nominal chain thickness 2-leg 20
    Single crane hook up to no. (DIN 15401) 16
    Double crane hook up to no. (DIN 15402) 20
    Ring section diameter F 40
    Clear height T [mm] 300
    Clearance W 160
    Distance suspension point E [mm] 300
    Weight approx. [kg] 8.96
