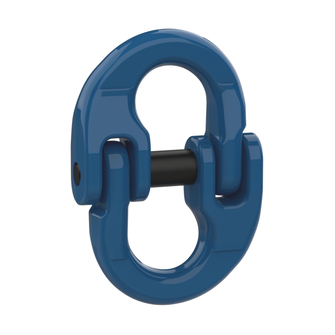

HIT ECO-HIGH10 connecting link

HIT ECO-HIGH10 connecting link
Connecting link for rapid connection of attachment components.
Technical data

Quality grade

  • 10

Operating temperature

  • –40 °C to +200 °C

Standard

  • on the basis of DIN EN 1677

Certification

  • H-stamp

Marking

  • Batch number

Safety factor

  • 4

Surface

  • Coated blue
Product variants
Working load limit [kg]
for nominal chain thickness [mm]
Reference no.
Details
  • 1400
    6
    502291
    B1G 10C-CONN-LINK-HIGH10-6MM-COAT-45
    Reference no. 502291
    Working load limit [kg] 1400
    for nominal chain thickness [mm] 6

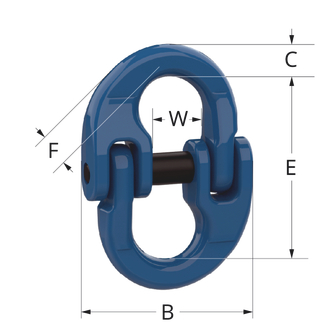

    Ring section diameter F 7
    Clearance W 14
    Component width B [mm] 41
    Stirrup height C [mm] 8.5
    Body thickness U 12
    Distance suspension point E [mm] 45
    Weight approx. [kg] 0.11
  • 2500
    8
    502293
    B1G 10C-CONN-LINK-HIGH10-8MM-COAT-63
    Reference no. 502293
    Working load limit [kg] 2500
    for nominal chain thickness [mm] 8
    Ring section diameter F 10
    Clearance W 18.5
    Component width B [mm] 55
    Stirrup height C [mm] 10.5
    Body thickness U 14
    Distance suspension point E [mm] 63
    Weight approx. [kg] 0.16
  • 4000
    10
    502294
    B1G 10C-CONN-LINK-HIGH10-10MM-COAT-72
    Reference no. 502294
    Working load limit [kg] 4000
    for nominal chain thickness [mm] 10
    Ring section diameter F 12.6
    Clearance W 23
    Component width B [mm] 67.5
    Stirrup height C [mm] 12.6
    Body thickness U 18
    Distance suspension point E [mm] 72
    Weight approx. [kg] 0.34
  • 6700
    13
    502296
    B1G 10C-CONN-LINK-HIGH10-13MM-COAT-93
    Reference no. 502296
    Working load limit [kg] 6700
    for nominal chain thickness [mm] 13
    Ring section diameter F 16.5
    Clearance W 28
    Component width B [mm] 84
    Stirrup height C [mm] 16.5
    Body thickness U 23
    Distance suspension point E [mm] 93
    Weight approx. [kg] 0.68
  • 10000
    16
    502292
    B1G 10C-CONN-LINK-HIGH10-16MM-COAT-107
    Reference no. 502292
    Working load limit [kg] 10000
    for nominal chain thickness [mm] 16
    Ring section diameter F 20
    Clearance W 33.5
    Component width B [mm] 102
    Stirrup height C [mm] 20
    Body thickness U 29.5
    Distance suspension point E [mm] 107
    Weight approx. [kg] 1.22
  • 16000
    20
    710033
    B1G 10C-VERB-GL-HIGH10-20MM-LACK-125
    Reference no. 710033
    Working load limit [kg] 16000
    for nominal chain thickness [mm] 20
    Ring section diameter F 25
    Clearance W 42
    Component width B [mm] 118
    Stirrup height C [mm] 25
    Body thickness U 35.5
    Distance suspension point E [mm] 125
    Weight approx. [kg] 2.23
  • 19000
    22
    710034
    B1G 10C-VERB-GL-HIGH10-22MM-LACK-139
    Reference no. 710034
    Working load limit [kg] 19000
    for nominal chain thickness [mm] 22
    Ring section diameter F 27
    Clearance W 48
    Component width B [mm] 140
    Stirrup height C [mm] 27
    Body thickness U 39
    Distance suspension point E [mm] 139
    Weight approx. [kg] 3.12
  • 26500
    26
    710035
    B1G 10C-VERB-GL-HIGH10-26MM-LACK-165
    Reference no. 710035
    Working load limit [kg] 26500
    for nominal chain thickness [mm] 26
    Ring section diameter F 32
    Clearance W 61
    Component width B [mm] 168.5
    Stirrup height C [mm] 32
    Body thickness U 45
    Distance suspension point E [mm] 165
    Weight approx. [kg] 5.2
  • 40000
    32
    710036
    B1G 10C-VERB-GL-HIGH10-32MM-LACK-199
    Reference no. 710036
    Working load limit [kg] 40000
    for nominal chain thickness [mm] 32
    Ring section diameter F 40
    Clearance W 80
    Component width B [mm] 218
    Stirrup height C [mm] 40
    Body thickness U 54
    Distance suspension point E [mm] 199
    Weight approx. [kg] 9.82
