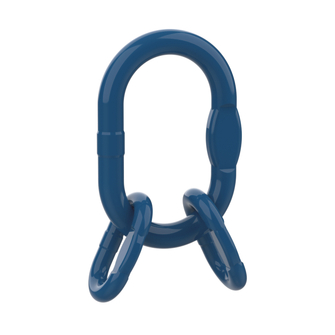

HIT ECO-HIGH10 hanging set 3 to 4-leg

HIT ECO-HIGH10 hanging set 3 to 4-leg
Standard suspension link for single and 4-leg chain slings. Connected with component connector.
Technical data

Quality grade

  • 10

Operating temperature

  • –40 °C to +200 °C

Standard

  • on the basis of DIN EN 1677

Certification

  • H-stamp

Marking

  • Batch number

Safety factor

  • 4

Surface

  • Coated blue

Colour

  • blue

Technical note

  • Connection to the chain sling is done by means of HIT PRO CW universal connecting link.
  • With two transition links.

Type

  • Standard
Product variants
Working load limit 0–45° [kg]
Working load limit 45–60° [kg]
Reference no.
Details
  • 4000
    2800
    508079
    Aufhängeglied HIGH10-Str.3/4 -6/7mm GK10 lack
    Reference no. 508079
    Working load limit 0–45° 4000
    Working load limit 45–60° 2800
    for nominal chain thickness 3-/4-leg 6
    Single crane hook up to no. (DIN 15401) 5
    Double crane hook up to no. (DIN 15402) 6

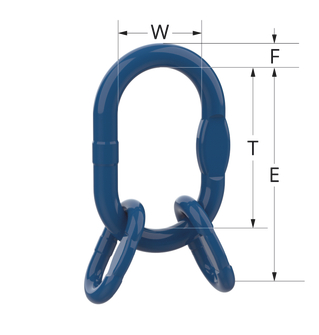

    Ring section diameter F 18
    Clear height T [mm] 135
    Clearance W 75
    Distance suspension point E [mm] 189
    Weight approx. [kg] 1.17
  • 5300
    3750
    508080
    Aufhängeglied HIGH10-Str.3/4 -8mm GK10 lack
    Reference no. 508080
    Working load limit 0–45° 5300
    Working load limit 45–60° 3750
    for nominal chain thickness 3-/4-leg 8
    Single crane hook up to no. (DIN 15401) 6
    Double crane hook up to no. (DIN 15402) 8
    Ring section diameter F 22
    Clear height T [mm] 160
    Clearance W 90
    Distance suspension point E [mm] 230
    Weight approx. [kg] 2.133
  • 8000
    6000
    508081
    Aufhängeglied HIGH10-Str.3/4 -10mm GK10 lack
    Reference no. 508081
    Working load limit 0–45° 8000
    Working load limit 45–60° 6000
    for nominal chain thickness 3-/4-leg 10
    Single crane hook up to no. (DIN 15401) 8
    Double crane hook up to no. (DIN 15402) 10
    Ring section diameter F 26
    Clear height T [mm] 180
    Clearance W 100
    Distance suspension point E [mm] 265
    Weight approx. [kg] 3.76
  • 14000
    10000
    508082
    Aufhängeglied HIGH10-Str.3/4 -13mm GK10 lack
    Reference no. 508082
    Working load limit 0–45° 14000
    Working load limit 45–60° 10000
    for nominal chain thickness 3-/4-leg 13
    Single crane hook up to no. (DIN 15401) 10
    Double crane hook up to no. (DIN 15402) 12
    Ring section diameter F 32
    Clear height T [mm] 200
    Clearance W 110
    Distance suspension point E [mm] 315
    Weight approx. [kg] 5.906
  • 21200
    15000
    508083
    Aufhängeglied HIGH10-Str.3/4 -16mm GK10 lack
    Reference no. 508083
    Working load limit 0–45° 21200
    Working load limit 45–60° 15000
    for nominal chain thickness 3-/4-leg 16
    Single crane hook up to no. (DIN 15401) 16
    Double crane hook up to no. (DIN 15402) 20
    Ring section diameter F 36
    Clear height T [mm] 260
    Clearance W 140
    Distance suspension point E [mm] 400
    Weight approx. [kg] 12.6
  • 33000
    23000
    710029
    B1A 10C-HIGH10-ST-3/4-20MM-LACK
    Reference no. 710029
    Working load limit 0–45° 33000
    Working load limit 45–60° 23000
    for nominal chain thickness 3-/4-leg 20
    Single crane hook up to no. (DIN 15401) 32
    Double crane hook up to no. (DIN 15402) 40
    Ring section diameter F 50
    Clear height T [mm] 350
    Clearance W 190
    Distance suspension point E [mm] 500
    Weight approx. [kg] 22.6
  • 40000
    28000
    710030
    B1A 10C-HIGH10-ST-3/4-22MM-LACK
    Reference no. 710030
    Working load limit 0–45° 40000
    Working load limit 45–60° 28000
    for nominal chain thickness 3-/4-leg 22
    Single crane hook up to no. (DIN 15401) 32
    Double crane hook up to no. (DIN 15402) 40
    Ring section diameter F 50
    Clear height T [mm] 350
    Clearance W 190
    Distance suspension point E [mm] 520
    Weight approx. [kg] 25.2
  • 56000
    40000
    710031
    B1A 10C-HIGH10-ST-3/4-26MM-LACK
    Reference no. 710031
    Working load limit 0–45° 56000
    Working load limit 45–60° 40000
    for nominal chain thickness 3-/4-leg 26
    Single crane hook up to no. (DIN 15401) 32
    Double crane hook up to no. (DIN 15402) 40
    Ring section diameter F 60
    Clear height T [mm] 400
    Clearance W 200
    Distance suspension point E [mm] 580
    Weight approx. [kg] 42
Working load limit 0–45° 4000
Working load limit 45–60° 2800
Reference no. 508079
  • Details
    Aufhängeglied HIGH10-Str.3/4 -6/7mm GK10 lack
    Reference no. 508079
    Working load limit 0–45° 4000
    Working load limit 45–60° 2800
    for nominal chain thickness 3-/4-leg 6
    Single crane hook up to no. (DIN 15401) 5
    Double crane hook up to no. (DIN 15402) 6
    Ring section diameter F 18
    Clear height T [mm] 135
    Clearance W 75
    Distance suspension point E [mm] 189
    Weight approx. [kg] 1.17
Working load limit 0–45° 5300
Working load limit 45–60° 3750
Reference no. 508080
  • Details
    Aufhängeglied HIGH10-Str.3/4 -8mm GK10 lack
    Reference no. 508080
    Working load limit 0–45° 5300
    Working load limit 45–60° 3750
    for nominal chain thickness 3-/4-leg 8
    Single crane hook up to no. (DIN 15401) 6
    Double crane hook up to no. (DIN 15402) 8
    Ring section diameter F 22
    Clear height T [mm] 160
    Clearance W 90
    Distance suspension point E [mm] 230
    Weight approx. [kg] 2.133
Working load limit 0–45° 8000
Working load limit 45–60° 6000
Reference no. 508081
  • Details
    Aufhängeglied HIGH10-Str.3/4 -10mm GK10 lack
    Reference no. 508081
    Working load limit 0–45° 8000
    Working load limit 45–60° 6000
    for nominal chain thickness 3-/4-leg 10
    Single crane hook up to no. (DIN 15401) 8
    Double crane hook up to no. (DIN 15402) 10
    Ring section diameter F 26
    Clear height T [mm] 180
    Clearance W 100
    Distance suspension point E [mm] 265
    Weight approx. [kg] 3.76
Working load limit 0–45° 14000
Working load limit 45–60° 10000
Reference no. 508082
  • Details
    Aufhängeglied HIGH10-Str.3/4 -13mm GK10 lack
    Reference no. 508082
    Working load limit 0–45° 14000
    Working load limit 45–60° 10000
    for nominal chain thickness 3-/4-leg 13
    Single crane hook up to no. (DIN 15401) 10
    Double crane hook up to no. (DIN 15402) 12
    Ring section diameter F 32
    Clear height T [mm] 200
    Clearance W 110
    Distance suspension point E [mm] 315
    Weight approx. [kg] 5.906
Working load limit 0–45° 21200
Working load limit 45–60° 15000
Reference no. 508083
  • Details
    Aufhängeglied HIGH10-Str.3/4 -16mm GK10 lack
    Reference no. 508083
    Working load limit 0–45° 21200
    Working load limit 45–60° 15000
    for nominal chain thickness 3-/4-leg 16
    Single crane hook up to no. (DIN 15401) 16
    Double crane hook up to no. (DIN 15402) 20
    Ring section diameter F 36
    Clear height T [mm] 260
    Clearance W 140
    Distance suspension point E [mm] 400
    Weight approx. [kg] 12.6
Working load limit 0–45° 33000
Working load limit 45–60° 23000
Reference no. 710029
  • Details
    B1A 10C-HIGH10-ST-3/4-20MM-LACK
    Reference no. 710029
    Working load limit 0–45° 33000
    Working load limit 45–60° 23000
    for nominal chain thickness 3-/4-leg 20
    Single crane hook up to no. (DIN 15401) 32
    Double crane hook up to no. (DIN 15402) 40
    Ring section diameter F 50
    Clear height T [mm] 350
    Clearance W 190
    Distance suspension point E [mm] 500
    Weight approx. [kg] 22.6
Working load limit 0–45° 40000
Working load limit 45–60° 28000
Reference no. 710030
  • Details
    B1A 10C-HIGH10-ST-3/4-22MM-LACK
    Reference no. 710030
    Working load limit 0–45° 40000
    Working load limit 45–60° 28000
    for nominal chain thickness 3-/4-leg 22
    Single crane hook up to no. (DIN 15401) 32
    Double crane hook up to no. (DIN 15402) 40
    Ring section diameter F 50
    Clear height T [mm] 350
    Clearance W 190
    Distance suspension point E [mm] 520
    Weight approx. [kg] 25.2
Working load limit 0–45° 56000
Working load limit 45–60° 40000
Reference no. 710031
  • Details
    B1A 10C-HIGH10-ST-3/4-26MM-LACK
    Reference no. 710031
    Working load limit 0–45° 56000
    Working load limit 45–60° 40000
    for nominal chain thickness 3-/4-leg 26
    Single crane hook up to no. (DIN 15401) 32
    Double crane hook up to no. (DIN 15402) 40
    Ring section diameter F 60
    Clear height T [mm] 400
    Clearance W 200
    Distance suspension point E [mm] 580
    Weight approx. [kg] 42
