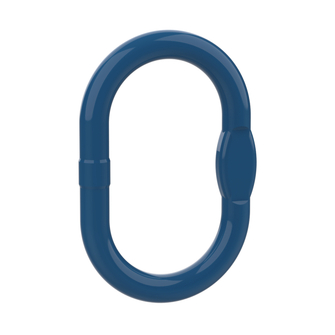

HIT ECO-HIGH10 suspension link 1 to 2-leg

HIT ECO-HIGH10 suspension link 1 to 2-leg
Technical data

Quality grade

  • 10

Operating temperature

  • –40 °C to +200 °C

Standard

  • on the basis of DIN EN 1677

Certification

  • H-stamp

Marking

  • Batch number

Safety factor

  • 4

Surface

  • Coated blue

Colour

  • blue

Type

  • Standard
Product variants
Working load limit 0° [kg]
Working load limit 0–45° [kg]
Reference no.
Details
  • 1900
    2000
    501857
    Aufhängeglied HIGH10-Str.1/2 -7/6mm GK10 lack
    Reference no. 501857
    Working load limit 0° [kg] 1900
    Working load limit 0–45° 2000
    for nominal chain thickness single-leg 6
    for nominal chain thickness 2-leg 6
    Single crane hook up to no. (DIN 15401) 2.5
    Double crane hook up to no. (DIN 15402) 4

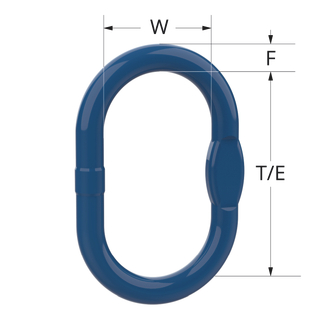

    Ring section diameter F 13
    Clear height T [mm] 110
    Clearance W 60
    Distance suspension point E [mm] 110
    Weight approx. [kg] 0.34
  • 2500
    2000
    502144
    B1A 10C-HIGH10-ST-1/2-8MM/7-COAT
    Reference no. 502144
    Working load limit 0° [kg] 2500
    Working load limit 0–45° 2000
    for nominal chain thickness single-leg 8
    for nominal chain thickness 2-leg 7
    Single crane hook up to no. (DIN 15401) 2.5
    Double crane hook up to no. (DIN 15402) 4
    Ring section diameter F 16
    Clear height T [mm] 110
    Clearance W 60
    Distance suspension point E [mm] 110
    Weight approx. [kg] 0.53
  • 4000
    3550
    502145
    B1A 10C-HIGH10-ST-1/2-10MM/8-COAT
    Reference no. 502145
    Working load limit 0° [kg] 4000
    Working load limit 0–45° 3550
    for nominal chain thickness single-leg 10
    for nominal chain thickness 2-leg 8
    Single crane hook up to no. (DIN 15401) 5
    Double crane hook up to no. (DIN 15402) 6
    Ring section diameter F 18
    Clear height T [mm] 135
    Clearance W 75
    Distance suspension point E [mm] 135
    Weight approx. [kg] 0.86
  • 6700
    5600
    502146
    B1A 10C-HIGH10-ST-1/2-13MM/10-COAT
    Reference no. 502146
    Working load limit 0° [kg] 6700
    Working load limit 0–45° 5600
    for nominal chain thickness single-leg 13
    for nominal chain thickness 2-leg 10
    Single crane hook up to no. (DIN 15401) 6
    Double crane hook up to no. (DIN 15402) 8
    Ring section diameter F 22
    Clear height T [mm] 160
    Clearance W 90
    Distance suspension point E [mm] 160
    Weight approx. [kg] 1.6
  • 10000
    9500
    502147
    B1A 10C-HIGH10-ST-1/2-16MM/13-COAT
    Reference no. 502147
    Working load limit 0° [kg] 10000
    Working load limit 0–45° 9500
    for nominal chain thickness single-leg 16
    for nominal chain thickness 2-leg 13
    Single crane hook up to no. (DIN 15401) 8
    Double crane hook up to no. (DIN 15402) 10
    Ring section diameter F 26
    Clear height T [mm] 180
    Clearance W 100
    Distance suspension point E [mm] 180
    Weight approx. [kg] 2.46
  • 14000
    14000
    502148
    B1A 10C-HIGH10-ST-1/2-18MM/16
    Reference no. 502148
    Working load limit 0° [kg] 14000
    Working load limit 0–45° 14000
    for nominal chain thickness single-leg 18
    for nominal chain thickness 2-leg 16
    Single crane hook up to no. (DIN 15401) 10
    Double crane hook up to no. (DIN 15402) 12
    Ring section diameter F 32
    Clear height T [mm] 200
    Clearance W 110
    Distance suspension point E [mm] 200
    Weight approx. [kg] 4.14
  • 14000
    14000
    710025
    B1A 10C-HIGH10-ST-1/2-20MM/16-LACK
    Reference no. 710025
    Working load limit 0° [kg] 14000
    Working load limit 0–45° 14000
    for nominal chain thickness single-leg 20
    for nominal chain thickness 2-leg 16
    Single crane hook up to no. (DIN 15401) 10
    Double crane hook up to no. (DIN 15402) 12
    Ring section diameter F 32
    Clear height T [mm] 200
    Clearance W 110
    Distance suspension point E [mm] 200
    Weight approx. [kg] 3.9
  • 19000
    20000
    710026
    B1A 10C-HIGH10-ST-1/2-22MM/20-LACK
    Reference no. 710026
    Working load limit 0° [kg] 19000
    Working load limit 0–45° 20000
    for nominal chain thickness single-leg 22
    for nominal chain thickness 2-leg 20
    Single crane hook up to no. (DIN 15401) 16
    Double crane hook up to no. (DIN 15402) 20
    Ring section diameter F 36
    Clear height T [mm] 260
    Clearance W 140
    Distance suspension point E [mm] 260
    Weight approx. [kg] 6.22
  • 26500
    26500
    710027
    B1A 10C-HIGH10-ST-1/2-26MM/22-LACK
    Reference no. 710027
    Working load limit 0° [kg] 26500
    Working load limit 0–45° 26500
    for nominal chain thickness single-leg 26
    for nominal chain thickness 2-leg 22
    Single crane hook up to no. (DIN 15401) 25
    Double crane hook up to no. (DIN 15402) 32
    Ring section diameter F 45
    Clear height T [mm] 340
    Clearance W 180
    Distance suspension point E [mm] 340
    Weight approx. [kg] 12.85
  • 39400
    37500
    710028
    B1A 10C-HIGH10-ST-1/2-32MM/26-LACK
    Reference no. 710028
    Working load limit 0° [kg] 39400
    Working load limit 0–45° 37500
    for nominal chain thickness single-leg 32
    for nominal chain thickness 2-leg 26
    Single crane hook up to no. (DIN 15401) 32
    Double crane hook up to no. (DIN 15402) 40
    Ring section diameter F 50
    Clear height T [mm] 350
    Clearance W 190
    Distance suspension point E [mm] 350
    Weight approx. [kg] 16.22
  • 62500
    56000
    710032
    B1A 10C-HIGH10-ST-1/2-36MM/32-LACK
    Reference no. 710032
    Working load limit 0° [kg] 62500
    Working load limit 0–45° 56000
    for nominal chain thickness single-leg 36
    for nominal chain thickness 2-leg 32
    Single crane hook up to no. (DIN 15401) 50
    Double crane hook up to no. (DIN 15402) 63
    Ring section diameter F 60
    Clear height T [mm] 400
    Clearance W 250
    Distance suspension point E [mm] 400
    Weight approx. [kg] 999
