HIT PRO medium tolerance round steel chain GK10

HIT PRO medium tolerance round steel chain GK10
Quality chain sling for installation into chain suspension gear. Coated blue
Technical data

Quality grade

  • 10

Operating temperature

  • –40 °C to +200 °C = 100 % working load limit; +200 °C to +300 °C = 90 % working load limit; +300 °C to +380 °C = 60 % working load limit

Standard

  • Based on DIN EN 818

Marking

  • Batch number
  • Quality grade no.

Safety factor

  • 4

Surface

  • Coated blue

Colour

  • blue
Product variants
Working load limit [kg]
Reference no.
Details
  • 1400
    710156
    B1M 10G-EN818-200°-1.4T-6MM-18MM-2.5M
    Reference no. 710156
    Working load limit [kg] 1400

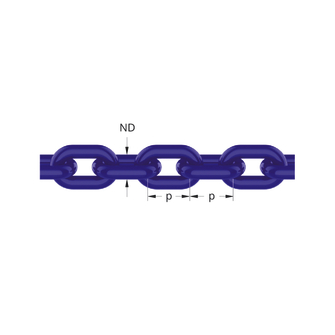

    Nominal size of chain ND [mm] 6
    Chain pitch p 18
    Section length AL 2.5
    Weight approx. [kg] 2.092
  • 1400
    710154
    B1M 10G-EN818-200°-1.4T-6MM-18MM-5M
    Reference no. 710154
    Working load limit [kg] 1400
    Nominal size of chain ND [mm] 6
    Chain pitch p 18
    Section length AL 5
    Weight approx. [kg] 4.168
  • 1400
    710152
    B1M 10G-EN818-200°-1.4T-6MM-18MM-10M
    Reference no. 710152
    Working load limit [kg] 1400
    Nominal size of chain ND [mm] 6
    Chain pitch p 18
    Section length AL 10
    Weight approx. [kg] 8.322
  • 1400
    710150
    B1M 10G-EN818-200°-1.4T-6MM-18MM-15M
    Reference no. 710150
    Working load limit [kg] 1400
    Nominal size of chain ND [mm] 6
    Chain pitch p 18
    Section length AL 15
    Weight approx. [kg] 12.475
  • 1400
    710148
    B1M 10G-EN818-200°-1.4T-6MM-18MM-20M
    Reference no. 710148
    Working load limit [kg] 1400
    Nominal size of chain ND [mm] 6
    Chain pitch p 18
    Section length AL 20
    Weight approx. [kg] 16.628
  • 1400
    710146
    B1M 10G-EN818-200°-1.4T-6MM-18MM-30M
    Reference no. 710146
    Working load limit [kg] 1400
    Nominal size of chain ND [mm] 6
    Chain pitch p 18
    Section length AL 30
    Weight approx. [kg] 24.92
  • 1400
    710144
    B1M 10G-EN818-200°-1.4T-6MM-18MM-40M
    Reference no. 710144
    Working load limit [kg] 1400
    Nominal size of chain ND [mm] 6
    Chain pitch p 18
    Section length AL 40
    Weight approx. [kg] 33.227
  • 1400
    710143
    B1M 10G-EN818-200°-1.4T-6MM-18MM-50M
    Reference no. 710143
    Working load limit [kg] 1400
    Nominal size of chain ND [mm] 6
    Chain pitch p 18
    Section length AL 50
    Weight approx. [kg] 41.518
  • 2500
    710172
    B1M 10G-EN818-200°-2.5T-8MM-24MM-2.5M
    Reference no. 710172
    Working load limit [kg] 2500
    Nominal size of chain ND [mm] 8
    Chain pitch p 24
    Section length AL 2.5
    Weight approx. [kg] 3.841
  • 2500
    710170
    B1M 10G-EN818-200°-2.5T-8MM-24MM-5M
    Reference no. 710170
    Working load limit [kg] 2500
    Nominal size of chain ND [mm] 8
    Chain pitch p 24
    Section length AL 5
    Weight approx. [kg] 7.61
  • 2500
    710168
    B1M 10G-EN818-200°-2.5T-8MM-24MM-10M
    Reference no. 710168
    Working load limit [kg] 2500
    Nominal size of chain ND [mm] 8
    Chain pitch p 24
    Section length AL 10
    Weight approx. [kg] 15.148
  • 2500
    710166
    B1M 10G-EN818-200°-2.5T-8MM-24MM-15M
    Reference no. 710166
    Working load limit [kg] 2500
    Nominal size of chain ND [mm] 8
    Chain pitch p 24
    Section length AL 15
    Weight approx. [kg] 22.686
  • 2500
    710164
    B1M 10G-EN818-200°-2.5T-8MM-24MM-20M
    Reference no. 710164
    Working load limit [kg] 2500
    Nominal size of chain ND [mm] 8
    Chain pitch p 24
    Section length AL 20
    Weight approx. [kg] 30.26
  • 2500
    710162
    B1M 10G-EN818-200°-2.5T-8MM-24MM-30M
    Reference no. 710162
    Working load limit [kg] 2500
    Nominal size of chain ND [mm] 8
    Chain pitch p 24
    Section length AL 30
    Weight approx. [kg] 45.336
  • 2500
    710160
    B1M 10G-EN818-200°-2.5T-8MM-24MM-40M
    Reference no. 710160
    Working load limit [kg] 2500
    Nominal size of chain ND [mm] 8
    Chain pitch p 24
    Section length AL 40
    Weight approx. [kg] 60.448
  • 2500
    710158
    B1M 10G-EN818-200°-2.5T-8MM-24MM-50M
    Reference no. 710158
    Working load limit [kg] 2500
    Nominal size of chain ND [mm] 8
    Chain pitch p 24
    Section length AL 50
    Weight approx. [kg] 75.56
  • 4000
    710188
    B1M 10G-EN818-200°-4T-10MM-30MM-2.5M
    Reference no. 710188
    Working load limit [kg] 4000
    Nominal size of chain ND [mm] 10
    Chain pitch p 30
    Section length AL 2.5
    Weight approx. [kg] 6.12
  • 4000
    710186
    B1M 10G-EN818-200°-4T-10MM-30MM-5M
    Reference no. 710186
    Working load limit [kg] 4000
    Nominal size of chain ND [mm] 10
    Chain pitch p 30
    Section length AL 5
    Weight approx. [kg] 12.096
  • 4000
    710184
    B1M 10G-EN818-200°-4T-10MM-30MM-10M
    Reference no. 710184
    Working load limit [kg] 4000
    Nominal size of chain ND [mm] 10
    Chain pitch p 30
    Section length AL 10
    Weight approx. [kg] 24.12
  • 4000
    710182
    B1M 10G-EN818-200°-4T-10MM-30MM-15M
    Reference no. 710182
    Working load limit [kg] 4000
    Nominal size of chain ND [mm] 10
    Chain pitch p 30
    Section length AL 15
    Weight approx. [kg] 36.072
  • 4000
    710180
    B1M 10G-EN818-200°-4T-10MM-30MM-20M
    Reference no. 710180
    Working load limit [kg] 4000
    Nominal size of chain ND [mm] 10
    Chain pitch p 30
    Section length AL 20
    Weight approx. [kg] 48.096
  • 4000
    710178
    B1M 10G-EN818-200°-4T-10MM-30MM-30M
    Reference no. 710178
    Working load limit [kg] 4000
    Nominal size of chain ND [mm] 10
    Chain pitch p 30
    Section length AL 30
    Weight approx. [kg] 72.072
  • 4000
    710176
    B1M 10G-EN818-200°-4T-10MM-30MM-40M
    Reference no. 710176
    Working load limit [kg] 4000
    Nominal size of chain ND [mm] 10
    Chain pitch p 30
    Section length AL 40
    Weight approx. [kg] 96.12
  • 4000
    710174
    B1M 10G-EN818-200°-4T-10MM-30MM-50M
    Reference no. 710174
    Working load limit [kg] 4000
    Nominal size of chain ND [mm] 10
    Chain pitch p 30
    Section length AL 50
    Weight approx. [kg] 120
  • 6700
    710204
    B1M 10G-EN818-200°-6.7T-13MM-39MM-2.5M
    Reference no. 710204
    Working load limit [kg] 6700
    Nominal size of chain ND [mm] 13
    Chain pitch p 39
    Section length AL 2.5
    Weight approx. [kg] 10.296
  • 6700
    710202
    B1M 10G-EN818-200°-6.7T-13MM-39MM-5M
    Reference no. 710202
    Working load limit [kg] 6700
    Nominal size of chain ND [mm] 13
    Chain pitch p 39
    Section length AL 5
    Weight approx. [kg] 20.28
  • 6700
    710201
    B1M 10G-EN818-200°-6.7T-13MM-39MM-10M
    Reference no. 710201
    Working load limit [kg] 6700
    Nominal size of chain ND [mm] 13
    Chain pitch p 39
    Section length AL 10
    Weight approx. [kg] 40.248
  • 6700
    710199
    B1M 10G-EN818-200°-6.7T-13MM-39MM-15M
    Reference no. 710199
    Working load limit [kg] 6700
    Nominal size of chain ND [mm] 13
    Chain pitch p 39
    Section length AL 15
    Weight approx. [kg] 60.216
  • 710181
    B1M 10G-EN818-200°-6.7T-13MM-39MM-20M
    Reference no. 710181
    Nominal size of chain ND [mm] 13
    Chain pitch p 39
    Section length AL 20
    Weight approx. [kg] 999
  • 6700
    710192
    B1M 10G-EN818-200°-6.7T-13MM-39MM-40M
    Reference no. 710192
    Working load limit [kg] 6700
    Nominal size of chain ND [mm] 13
    Chain pitch p 39
    Section length AL 40
    Weight approx. [kg] 160.212
  • 6700
    710194
    B1M 10G-EN818-200°-6.7T-13MM-39MM-30M
    Reference no. 710194
    Working load limit [kg] 6700
    Nominal size of chain ND [mm] 13
    Chain pitch p 39
    Section length AL 30
    Weight approx. [kg] 120.276
  • 6700
    710190
    B1M 10G-EN818-200°-6.7T-13MM-39MM-50M
    Reference no. 710190
    Working load limit [kg] 6700
    Nominal size of chain ND [mm] 13
    Chain pitch p 39
    Section length AL 50
    Weight approx. [kg] 200.304
  • 10000
    710214
    B1M 10G-EN818-200°-10T-16MM-48MM-2.5M
    Reference no. 710214
    Working load limit [kg] 10000
    Nominal size of chain ND [mm] 16
    Chain pitch p 48
    Section length AL 2.5
    Weight approx. [kg] 15.552
  • 10000
    710213
    B1M 10G-EN818-200°-10T-16MM-48MM-5M
    Reference no. 710213
    Working load limit [kg] 10000
    Nominal size of chain ND [mm] 16
    Chain pitch p 48
    Section length AL 5
    Weight approx. [kg] 30.528
  • 10000
    710212
    B1M 10G-EN818-200°-10T-16MM-48MM-10M
    Reference no. 710212
    Working load limit [kg] 10000
    Nominal size of chain ND [mm] 16
    Chain pitch p 48
    Section length AL 10
    Weight approx. [kg] 60.48
  • 10000
    710211
    B1M 10G-EN818-200°-10T-16MM-48MM-15M
    Reference no. 710211
    Working load limit [kg] 10000
    Nominal size of chain ND [mm] 16
    Chain pitch p 48
    Section length AL 15
    Weight approx. [kg] 90.432
  • 10000
    710208
    B1M 10G-EN818-200°-10T-16MM-48MM-20M
    Reference no. 710208
    Working load limit [kg] 10000
    Nominal size of chain ND [mm] 16
    Chain pitch p 48
    Section length AL 20
    Weight approx. [kg] 120.384
  • 19000
    710220
    B1M 10G-EN818-200°-19T-22MM-66MM-2.5M
    Reference no. 710220
    Working load limit [kg] 19000
    Nominal size of chain ND [mm] 22
    Chain pitch p 66
    Section length AL 2.5
    Weight approx. [kg] 30.579
  • 19000
    710219
    B1M 10G-EN818-200°-19T-22MM-66MM-5M
    Reference no. 710219
    Working load limit [kg] 19000
    Nominal size of chain ND [mm] 22
    Chain pitch p 66
    Section length AL 5
    Weight approx. [kg] 60.374
  • 19000
    710218
    B1M 10G-EN818-200°-19T-22MM-66MM-10M
    Reference no. 710218
    Working load limit [kg] 19000
    Nominal size of chain ND [mm] 22
    Chain pitch p 66
    Section length AL 10
    Weight approx. [kg] 119.964
  • 19000
    710217
    B1M 10G-EN818-200°-19T-22MM-66MM-15M
    Reference no. 710217
    Working load limit [kg] 19000
    Nominal size of chain ND [mm] 22
    Chain pitch p 66
    Section length AL 15
    Weight approx. [kg] 179.554
  • 19000
    710216
    B1M 10G-EN818-200°-19T-22MM-66MM-20M
    Reference no. 710216
    Working load limit [kg] 19000
    Nominal size of chain ND [mm] 22
    Chain pitch p 66
    Section length AL 20
    Weight approx. [kg] 239.144
Working load limit [kg] 1400
Reference no. 710156
  • Details
    B1M 10G-EN818-200°-1.4T-6MM-18MM-2.5M
    Reference no. 710156
    Working load limit [kg] 1400
    Nominal size of chain ND [mm] 6
    Chain pitch p 18
    Section length AL 2.5
    Weight approx. [kg] 2.092
Working load limit [kg] 1400
Reference no. 710154
  • Details
    B1M 10G-EN818-200°-1.4T-6MM-18MM-5M
    Reference no. 710154
    Working load limit [kg] 1400
    Nominal size of chain ND [mm] 6
    Chain pitch p 18
    Section length AL 5
    Weight approx. [kg] 4.168
Working load limit [kg] 1400
Reference no. 710152
  • Details
    B1M 10G-EN818-200°-1.4T-6MM-18MM-10M
    Reference no. 710152
    Working load limit [kg] 1400
    Nominal size of chain ND [mm] 6
    Chain pitch p 18
    Section length AL 10
    Weight approx. [kg] 8.322
Working load limit [kg] 1400
Reference no. 710150
  • Details
    B1M 10G-EN818-200°-1.4T-6MM-18MM-15M
    Reference no. 710150
    Working load limit [kg] 1400
    Nominal size of chain ND [mm] 6
    Chain pitch p 18
    Section length AL 15
    Weight approx. [kg] 12.475
Working load limit [kg] 1400
Reference no. 710148
  • Details
    B1M 10G-EN818-200°-1.4T-6MM-18MM-20M
    Reference no. 710148
    Working load limit [kg] 1400
    Nominal size of chain ND [mm] 6
    Chain pitch p 18
    Section length AL 20
    Weight approx. [kg] 16.628
Working load limit [kg] 1400
Reference no. 710146
  • Details
    B1M 10G-EN818-200°-1.4T-6MM-18MM-30M
    Reference no. 710146
    Working load limit [kg] 1400
    Nominal size of chain ND [mm] 6
    Chain pitch p 18
    Section length AL 30
    Weight approx. [kg] 24.92
Working load limit [kg] 1400
Reference no. 710144
  • Details
    B1M 10G-EN818-200°-1.4T-6MM-18MM-40M
    Reference no. 710144
    Working load limit [kg] 1400
    Nominal size of chain ND [mm] 6
    Chain pitch p 18
    Section length AL 40
    Weight approx. [kg] 33.227
Working load limit [kg] 1400
Reference no. 710143
  • Details
    B1M 10G-EN818-200°-1.4T-6MM-18MM-50M
    Reference no. 710143
    Working load limit [kg] 1400
    Nominal size of chain ND [mm] 6
    Chain pitch p 18
    Section length AL 50
    Weight approx. [kg] 41.518
Working load limit [kg] 2500
Reference no. 710172
  • Details
    B1M 10G-EN818-200°-2.5T-8MM-24MM-2.5M
    Reference no. 710172
    Working load limit [kg] 2500
    Nominal size of chain ND [mm] 8
    Chain pitch p 24
    Section length AL 2.5
    Weight approx. [kg] 3.841
Working load limit [kg] 2500
Reference no. 710170
  • Details
    B1M 10G-EN818-200°-2.5T-8MM-24MM-5M
    Reference no. 710170
    Working load limit [kg] 2500
    Nominal size of chain ND [mm] 8
    Chain pitch p 24
    Section length AL 5
    Weight approx. [kg] 7.61
Working load limit [kg] 2500
Reference no. 710168
  • Details
    B1M 10G-EN818-200°-2.5T-8MM-24MM-10M
    Reference no. 710168
    Working load limit [kg] 2500
    Nominal size of chain ND [mm] 8
    Chain pitch p 24
    Section length AL 10
    Weight approx. [kg] 15.148
Working load limit [kg] 2500
Reference no. 710166
  • Details
    B1M 10G-EN818-200°-2.5T-8MM-24MM-15M
    Reference no. 710166
    Working load limit [kg] 2500
    Nominal size of chain ND [mm] 8
    Chain pitch p 24
    Section length AL 15
    Weight approx. [kg] 22.686
Working load limit [kg] 2500
Reference no. 710164
  • Details
    B1M 10G-EN818-200°-2.5T-8MM-24MM-20M
    Reference no. 710164
    Working load limit [kg] 2500
    Nominal size of chain ND [mm] 8
    Chain pitch p 24
    Section length AL 20
    Weight approx. [kg] 30.26
Working load limit [kg] 2500
Reference no. 710162
  • Details
    B1M 10G-EN818-200°-2.5T-8MM-24MM-30M
    Reference no. 710162
    Working load limit [kg] 2500
    Nominal size of chain ND [mm] 8
    Chain pitch p 24
    Section length AL 30
    Weight approx. [kg] 45.336
Working load limit [kg] 2500
Reference no. 710160
  • Details
    B1M 10G-EN818-200°-2.5T-8MM-24MM-40M
    Reference no. 710160
    Working load limit [kg] 2500
    Nominal size of chain ND [mm] 8
    Chain pitch p 24
    Section length AL 40
    Weight approx. [kg] 60.448
Working load limit [kg] 2500
Reference no. 710158
  • Details
    B1M 10G-EN818-200°-2.5T-8MM-24MM-50M
    Reference no. 710158
    Working load limit [kg] 2500
    Nominal size of chain ND [mm] 8
    Chain pitch p 24
    Section length AL 50
    Weight approx. [kg] 75.56
Working load limit [kg] 4000
Reference no. 710188
  • Details
    B1M 10G-EN818-200°-4T-10MM-30MM-2.5M
    Reference no. 710188
    Working load limit [kg] 4000
    Nominal size of chain ND [mm] 10
    Chain pitch p 30
    Section length AL 2.5
    Weight approx. [kg] 6.12
Working load limit [kg] 4000
Reference no. 710186
  • Details
    B1M 10G-EN818-200°-4T-10MM-30MM-5M
    Reference no. 710186
    Working load limit [kg] 4000
    Nominal size of chain ND [mm] 10
    Chain pitch p 30
    Section length AL 5
    Weight approx. [kg] 12.096
Working load limit [kg] 4000
Reference no. 710184
  • Details
    B1M 10G-EN818-200°-4T-10MM-30MM-10M
    Reference no. 710184
    Working load limit [kg] 4000
    Nominal size of chain ND [mm] 10
    Chain pitch p 30
    Section length AL 10
    Weight approx. [kg] 24.12
Working load limit [kg] 4000
Reference no. 710182
  • Details
    B1M 10G-EN818-200°-4T-10MM-30MM-15M
    Reference no. 710182
    Working load limit [kg] 4000
    Nominal size of chain ND [mm] 10
    Chain pitch p 30
    Section length AL 15
    Weight approx. [kg] 36.072
Working load limit [kg] 4000
Reference no. 710180
  • Details
    B1M 10G-EN818-200°-4T-10MM-30MM-20M
    Reference no. 710180
    Working load limit [kg] 4000
    Nominal size of chain ND [mm] 10
    Chain pitch p 30
    Section length AL 20
    Weight approx. [kg] 48.096
Working load limit [kg] 4000
Reference no. 710178
  • Details
    B1M 10G-EN818-200°-4T-10MM-30MM-30M
    Reference no. 710178
    Working load limit [kg] 4000
    Nominal size of chain ND [mm] 10
    Chain pitch p 30
    Section length AL 30
    Weight approx. [kg] 72.072
Working load limit [kg] 4000
Reference no. 710176
  • Details
    B1M 10G-EN818-200°-4T-10MM-30MM-40M
    Reference no. 710176
    Working load limit [kg] 4000
    Nominal size of chain ND [mm] 10
    Chain pitch p 30
    Section length AL 40
    Weight approx. [kg] 96.12
Working load limit [kg] 4000
Reference no. 710174
  • Details
    B1M 10G-EN818-200°-4T-10MM-30MM-50M
    Reference no. 710174
    Working load limit [kg] 4000
    Nominal size of chain ND [mm] 10
    Chain pitch p 30
    Section length AL 50
    Weight approx. [kg] 120
Working load limit [kg] 6700
Reference no. 710204
  • Details
    B1M 10G-EN818-200°-6.7T-13MM-39MM-2.5M
    Reference no. 710204
    Working load limit [kg] 6700
    Nominal size of chain ND [mm] 13
    Chain pitch p 39
    Section length AL 2.5
    Weight approx. [kg] 10.296
Working load limit [kg] 6700
Reference no. 710202
  • Details
    B1M 10G-EN818-200°-6.7T-13MM-39MM-5M
    Reference no. 710202
    Working load limit [kg] 6700
    Nominal size of chain ND [mm] 13
    Chain pitch p 39
    Section length AL 5
    Weight approx. [kg] 20.28
Working load limit [kg] 6700
Reference no. 710201
  • Details
    B1M 10G-EN818-200°-6.7T-13MM-39MM-10M
    Reference no. 710201
    Working load limit [kg] 6700
    Nominal size of chain ND [mm] 13
    Chain pitch p 39
    Section length AL 10
    Weight approx. [kg] 40.248
Working load limit [kg] 6700
Reference no. 710199
  • Details
    B1M 10G-EN818-200°-6.7T-13MM-39MM-15M
    Reference no. 710199
    Working load limit [kg] 6700
    Nominal size of chain ND [mm] 13
    Chain pitch p 39
    Section length AL 15
    Weight approx. [kg] 60.216
Reference no. 710181
  • Details
    B1M 10G-EN818-200°-6.7T-13MM-39MM-20M
    Reference no. 710181
    Nominal size of chain ND [mm] 13
    Chain pitch p 39
    Section length AL 20
    Weight approx. [kg] 999
Working load limit [kg] 6700
Reference no. 710192
  • Details
    B1M 10G-EN818-200°-6.7T-13MM-39MM-40M
    Reference no. 710192
    Working load limit [kg] 6700
    Nominal size of chain ND [mm] 13
    Chain pitch p 39
    Section length AL 40
    Weight approx. [kg] 160.212
Working load limit [kg] 6700
Reference no. 710194
  • Details
    B1M 10G-EN818-200°-6.7T-13MM-39MM-30M
    Reference no. 710194
    Working load limit [kg] 6700
    Nominal size of chain ND [mm] 13
    Chain pitch p 39
    Section length AL 30
    Weight approx. [kg] 120.276
Working load limit [kg] 6700
Reference no. 710190
  • Details
    B1M 10G-EN818-200°-6.7T-13MM-39MM-50M
    Reference no. 710190
    Working load limit [kg] 6700
    Nominal size of chain ND [mm] 13
    Chain pitch p 39
    Section length AL 50
    Weight approx. [kg] 200.304
Working load limit [kg] 10000
Reference no. 710214
  • Details
    B1M 10G-EN818-200°-10T-16MM-48MM-2.5M
    Reference no. 710214
    Working load limit [kg] 10000
    Nominal size of chain ND [mm] 16
    Chain pitch p 48
    Section length AL 2.5
    Weight approx. [kg] 15.552
Working load limit [kg] 10000
Reference no. 710213
  • Details
    B1M 10G-EN818-200°-10T-16MM-48MM-5M
    Reference no. 710213
    Working load limit [kg] 10000
    Nominal size of chain ND [mm] 16
    Chain pitch p 48
    Section length AL 5
    Weight approx. [kg] 30.528
Working load limit [kg] 10000
Reference no. 710212
  • Details
    B1M 10G-EN818-200°-10T-16MM-48MM-10M
    Reference no. 710212
    Working load limit [kg] 10000
    Nominal size of chain ND [mm] 16
    Chain pitch p 48
    Section length AL 10
    Weight approx. [kg] 60.48
Working load limit [kg] 10000
Reference no. 710211
  • Details
    B1M 10G-EN818-200°-10T-16MM-48MM-15M
    Reference no. 710211
    Working load limit [kg] 10000
    Nominal size of chain ND [mm] 16
    Chain pitch p 48
    Section length AL 15
    Weight approx. [kg] 90.432
Working load limit [kg] 10000
Reference no. 710208
  • Details
    B1M 10G-EN818-200°-10T-16MM-48MM-20M
    Reference no. 710208
    Working load limit [kg] 10000
    Nominal size of chain ND [mm] 16
    Chain pitch p 48
    Section length AL 20
    Weight approx. [kg] 120.384
Working load limit [kg] 19000
Reference no. 710220
  • Details
    B1M 10G-EN818-200°-19T-22MM-66MM-2.5M
    Reference no. 710220
    Working load limit [kg] 19000
    Nominal size of chain ND [mm] 22
    Chain pitch p 66
    Section length AL 2.5
    Weight approx. [kg] 30.579
Working load limit [kg] 19000
Reference no. 710219
  • Details
    B1M 10G-EN818-200°-19T-22MM-66MM-5M
    Reference no. 710219
    Working load limit [kg] 19000
    Nominal size of chain ND [mm] 22
    Chain pitch p 66
    Section length AL 5
    Weight approx. [kg] 60.374
Working load limit [kg] 19000
Reference no. 710218
  • Details
    B1M 10G-EN818-200°-19T-22MM-66MM-10M
    Reference no. 710218
    Working load limit [kg] 19000
    Nominal size of chain ND [mm] 22
    Chain pitch p 66
    Section length AL 10
    Weight approx. [kg] 119.964
Working load limit [kg] 19000
Reference no. 710217
  • Details
    B1M 10G-EN818-200°-19T-22MM-66MM-15M
    Reference no. 710217
    Working load limit [kg] 19000
    Nominal size of chain ND [mm] 22
    Chain pitch p 66
    Section length AL 15
    Weight approx. [kg] 179.554
Working load limit [kg] 19000
Reference no. 710216
  • Details
    B1M 10G-EN818-200°-19T-22MM-66MM-20M
    Reference no. 710216
    Working load limit [kg] 19000
    Nominal size of chain ND [mm] 22
    Chain pitch p 66
    Section length AL 20
    Weight approx. [kg] 239.144
Downloads

Applications

Application table

Download

Poster

"Poster ""Discarding time criteria""" Overview of the discarding time criteria for wire rope slings, lifting straps, round slings and chain slings.
Download
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Tel. +49 8331 937-9623
Fax +49 8331 937-380
E-Mail verkauf-azs@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
 Service centre
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Academy
Tel. +49 8331 937-462
E-Mail academy@pfeifer.de
Web www.pfeifer.info
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
France
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +33 676 54 42 68 / +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Poland
 PFEIFER Technika Linowa i Dźwigowa Sp. z o.o.
ul. Wrocławska 68
55-330 Krępice k/Wrocławia
Tel. +48 71 30 23 700
E-Mail info@pfeifer.pl
Web www.pfeifer.pl
 Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
