Product variants
Working load limit [kg]
for nominal chain thickness [mm]
Reference no.
Details
-
14006502280
B1H 10C-CPL-SF-H-HIGH10-1.40T-6MM-COAT

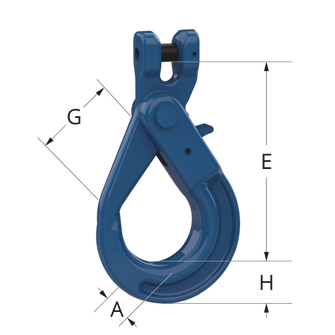

Reference no. 502280 Working load limit [kg] 1400 for nominal chain thickness [mm] 6 Hook opening width G [mm] 28 hook base height H [mm] 20 Hook thickness A [mm] 15 Distance suspension point E [mm] 96 Weight approx. [kg] 0.5 -
25008502281
B1H 10C-CPL-SF-H-HIGH10-2.50T-8MM-COAT
Reference no. 502281 Working load limit [kg] 2500 for nominal chain thickness [mm] 8 Hook opening width G [mm] 36 hook base height H [mm] 26 Hook thickness A [mm] 20 Distance suspension point E [mm] 121 Weight approx. [kg] 0.84 -
400010502282
B1H 10C-CPL-SF-H-HIGH10-4T-10MM-COAT
Reference no. 502282 Working load limit [kg] 4000 for nominal chain thickness [mm] 10 Hook opening width G [mm] 45 hook base height H [mm] 30 Hook thickness A [mm] 26 Distance suspension point E [mm] 144 Weight approx. [kg] 1.6 -
670013502283
B1H 10C-CPL-SF-H-HIGH10-6.70T-13MM-COAT
Reference no. 502283 Working load limit [kg] 6700 for nominal chain thickness [mm] 13 Hook opening width G [mm] 54 hook base height H [mm] 40 Hook thickness A [mm] 33 Distance suspension point E [mm] 182 Weight approx. [kg] 2.9 -
1000016502284
B1H 10C-CPL-SF-H-HIGH10-10T-16MM-COAT
Reference no. 502284 Working load limit [kg] 10000 for nominal chain thickness [mm] 16 Hook opening width G [mm] 61 hook base height H [mm] 50 Hook thickness A [mm] 38 Distance suspension point E [mm] 220 Weight approx. [kg] 5.8 -
1400020710039
B1H 10C-KPL-SI-H-HIGH10-20MM-LACK
Reference no. 710039 Working load limit [kg] 14000 for nominal chain thickness [mm] 20 Hook opening width G [mm] 76 hook base height H [mm] 55 Hook thickness A [mm] 50 Distance suspension point E [mm] 235 Weight approx. [kg] 9.2 -
1900022710040
B1H 10C-KPL-SI-H-HIGH10-22MM-LACK
Reference no. 710040 Working load limit [kg] 19000 for nominal chain thickness [mm] 22 Hook opening width G [mm] 80 hook base height H [mm] 52 Hook thickness A [mm] 52 Distance suspension point E [mm] 271 Weight approx. [kg] 12.1 -
2650026710041
B1H 10C-KPL-SI-H-HIGH10-26MM-LACK
Reference no. 710041 Working load limit [kg] 26500 for nominal chain thickness [mm] 26 Hook opening width G [mm] 99 hook base height H [mm] 60 Hook thickness A [mm] 60 Distance suspension point E [mm] 344 Weight approx. [kg] 21.2 -
4000032710042
B1H 10C-KPL-SI-H-HIGH10-32MM-LACK
Reference no. 710042 Working load limit [kg] 40000 for nominal chain thickness [mm] 32 Hook opening width G [mm] 135 hook base height H [mm] 83 Hook thickness A [mm] 83 Distance suspension point E [mm] 423 Weight approx. [kg] 43.4
Working load limit [kg]
1400
for nominal chain thickness [mm]
6
Reference no.
502280
-
Details
B1H 10C-CPL-SF-H-HIGH10-1.40T-6MM-COAT
Reference no. 502280 Working load limit [kg] 1400 for nominal chain thickness [mm] 6 Hook opening width G [mm] 28 hook base height H [mm] 20 Hook thickness A [mm] 15 Distance suspension point E [mm] 96 Weight approx. [kg] 0.5
Working load limit [kg]
2500
for nominal chain thickness [mm]
8
Reference no.
502281
-
Details
B1H 10C-CPL-SF-H-HIGH10-2.50T-8MM-COAT
Reference no. 502281 Working load limit [kg] 2500 for nominal chain thickness [mm] 8 Hook opening width G [mm] 36 hook base height H [mm] 26 Hook thickness A [mm] 20 Distance suspension point E [mm] 121 Weight approx. [kg] 0.84
Working load limit [kg]
4000
for nominal chain thickness [mm]
10
Reference no.
502282
-
Details
B1H 10C-CPL-SF-H-HIGH10-4T-10MM-COAT
Reference no. 502282 Working load limit [kg] 4000 for nominal chain thickness [mm] 10 Hook opening width G [mm] 45 hook base height H [mm] 30 Hook thickness A [mm] 26 Distance suspension point E [mm] 144 Weight approx. [kg] 1.6
Working load limit [kg]
6700
for nominal chain thickness [mm]
13
Reference no.
502283
-
Details
B1H 10C-CPL-SF-H-HIGH10-6.70T-13MM-COAT
Reference no. 502283 Working load limit [kg] 6700 for nominal chain thickness [mm] 13 Hook opening width G [mm] 54 hook base height H [mm] 40 Hook thickness A [mm] 33 Distance suspension point E [mm] 182 Weight approx. [kg] 2.9
Working load limit [kg]
10000
for nominal chain thickness [mm]
16
Reference no.
502284
-
Details
B1H 10C-CPL-SF-H-HIGH10-10T-16MM-COAT
Reference no. 502284 Working load limit [kg] 10000 for nominal chain thickness [mm] 16 Hook opening width G [mm] 61 hook base height H [mm] 50 Hook thickness A [mm] 38 Distance suspension point E [mm] 220 Weight approx. [kg] 5.8
Working load limit [kg]
14000
for nominal chain thickness [mm]
20
Reference no.
710039
-
Details
B1H 10C-KPL-SI-H-HIGH10-20MM-LACK
Reference no. 710039 Working load limit [kg] 14000 for nominal chain thickness [mm] 20 Hook opening width G [mm] 76 hook base height H [mm] 55 Hook thickness A [mm] 50 Distance suspension point E [mm] 235 Weight approx. [kg] 9.2
Working load limit [kg]
19000
for nominal chain thickness [mm]
22
Reference no.
710040
-
Details
B1H 10C-KPL-SI-H-HIGH10-22MM-LACK
Reference no. 710040 Working load limit [kg] 19000 for nominal chain thickness [mm] 22 Hook opening width G [mm] 80 hook base height H [mm] 52 Hook thickness A [mm] 52 Distance suspension point E [mm] 271 Weight approx. [kg] 12.1
Working load limit [kg]
26500
for nominal chain thickness [mm]
26
Reference no.
710041
-
Details
B1H 10C-KPL-SI-H-HIGH10-26MM-LACK
Reference no. 710041 Working load limit [kg] 26500 for nominal chain thickness [mm] 26 Hook opening width G [mm] 99 hook base height H [mm] 60 Hook thickness A [mm] 60 Distance suspension point E [mm] 344 Weight approx. [kg] 21.2
Working load limit [kg]
40000
for nominal chain thickness [mm]
32
Reference no.
710042
-
Details
B1H 10C-KPL-SI-H-HIGH10-32MM-LACK
Reference no. 710042 Working load limit [kg] 40000 for nominal chain thickness [mm] 32 Hook opening width G [mm] 135 hook base height H [mm] 83 Hook thickness A [mm] 83 Distance suspension point E [mm] 423 Weight approx. [kg] 43.4
