with safety latch

with safety latch

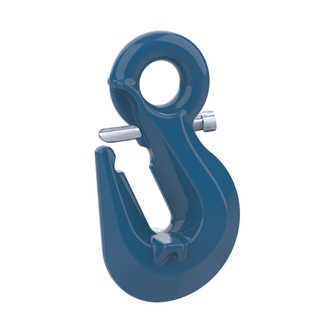

Shortening hook with eye connector for easy, particularly secure shortening of chain slings and for loops which should not tighten. The safety latch protects against unintended unhooking of the chain. The shortener enables horizontal alignment of the load in multi-leg attachment even with difficult transport procedures as well as suitable adjustment of the load for assemblies. Can be used for load securing.
Technical data

Quality grade

  • 10

Operating temperature

  • –40 °C to +200 °C

Standard

  • on the basis of DIN EN 1677

Certification

  • H-stamp

Marking

  • Batch number

Safety factor

  • 4

Surface

  • Coated blue

Colour

  • blue
Product variants
Working load limit [kg]
for nominal chain thickness [mm]
Reference no.
Details
  • 2500
    8
    705283
    B1V 10C-OESE-P-H-SI-HIGH10-2.50T-8MM
    Reference no. 705283
    Working load limit [kg] 2500
    for nominal chain thickness [mm] 8
    Component width B [mm] 63
    Eye Ø D [mm] 17.5
    Distance suspension point E [mm] 69
    Weight approx. [kg] 0.53
  • 4000
    10
    705284
    B1V 10C-OESE-P-H-SI-HIGH10-4T-10MM
    Reference no. 705284
    Working load limit [kg] 4000
    for nominal chain thickness [mm] 10
    Component width B [mm] 77
    Eye Ø D [mm] 23
    Distance suspension point E [mm] 88
    Weight approx. [kg] 1.07
  • 6700
    13
    705285
    B1V 10C-OESE-P-H-SI-HIGH10-6.70T-13MM
    Reference no. 705285
    Working load limit [kg] 6700
    for nominal chain thickness [mm] 13
    Component width B [mm] 102
    Eye Ø D [mm] 27
    Distance suspension point E [mm] 107
    Weight approx. [kg] 1.62
Working load limit [kg] 2500
for nominal chain thickness [mm] 8
Reference no. 705283
  • Details
    B1V 10C-OESE-P-H-SI-HIGH10-2.50T-8MM
    Reference no. 705283
    Working load limit [kg] 2500
    for nominal chain thickness [mm] 8
    Component width B [mm] 63
    Eye Ø D [mm] 17.5
    Distance suspension point E [mm] 69
    Weight approx. [kg] 0.53
Working load limit [kg] 4000
for nominal chain thickness [mm] 10
Reference no. 705284
  • Details
    B1V 10C-OESE-P-H-SI-HIGH10-4T-10MM
    Reference no. 705284
    Working load limit [kg] 4000
    for nominal chain thickness [mm] 10
    Component width B [mm] 77
    Eye Ø D [mm] 23
    Distance suspension point E [mm] 88
    Weight approx. [kg] 1.07
Working load limit [kg] 6700
for nominal chain thickness [mm] 13
Reference no. 705285
  • Details
    B1V 10C-OESE-P-H-SI-HIGH10-6.70T-13MM
    Reference no. 705285
    Working load limit [kg] 6700
    for nominal chain thickness [mm] 13
    Component width B [mm] 102
    Eye Ø D [mm] 27
    Distance suspension point E [mm] 107
    Weight approx. [kg] 1.62
Downloads

Applications

Application table

Download

Poster

"Poster ""Discarding time criteria""" Overview of the discarding time criteria for wire rope slings, lifting straps, round slings and chain slings.
