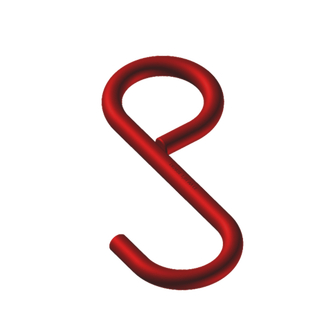

S-hook

S-hook
CAUTION: According to German Statutory Accident Insurance regulation 109-017 these hooks should only be used where unintentional unhooking is not possible.
Technical data

Quality grade

  • 8

Operating temperature

  • –40 °C to +200 °C
  • reduced carrying capacities outside this range

Marking

  • Batch number

Surface

  • powder-coated

Colour

  • red
Product variants
Working load limit [kg]
Reference no.
Details
  • 100
    290362
    LHS-S-HK-ON-SIDED-CLOSED-0.10T-COAT
    Reference no. 290362
    Working load limit [kg] 100

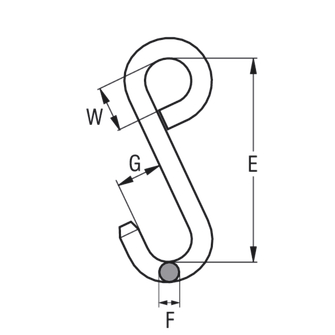

    Cross-sectional Ø F [mm] 8
    Clearance W 28
    Distance suspension point E [mm] 115
    Hook opening width G [mm] 28
    Weight approx. [kg] 0.1
  • 150
    290363
    LHS-S-HK-ON-SIDED-CLOSED-0.15T-COAT
    Reference no. 290363
    Working load limit [kg] 150
    Cross-sectional Ø F [mm] 10
    Clearance W 28
    Distance suspension point E [mm] 115
    Hook opening width G [mm] 28
    Weight approx. [kg] 0.1
  • 250
    290364
    LHS-S-HK-ON-SIDED-CLOSED-0.25T-COAT
    Reference no. 290364
    Working load limit [kg] 250
    Cross-sectional Ø F [mm] 12
    Clearance W 38
    Distance suspension point E [mm] 153
    Hook opening width G [mm] 38
    Weight approx. [kg] 0.2
  • 350
    290365
    LHS-S-HK-ON-SIDED-CLOSED-0.35T-COAT
    Reference no. 290365
    Working load limit [kg] 350
    Cross-sectional Ø F [mm] 14
    Clearance W 50
    Distance suspension point E [mm] 191
    Hook opening width G [mm] 50
    Weight approx. [kg] 0.4
  • 500
    290366
    LHS-S-HK-EINS-GESCHL-S16GLEF-0.5T-LACK
    Reference no. 290366
    Working load limit [kg] 500
    Cross-sectional Ø F [mm] 16
    Clearance W 63
    Distance suspension point E [mm] 229
    Hook opening width G [mm] 63
    Weight approx. [kg] 0.7
  • 750
    290367
    LHS-S-HK-ON-SIDED-CLOSED-0.75T-COAT
    Reference no. 290367
    Working load limit [kg] 750
    Cross-sectional Ø F [mm] 20
    Clearance W 76
    Distance suspension point E [mm] 267
    Hook opening width G [mm] 76
    Weight approx. [kg] 1.2
  • 1000
    290368
    LHS-S-HK-ON-SIDED-CLOSED-1T-COAT
    Reference no. 290368
    Working load limit [kg] 1000
    Cross-sectional Ø F [mm] 22
    Clearance W 88
    Distance suspension point E [mm] 305
    Hook opening width G [mm] 88
    Weight approx. [kg] 1.9
  • 1300
    290369
    LHS-S-HK-ON-SIDED-CLOSED-1.30T-COAT
    Reference no. 290369
    Working load limit [kg] 1300
    Cross-sectional Ø F [mm] 26
    Clearance W 101
    Distance suspension point E [mm] 331
    Hook opening width G [mm] 101
    Weight approx. [kg] 2.7
  • 1500
    290370
    LHS-S-HK-ON-SIDED-CLOSED-1.50T-COAT
    Reference no. 290370
    Working load limit [kg] 1500
    Cross-sectional Ø F [mm] 28
    Clearance W 114
    Distance suspension point E [mm] 381
    Hook opening width G [mm] 114
    Weight approx. [kg] 3.9
  • 2000
    290371
    LHS-S-HK-ON-SIDED-CLOSED-2T-COAT
    Reference no. 290371
    Working load limit [kg] 2000
    Cross-sectional Ø F [mm] 32
    Clearance W 127
    Distance suspension point E [mm] 407
    Hook opening width G [mm] 127
    Weight approx. [kg] 5.3
  • 2400
    290372
    LHS-S-HK-ON-SIDED-CLOSED-2.40T-COAT
    Reference no. 290372
    Working load limit [kg] 2400
    Cross-sectional Ø F [mm] 36
    Clearance W 139
    Distance suspension point E [mm] 432
    Hook opening width G [mm] 139
    Weight approx. [kg] 7
  • 2800
    290373
    LHS-S-HK-ON-SIDED-CLOSED-2.80T-COAT
    Reference no. 290373
    Working load limit [kg] 2800
    Cross-sectional Ø F [mm] 38
    Clearance W 150
    Distance suspension point E [mm] 460
    Hook opening width G [mm] 150
    Weight approx. [kg] 8.8
  • 3200
    290374
    LHS-S-HK-ON-SIDED-CLOSED-3.20T-COAT
    Reference no. 290374
    Working load limit [kg] 3200
    Cross-sectional Ø F [mm] 40
    Clearance W 160
    Distance suspension point E [mm] 500
    Hook opening width G [mm] 160
    Weight approx. [kg] 12
Working load limit [kg] 100
Reference no. 290362
  • Details
    LHS-S-HK-ON-SIDED-CLOSED-0.10T-COAT
    Reference no. 290362
    Working load limit [kg] 100
    Cross-sectional Ø F [mm] 8
    Clearance W 28
    Distance suspension point E [mm] 115
    Hook opening width G [mm] 28
    Weight approx. [kg] 0.1
Working load limit [kg] 150
Reference no. 290363
  • Details
    LHS-S-HK-ON-SIDED-CLOSED-0.15T-COAT
    Reference no. 290363
    Working load limit [kg] 150
    Cross-sectional Ø F [mm] 10
    Clearance W 28
    Distance suspension point E [mm] 115
    Hook opening width G [mm] 28
    Weight approx. [kg] 0.1
Working load limit [kg] 250
Reference no. 290364
  • Details
    LHS-S-HK-ON-SIDED-CLOSED-0.25T-COAT
    Reference no. 290364
    Working load limit [kg] 250
    Cross-sectional Ø F [mm] 12
    Clearance W 38
    Distance suspension point E [mm] 153
    Hook opening width G [mm] 38
    Weight approx. [kg] 0.2
Working load limit [kg] 350
Reference no. 290365
  • Details
    LHS-S-HK-ON-SIDED-CLOSED-0.35T-COAT
    Reference no. 290365
    Working load limit [kg] 350
    Cross-sectional Ø F [mm] 14
    Clearance W 50
    Distance suspension point E [mm] 191
    Hook opening width G [mm] 50
    Weight approx. [kg] 0.4
Working load limit [kg] 500
Reference no. 290366
  • Details
    LHS-S-HK-EINS-GESCHL-S16GLEF-0.5T-LACK
    Reference no. 290366
    Working load limit [kg] 500
    Cross-sectional Ø F [mm] 16
    Clearance W 63
    Distance suspension point E [mm] 229
    Hook opening width G [mm] 63
    Weight approx. [kg] 0.7
Working load limit [kg] 750
Reference no. 290367
  • Details
    LHS-S-HK-ON-SIDED-CLOSED-0.75T-COAT
    Reference no. 290367
    Working load limit [kg] 750
    Cross-sectional Ø F [mm] 20
    Clearance W 76
    Distance suspension point E [mm] 267
    Hook opening width G [mm] 76
    Weight approx. [kg] 1.2
Working load limit [kg] 1000
Reference no. 290368
  • Details
    LHS-S-HK-ON-SIDED-CLOSED-1T-COAT
    Reference no. 290368
    Working load limit [kg] 1000
    Cross-sectional Ø F [mm] 22
    Clearance W 88
    Distance suspension point E [mm] 305
    Hook opening width G [mm] 88
    Weight approx. [kg] 1.9
Working load limit [kg] 1300
Reference no. 290369
  • Details
    LHS-S-HK-ON-SIDED-CLOSED-1.30T-COAT
    Reference no. 290369
    Working load limit [kg] 1300
    Cross-sectional Ø F [mm] 26
    Clearance W 101
    Distance suspension point E [mm] 331
    Hook opening width G [mm] 101
    Weight approx. [kg] 2.7
Working load limit [kg] 1500
Reference no. 290370
  • Details
    LHS-S-HK-ON-SIDED-CLOSED-1.50T-COAT
    Reference no. 290370
    Working load limit [kg] 1500
    Cross-sectional Ø F [mm] 28
    Clearance W 114
    Distance suspension point E [mm] 381
    Hook opening width G [mm] 114
    Weight approx. [kg] 3.9
Working load limit [kg] 2000
Reference no. 290371
  • Details
    LHS-S-HK-ON-SIDED-CLOSED-2T-COAT
    Reference no. 290371
    Working load limit [kg] 2000
    Cross-sectional Ø F [mm] 32
    Clearance W 127
    Distance suspension point E [mm] 407
    Hook opening width G [mm] 127
    Weight approx. [kg] 5.3
Working load limit [kg] 2400
Reference no. 290372
  • Details
    LHS-S-HK-ON-SIDED-CLOSED-2.40T-COAT
    Reference no. 290372
    Working load limit [kg] 2400
    Cross-sectional Ø F [mm] 36
    Clearance W 139
    Distance suspension point E [mm] 432
    Hook opening width G [mm] 139
    Weight approx. [kg] 7
Working load limit [kg] 2800
Reference no. 290373
  • Details
    LHS-S-HK-ON-SIDED-CLOSED-2.80T-COAT
    Reference no. 290373
    Working load limit [kg] 2800
    Cross-sectional Ø F [mm] 38
    Clearance W 150
    Distance suspension point E [mm] 460
    Hook opening width G [mm] 150
    Weight approx. [kg] 8.8
Working load limit [kg] 3200
Reference no. 290374
  • Details
    LHS-S-HK-ON-SIDED-CLOSED-3.20T-COAT
    Reference no. 290374
    Working load limit [kg] 3200
    Cross-sectional Ø F [mm] 40
    Clearance W 160
    Distance suspension point E [mm] 500
    Hook opening width G [mm] 160
    Weight approx. [kg] 12
