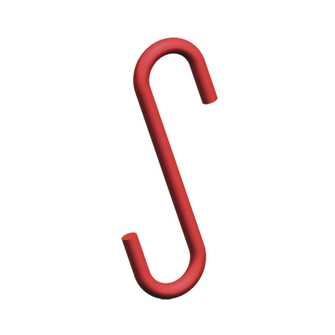

S-hook

S-hook
CAUTION: According to German Statutory Accident Insurance regulation 109-017 these hooks should only be used where unintentional unhooking is not possible.
Technical data

Quality grade

  • 8

Operating temperature

  • –40 °C to +200 °C
  • reduced carrying capacities outside this range

Marking

  • Batch number

Surface

  • powder-coated

Colour

  • red
Product variants
Working load limit [kg]
Reference no.
Details
  • 800
    119664
    S-Haken SM beidseitig offen -0.80t-pc
    Reference no. 119664
    Working load limit [kg] 800

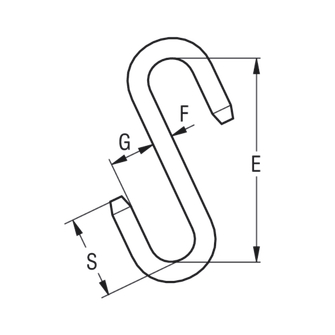

    Cross-sectional diameter F [mm] 16
    Distance suspension point E [mm] 180
    Hook opening width G [mm] 42
    insertion depth S [mm] 59
    Weight approx. [kg] 0.6
  • 2000
    119665
    S-Haken SM beidseitig offen -2.00t-pc
    Reference no. 119665
    Working load limit [kg] 2000
    Cross-sectional diameter F [mm] 23
    Distance suspension point E [mm] 220
    Hook opening width G [mm] 53
    insertion depth S [mm] 74
    Weight approx. [kg] 1.5
  • 3150
    119666
    S-Haken SM beidseitig offen -3.15t-pc
    Reference no. 119666
    Working load limit [kg] 3150
    Cross-sectional diameter F [mm] 32
    Distance suspension point E [mm] 280
    Hook opening width G [mm] 63
    insertion depth S [mm] 88
    Weight approx. [kg] 3.42
  • 5300
    119667
    S-Haken SM beidseitig offen -5.30t-pc
    Reference no. 119667
    Working load limit [kg] 5300
    Cross-sectional diameter F [mm] 40
    Distance suspension point E [mm] 400
    Hook opening width G [mm] 90
    insertion depth S [mm] 126
    Weight approx. [kg] 8.4
  • 8000
    119668
    S-Haken SM beidseitig offen -8.00t-pc
    Reference no. 119668
    Working load limit [kg] 8000
    Cross-sectional diameter F [mm] 50
    Distance suspension point E [mm] 500
    Hook opening width G [mm] 120
    insertion depth S [mm] 168
    Weight approx. [kg] 16.5
  • 11200
    119669
    S-Haken SM beidseitig offen -11.20t-pc
    Reference no. 119669
    Working load limit [kg] 11200
    Cross-sectional diameter F [mm] 60
    Distance suspension point E [mm] 550
    Hook opening width G [mm] 130
    insertion depth S [mm] 182
    Weight approx. [kg] 26
  • 15000
    119670
    S-Haken SM beidseitig offen -15.00t-pc
    Reference no. 119670
    Working load limit [kg] 15000
    Cross-sectional diameter F [mm] 80
    Distance suspension point E [mm] 750
    Hook opening width G [mm] 175
    insertion depth S [mm] 245
    Weight approx. [kg] 64.5
Working load limit [kg] 800
Reference no. 119664
  • Details
    S-Haken SM beidseitig offen -15.00t-pc
    Reference no. 119670
    Working load limit [kg] 15000
    Cross-sectional diameter F [mm] 80
    Distance suspension point E [mm] 750
    Hook opening width G [mm] 175
    insertion depth S [mm] 245
    Weight approx. [kg] 64.5
Working load limit [kg] 2000
Reference no. 119665
  • Details
    S-Haken SM beidseitig offen -15.00t-pc
    Reference no. 119670
    Working load limit [kg] 15000
    Cross-sectional diameter F [mm] 80
    Distance suspension point E [mm] 750
    Hook opening width G [mm] 175
    insertion depth S [mm] 245
    Weight approx. [kg] 64.5
Working load limit [kg] 3150
Reference no. 119666
  • Details
    S-Haken SM beidseitig offen -15.00t-pc
    Reference no. 119670
    Working load limit [kg] 15000
    Cross-sectional diameter F [mm] 80
    Distance suspension point E [mm] 750
    Hook opening width G [mm] 175
    insertion depth S [mm] 245
    Weight approx. [kg] 64.5
Working load limit [kg] 5300
Reference no. 119667
  • Details
    S-Haken SM beidseitig offen -15.00t-pc
    Reference no. 119670
    Working load limit [kg] 15000
    Cross-sectional diameter F [mm] 80
    Distance suspension point E [mm] 750
    Hook opening width G [mm] 175
    insertion depth S [mm] 245
    Weight approx. [kg] 64.5
Working load limit [kg] 8000
Reference no. 119668
  • Details
    S-Haken SM beidseitig offen -15.00t-pc
    Reference no. 119670
    Working load limit [kg] 15000
    Cross-sectional diameter F [mm] 80
    Distance suspension point E [mm] 750
    Hook opening width G [mm] 175
    insertion depth S [mm] 245
    Weight approx. [kg] 64.5
Working load limit [kg] 11200
Reference no. 119669
  • Details
    S-Haken SM beidseitig offen -15.00t-pc
    Reference no. 119670
    Working load limit [kg] 15000
    Cross-sectional diameter F [mm] 80
    Distance suspension point E [mm] 750
    Hook opening width G [mm] 175
    insertion depth S [mm] 245
    Weight approx. [kg] 64.5
Working load limit [kg] 15000
Reference no. 119670
  • Details
    S-Haken SM beidseitig offen -15.00t-pc
    Reference no. 119670
    Working load limit [kg] 15000
    Cross-sectional diameter F [mm] 80
    Distance suspension point E [mm] 750
    Hook opening width G [mm] 175
    insertion depth S [mm] 245
    Weight approx. [kg] 64.5
Downloads

Applications

Poster

"Poster ""Discarding time criteria""" Overview of the discarding time criteria for wire rope slings, lifting straps, round slings and chain slings.
Download
