Insulating swivels

Insulating swivels

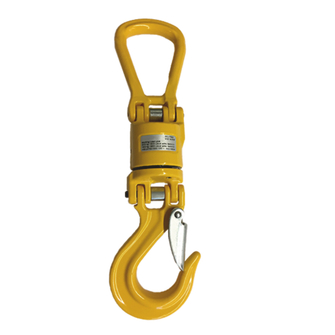

Electrically insulated swivel with suspension link and load hook for surge protection. Perfect rotation even under load. Simple connection with chains or ropes. The thrust roller bearing is dust-protected and watertight, so the swivel can be used without restriction in all areas (including underground and underwater).
Technical data

Quality grade

  • 8

Insulating effect

  • 1000 V
Product variants
Working load limit [kg]
for nominal chain thickness [mm]
Reference no.
Details
  • 2000
    8
    119654
    DRF-SK-MASTER-LINK-HOOK-2.0TO-ISO
    Reference no. 119654
    Working load limit [kg] 2000
    for nominal chain thickness [mm] 8

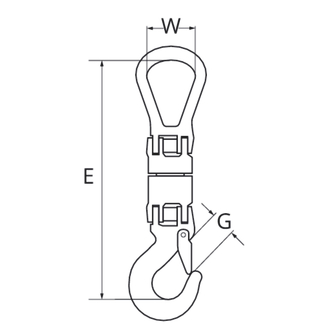

    Clearance W 50
    Distance suspension point E [mm] 264
    Hook opening width G [mm] 27
    Weight approx. [kg] 1.4
  • 3150
    10
    119655
    DRF-SK-MASTER-LINK-HOOK-3.15TO-ISO
    Reference no. 119655
    Working load limit [kg] 3150
    for nominal chain thickness [mm] 10
    Clearance W 66
    Distance suspension point E [mm] 339
    Hook opening width G [mm] 34
    Weight approx. [kg] 2.6
  • 5300
    13
    119656
    DRF-SK-MASTER-LINK-HOOK-5.3TO-ISO
    Reference no. 119656
    Working load limit [kg] 5300
    for nominal chain thickness [mm] 13
    Clearance W 72
    Distance suspension point E [mm] 410
    Hook opening width G [mm] 42
    Weight approx. [kg] 5.3
  • 8000
    16
    119657
    DRF-SK-MASTER-LINK-HOOK-8.0TO-ISO
    Reference no. 119657
    Working load limit [kg] 8000
    for nominal chain thickness [mm] 16
    Clearance W 82
    Distance suspension point E [mm] 490
    Hook opening width G [mm] 49
    Weight approx. [kg] 9.2
  • 12500
    19
    119658
    DRF-SK-MASTER-LINK-HOOK-12.5T-ISO
    Reference no. 119658
    Working load limit [kg] 12500
    for nominal chain thickness [mm] 19
    Clearance W 105
    Distance suspension point E [mm] 560
    Hook opening width G [mm] 59
    Weight approx. [kg] 13.9
Working load limit [kg] 2000
for nominal chain thickness [mm] 8
Reference no. 119654
  • Details
    DRF-SK-MASTER-LINK-HOOK-2.0TO-ISO
    Reference no. 119654
    Working load limit [kg] 2000
    for nominal chain thickness [mm] 8
    Clearance W 50
    Distance suspension point E [mm] 264
    Hook opening width G [mm] 27
    Weight approx. [kg] 1.4
Working load limit [kg] 3150
for nominal chain thickness [mm] 10
Reference no. 119655
  • Details
    DRF-SK-MASTER-LINK-HOOK-3.15TO-ISO
    Reference no. 119655
    Working load limit [kg] 3150
    for nominal chain thickness [mm] 10
    Clearance W 66
    Distance suspension point E [mm] 339
    Hook opening width G [mm] 34
    Weight approx. [kg] 2.6
Working load limit [kg] 5300
for nominal chain thickness [mm] 13
Reference no. 119656
  • Details
    DRF-SK-MASTER-LINK-HOOK-5.3TO-ISO
    Reference no. 119656
    Working load limit [kg] 5300
    for nominal chain thickness [mm] 13
    Clearance W 72
    Distance suspension point E [mm] 410
    Hook opening width G [mm] 42
    Weight approx. [kg] 5.3
Working load limit [kg] 8000
for nominal chain thickness [mm] 16
Reference no. 119657
  • Details
    DRF-SK-MASTER-LINK-HOOK-8.0TO-ISO
    Reference no. 119657
    Working load limit [kg] 8000
    for nominal chain thickness [mm] 16
    Clearance W 82
    Distance suspension point E [mm] 490
    Hook opening width G [mm] 49
    Weight approx. [kg] 9.2
Working load limit [kg] 12500
for nominal chain thickness [mm] 19
Reference no. 119658
  • Details
    DRF-SK-MASTER-LINK-HOOK-12.5T-ISO
    Reference no. 119658
    Working load limit [kg] 12500
    for nominal chain thickness [mm] 19
    Clearance W 105
    Distance suspension point E [mm] 560
    Hook opening width G [mm] 59
    Weight approx. [kg] 13.9
Downloads

Applications

Application table

Download

Poster

"Poster ""Discarding time criteria""" Overview of the discarding time criteria for wire rope slings, lifting straps, round slings and chain slings.
