HIT ECO-Chain sling, quality grade 10, 2-leg, can be shortened Standard load hook

HIT ECO-Chain sling, quality grade 10, 2-leg, can be shortened Standard load hook

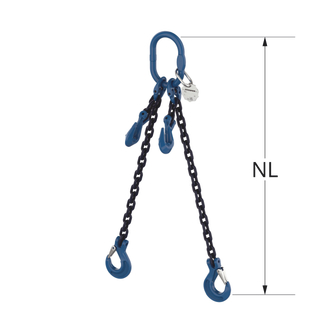

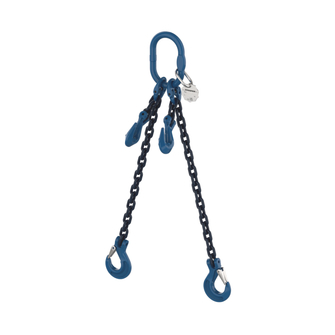

Chain sling with shortening parallel hook and standard load hook for 2-leg attachment. Ideally suited for all demanding applications with standard crane hooks and for general lifting purposes. The shortener can be used to individually adjust the length of the chain sling for ideal attachment under load. The coating of the chain and fixtures provides good corrosion protection.
Technical data

Quality grade

  • 10

Legs Quantity

  • 2-leg

Operating temperature

  • –40 °C to +200 °C = 100 % working load limit; below –40 °C = use not permitted; above +200 °C = use not permitted

Standard

  • Chain following EN 818
  • EN 1677-compliant chain components

Marking

  • Batch number and serial number
  • "Quality grade no. ""10"" (every 300 mm on the chain)"
  • Quality grade and working load limit symbol

Safety factor

  • 4

Chain surface

  • coated

Chain colour

  • blue

Component surface

  • coated

Component colour

  • blue

Shortening

  • can be shortened
Product variants
Working load limit 0–45° [kg]
Working load limit 45−60° [kg]
Working load limit laced 0–45° [kg]
Working load limit laced 45−60° [kg]
Nominal size of chain [mm]
Effective length WLL [m]
Reference no.
Details
  • 2000
    1400
    1600
    1120
    6
    2
    700614
    G12 E1A-6-2T-RA-PKU-HK-2M
    Reference no. 700614
    Working load limit 0–45° [kg] 2000
    Working load limit 45−60° [kg] 1400
    Working load limit laced 0–45° [kg] 1600
    Working load limit laced 45−60° [kg] 1120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2
    Weight approx. [kg] 5.1
  • 2000
    1400
    1600
    1120
    6
    3
    700615
    G12 E1A-6-2T-RA-PKU-HK-3M
    Reference no. 700615
    Working load limit 0–45° [kg] 2000
    Working load limit 45−60° [kg] 1400
    Working load limit laced 0–45° [kg] 1600
    Working load limit laced 45−60° [kg] 1120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 3
    Weight approx. [kg] 6.8
  • 2000
    1400
    1600
    1120
    6
    4
    700616
    G12 E1A-6-2T-RA-PKU-HK-4M
    Reference no. 700616
    Working load limit 0–45° [kg] 2000
    Working load limit 45−60° [kg] 1400
    Working load limit laced 0–45° [kg] 1600
    Working load limit laced 45−60° [kg] 1120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 4
    Weight approx. [kg] 8.4
  • 2000
    1400
    1600
    1120
    6
    5
    700617
    G12 E1A-6-2T-RA-PKU-HK-5M
    Reference no. 700617
    Working load limit 0–45° [kg] 2000
    Working load limit 45−60° [kg] 1400
    Working load limit laced 0–45° [kg] 1600
    Working load limit laced 45−60° [kg] 1120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 5
    Weight approx. [kg] 10.1
  • 2000
    1400
    1600
    1120
    6
    6
    700618
    G12 E1A-6-2T-RA-PKU-HK-6M
    Reference no. 700618
    Working load limit 0–45° [kg] 2000
    Working load limit 45−60° [kg] 1400
    Working load limit laced 0–45° [kg] 1600
    Working load limit laced 45−60° [kg] 1120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 6
    Weight approx. [kg] 11.8
  • 3550
    2500
    2800
    2000
    8
    2
    700619
    G12 E1A-8-3.55T-RA-PKU-HK-2M
    Reference no. 700619
    Working load limit 0–45° [kg] 3550
    Working load limit 45−60° [kg] 2500
    Working load limit laced 0–45° [kg] 2800
    Working load limit laced 45−60° [kg] 2000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2
    Weight approx. [kg] 9.6
  • 3550
    2500
    2800
    2000
    8
    3
    700620
    G12 E1A-8-3.55T-RA-PKU-HK-3M
    Reference no. 700620
    Working load limit 0–45° [kg] 3550
    Working load limit 45−60° [kg] 2500
    Working load limit laced 0–45° [kg] 2800
    Working load limit laced 45−60° [kg] 2000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 3
    Weight approx. [kg] 12.5
  • 3550
    2500
    2800
    2000
    8
    5
    700621
    G12 E1A-8-3.55T-RA-PKU-HK-5M
    Reference no. 700621
    Working load limit 0–45° [kg] 3550
    Working load limit 45−60° [kg] 2500
    Working load limit laced 0–45° [kg] 2800
    Working load limit laced 45−60° [kg] 2000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 5
    Weight approx. [kg] 18.5
  • 3550
    2500
    2800
    2000
    8
    4
    700341
    G12 E1A-8-3.55T-RA-PKU-HK-4M
    Reference no. 700341
    Working load limit 0–45° [kg] 3550
    Working load limit 45−60° [kg] 2500
    Working load limit laced 0–45° [kg] 2800
    Working load limit laced 45−60° [kg] 2000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 4
    Weight approx. [kg] 15.5
  • 3550
    2500
    2800
    2000
    8
    6
    700622
    G12 E1A-8-3.55T-RA-PKU-HK-6M
    Reference no. 700622
    Working load limit 0–45° [kg] 3550
    Working load limit 45−60° [kg] 2500
    Working load limit laced 0–45° [kg] 2800
    Working load limit laced 45−60° [kg] 2000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 6
    Weight approx. [kg] 21.6
  • 5600
    4000
    4250
    3150
    10
    2
    700623
    G12 E1A-10-5.6T-RA-PKU-HK-2M
    Reference no. 700623
    Working load limit 0–45° [kg] 5600
    Working load limit 45−60° [kg] 4000
    Working load limit laced 0–45° [kg] 4250
    Working load limit laced 45−60° [kg] 3150
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2
    Weight approx. [kg] 16.5
  • 5600
    4000
    4250
    3150
    10
    3
    700624
    G12 E1A-10-5.6T-RA-PKU-HK-3M
    Reference no. 700624
    Working load limit 0–45° [kg] 5600
    Working load limit 45−60° [kg] 4000
    Working load limit laced 0–45° [kg] 4250
    Working load limit laced 45−60° [kg] 3150
    Nominal size of chain [mm] 10
    Effective length WLL [m] 3
    Weight approx. [kg] 21.4
  • 5600
    4000
    4250
    3150
    10
    4
    700625
    G12 E1A-10-5.6T-RA-PKU-HK-4M
    Reference no. 700625
    Working load limit 0–45° [kg] 5600
    Working load limit 45−60° [kg] 4000
    Working load limit laced 0–45° [kg] 4250
    Working load limit laced 45−60° [kg] 3150
    Nominal size of chain [mm] 10
    Effective length WLL [m] 4
    Weight approx. [kg] 26.2
  • 5600
    4000
    4250
    3150
    10
    5
    700626
    G12 E1A-10-5.6T-RA-PKU-HK-5M
    Reference no. 700626
    Working load limit 0–45° [kg] 5600
    Working load limit 45−60° [kg] 4000
    Working load limit laced 0–45° [kg] 4250
    Working load limit laced 45−60° [kg] 3150
    Nominal size of chain [mm] 10
    Effective length WLL [m] 5
    Weight approx. [kg] 30.9
  • 5600
    4000
    4250
    3150
    10
    6
    700627
    G12 E1A-10-5.6T-RA-PKU-HK-6M
    Reference no. 700627
    Working load limit 0–45° [kg] 5600
    Working load limit 45−60° [kg] 4000
    Working load limit laced 0–45° [kg] 4250
    Working load limit laced 45−60° [kg] 3150
    Nominal size of chain [mm] 10
    Effective length WLL [m] 6
    Weight approx. [kg] 35.8
  • 9500
    6700
    7500
    5300
    13
    2
    700628
    G12 E1A-13-9.5T-RA-PKU-HK-2M
    Reference no. 700628
    Working load limit 0–45° [kg] 9500
    Working load limit 45−60° [kg] 6700
    Working load limit laced 0–45° [kg] 7500
    Working load limit laced 45−60° [kg] 5300
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2
    Weight approx. [kg] 28.3
  • 9500
    6700
    7500
    5300
    13
    3
    700629
    G12 E1A-13-9.5T-RA-PKU-HK-3M
    Reference no. 700629
    Working load limit 0–45° [kg] 9500
    Working load limit 45−60° [kg] 6700
    Working load limit laced 0–45° [kg] 7500
    Working load limit laced 45−60° [kg] 5300
    Nominal size of chain [mm] 13
    Effective length WLL [m] 3
    Weight approx. [kg] 36.4
  • 9500
    6700
    7500
    5300
    13
    4
    700630
    G12 E1A-13-9.5T-RA-PKU-HK-4M
    Reference no. 700630
    Working load limit 0–45° [kg] 9500
    Working load limit 45−60° [kg] 6700
    Working load limit laced 0–45° [kg] 7500
    Working load limit laced 45−60° [kg] 5300
    Nominal size of chain [mm] 13
    Effective length WLL [m] 4
    Weight approx. [kg] 44.5
  • 9500
    6700
    7500
    5300
    13
    5
    700631
    G12 E1A-13-9.5T-RA-PKU-HK-5M
    Reference no. 700631
    Working load limit 0–45° [kg] 9500
    Working load limit 45−60° [kg] 6700
    Working load limit laced 0–45° [kg] 7500
    Working load limit laced 45−60° [kg] 5300
    Nominal size of chain [mm] 13
    Effective length WLL [m] 5
    Weight approx. [kg] 52.6
  • 9500
    6700
    7500
    5300
    13
    6
    700632
    G12 E1A-13-9.5T-RA-PKU-HK-6M
    Reference no. 700632
    Working load limit 0–45° [kg] 9500
    Working load limit 45−60° [kg] 6700
    Working load limit laced 0–45° [kg] 7500
    Working load limit laced 45−60° [kg] 5300
    Nominal size of chain [mm] 13
    Effective length WLL [m] 6
    Weight approx. [kg] 60.1
  • 14000
    10000
    11200
    8000
    16
    2
    700633
    C12 E1A-16-14T-RA-PKU-HK-2M
    Reference no. 700633
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Working load limit laced 0–45° [kg] 11200
    Working load limit laced 45−60° [kg] 8000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2
    Weight approx. [kg] 41.7
  • 14000
    10000
    11200
    8000
    16
    3
    700634
    C12 E1A-16-14T-RA-PKU-HK-3M
    Reference no. 700634
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Working load limit laced 0–45° [kg] 11200
    Working load limit laced 45−60° [kg] 8000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 3
    Weight approx. [kg] 53.3
  • 14000
    10000
    11200
    8000
    16
    4
    700635
    C12 E1A-16-14T-RA-PKU-HK-4M
    Reference no. 700635
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Working load limit laced 0–45° [kg] 11200
    Working load limit laced 45−60° [kg] 8000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 4
    Weight approx. [kg] 65.9
  • 14000
    10000
    11200
    8000
    16
    5
    700636
    C12 E1A-16-14T-RA-PKU-HK-5M
    Reference no. 700636
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Working load limit laced 0–45° [kg] 11200
    Working load limit laced 45−60° [kg] 8000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 5
    Weight approx. [kg] 77.4
  • 14000
    10000
    11200
    8000
    16
    6
    700637
    C12 E1A-16-14T-RA-PKU-HK-6M
    Reference no. 700637
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Working load limit laced 0–45° [kg] 11200
    Working load limit laced 45−60° [kg] 8000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 6
    Weight approx. [kg] 89
Working load limit 0–45° [kg] 2000
Working load limit 45−60° [kg] 1400
Working load limit laced 0–45° [kg] 1600
Working load limit laced 45−60° [kg] 1120
Nominal size of chain [mm] 6
Effective length WLL [m] 2
Reference no. 700614
  • Details
    G12 E1A-6-2T-RA-PKU-HK-2M
    Reference no. 700614
    Working load limit 0–45° [kg] 2000
    Working load limit 45−60° [kg] 1400
    Working load limit laced 0–45° [kg] 1600
    Working load limit laced 45−60° [kg] 1120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2
    Weight approx. [kg] 5.1
Working load limit 0–45° [kg] 2000
Working load limit 45−60° [kg] 1400
Working load limit laced 0–45° [kg] 1600
Working load limit laced 45−60° [kg] 1120
Nominal size of chain [mm] 6
Effective length WLL [m] 3
Reference no. 700615
  • Details
    G12 E1A-6-2T-RA-PKU-HK-3M
    Reference no. 700615
    Working load limit 0–45° [kg] 2000
    Working load limit 45−60° [kg] 1400
    Working load limit laced 0–45° [kg] 1600
    Working load limit laced 45−60° [kg] 1120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 3
    Weight approx. [kg] 6.8
Working load limit 0–45° [kg] 2000
Working load limit 45−60° [kg] 1400
Working load limit laced 0–45° [kg] 1600
Working load limit laced 45−60° [kg] 1120
Nominal size of chain [mm] 6
Effective length WLL [m] 4
Reference no. 700616
  • Details
    G12 E1A-6-2T-RA-PKU-HK-4M
    Reference no. 700616
    Working load limit 0–45° [kg] 2000
    Working load limit 45−60° [kg] 1400
    Working load limit laced 0–45° [kg] 1600
    Working load limit laced 45−60° [kg] 1120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 4
    Weight approx. [kg] 8.4
Working load limit 0–45° [kg] 2000
Working load limit 45−60° [kg] 1400
Working load limit laced 0–45° [kg] 1600
Working load limit laced 45−60° [kg] 1120
Nominal size of chain [mm] 6
Effective length WLL [m] 5
Reference no. 700617
  • Details
    G12 E1A-6-2T-RA-PKU-HK-5M
    Reference no. 700617
    Working load limit 0–45° [kg] 2000
    Working load limit 45−60° [kg] 1400
    Working load limit laced 0–45° [kg] 1600
    Working load limit laced 45−60° [kg] 1120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 5
    Weight approx. [kg] 10.1
Working load limit 0–45° [kg] 2000
Working load limit 45−60° [kg] 1400
Working load limit laced 0–45° [kg] 1600
Working load limit laced 45−60° [kg] 1120
Nominal size of chain [mm] 6
Effective length WLL [m] 6
Reference no. 700618
  • Details
    G12 E1A-6-2T-RA-PKU-HK-6M
    Reference no. 700618
    Working load limit 0–45° [kg] 2000
    Working load limit 45−60° [kg] 1400
    Working load limit laced 0–45° [kg] 1600
    Working load limit laced 45−60° [kg] 1120
    Nominal size of chain [mm] 6
    Effective length WLL [m] 6
    Weight approx. [kg] 11.8
Working load limit 0–45° [kg] 3550
Working load limit 45−60° [kg] 2500
Working load limit laced 0–45° [kg] 2800
Working load limit laced 45−60° [kg] 2000
Nominal size of chain [mm] 8
Effective length WLL [m] 2
Reference no. 700619
  • Details
    G12 E1A-8-3.55T-RA-PKU-HK-2M
    Reference no. 700619
    Working load limit 0–45° [kg] 3550
    Working load limit 45−60° [kg] 2500
    Working load limit laced 0–45° [kg] 2800
    Working load limit laced 45−60° [kg] 2000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2
    Weight approx. [kg] 9.6
Working load limit 0–45° [kg] 3550
Working load limit 45−60° [kg] 2500
Working load limit laced 0–45° [kg] 2800
Working load limit laced 45−60° [kg] 2000
Nominal size of chain [mm] 8
Effective length WLL [m] 3
Reference no. 700620
  • Details
    G12 E1A-8-3.55T-RA-PKU-HK-3M
    Reference no. 700620
    Working load limit 0–45° [kg] 3550
    Working load limit 45−60° [kg] 2500
    Working load limit laced 0–45° [kg] 2800
    Working load limit laced 45−60° [kg] 2000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 3
    Weight approx. [kg] 12.5
Working load limit 0–45° [kg] 3550
Working load limit 45−60° [kg] 2500
Working load limit laced 0–45° [kg] 2800
Working load limit laced 45−60° [kg] 2000
Nominal size of chain [mm] 8
Effective length WLL [m] 5
Reference no. 700621
  • Details
    G12 E1A-8-3.55T-RA-PKU-HK-5M
    Reference no. 700621
    Working load limit 0–45° [kg] 3550
    Working load limit 45−60° [kg] 2500
    Working load limit laced 0–45° [kg] 2800
    Working load limit laced 45−60° [kg] 2000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 5
    Weight approx. [kg] 18.5
Working load limit 0–45° [kg] 3550
Working load limit 45−60° [kg] 2500
Working load limit laced 0–45° [kg] 2800
Working load limit laced 45−60° [kg] 2000
Nominal size of chain [mm] 8
Effective length WLL [m] 4
Reference no. 700341
  • Details
    G12 E1A-8-3.55T-RA-PKU-HK-4M
    Reference no. 700341
    Working load limit 0–45° [kg] 3550
    Working load limit 45−60° [kg] 2500
    Working load limit laced 0–45° [kg] 2800
    Working load limit laced 45−60° [kg] 2000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 4
    Weight approx. [kg] 15.5
Working load limit 0–45° [kg] 3550
Working load limit 45−60° [kg] 2500
Working load limit laced 0–45° [kg] 2800
Working load limit laced 45−60° [kg] 2000
Nominal size of chain [mm] 8
Effective length WLL [m] 6
Reference no. 700622
  • Details
    G12 E1A-8-3.55T-RA-PKU-HK-6M
    Reference no. 700622
    Working load limit 0–45° [kg] 3550
    Working load limit 45−60° [kg] 2500
    Working load limit laced 0–45° [kg] 2800
    Working load limit laced 45−60° [kg] 2000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 6
    Weight approx. [kg] 21.6
Working load limit 0–45° [kg] 5600
Working load limit 45−60° [kg] 4000
Working load limit laced 0–45° [kg] 4250
Working load limit laced 45−60° [kg] 3150
Nominal size of chain [mm] 10
Effective length WLL [m] 2
Reference no. 700623
  • Details
    G12 E1A-10-5.6T-RA-PKU-HK-2M
    Reference no. 700623
    Working load limit 0–45° [kg] 5600
    Working load limit 45−60° [kg] 4000
    Working load limit laced 0–45° [kg] 4250
    Working load limit laced 45−60° [kg] 3150
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2
    Weight approx. [kg] 16.5
Working load limit 0–45° [kg] 5600
Working load limit 45−60° [kg] 4000
Working load limit laced 0–45° [kg] 4250
Working load limit laced 45−60° [kg] 3150
Nominal size of chain [mm] 10
Effective length WLL [m] 3
Reference no. 700624
  • Details
    G12 E1A-10-5.6T-RA-PKU-HK-3M
    Reference no. 700624
    Working load limit 0–45° [kg] 5600
    Working load limit 45−60° [kg] 4000
    Working load limit laced 0–45° [kg] 4250
    Working load limit laced 45−60° [kg] 3150
    Nominal size of chain [mm] 10
    Effective length WLL [m] 3
    Weight approx. [kg] 21.4
Working load limit 0–45° [kg] 5600
Working load limit 45−60° [kg] 4000
Working load limit laced 0–45° [kg] 4250
Working load limit laced 45−60° [kg] 3150
Nominal size of chain [mm] 10
Effective length WLL [m] 4
Reference no. 700625
  • Details
    G12 E1A-10-5.6T-RA-PKU-HK-4M
    Reference no. 700625
    Working load limit 0–45° [kg] 5600
    Working load limit 45−60° [kg] 4000
    Working load limit laced 0–45° [kg] 4250
    Working load limit laced 45−60° [kg] 3150
    Nominal size of chain [mm] 10
    Effective length WLL [m] 4
    Weight approx. [kg] 26.2
Working load limit 0–45° [kg] 5600
Working load limit 45−60° [kg] 4000
Working load limit laced 0–45° [kg] 4250
Working load limit laced 45−60° [kg] 3150
Nominal size of chain [mm] 10
Effective length WLL [m] 5
Reference no. 700626
  • Details
    G12 E1A-10-5.6T-RA-PKU-HK-5M
    Reference no. 700626
    Working load limit 0–45° [kg] 5600
    Working load limit 45−60° [kg] 4000
    Working load limit laced 0–45° [kg] 4250
    Working load limit laced 45−60° [kg] 3150
    Nominal size of chain [mm] 10
    Effective length WLL [m] 5
    Weight approx. [kg] 30.9
Working load limit 0–45° [kg] 5600
Working load limit 45−60° [kg] 4000
Working load limit laced 0–45° [kg] 4250
Working load limit laced 45−60° [kg] 3150
Nominal size of chain [mm] 10
Effective length WLL [m] 6
Reference no. 700627
  • Details
    G12 E1A-10-5.6T-RA-PKU-HK-6M
    Reference no. 700627
    Working load limit 0–45° [kg] 5600
    Working load limit 45−60° [kg] 4000
    Working load limit laced 0–45° [kg] 4250
    Working load limit laced 45−60° [kg] 3150
    Nominal size of chain [mm] 10
    Effective length WLL [m] 6
    Weight approx. [kg] 35.8
Working load limit 0–45° [kg] 9500
Working load limit 45−60° [kg] 6700
Working load limit laced 0–45° [kg] 7500
Working load limit laced 45−60° [kg] 5300
Nominal size of chain [mm] 13
Effective length WLL [m] 2
Reference no. 700628
  • Details
    G12 E1A-13-9.5T-RA-PKU-HK-2M
    Reference no. 700628
    Working load limit 0–45° [kg] 9500
    Working load limit 45−60° [kg] 6700
    Working load limit laced 0–45° [kg] 7500
    Working load limit laced 45−60° [kg] 5300
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2
    Weight approx. [kg] 28.3
Working load limit 0–45° [kg] 9500
Working load limit 45−60° [kg] 6700
Working load limit laced 0–45° [kg] 7500
Working load limit laced 45−60° [kg] 5300
Nominal size of chain [mm] 13
Effective length WLL [m] 3
Reference no. 700629
  • Details
    G12 E1A-13-9.5T-RA-PKU-HK-3M
    Reference no. 700629
    Working load limit 0–45° [kg] 9500
    Working load limit 45−60° [kg] 6700
    Working load limit laced 0–45° [kg] 7500
    Working load limit laced 45−60° [kg] 5300
    Nominal size of chain [mm] 13
    Effective length WLL [m] 3
    Weight approx. [kg] 36.4
Working load limit 0–45° [kg] 9500
Working load limit 45−60° [kg] 6700
Working load limit laced 0–45° [kg] 7500
Working load limit laced 45−60° [kg] 5300
Nominal size of chain [mm] 13
Effective length WLL [m] 4
Reference no. 700630
  • Details
    G12 E1A-13-9.5T-RA-PKU-HK-4M
    Reference no. 700630
    Working load limit 0–45° [kg] 9500
    Working load limit 45−60° [kg] 6700
    Working load limit laced 0–45° [kg] 7500
    Working load limit laced 45−60° [kg] 5300
    Nominal size of chain [mm] 13
    Effective length WLL [m] 4
    Weight approx. [kg] 44.5
Working load limit 0–45° [kg] 9500
Working load limit 45−60° [kg] 6700
Working load limit laced 0–45° [kg] 7500
Working load limit laced 45−60° [kg] 5300
Nominal size of chain [mm] 13
Effective length WLL [m] 5
Reference no. 700631
  • Details
    G12 E1A-13-9.5T-RA-PKU-HK-5M
    Reference no. 700631
    Working load limit 0–45° [kg] 9500
    Working load limit 45−60° [kg] 6700
    Working load limit laced 0–45° [kg] 7500
    Working load limit laced 45−60° [kg] 5300
    Nominal size of chain [mm] 13
    Effective length WLL [m] 5
    Weight approx. [kg] 52.6
Working load limit 0–45° [kg] 9500
Working load limit 45−60° [kg] 6700
Working load limit laced 0–45° [kg] 7500
Working load limit laced 45−60° [kg] 5300
Nominal size of chain [mm] 13
Effective length WLL [m] 6
Reference no. 700632
  • Details
    G12 E1A-13-9.5T-RA-PKU-HK-6M
    Reference no. 700632
    Working load limit 0–45° [kg] 9500
    Working load limit 45−60° [kg] 6700
    Working load limit laced 0–45° [kg] 7500
    Working load limit laced 45−60° [kg] 5300
    Nominal size of chain [mm] 13
    Effective length WLL [m] 6
    Weight approx. [kg] 60.1
Working load limit 0–45° [kg] 14000
Working load limit 45−60° [kg] 10000
Working load limit laced 0–45° [kg] 11200
Working load limit laced 45−60° [kg] 8000
Nominal size of chain [mm] 16
Effective length WLL [m] 2
Reference no. 700633
  • Details
    C12 E1A-16-14T-RA-PKU-HK-2M
    Reference no. 700633
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Working load limit laced 0–45° [kg] 11200
    Working load limit laced 45−60° [kg] 8000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2
    Weight approx. [kg] 41.7
Working load limit 0–45° [kg] 14000
Working load limit 45−60° [kg] 10000
Working load limit laced 0–45° [kg] 11200
Working load limit laced 45−60° [kg] 8000
Nominal size of chain [mm] 16
Effective length WLL [m] 3
Reference no. 700634
  • Details
    C12 E1A-16-14T-RA-PKU-HK-3M
    Reference no. 700634
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Working load limit laced 0–45° [kg] 11200
    Working load limit laced 45−60° [kg] 8000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 3
    Weight approx. [kg] 53.3
Working load limit 0–45° [kg] 14000
Working load limit 45−60° [kg] 10000
Working load limit laced 0–45° [kg] 11200
Working load limit laced 45−60° [kg] 8000
Nominal size of chain [mm] 16
Effective length WLL [m] 4
Reference no. 700635
  • Details
    C12 E1A-16-14T-RA-PKU-HK-4M
    Reference no. 700635
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Working load limit laced 0–45° [kg] 11200
    Working load limit laced 45−60° [kg] 8000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 4
    Weight approx. [kg] 65.9
Working load limit 0–45° [kg] 14000
Working load limit 45−60° [kg] 10000
Working load limit laced 0–45° [kg] 11200
Working load limit laced 45−60° [kg] 8000
Nominal size of chain [mm] 16
Effective length WLL [m] 5
Reference no. 700636
  • Details
    C12 E1A-16-14T-RA-PKU-HK-5M
    Reference no. 700636
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Working load limit laced 0–45° [kg] 11200
    Working load limit laced 45−60° [kg] 8000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 5
    Weight approx. [kg] 77.4
Working load limit 0–45° [kg] 14000
Working load limit 45−60° [kg] 10000
Working load limit laced 0–45° [kg] 11200
Working load limit laced 45−60° [kg] 8000
Nominal size of chain [mm] 16
Effective length WLL [m] 6
Reference no. 700637
  • Details
    C12 E1A-16-14T-RA-PKU-HK-6M
    Reference no. 700637
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Working load limit laced 0–45° [kg] 11200
    Working load limit laced 45−60° [kg] 8000
    Nominal size of chain [mm] 16
    Effective length WLL [m] 6
    Weight approx. [kg] 89
Downloads

Description

Product brochure

Download

Product brochure

Download

Applications

Application table

Download

Original operating manual

Tranlsation of the Original Operating Instruction PFEIFER Chain slings
Download

Poster

"Poster ""Discarding time criteria""" Overview of the discarding time criteria for wire rope slings, lifting straps, round slings and chain slings.
Download
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Tel. +49 8331 937-9623
Fax +49 8331 937-380
E-Mail verkauf-azs@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
 Service centre
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Academy
Tel. +49 8331 937-462
E-Mail academy@pfeifer.de
Web www.pfeifer.info
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
France
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +33 676 54 42 68 / +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Poland
 PFEIFER Technika Linowa i Dźwigowa Sp. z o.o.
ul. Wrocławska 68
55-330 Krępice k/Wrocławia
Tel. +48 71 30 23 700
E-Mail info@pfeifer.pl
Web www.pfeifer.pl
 Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
