HIT Chain slings in quality grade 8, single-leg Universal connecting link end fitting

HIT Chain slings in quality grade 8, single-leg Universal connecting link end fitting

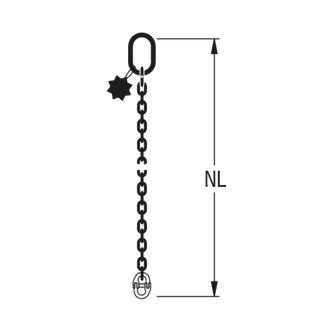

Chain sling with standard suspension link and universal connecting link as end fitting for single-leg attachment. Ideally suited for all applications with standard crane hooks and for general lifting purposes. The coating of the chain and fixtures provides good corrosion protection.
Technical data

Quality grade

  • 8

Legs Quantity

  • single-leg

Operating temperature

  • –40 °C to +200 °C = 100 % working load limit; +200 °C to +300 °C = 90 % working load limit; +300 °C to +400 °C = 75 % working load limit

Standard

  • Chain following EN 818
  • EN 1677-compliant chain components

Marking

  • Batch number and serial number
  • Quality grade no.
  • Quality grade and working load limit symbol

Safety factor

  • 4

Chain surface

  • coated

Chain colour

  • black

Component surface

  • coated

Component colour

  • red

Shortening

  • cannot be shortened
Product variants
Working load limit 0° [kg]
Working load limit laced [kg]
Nominal size of chain [mm]
Effective length WLL [m]
Reference no.
Details
  • 1120
    900
    6
    1
    701246
    G81 H8A-6-1.12T-RA-V-1M
    Reference no. 701246
    Working load limit 0° [kg] 1120
    Working load limit laced 900
    Nominal size of chain [mm] 6
    Effective length WLL [m] 1
    Weight approx. [kg] 1.4
  • 1120
    900
    6
    2
    701247
    G81 H8A-6-1.12T-RA-V-2M
    Reference no. 701247
    Working load limit 0° [kg] 1120
    Working load limit laced 900
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2
    Weight approx. [kg] 2.2
  • 1120
    900
    6
    3
    701248
    G81 H8A-6-1.12T-RA-V-3M
    Reference no. 701248
    Working load limit 0° [kg] 1120
    Working load limit laced 900
    Nominal size of chain [mm] 6
    Effective length WLL [m] 3
    Weight approx. [kg] 3
  • 1120
    900
    6
    4
    701249
    G81 H8A-6-1.12T-RA-V-4M
    Reference no. 701249
    Working load limit 0° [kg] 1120
    Working load limit laced 900
    Nominal size of chain [mm] 6
    Effective length WLL [m] 4
    Weight approx. [kg] 3.8
  • 1120
    900
    6
    6
    701250
    G81 H8A-6-1.12T-RA-V-6M
    Reference no. 701250
    Working load limit 0° [kg] 1120
    Working load limit laced 900
    Nominal size of chain [mm] 6
    Effective length WLL [m] 6
    Weight approx. [kg] 5.4
  • 2000
    1600
    8
    1
    701251
    G81 H8A-8-2T-RA-V-1M
    Reference no. 701251
    Working load limit 0° [kg] 2000
    Working load limit laced 1600
    Nominal size of chain [mm] 8
    Effective length WLL [m] 1
    Weight approx. [kg] 2.2
  • 2000
    1600
    8
    2
    701252
    G81 H8A-8-2T-RA-V-2M
    Reference no. 701252
    Working load limit 0° [kg] 2000
    Working load limit laced 1600
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2
    Weight approx. [kg] 3.5
  • 2000
    1600
    8
    3
    701253
    G81 H8A-8-2T-RA-V-3M
    Reference no. 701253
    Working load limit 0° [kg] 2000
    Working load limit laced 1600
    Nominal size of chain [mm] 8
    Effective length WLL [m] 3
    Weight approx. [kg] 5
  • 2000
    1600
    8
    4
    701254
    G81 H8A-8-2T-RA-V-4M
    Reference no. 701254
    Working load limit 0° [kg] 2000
    Working load limit laced 1600
    Nominal size of chain [mm] 8
    Effective length WLL [m] 4
    Weight approx. [kg] 6.4
  • 2000
    1600
    8
    6
    701255
    G81 H8A-8-2T-RA-V-6M
    Reference no. 701255
    Working load limit 0° [kg] 2000
    Working load limit laced 1600
    Nominal size of chain [mm] 8
    Effective length WLL [m] 6
    Weight approx. [kg] 9.2
  • 3150
    2520
    10
    1
    701256
    G81 H8A-10-3.15T-RA-V-1M
    Reference no. 701256
    Working load limit 0° [kg] 3150
    Working load limit laced 2520
    Nominal size of chain [mm] 10
    Effective length WLL [m] 1
    Weight approx. [kg] 3.2
  • 3150
    2520
    10
    2
    701257
    G81 H8A-10-3.15T-RA-V-2M
    Reference no. 701257
    Working load limit 0° [kg] 3150
    Working load limit laced 2520
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2
    Weight approx. [kg] 5.5
  • 3150
    2520
    10
    3
    701258
    G81 H8A-10-3.15T-RA-V-3M
    Reference no. 701258
    Working load limit 0° [kg] 3150
    Working load limit laced 2520
    Nominal size of chain [mm] 10
    Effective length WLL [m] 3
    Weight approx. [kg] 7.7
  • 3150
    2520
    10
    4
    701259
    G81 H8A-10-3.15T-RA-V-4M
    Reference no. 701259
    Working load limit 0° [kg] 3150
    Working load limit laced 2520
    Nominal size of chain [mm] 10
    Effective length WLL [m] 4
    Weight approx. [kg] 9.8
  • 3150
    2520
    10
    6
    701260
    G81 H8A-10-3.15T-RA-V-6M
    Reference no. 701260
    Working load limit 0° [kg] 3150
    Working load limit laced 2520
    Nominal size of chain [mm] 10
    Effective length WLL [m] 6
    Weight approx. [kg] 14.3
  • 5300
    4240
    13
    1
    701261
    G81 H8A-13-5.3T-RA-V-1M
    Reference no. 701261
    Working load limit 0° [kg] 5300
    Working load limit laced 4240
    Nominal size of chain [mm] 13
    Effective length WLL [m] 1
    Weight approx. [kg] 5.8
  • 5300
    4240
    13
    2
    701262
    G81 H8A-13-5.3T-RA-V-2M
    Reference no. 701262
    Working load limit 0° [kg] 5300
    Working load limit laced 4240
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2
    Weight approx. [kg] 9.7
  • 5300
    4240
    13
    3
    701263
    G81 H8A-13-5.3T-RA-V-3M
    Reference no. 701263
    Working load limit 0° [kg] 5300
    Working load limit laced 4240
    Nominal size of chain [mm] 13
    Effective length WLL [m] 3
    Weight approx. [kg] 13.6
  • 5300
    4240
    13
    4
    701264
    G81 H8A-13-5.3T-RA-V-4M
    Reference no. 701264
    Working load limit 0° [kg] 5300
    Working load limit laced 4240
    Nominal size of chain [mm] 13
    Effective length WLL [m] 4
    Weight approx. [kg] 17.1
  • 5300
    4240
    13
    6
    701265
    G81 H8A-13-5.3T-RA-V-6M
    Reference no. 701265
    Working load limit 0° [kg] 5300
    Working load limit laced 4240
    Nominal size of chain [mm] 13
    Effective length WLL [m] 6
    Weight approx. [kg] 24.8
  • 8000
    6400
    16
    1
    701267
    C81 H8A-16-8T-RA-V-1M
    Reference no. 701267
    Working load limit 0° [kg] 8000
    Working load limit laced 6400
    Nominal size of chain [mm] 16
    Effective length WLL [m] 1
    Weight approx. [kg] 8.9
  • 8000
    6400
    16
    2
    701269
    C81 H8A-16-8T-RA-V-2M
    Reference no. 701269
    Working load limit 0° [kg] 8000
    Working load limit laced 6400
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2
    Weight approx. [kg] 14.4
  • 8000
    6400
    16
    3
    701270
    C81 H8A-16-8T-RA-V-3M
    Reference no. 701270
    Working load limit 0° [kg] 8000
    Working load limit laced 6400
    Nominal size of chain [mm] 16
    Effective length WLL [m] 3
    Weight approx. [kg] 20.4
  • 8000
    6400
    16
    4
    701271
    C81 H8A-16-8T-RA-V-4M
    Reference no. 701271
    Working load limit 0° [kg] 8000
    Working load limit laced 6400
    Nominal size of chain [mm] 16
    Effective length WLL [m] 4
    Weight approx. [kg] 25.9
  • 8000
    6400
    16
    6
    701272
    C81 H8A-16-8T-RA-V-6M
    Reference no. 701272
    Working load limit 0° [kg] 8000
    Working load limit laced 6400
    Nominal size of chain [mm] 16
    Effective length WLL [m] 6
    Weight approx. [kg] 37.4
  • 10000
    8000
    18
    2
    701273
    C81 H8A-18-10T-RA-V-2M
    Reference no. 701273
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Nominal size of chain [mm] 18
    Effective length WLL [m] 2
    Weight approx. [kg] 20.1
  • 10000
    8000
    18
    3
    701274
    C81 H8A-18-10T-RA-V-3M
    Reference no. 701274
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Nominal size of chain [mm] 18
    Effective length WLL [m] 3
    Weight approx. [kg] 27.2
  • 10000
    8000
    18
    4
    701275
    C81 H8A-18-10T-RA-V-4M
    Reference no. 701275
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Nominal size of chain [mm] 18
    Effective length WLL [m] 4
    Weight approx. [kg] 34.3
  • 10000
    8000
    18
    6
    701276
    C81 H8A-18-10T-RA-V-6M
    Reference no. 701276
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Nominal size of chain [mm] 18
    Effective length WLL [m] 6
    Weight approx. [kg] 49.3
  • 12500
    10000
    20
    2
    701277
    C81 H8A-20-12.5T-RA-V-2M
    Reference no. 701277
    Working load limit 0° [kg] 12500
    Working load limit laced 10000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 2
    Weight approx. [kg] 24.9
  • 12500
    10000
    20
    3
    701278
    C81 H8A-20-12.5T-RA-V-3M
    Reference no. 701278
    Working load limit 0° [kg] 12500
    Working load limit laced 10000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 3
    Weight approx. [kg] 33.5
  • 12500
    10000
    20
    4
    701279
    C81 H8A-20-12.5T-RA-V-4M
    Reference no. 701279
    Working load limit 0° [kg] 12500
    Working load limit laced 10000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 4
    Weight approx. [kg] 43.2
  • 12500
    10000
    20
    6
    701280
    C81 H8A-20-12.5T-RA-V-6M
    Reference no. 701280
    Working load limit 0° [kg] 12500
    Working load limit laced 10000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 6
    Weight approx. [kg] 60.5
  • 15000
    12000
    22
    2
    701281
    C81 H8A-22-15T-RA-V-2M
    Reference no. 701281
    Working load limit 0° [kg] 15000
    Working load limit laced 12000
    Nominal size of chain [mm] 22
    Effective length WLL [m] 2
    Weight approx. [kg] 32
  • 15000
    12000
    22
    3
    701282
    C81 H8A-22-15T-RA-V-3M
    Reference no. 701282
    Working load limit 0° [kg] 15000
    Working load limit laced 12000
    Nominal size of chain [mm] 22
    Effective length WLL [m] 3
    Weight approx. [kg] 43.5
  • 15000
    12000
    22
    4
    701283
    C81 H8A-22-15T-RA-V-4M
    Reference no. 701283
    Working load limit 0° [kg] 15000
    Working load limit laced 12000
    Nominal size of chain [mm] 22
    Effective length WLL [m] 4
    Weight approx. [kg] 53.6
  • 15000
    12000
    22
    6
    701284
    C81 H8A-22-15T-RA-V-6M
    Reference no. 701284
    Working load limit 0° [kg] 15000
    Working load limit laced 12000
    Nominal size of chain [mm] 22
    Effective length WLL [m] 6
    Weight approx. [kg] 76.6
  • 21200
    16960
    26
    2
    701285
    C81 H8A-26-21.2T-RA-V-2M
    Reference no. 701285
    Working load limit 0° [kg] 21200
    Working load limit laced 16960
    Nominal size of chain [mm] 26
    Effective length WLL [m] 2
    Weight approx. [kg] 44.5
  • 21200
    16960
    26
    3
    701286
    C81 H8A-26-21.2T-RA-V-3M
    Reference no. 701286
    Working load limit 0° [kg] 21200
    Working load limit laced 16960
    Nominal size of chain [mm] 26
    Effective length WLL [m] 3
    Weight approx. [kg] 58.7
  • 21200
    16960
    26
    4
    701287
    C81 H8A-26-21.2T-RA-V-4M
    Reference no. 701287
    Working load limit 0° [kg] 21200
    Working load limit laced 16960
    Nominal size of chain [mm] 26
    Effective length WLL [m] 4
    Weight approx. [kg] 75.3
  • 21200
    16960
    26
    6
    701288
    C81 H8A-26-21.2T-RA-V-6M
    Reference no. 701288
    Working load limit 0° [kg] 21200
    Working load limit laced 16960
    Nominal size of chain [mm] 26
    Effective length WLL [m] 6
    Weight approx. [kg] 106.1
  • 31500
    25000
    32
    2
    701290
    C81 H8A-32-31.5T-RA-V-2M
    Reference no. 701290
    Working load limit 0° [kg] 31500
    Working load limit laced 25000
    Nominal size of chain [mm] 32
    Effective length WLL [m] 2
    Weight approx. [kg] 67.9
  • 31500
    25000
    32
    3
    701291
    C81 H8A-32-31.5T-RA-V-3M
    Reference no. 701291
    Working load limit 0° [kg] 31500
    Working load limit laced 25000
    Nominal size of chain [mm] 32
    Effective length WLL [m] 3
    Weight approx. [kg] 89.9
  • 31500
    25000
    32
    4
    701292
    C81 H8A-32-31.5T-RA-V-4M
    Reference no. 701292
    Working load limit 0° [kg] 31500
    Working load limit laced 25000
    Nominal size of chain [mm] 32
    Effective length WLL [m] 4
    Weight approx. [kg] 112
  • 31500
    25000
    32
    6
    701293
    C81 H8A-32-31.5T-RA-V-6M
    Reference no. 701293
    Working load limit 0° [kg] 31500
    Working load limit laced 25000
    Nominal size of chain [mm] 32
    Effective length WLL [m] 6
    Weight approx. [kg] 160.6
Working load limit 0° [kg] 1120
Working load limit laced 900
Nominal size of chain [mm] 6
Effective length WLL [m] 1
Reference no. 701246
  • Details
    G81 H8A-6-1.12T-RA-V-1M
    Reference no. 701246
    Working load limit 0° [kg] 1120
    Working load limit laced 900
    Nominal size of chain [mm] 6
    Effective length WLL [m] 1
    Weight approx. [kg] 1.4
Working load limit 0° [kg] 1120
Working load limit laced 900
Nominal size of chain [mm] 6
Effective length WLL [m] 2
Reference no. 701247
  • Details
    G81 H8A-6-1.12T-RA-V-2M
    Reference no. 701247
    Working load limit 0° [kg] 1120
    Working load limit laced 900
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2
    Weight approx. [kg] 2.2
Working load limit 0° [kg] 1120
Working load limit laced 900
Nominal size of chain [mm] 6
Effective length WLL [m] 3
Reference no. 701248
  • Details
    G81 H8A-6-1.12T-RA-V-3M
    Reference no. 701248
    Working load limit 0° [kg] 1120
    Working load limit laced 900
    Nominal size of chain [mm] 6
    Effective length WLL [m] 3
    Weight approx. [kg] 3
Working load limit 0° [kg] 1120
Working load limit laced 900
Nominal size of chain [mm] 6
Effective length WLL [m] 4
Reference no. 701249
  • Details
    G81 H8A-6-1.12T-RA-V-4M
    Reference no. 701249
    Working load limit 0° [kg] 1120
    Working load limit laced 900
    Nominal size of chain [mm] 6
    Effective length WLL [m] 4
    Weight approx. [kg] 3.8
Working load limit 0° [kg] 1120
Working load limit laced 900
Nominal size of chain [mm] 6
Effective length WLL [m] 6
Reference no. 701250
  • Details
    G81 H8A-6-1.12T-RA-V-6M
    Reference no. 701250
    Working load limit 0° [kg] 1120
    Working load limit laced 900
    Nominal size of chain [mm] 6
    Effective length WLL [m] 6
    Weight approx. [kg] 5.4
Working load limit 0° [kg] 2000
Working load limit laced 1600
Nominal size of chain [mm] 8
Effective length WLL [m] 1
Reference no. 701251
  • Details
    G81 H8A-8-2T-RA-V-1M
    Reference no. 701251
    Working load limit 0° [kg] 2000
    Working load limit laced 1600
    Nominal size of chain [mm] 8
    Effective length WLL [m] 1
    Weight approx. [kg] 2.2
Working load limit 0° [kg] 2000
Working load limit laced 1600
Nominal size of chain [mm] 8
Effective length WLL [m] 2
Reference no. 701252
  • Details
    G81 H8A-8-2T-RA-V-2M
    Reference no. 701252
    Working load limit 0° [kg] 2000
    Working load limit laced 1600
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2
    Weight approx. [kg] 3.5
Working load limit 0° [kg] 2000
Working load limit laced 1600
Nominal size of chain [mm] 8
Effective length WLL [m] 3
Reference no. 701253
  • Details
    G81 H8A-8-2T-RA-V-3M
    Reference no. 701253
    Working load limit 0° [kg] 2000
    Working load limit laced 1600
    Nominal size of chain [mm] 8
    Effective length WLL [m] 3
    Weight approx. [kg] 5
Working load limit 0° [kg] 2000
Working load limit laced 1600
Nominal size of chain [mm] 8
Effective length WLL [m] 4
Reference no. 701254
  • Details
    G81 H8A-8-2T-RA-V-4M
    Reference no. 701254
    Working load limit 0° [kg] 2000
    Working load limit laced 1600
    Nominal size of chain [mm] 8
    Effective length WLL [m] 4
    Weight approx. [kg] 6.4
Working load limit 0° [kg] 2000
Working load limit laced 1600
Nominal size of chain [mm] 8
Effective length WLL [m] 6
Reference no. 701255
  • Details
    G81 H8A-8-2T-RA-V-6M
    Reference no. 701255
    Working load limit 0° [kg] 2000
    Working load limit laced 1600
    Nominal size of chain [mm] 8
    Effective length WLL [m] 6
    Weight approx. [kg] 9.2
Working load limit 0° [kg] 3150
Working load limit laced 2520
Nominal size of chain [mm] 10
Effective length WLL [m] 1
Reference no. 701256
  • Details
    G81 H8A-10-3.15T-RA-V-1M
    Reference no. 701256
    Working load limit 0° [kg] 3150
    Working load limit laced 2520
    Nominal size of chain [mm] 10
    Effective length WLL [m] 1
    Weight approx. [kg] 3.2
Working load limit 0° [kg] 3150
Working load limit laced 2520
Nominal size of chain [mm] 10
Effective length WLL [m] 2
Reference no. 701257
  • Details
    G81 H8A-10-3.15T-RA-V-2M
    Reference no. 701257
    Working load limit 0° [kg] 3150
    Working load limit laced 2520
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2
    Weight approx. [kg] 5.5
Working load limit 0° [kg] 3150
Working load limit laced 2520
Nominal size of chain [mm] 10
Effective length WLL [m] 3
Reference no. 701258
  • Details
    G81 H8A-10-3.15T-RA-V-3M
    Reference no. 701258
    Working load limit 0° [kg] 3150
    Working load limit laced 2520
    Nominal size of chain [mm] 10
    Effective length WLL [m] 3
    Weight approx. [kg] 7.7
Working load limit 0° [kg] 3150
Working load limit laced 2520
Nominal size of chain [mm] 10
Effective length WLL [m] 4
Reference no. 701259
  • Details
    G81 H8A-10-3.15T-RA-V-4M
    Reference no. 701259
    Working load limit 0° [kg] 3150
    Working load limit laced 2520
    Nominal size of chain [mm] 10
    Effective length WLL [m] 4
    Weight approx. [kg] 9.8
Working load limit 0° [kg] 3150
Working load limit laced 2520
Nominal size of chain [mm] 10
Effective length WLL [m] 6
Reference no. 701260
  • Details
    G81 H8A-10-3.15T-RA-V-6M
    Reference no. 701260
    Working load limit 0° [kg] 3150
    Working load limit laced 2520
    Nominal size of chain [mm] 10
    Effective length WLL [m] 6
    Weight approx. [kg] 14.3
Working load limit 0° [kg] 5300
Working load limit laced 4240
Nominal size of chain [mm] 13
Effective length WLL [m] 1
Reference no. 701261
  • Details
    G81 H8A-13-5.3T-RA-V-1M
    Reference no. 701261
    Working load limit 0° [kg] 5300
    Working load limit laced 4240
    Nominal size of chain [mm] 13
    Effective length WLL [m] 1
    Weight approx. [kg] 5.8
Working load limit 0° [kg] 5300
Working load limit laced 4240
Nominal size of chain [mm] 13
Effective length WLL [m] 2
Reference no. 701262
  • Details
    G81 H8A-13-5.3T-RA-V-2M
    Reference no. 701262
    Working load limit 0° [kg] 5300
    Working load limit laced 4240
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2
    Weight approx. [kg] 9.7
Working load limit 0° [kg] 5300
Working load limit laced 4240
Nominal size of chain [mm] 13
Effective length WLL [m] 3
Reference no. 701263
  • Details
    G81 H8A-13-5.3T-RA-V-3M
    Reference no. 701263
    Working load limit 0° [kg] 5300
    Working load limit laced 4240
    Nominal size of chain [mm] 13
    Effective length WLL [m] 3
    Weight approx. [kg] 13.6
Working load limit 0° [kg] 5300
Working load limit laced 4240
Nominal size of chain [mm] 13
Effective length WLL [m] 4
Reference no. 701264
  • Details
    G81 H8A-13-5.3T-RA-V-4M
    Reference no. 701264
    Working load limit 0° [kg] 5300
    Working load limit laced 4240
    Nominal size of chain [mm] 13
    Effective length WLL [m] 4
    Weight approx. [kg] 17.1
Working load limit 0° [kg] 5300
Working load limit laced 4240
Nominal size of chain [mm] 13
Effective length WLL [m] 6
Reference no. 701265
  • Details
    G81 H8A-13-5.3T-RA-V-6M
    Reference no. 701265
    Working load limit 0° [kg] 5300
    Working load limit laced 4240
    Nominal size of chain [mm] 13
    Effective length WLL [m] 6
    Weight approx. [kg] 24.8
Working load limit 0° [kg] 8000
Working load limit laced 6400
Nominal size of chain [mm] 16
Effective length WLL [m] 1
Reference no. 701267
  • Details
    C81 H8A-16-8T-RA-V-1M
    Reference no. 701267
    Working load limit 0° [kg] 8000
    Working load limit laced 6400
    Nominal size of chain [mm] 16
    Effective length WLL [m] 1
    Weight approx. [kg] 8.9
Working load limit 0° [kg] 8000
Working load limit laced 6400
Nominal size of chain [mm] 16
Effective length WLL [m] 2
Reference no. 701269
  • Details
    C81 H8A-16-8T-RA-V-2M
    Reference no. 701269
    Working load limit 0° [kg] 8000
    Working load limit laced 6400
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2
    Weight approx. [kg] 14.4
Working load limit 0° [kg] 8000
Working load limit laced 6400
Nominal size of chain [mm] 16
Effective length WLL [m] 3
Reference no. 701270
  • Details
    C81 H8A-16-8T-RA-V-3M
    Reference no. 701270
    Working load limit 0° [kg] 8000
    Working load limit laced 6400
    Nominal size of chain [mm] 16
    Effective length WLL [m] 3
    Weight approx. [kg] 20.4
Working load limit 0° [kg] 8000
Working load limit laced 6400
Nominal size of chain [mm] 16
Effective length WLL [m] 4
Reference no. 701271
  • Details
    C81 H8A-16-8T-RA-V-4M
    Reference no. 701271
    Working load limit 0° [kg] 8000
    Working load limit laced 6400
    Nominal size of chain [mm] 16
    Effective length WLL [m] 4
    Weight approx. [kg] 25.9
Working load limit 0° [kg] 8000
Working load limit laced 6400
Nominal size of chain [mm] 16
Effective length WLL [m] 6
Reference no. 701272
  • Details
    C81 H8A-16-8T-RA-V-6M
    Reference no. 701272
    Working load limit 0° [kg] 8000
    Working load limit laced 6400
    Nominal size of chain [mm] 16
    Effective length WLL [m] 6
    Weight approx. [kg] 37.4
Working load limit 0° [kg] 10000
Working load limit laced 8000
Nominal size of chain [mm] 18
Effective length WLL [m] 2
Reference no. 701273
  • Details
    C81 H8A-18-10T-RA-V-2M
    Reference no. 701273
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Nominal size of chain [mm] 18
    Effective length WLL [m] 2
    Weight approx. [kg] 20.1
Working load limit 0° [kg] 10000
Working load limit laced 8000
Nominal size of chain [mm] 18
Effective length WLL [m] 3
Reference no. 701274
  • Details
    C81 H8A-18-10T-RA-V-3M
    Reference no. 701274
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Nominal size of chain [mm] 18
    Effective length WLL [m] 3
    Weight approx. [kg] 27.2
Working load limit 0° [kg] 10000
Working load limit laced 8000
Nominal size of chain [mm] 18
Effective length WLL [m] 4
Reference no. 701275
  • Details
    C81 H8A-18-10T-RA-V-4M
    Reference no. 701275
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Nominal size of chain [mm] 18
    Effective length WLL [m] 4
    Weight approx. [kg] 34.3
Working load limit 0° [kg] 10000
Working load limit laced 8000
Nominal size of chain [mm] 18
Effective length WLL [m] 6
Reference no. 701276
  • Details
    C81 H8A-18-10T-RA-V-6M
    Reference no. 701276
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Nominal size of chain [mm] 18
    Effective length WLL [m] 6
    Weight approx. [kg] 49.3
Working load limit 0° [kg] 12500
Working load limit laced 10000
Nominal size of chain [mm] 20
Effective length WLL [m] 2
Reference no. 701277
  • Details
    C81 H8A-20-12.5T-RA-V-2M
    Reference no. 701277
    Working load limit 0° [kg] 12500
    Working load limit laced 10000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 2
    Weight approx. [kg] 24.9
Working load limit 0° [kg] 12500
Working load limit laced 10000
Nominal size of chain [mm] 20
Effective length WLL [m] 3
Reference no. 701278
  • Details
    C81 H8A-20-12.5T-RA-V-3M
    Reference no. 701278
    Working load limit 0° [kg] 12500
    Working load limit laced 10000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 3
    Weight approx. [kg] 33.5
Working load limit 0° [kg] 12500
Working load limit laced 10000
Nominal size of chain [mm] 20
Effective length WLL [m] 4
Reference no. 701279
  • Details
    C81 H8A-20-12.5T-RA-V-4M
    Reference no. 701279
    Working load limit 0° [kg] 12500
    Working load limit laced 10000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 4
    Weight approx. [kg] 43.2
Working load limit 0° [kg] 12500
Working load limit laced 10000
Nominal size of chain [mm] 20
Effective length WLL [m] 6
Reference no. 701280
  • Details
    C81 H8A-20-12.5T-RA-V-6M
    Reference no. 701280
    Working load limit 0° [kg] 12500
    Working load limit laced 10000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 6
    Weight approx. [kg] 60.5
Working load limit 0° [kg] 15000
Working load limit laced 12000
Nominal size of chain [mm] 22
Effective length WLL [m] 2
Reference no. 701281
  • Details
    C81 H8A-22-15T-RA-V-2M
    Reference no. 701281
    Working load limit 0° [kg] 15000
    Working load limit laced 12000
    Nominal size of chain [mm] 22
    Effective length WLL [m] 2
    Weight approx. [kg] 32
Working load limit 0° [kg] 15000
Working load limit laced 12000
Nominal size of chain [mm] 22
Effective length WLL [m] 3
Reference no. 701282
  • Details
    C81 H8A-22-15T-RA-V-3M
    Reference no. 701282
    Working load limit 0° [kg] 15000
    Working load limit laced 12000
    Nominal size of chain [mm] 22
    Effective length WLL [m] 3
    Weight approx. [kg] 43.5
Working load limit 0° [kg] 15000
Working load limit laced 12000
Nominal size of chain [mm] 22
Effective length WLL [m] 4
Reference no. 701283
  • Details
    C81 H8A-22-15T-RA-V-4M
    Reference no. 701283
    Working load limit 0° [kg] 15000
    Working load limit laced 12000
    Nominal size of chain [mm] 22
    Effective length WLL [m] 4
    Weight approx. [kg] 53.6
Working load limit 0° [kg] 15000
Working load limit laced 12000
Nominal size of chain [mm] 22
Effective length WLL [m] 6
Reference no. 701284
  • Details
    C81 H8A-22-15T-RA-V-6M
    Reference no. 701284
    Working load limit 0° [kg] 15000
    Working load limit laced 12000
    Nominal size of chain [mm] 22
    Effective length WLL [m] 6
    Weight approx. [kg] 76.6
Working load limit 0° [kg] 21200
Working load limit laced 16960
Nominal size of chain [mm] 26
Effective length WLL [m] 2
Reference no. 701285
  • Details
    C81 H8A-26-21.2T-RA-V-2M
    Reference no. 701285
    Working load limit 0° [kg] 21200
    Working load limit laced 16960
    Nominal size of chain [mm] 26
    Effective length WLL [m] 2
    Weight approx. [kg] 44.5
Working load limit 0° [kg] 21200
Working load limit laced 16960
Nominal size of chain [mm] 26
Effective length WLL [m] 3
Reference no. 701286
  • Details
    C81 H8A-26-21.2T-RA-V-3M
    Reference no. 701286
    Working load limit 0° [kg] 21200
    Working load limit laced 16960
    Nominal size of chain [mm] 26
    Effective length WLL [m] 3
    Weight approx. [kg] 58.7
Working load limit 0° [kg] 21200
Working load limit laced 16960
Nominal size of chain [mm] 26
Effective length WLL [m] 4
Reference no. 701287
  • Details
    C81 H8A-26-21.2T-RA-V-4M
    Reference no. 701287
    Working load limit 0° [kg] 21200
    Working load limit laced 16960
    Nominal size of chain [mm] 26
    Effective length WLL [m] 4
    Weight approx. [kg] 75.3
Working load limit 0° [kg] 21200
Working load limit laced 16960
Nominal size of chain [mm] 26
Effective length WLL [m] 6
Reference no. 701288
  • Details
    C81 H8A-26-21.2T-RA-V-6M
    Reference no. 701288
    Working load limit 0° [kg] 21200
    Working load limit laced 16960
    Nominal size of chain [mm] 26
    Effective length WLL [m] 6
    Weight approx. [kg] 106.1
Working load limit 0° [kg] 31500
Working load limit laced 25000
Nominal size of chain [mm] 32
Effective length WLL [m] 2
Reference no. 701290
  • Details
    C81 H8A-32-31.5T-RA-V-2M
    Reference no. 701290
    Working load limit 0° [kg] 31500
    Working load limit laced 25000
    Nominal size of chain [mm] 32
    Effective length WLL [m] 2
    Weight approx. [kg] 67.9
Working load limit 0° [kg] 31500
Working load limit laced 25000
Nominal size of chain [mm] 32
Effective length WLL [m] 3
Reference no. 701291
  • Details
    C81 H8A-32-31.5T-RA-V-3M
    Reference no. 701291
    Working load limit 0° [kg] 31500
    Working load limit laced 25000
    Nominal size of chain [mm] 32
    Effective length WLL [m] 3
    Weight approx. [kg] 89.9
Working load limit 0° [kg] 31500
Working load limit laced 25000
Nominal size of chain [mm] 32
Effective length WLL [m] 4
Reference no. 701292
  • Details
    C81 H8A-32-31.5T-RA-V-4M
    Reference no. 701292
    Working load limit 0° [kg] 31500
    Working load limit laced 25000
    Nominal size of chain [mm] 32
    Effective length WLL [m] 4
    Weight approx. [kg] 112
Working load limit 0° [kg] 31500
Working load limit laced 25000
Nominal size of chain [mm] 32
Effective length WLL [m] 6
Reference no. 701293
  • Details
    C81 H8A-32-31.5T-RA-V-6M
    Reference no. 701293
    Working load limit 0° [kg] 31500
    Working load limit laced 25000
    Nominal size of chain [mm] 32
    Effective length WLL [m] 6
    Weight approx. [kg] 160.6
Downloads

Description

Product brochure

Download

Applications

Application table

Download

Original operating manual

Tranlsation of the Original Operating Instruction PFEIFER Chain slings
Download

Poster

"Poster ""Discarding time criteria""" Overview of the discarding time criteria for wire rope slings, lifting straps, round slings and chain slings.
Download
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Tel. +49 8331 937-9623
Fax +49 8331 937-380
E-Mail verkauf-azs@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
 Service centre
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Academy
Tel. +49 8331 937-462
E-Mail academy@pfeifer.de
Web www.pfeifer.info
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
France
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +33 676 54 42 68 / +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Poland
 PFEIFER Technika Linowa i Dźwigowa Sp. z o.o.
ul. Wrocławska 68
55-330 Krępice k/Wrocławia
Tel. +48 71 30 23 700
E-Mail info@pfeifer.pl
Web www.pfeifer.pl
 Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
