Round steel chain DIN 763

Round steel chain DIN 763

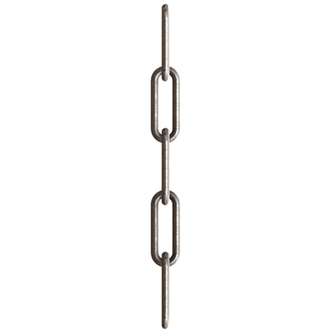

Tested long link round steel chain, not true-to-gauge version. Only for ancillary applications, such as barriers. Suitable for static suspensions. CAUTION: Chains must not be used in chain slings.
Technical data

Standard

  • DIN 763

Chain surface

  • galvanised
Product variants
Load limit max [kg]

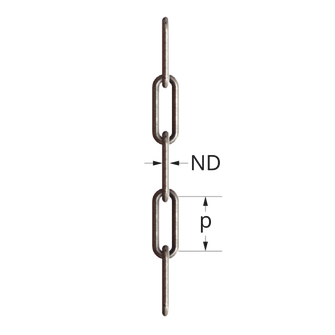

Nominal chain thickness ND [mm]
Reference no.
Details
  • 100
    4
    201731
    DKR-DIN763-4X32-A-ZN-AL-LGL-30M-BD
    Reference no. 201731
    Load limit max [kg] 100
    Nominal chain thickness ND [mm] 4
    Chain pitch p [mm] 32
    Format Coil
    Overall length [m] 30
    Weight approx. [kg] 8.1
  • 160
    5
    201732
    DKR-DIN763-5X35-A-ZN-AL-LG-30M-BD
    Reference no. 201732
    Load limit max [kg] 160
    Nominal chain thickness ND [mm] 5
    Chain pitch p [mm] 35
    Format Coil
    Overall length [m] 30
    Weight approx. [kg] 12.9
  • 200
    6
    201733
    DKR-DIN763-6X42-A-ZN-AL-LG-30M-BD
    Reference no. 201733
    Load limit max [kg] 200
    Nominal chain thickness ND [mm] 6
    Chain pitch p [mm] 42
    Format Coil
    Overall length [m] 30
    Weight approx. [kg] 18.9
  • 400
    8
    201734
    DKR-DIN763-8X52-A-ZN-AL-LG-30M-BD
    Reference no. 201734
    Load limit max [kg] 400
    Nominal chain thickness ND [mm] 8
    Chain pitch p [mm] 52
    Format Coil
    Overall length [m] 30
    Weight approx. [kg] 33
  • 630
    10
    201735
    DKR-DIN763-10X65-A-ZN-AL-LGL-30M-BU
    Reference no. 201735
    Load limit max [kg] 630
    Nominal chain thickness ND [mm] 10
    Chain pitch p [mm] 65
    Format Coil
    Overall length [m] 30
    Weight approx. [kg] 52.5
Load limit max [kg] 100
Nominal chain thickness ND [mm] 4
Reference no. 201731
  • Details
    DKR-DIN763-4X32-A-ZN-AL-LGL-30M-BD
    Reference no. 201731
    Load limit max [kg] 100
    Nominal chain thickness ND [mm] 4
    Chain pitch p [mm] 32
    Format Coil
    Overall length [m] 30
    Weight approx. [kg] 8.1
Load limit max [kg] 160
Nominal chain thickness ND [mm] 5
Reference no. 201732
  • Details
    DKR-DIN763-5X35-A-ZN-AL-LG-30M-BD
    Reference no. 201732
    Load limit max [kg] 160
    Nominal chain thickness ND [mm] 5
    Chain pitch p [mm] 35
    Format Coil
    Overall length [m] 30
    Weight approx. [kg] 12.9
Load limit max [kg] 200
Nominal chain thickness ND [mm] 6
Reference no. 201733
  • Details
    DKR-DIN763-6X42-A-ZN-AL-LG-30M-BD
    Reference no. 201733
    Load limit max [kg] 200
    Nominal chain thickness ND [mm] 6
    Chain pitch p [mm] 42
    Format Coil
    Overall length [m] 30
    Weight approx. [kg] 18.9
Load limit max [kg] 400
Nominal chain thickness ND [mm] 8
Reference no. 201734
  • Details
    DKR-DIN763-8X52-A-ZN-AL-LG-30M-BD
    Reference no. 201734
    Load limit max [kg] 400
    Nominal chain thickness ND [mm] 8
    Chain pitch p [mm] 52
    Format Coil
    Overall length [m] 30
    Weight approx. [kg] 33
Load limit max [kg] 630
Nominal chain thickness ND [mm] 10
Reference no. 201735
  • Details
    DKR-DIN763-10X65-A-ZN-AL-LGL-30M-BU
    Reference no. 201735
    Load limit max [kg] 630
    Nominal chain thickness ND [mm] 10
    Chain pitch p [mm] 65
    Format Coil
    Overall length [m] 30
    Weight approx. [kg] 52.5
