Round steel chain DIN 766

Round steel chain DIN 766

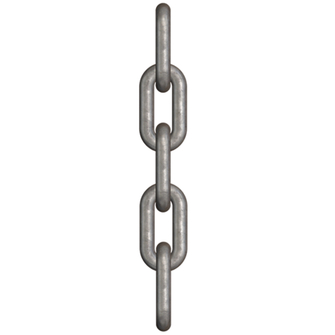

Tested short linked round steel chain in true-to-gauge version. CAUTION: Chains must not be used in chain slings.
Technical data

Standard

  • DIN 766

Chain surface

  • galvanised
Product variants
Breaking force [kN]

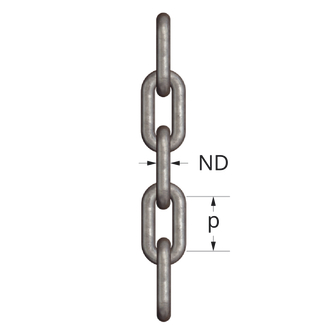

Nominal chain thickness ND [mm]
Reference no.
Details
  • 8
    4
    201726
    Rundstahlkette DIN766-4mm-4x16 -gfzn-30m Bund
    Reference no. 201726
    Breaking force [kN] 8
    Nominal chain thickness ND [mm] 4
    Chain pitch p [mm] 16
    Format Coil
    Overall length [m] 30
    Weight approx. [kg] 9.6
  • 12.5
    5
    201727
    Rundstahlkette DIN766-5mm -5x18,5-gfzn-30m Bund
    Reference no. 201727
    Breaking force [kN] 12.5
    Nominal chain thickness ND [mm] 5
    Chain pitch p [mm] 18.5
    Format Coil
    Overall length [m] 30
    Weight approx. [kg] 15
  • 16
    6
    201728
    Rundstahlkette DIN766-6mm -6x18,5-gfzn-30m Bund
    Reference no. 201728
    Breaking force [kN] 16
    Nominal chain thickness ND [mm] 6
    Chain pitch p [mm] 18.5
    Format Coil
    Overall length [m] 30
    Weight approx. [kg] 24
  • 32
    8
    201729
    Rundstahlkette DIN766-8mm-8x24 -gfzn-30m Bund
    Reference no. 201729
    Breaking force [kN] 32
    Nominal chain thickness ND [mm] 8
    Chain pitch p [mm] 24
    Format Coil
    Overall length [m] 30
    Weight approx. [kg] 42
  • 50
    10
    201730
    Rundstahlkette DIN766 30m-10mm -10x28-galv.zinc.-kurzgliedrig
    Reference no. 201730
    Breaking force [kN] 50
    Nominal chain thickness ND [mm] 10
    Chain pitch p [mm] 28
    Format Coil
    Overall length [m] 30
    Weight approx. [kg] 69
Breaking force [kN] 8
Nominal chain thickness ND [mm] 4
Reference no. 201726
  • Details
    Rundstahlkette DIN766 30m-10mm -10x28-galv.zinc.-kurzgliedrig
    Reference no. 201730
    Breaking force [kN] 50
    Nominal chain thickness ND [mm] 10
    Chain pitch p [mm] 28
    Format Coil
    Overall length [m] 30
    Weight approx. [kg] 69
Breaking force [kN] 12.5
Nominal chain thickness ND [mm] 5
Reference no. 201727
  • Details
    Rundstahlkette DIN766 30m-10mm -10x28-galv.zinc.-kurzgliedrig
    Reference no. 201730
    Breaking force [kN] 50
    Nominal chain thickness ND [mm] 10
    Chain pitch p [mm] 28
    Format Coil
    Overall length [m] 30
    Weight approx. [kg] 69
Breaking force [kN] 16
Nominal chain thickness ND [mm] 6
Reference no. 201728
  • Details
    Rundstahlkette DIN766 30m-10mm -10x28-galv.zinc.-kurzgliedrig
    Reference no. 201730
    Breaking force [kN] 50
    Nominal chain thickness ND [mm] 10
    Chain pitch p [mm] 28
    Format Coil
    Overall length [m] 30
    Weight approx. [kg] 69
Breaking force [kN] 32
Nominal chain thickness ND [mm] 8
Reference no. 201729
  • Details
    Rundstahlkette DIN766 30m-10mm -10x28-galv.zinc.-kurzgliedrig
    Reference no. 201730
    Breaking force [kN] 50
    Nominal chain thickness ND [mm] 10
    Chain pitch p [mm] 28
    Format Coil
    Overall length [m] 30
    Weight approx. [kg] 69
Breaking force [kN] 50
Nominal chain thickness ND [mm] 10
Reference no. 201730
  • Details
    Rundstahlkette DIN766 30m-10mm -10x28-galv.zinc.-kurzgliedrig
    Reference no. 201730
    Breaking force [kN] 50
    Nominal chain thickness ND [mm] 10
    Chain pitch p [mm] 28
    Format Coil
    Overall length [m] 30
    Weight approx. [kg] 69
