Abrasion protection sleeve

Abrasion protection sleeve

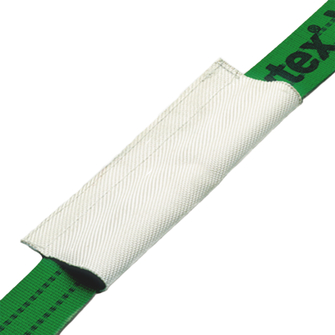

Abrasion protection sleeve with Velcro fastener made of rugged polyester for round slings over one leg and lifting straps for additional protection against rough abrasive surfaces. The fully synthetic outer coating is particularly abrasion-resistant.
Technical data

Material

  • polyester
Options

Options on request

  • Further lengths
  • Further versions
Product variants
for round slings max WLL [kg]
for lifting strap width max [mm]
Reference no.
Details
  • 2000
    60
    147555
    AMG HB60-RS2T-0.3M
    Reference no. 147555
    for round slings max WLL 2000
    for lifting strap width max [mm] 60
    Overall length L [mm] 300
    Weight approx. [kg] 0.101
  • 4000
    90
    147556
    AMG HB90-RS4T-0.3M
    Reference no. 147556
    for round slings max WLL 4000
    for lifting strap width max [mm] 90
    Overall length L [mm] 300
    Weight approx. [kg] 0.143
  • 6000
    120
    160928
    AMG HB120-RS5T6T-0.3M
    Reference no. 160928
    for round slings max WLL 6000
    for lifting strap width max [mm] 120
    Overall length L [mm] 300
    Weight approx. [kg] 0.425
  • 8000
    200
    160929
    AMG HB200-RS8T-0.3M
    Reference no. 160929
    for round slings max WLL 8000
    for lifting strap width max [mm] 200
    Overall length L [mm] 300
    Weight approx. [kg] 0.347
  • 10000
    300
    255164
    AMG HB300-RS10T-0.3M
    Reference no. 255164
    for round slings max WLL 10000
    for lifting strap width max [mm] 300
    Overall length L [mm] 300
    Weight approx. [kg] 0.833
  • 8000
    200
    515982
    AMG HB200-RS8T-1M
    Reference no. 515982
    for round slings max WLL 8000
    for lifting strap width max [mm] 200
    Overall length L [mm] 1000
    Weight approx. [kg] 1.15
for round slings max WLL 2000
for lifting strap width max [mm] 60
Reference no. 147555
  • Details
    AMG HB60-RS2T-0.3M
    Reference no. 147555
    for round slings max WLL 2000
    for lifting strap width max [mm] 60
    Overall length L [mm] 300
    Weight approx. [kg] 0.101
for round slings max WLL 4000
for lifting strap width max [mm] 90
Reference no. 147556
  • Details
    AMG HB90-RS4T-0.3M
    Reference no. 147556
    for round slings max WLL 4000
    for lifting strap width max [mm] 90
    Overall length L [mm] 300
    Weight approx. [kg] 0.143
for round slings max WLL 6000
for lifting strap width max [mm] 120
Reference no. 160928
  • Details
    AMG HB120-RS5T6T-0.3M
    Reference no. 160928
    for round slings max WLL 6000
    for lifting strap width max [mm] 120
    Overall length L [mm] 300
    Weight approx. [kg] 0.425
for round slings max WLL 8000
for lifting strap width max [mm] 200
Reference no. 160929
  • Details
    AMG HB200-RS8T-0.3M
    Reference no. 160929
    for round slings max WLL 8000
    for lifting strap width max [mm] 200
    Overall length L [mm] 300
    Weight approx. [kg] 0.347
for round slings max WLL 10000
for lifting strap width max [mm] 300
Reference no. 255164
  • Details
    AMG HB300-RS10T-0.3M
    Reference no. 255164
    for round slings max WLL 10000
    for lifting strap width max [mm] 300
    Overall length L [mm] 300
    Weight approx. [kg] 0.833
for round slings max WLL 8000
for lifting strap width max [mm] 200
Reference no. 515982
  • Details
    AMG HB200-RS8T-1M
    Reference no. 515982
    for round slings max WLL 8000
    for lifting strap width max [mm] 200
    Overall length L [mm] 1000
    Weight approx. [kg] 1.15
