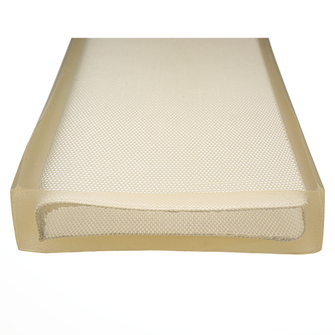

Edge protection sleeve Duplex

Edge protection sleeve Duplex
Reliable all-round protection High elasticity, structural integrity, wear resistance and cut resistance Proven under the harshest conditions.
Technical data

Operating temperature

  • 0 °C to 70 °C

Material

  • Polyester and polyurethane
Options

Options on request

  • Further lengths
Product variants
for round slings max WLL [kg]
for lifting strap width max [mm]
Effective length WLL [m]
Reference no.
Details
  • 150
    1.5
    269675
    KSP PDP-HB150-RS6T7T8T-W160-T12-A5-1.5M
    Reference no. 269675
    for lifting strap width max [mm] 150

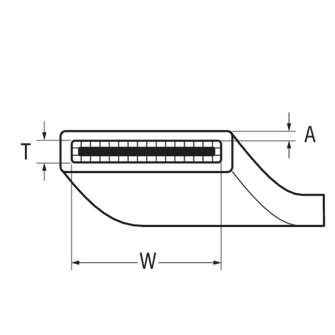

    Overall width B [mm] 170
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 160
    Clear height T [mm] 12
    Effective length WLL [m] 1.5
    Weight approx. [kg] 2.77
    verpackungsmenge_dyn_erp 1 St
  • 1
    0.4
    703717
    KSP PDP-HB30-W40-T10-A5-0.4M
    Reference no. 703717
    for round slings max WLL 1
    for 2-ply lifting strap width max 30
    Overall width B [mm] 50
    Overall height H [mm] 20
    Wall thickness hose A 5
    Clearance W 40
    Clear height T [mm] 10
    Effective length WLL [m] 0.4
    Weight approx. [kg] 0.44
    verpackungsmenge_dyn_erp 1 St
  • 1
    0.6
    703718
    KSP PDP-HB30-W40-T10-A5-0.6M
    Reference no. 703718
    for round slings max WLL 1
    for 2-ply lifting strap width max 30
    Overall width B [mm] 50
    Overall height H [mm] 20
    Wall thickness hose A 5
    Clearance W 40
    Clear height T [mm] 10
    Effective length WLL [m] 0.6
    Weight approx. [kg] 0.66
    verpackungsmenge_dyn_erp 1 St
  • 1
    1
    703719
    KSP PDP-HB30-W40-T10-A5-1M
    Reference no. 703719
    for round slings max WLL 1
    for 2-ply lifting strap width max 30
    Overall width B [mm] 50
    Overall height H [mm] 20
    Wall thickness hose A 5
    Clearance W 40
    Clear height T [mm] 10
    Effective length WLL [m] 1
    Weight approx. [kg] 1.1
    verpackungsmenge_dyn_erp 1 St
  • 1
    1.5
    703720
    KSP PDP-HB30-W40-T10-A5-1.5M
    Reference no. 703720
    for round slings max WLL 1
    for 2-ply lifting strap width max 30
    Overall width B [mm] 50
    Overall height H [mm] 20
    Wall thickness hose A 5
    Clearance W 40
    Clear height T [mm] 10
    Effective length WLL [m] 1.5
    Weight approx. [kg] 1.65
    verpackungsmenge_dyn_erp 1 St
  • 1
    2
    703721
    KSP PDP-HB30-W40-T10-A5-2M
    Reference no. 703721
    for round slings max WLL 1
    for 2-ply lifting strap width max 30
    Overall width B [mm] 50
    Overall height H [mm] 20
    Wall thickness hose A 5
    Clearance W 40
    Clear height T [mm] 10
    Effective length WLL [m] 2
    Weight approx. [kg] 2.2
    verpackungsmenge_dyn_erp 1 St
  • 1
    4
    703722
    KSP PDP-HB30-W40-T10-A5-4M
    Reference no. 703722
    for round slings max WLL 1
    for 2-ply lifting strap width max 30
    Overall width B [mm] 50
    Overall height H [mm] 20
    Wall thickness hose A 5
    Clearance W 40
    Clear height T [mm] 10
    Effective length WLL [m] 4
    Weight approx. [kg] 4.4
    verpackungsmenge_dyn_erp 1 St
  • 1000
    0.2
    703723
    KSP PDP-HB50-RS1T-W60-T12-A5-0.2M
    Reference no. 703723
    for round slings max WLL 1000
    for 2-ply lifting strap width max 50
    Overall width B [mm] 70
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 60
    Clear height T [mm] 12
    Effective length WLL [m] 0.2
    Weight approx. [kg] 0.29
    verpackungsmenge_dyn_erp 1 St
  • 1000
    0.4
    703724
    KSP PDP-HB50-RS1T-W60-T12-A5-0.4M
    Reference no. 703724
    for round slings max WLL 1000
    for 2-ply lifting strap width max 50
    Overall width B [mm] 70
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 60
    Clear height T [mm] 12
    Effective length WLL [m] 0.4
    Weight approx. [kg] 0.58
    verpackungsmenge_dyn_erp 1 St
  • 1000
    0.6
    703725
    KSP PDP-HB50-RS1T-W60-T12-A5-0.6M
    Reference no. 703725
    for round slings max WLL 1000
    for 2-ply lifting strap width max 50
    Overall width B [mm] 70
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 60
    Clear height T [mm] 12
    Effective length WLL [m] 0.6
    Weight approx. [kg] 0.87
    verpackungsmenge_dyn_erp 1 St
  • 1000
    1
    703726
    KSP PDP-HB50-RS1T-W60-T12-A5-1M
    Reference no. 703726
    for round slings max WLL 1000
    for 2-ply lifting strap width max 50
    Overall width B [mm] 70
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 60
    Clear height T [mm] 12
    Effective length WLL [m] 1
    Weight approx. [kg] 1.45
    verpackungsmenge_dyn_erp 1 St
  • 1000
    1.5
    703727
    KSP PDP-HB50-RS1T-W60-T12-A5-1.5M
    Reference no. 703727
    for round slings max WLL 1000
    for 2-ply lifting strap width max 50
    Overall width B [mm] 70
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 60
    Clear height T [mm] 12
    Effective length WLL [m] 1.5
    Weight approx. [kg] 2.175
    verpackungsmenge_dyn_erp 1 St
  • 1000
    2
    703728
    KSP PDP-HB50-RS1T-W60-T12-A5-2M
    Reference no. 703728
    for round slings max WLL 1000
    for 2-ply lifting strap width max 50
    Overall width B [mm] 70
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 60
    Clear height T [mm] 12
    Effective length WLL [m] 2
    Weight approx. [kg] 2.9
    verpackungsmenge_dyn_erp 1 St
  • 1000
    4
    703729
    KSP PDP-HB50-RS1T-W60-T12-A5-4M
    Reference no. 703729
    for round slings max WLL 1000
    for 2-ply lifting strap width max 50
    Overall width B [mm] 70
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 60
    Clear height T [mm] 12
    Effective length WLL [m] 4
    Weight approx. [kg] 5.8
    verpackungsmenge_dyn_erp 1 St
  • 3000
    0.2
    703730
    KSP PDP-RS2T3T-W85-T12-A5-0.2M
    Reference no. 703730
    for round slings max WLL 3000
    for 2-ply lifting strap width max 75
    Overall width B [mm] 95
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 85
    Clear height T [mm] 12
    Effective length WLL [m] 0.2
    Weight approx. [kg] 0.4
    verpackungsmenge_dyn_erp 1 St
  • 3000
    0.4
    703731
    KSP PDP-RS2T3T-W85-T12-A5-0.4M
    Reference no. 703731
    for round slings max WLL 3000
    for 2-ply lifting strap width max 75
    Overall width B [mm] 95
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 85
    Clear height T [mm] 12
    Effective length WLL [m] 0.4
    Weight approx. [kg] 0.8
    verpackungsmenge_dyn_erp 1 St
  • 3000
    0.6
    703732
    KSP PDP-RS2T3T-W85-T12-A5-0.6M
    Reference no. 703732
    for round slings max WLL 3000
    for 2-ply lifting strap width max 75
    Overall width B [mm] 95
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 85
    Clear height T [mm] 12
    Effective length WLL [m] 0.6
    Weight approx. [kg] 1.2
    verpackungsmenge_dyn_erp 1 St
  • 3000
    1
    703733
    KSP PDP-RS2T3T-W85-T12-A5-1M
    Reference no. 703733
    for round slings max WLL 3000
    for 2-ply lifting strap width max 75
    Overall width B [mm] 95
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 85
    Clear height T [mm] 12
    Effective length WLL [m] 1
    Weight approx. [kg] 2
    verpackungsmenge_dyn_erp 1 St
  • 3000
    1.5
    703734
    KSP PDP-RS2T3T-W85-T12-A5-1.5M
    Reference no. 703734
    for round slings max WLL 3000
    for 2-ply lifting strap width max 75
    Overall width B [mm] 95
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 85
    Clear height T [mm] 12
    Effective length WLL [m] 1.5
    Weight approx. [kg] 3
    verpackungsmenge_dyn_erp 1 St
  • 3000
    2
    703735
    KSP PDP-RS2T3T-W85-T12-A5-2M
    Reference no. 703735
    for round slings max WLL 3000
    for 2-ply lifting strap width max 75
    Overall width B [mm] 95
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 85
    Clear height T [mm] 12
    Effective length WLL [m] 2
    Weight approx. [kg] 4
    verpackungsmenge_dyn_erp 1 St
  • 3000
    4
    703736
    KSP PDP-RS2T3T-W85-T12-A5-4M
    Reference no. 703736
    for round slings max WLL 3000
    for 2-ply lifting strap width max 75
    Overall width B [mm] 95
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 85
    Clear height T [mm] 12
    Effective length WLL [m] 4
    Weight approx. [kg] 8
    verpackungsmenge_dyn_erp 1 St
  • 1
    0.2
    703737
    KSP PDP-HB90-W100-T12-A5-0.2M
    Reference no. 703737
    for round slings max WLL 1
    for 2-ply lifting strap width max 90
    Overall width B [mm] 110
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 100
    Clear height T [mm] 12
    Effective length WLL [m] 0.2
    Weight approx. [kg] 0.42
    verpackungsmenge_dyn_erp 1 St
  • 1
    0.4
    703738
    KSP PDP-HB90-W100-T12-A5-0.4M
    Reference no. 703738
    for round slings max WLL 1
    for 2-ply lifting strap width max 90
    Overall width B [mm] 110
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 100
    Clear height T [mm] 12
    Effective length WLL [m] 0.4
    Weight approx. [kg] 0.84
    verpackungsmenge_dyn_erp 1 St
  • 1
    0.6
    703739
    KSP PDP-HB90-W100-T12-A5-0.6M
    Reference no. 703739
    for round slings max WLL 1
    for 2-ply lifting strap width max 90
    Overall width B [mm] 110
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 100
    Clear height T [mm] 12
    Effective length WLL [m] 0.6
    Weight approx. [kg] 1.26
    verpackungsmenge_dyn_erp 1 St
  • 1
    1
    703740
    KSP PDP-HB90-W100-T12-A5-1M
    Reference no. 703740
    for round slings max WLL 1
    for 2-ply lifting strap width max 90
    Overall width B [mm] 110
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 100
    Clear height T [mm] 12
    Effective length WLL [m] 1
    Weight approx. [kg] 2.1
    verpackungsmenge_dyn_erp 1 St
  • 1
    1.5
    703741
    KSP PDP-HB90-W100-T12-A5-1.5M
    Reference no. 703741
    for round slings max WLL 1
    for 2-ply lifting strap width max 90
    Overall width B [mm] 110
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 100
    Clear height T [mm] 12
    Effective length WLL [m] 1.5
    Weight approx. [kg] 3.15
    verpackungsmenge_dyn_erp 1 St
  • 1
    2
    703742
    KSP PDP-HB90-W100-T12-A5-2M
    Reference no. 703742
    for round slings max WLL 1
    for 2-ply lifting strap width max 90
    Overall width B [mm] 110
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 100
    Clear height T [mm] 12
    Effective length WLL [m] 2
    Weight approx. [kg] 4.2
    verpackungsmenge_dyn_erp 1 St
  • 1
    4
    703743
    KSP PDP-HB90-W100-T12-A5-4M
    Reference no. 703743
    for round slings max WLL 1
    for 2-ply lifting strap width max 90
    Overall width B [mm] 110
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 100
    Clear height T [mm] 12
    Effective length WLL [m] 4
    Weight approx. [kg] 8.4
    verpackungsmenge_dyn_erp 1 St
  • 5000
    0.2
    703744
    KSP PDP-HB120-RS5T-W135-T12-A5-0.2M
    Reference no. 703744
    for round slings max WLL 5000
    for 2-ply lifting strap width max 120
    Overall width B [mm] 145
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 135
    Clear height T [mm] 12
    Effective length WLL [m] 0.2
    Weight approx. [kg] 0.56
    verpackungsmenge_dyn_erp 1 St
  • 5000
    0.4
    703745
    KSP PDP-HB120-RS5T-W135-T12-A5-0.4M
    Reference no. 703745
    for round slings max WLL 5000
    for 2-ply lifting strap width max 120
    Overall width B [mm] 145
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 135
    Clear height T [mm] 12
    Effective length WLL [m] 0.4
    Weight approx. [kg] 1.12
    verpackungsmenge_dyn_erp 1 St
  • 5000
    0.6
    703746
    KSP PDP-HB120-RS5T-W135-T12-A5-0.6M
    Reference no. 703746
    for round slings max WLL 5000
    for 2-ply lifting strap width max 120
    Overall width B [mm] 145
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 135
    Clear height T [mm] 12
    Effective length WLL [m] 0.6
    Weight approx. [kg] 1.68
    verpackungsmenge_dyn_erp 1 St
  • 5000
    1
    703747
    KSP PDP-HB120-RS5T-W135-T12-A5-1M
    Reference no. 703747
    for round slings max WLL 5000
    for 2-ply lifting strap width max 120
    Overall width B [mm] 145
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 135
    Clear height T [mm] 12
    Effective length WLL [m] 1
    Weight approx. [kg] 2.8
    verpackungsmenge_dyn_erp 1 St
  • 5000
    1.5
    703748
    KSP PDP-HB120-RS5T-W135-T12-A5-1.5M
    Reference no. 703748
    for round slings max WLL 5000
    for 2-ply lifting strap width max 120
    Overall width B [mm] 145
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 135
    Clear height T [mm] 12
    Effective length WLL [m] 1.5
    Weight approx. [kg] 4.2
    verpackungsmenge_dyn_erp 1 St
  • 5000
    2
    703749
    KSP PDP-HB120-RS5T-W135-T12-A5-2M
    Reference no. 703749
    for round slings max WLL 5000
    for 2-ply lifting strap width max 120
    Overall width B [mm] 145
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 135
    Clear height T [mm] 12
    Effective length WLL [m] 2
    Weight approx. [kg] 5.6
    verpackungsmenge_dyn_erp 1 St
  • 5000
    4
    703750
    KSP PDP-HB120-RS5T-W135-T12-A5-4M
    Reference no. 703750
    for round slings max WLL 5000
    for 2-ply lifting strap width max 120
    Overall width B [mm] 145
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 135
    Clear height T [mm] 12
    Effective length WLL [m] 4
    Weight approx. [kg] 11.2
    verpackungsmenge_dyn_erp 1 St
  • 8000
    0.2
    703751
    KSP PDP-HB150-RS6T7T8T-W160-T12-A5-0.2M
    Reference no. 703751
    for round slings max WLL 8000
    for 2-ply lifting strap width max 150
    Overall width B [mm] 170
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 160
    Clear height T [mm] 12
    Effective length WLL [m] 0.2
    Weight approx. [kg] 0.68
    verpackungsmenge_dyn_erp 1 St
  • 8000
    0.4
    703752
    KSP PDP-HB150-RS6T7T8T-W160-T12-A5-0.4M
    Reference no. 703752
    for round slings max WLL 8000
    for 2-ply lifting strap width max 150
    Overall width B [mm] 170
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 160
    Clear height T [mm] 12
    Effective length WLL [m] 0.4
    Weight approx. [kg] 1.36
    verpackungsmenge_dyn_erp 1 St
  • 8000
    0.6
    703753
    KSP PDP-HB150-RS6T7T8T-W160-T12-A5-0.6M
    Reference no. 703753
    for round slings max WLL 8000
    for 2-ply lifting strap width max 150
    Overall width B [mm] 170
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 160
    Clear height T [mm] 12
    Effective length WLL [m] 0.6
    Weight approx. [kg] 2.04
    verpackungsmenge_dyn_erp 1 St
  • 8000
    1
    703754
    KSP PDP-HB150-RS6T7T8T-W160-T12-A5-1M
    Reference no. 703754
    for round slings max WLL 8000
    for 2-ply lifting strap width max 150
    Overall width B [mm] 170
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 160
    Clear height T [mm] 12
    Effective length WLL [m] 1
    Weight approx. [kg] 3.4
    verpackungsmenge_dyn_erp 1 St
  • 8000
    2
    703756
    KSP PDP-HB150-RS6T7T8T-W160-T12-A5-2M
    Reference no. 703756
    for round slings max WLL 8000
    for 2-ply lifting strap width max 150
    Overall width B [mm] 170
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 160
    Clear height T [mm] 12
    Effective length WLL [m] 2
    Weight approx. [kg] 6.8
    verpackungsmenge_dyn_erp 1 St
  • 8000
    4
    703757
    KSP PDP-HB150-RS6T7T8T-W160-T12-A5-4M
    Reference no. 703757
    for round slings max WLL 8000
    for 2-ply lifting strap width max 150
    Overall width B [mm] 170
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 160
    Clear height T [mm] 12
    Effective length WLL [m] 4
    Weight approx. [kg] 13.6
    verpackungsmenge_dyn_erp 1 St
  • 10000
    0.2
    703758
    KSP PDP-HB180-RS9T10T-W190-T12-A5-0.2M
    Reference no. 703758
    for round slings max WLL 10000
    for 2-ply lifting strap width max 180
    Overall width B [mm] 200
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 190
    Clear height T [mm] 12
    Effective length WLL [m] 0.2
    Weight approx. [kg] 0.76
    verpackungsmenge_dyn_erp 1 St
  • 10000
    0.4
    703759
    KSP PDP-HB180-RS9T10T-W190-T12-A5-0.4M
    Reference no. 703759
    for round slings max WLL 10000
    for 2-ply lifting strap width max 180
    Overall width B [mm] 200
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 190
    Clear height T [mm] 12
    Effective length WLL [m] 0.4
    Weight approx. [kg] 1.52
    verpackungsmenge_dyn_erp 1 St
  • 10000
    0.6
    703760
    KSP PDP-HB180-RS9T10T-W190-T12-A5-0.6M
    Reference no. 703760
    for round slings max WLL 10000
    for 2-ply lifting strap width max 180
    Overall width B [mm] 200
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 190
    Clear height T [mm] 12
    Effective length WLL [m] 0.6
    Weight approx. [kg] 2.28
    verpackungsmenge_dyn_erp 1 St
  • 10000
    1
    703761
    KSP PDP-HB180-RS9T10T-W190-T12-A5-1M
    Reference no. 703761
    for round slings max WLL 10000
    for 2-ply lifting strap width max 180
    Overall width B [mm] 200
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 190
    Clear height T [mm] 12
    Effective length WLL [m] 1
    Weight approx. [kg] 3.8
    verpackungsmenge_dyn_erp 1 St
  • 10000
    1.5
    703950
    KSP PDP-HB180-RS9T10T-W190-T12-A5-1.5M
    Reference no. 703950
    for round slings max WLL 10000
    for 2-ply lifting strap width max 180
    Overall width B [mm] 200
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 190
    Clear height T [mm] 12
    Effective length WLL [m] 1.5
    Weight approx. [kg] 5.7
    verpackungsmenge_dyn_erp 1 St
  • 10000
    2
    703951
    KSP PDP-HB180-RS9T10T-W190-T12-A5-2M
    Reference no. 703951
    for round slings max WLL 10000
    for 2-ply lifting strap width max 180
    Overall width B [mm] 200
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 190
    Clear height T [mm] 12
    Effective length WLL [m] 2
    Weight approx. [kg] 7.6
    verpackungsmenge_dyn_erp 1 St
  • 10000
    4
    703952
    KSP PDP-HB180-RS9T10T-W190-T12-A5-4M
    Reference no. 703952
    for round slings max WLL 10000
    for 2-ply lifting strap width max 180
    Overall width B [mm] 200
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 190
    Clear height T [mm] 12
    Effective length WLL [m] 4
    Weight approx. [kg] 15.2
    verpackungsmenge_dyn_erp 1 St
  • 1
    0.2
    703953
    KSP PDP-HB200-W220-T12-A5-0.2M
    Reference no. 703953
    for round slings max WLL 1
    for 2-ply lifting strap width max 200
    Overall width B [mm] 230
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 220
    Clear height T [mm] 12
    Effective length WLL [m] 0.2
    Weight approx. [kg] 0.87
    verpackungsmenge_dyn_erp 1 St
  • 1
    0.4
    703954
    KSP PDP-HB200-W220-T12-A5-0.4M
    Reference no. 703954
    for round slings max WLL 1
    for 2-ply lifting strap width max 200
    Overall width B [mm] 230
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 220
    Clear height T [mm] 12
    Effective length WLL [m] 0.4
    Weight approx. [kg] 1.74
    verpackungsmenge_dyn_erp 1 St
  • 1
    0.6
    703955
    KSP PDP-HB200-W220-T12-A5-0.6M
    Reference no. 703955
    for round slings max WLL 1
    for 2-ply lifting strap width max 200
    Overall width B [mm] 230
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 220
    Clear height T [mm] 12
    Effective length WLL [m] 0.6
    Weight approx. [kg] 2.61
    verpackungsmenge_dyn_erp 1 St
  • 1
    1
    703956
    KSP PDP-HB200-W220-T12-A5-1M
    Reference no. 703956
    for round slings max WLL 1
    for 2-ply lifting strap width max 200
    Overall width B [mm] 230
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 220
    Clear height T [mm] 12
    Effective length WLL [m] 1
    Weight approx. [kg] 4.35
    verpackungsmenge_dyn_erp 1 St
  • 1
    1.5
    703957
    KSP PDP-HB200-W220-T12-A5-1.5M
    Reference no. 703957
    for round slings max WLL 1
    for 2-ply lifting strap width max 200
    Overall width B [mm] 230
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 220
    Clear height T [mm] 12
    Effective length WLL [m] 1.5
    Weight approx. [kg] 6.525
    verpackungsmenge_dyn_erp 1 St
  • 1
    2
    703958
    KSP PDP-HB200-W220-T12-A5-2M
    Reference no. 703958
    for round slings max WLL 1
    for 2-ply lifting strap width max 200
    Overall width B [mm] 230
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 220
    Clear height T [mm] 12
    Effective length WLL [m] 2
    Weight approx. [kg] 8.7
    verpackungsmenge_dyn_erp 1 St
  • 1
    4
    703959
    KSP PDP-HB200-W220-T12-A5-4M
    Reference no. 703959
    for round slings max WLL 1
    for 2-ply lifting strap width max 200
    Overall width B [mm] 230
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 220
    Clear height T [mm] 12
    Effective length WLL [m] 4
    Weight approx. [kg] 17.4
    verpackungsmenge_dyn_erp 1 St
  • 15000
    0.2
    703960
    KSP PDP-HB240-RS15T-W280-T15-A8-0.2M
    Reference no. 703960
    for round slings max WLL 15000
    for 2-ply lifting strap width max 240
    Overall width B [mm] 296
    Overall height H [mm] 31
    Wall thickness hose A 8
    Clearance W 280
    Clear height T [mm] 15
    Effective length WLL [m] 0.2
    Weight approx. [kg] 1.24
    verpackungsmenge_dyn_erp 1 St
  • 15000
    0.4
    703961
    KSP PDP-HB240-RS15T-W280-T15-A8-0.4M
    Reference no. 703961
    for round slings max WLL 15000
    for 2-ply lifting strap width max 240
    Overall width B [mm] 296
    Overall height H [mm] 31
    Wall thickness hose A 8
    Clearance W 280
    Clear height T [mm] 15
    Effective length WLL [m] 0.4
    Weight approx. [kg] 2.48
    verpackungsmenge_dyn_erp 1 St
  • 15000
    0.6
    703962
    KSP PDP-HB240-RS15T-W280-T15-A8-0.6M
    Reference no. 703962
    for round slings max WLL 15000
    for 2-ply lifting strap width max 240
    Overall width B [mm] 296
    Overall height H [mm] 31
    Wall thickness hose A 8
    Clearance W 280
    Clear height T [mm] 15
    Effective length WLL [m] 0.6
    Weight approx. [kg] 3.72
    verpackungsmenge_dyn_erp 1 St
  • 15000
    1
    703963
    KSP PDP-HB240-RS15T-W280-T15-A8-1M
    Reference no. 703963
    for round slings max WLL 15000
    for 2-ply lifting strap width max 240
    Overall width B [mm] 296
    Overall height H [mm] 31
    Wall thickness hose A 8
    Clearance W 280
    Clear height T [mm] 15
    Effective length WLL [m] 1
    Weight approx. [kg] 6.2
    verpackungsmenge_dyn_erp 1 St
  • 15000
    1.5
    703964
    KSP PDP-HB240-RS15T-W280-T15-A8-1.5M
    Reference no. 703964
    for round slings max WLL 15000
    for 2-ply lifting strap width max 240
    Overall width B [mm] 296
    Overall height H [mm] 31
    Wall thickness hose A 8
    Clearance W 280
    Clear height T [mm] 15
    Effective length WLL [m] 1.5
    Weight approx. [kg] 9.3
    verpackungsmenge_dyn_erp 1 St
  • 15000
    2
    703965
    KSP PDP-HB240-RS15T-W280-T15-A8-2M
    Reference no. 703965
    for round slings max WLL 15000
    for 2-ply lifting strap width max 240
    Overall width B [mm] 296
    Overall height H [mm] 31
    Wall thickness hose A 8
    Clearance W 280
    Clear height T [mm] 15
    Effective length WLL [m] 2
    Weight approx. [kg] 12.4
    verpackungsmenge_dyn_erp 1 St
  • 15000
    4
    703966
    KSP PDP-HB240-RS15T-W280-T15-A8-4M
    Reference no. 703966
    for round slings max WLL 15000
    for 2-ply lifting strap width max 240
    Overall width B [mm] 296
    Overall height H [mm] 31
    Wall thickness hose A 8
    Clearance W 280
    Clear height T [mm] 15
    Effective length WLL [m] 4
    Weight approx. [kg] 24.8
    verpackungsmenge_dyn_erp 1 St
  • 20000
    0.2
    703967
    KSP PDP-HB300-RS20T-W320-T15-A8-0.2M
    Reference no. 703967
    for round slings max WLL 20000
    for 2-ply lifting strap width max 300
    Overall width B [mm] 336
    Overall height H [mm] 31
    Wall thickness hose A 8
    Clearance W 320
    Clear height T [mm] 15
    Effective length WLL [m] 0.2
    Weight approx. [kg] 1.44
    verpackungsmenge_dyn_erp 1 St
  • 20000
    0.4
    703968
    KSP PDP-HB300-RS20T-W320-T15-A8-0.4M
    Reference no. 703968
    for round slings max WLL 20000
    for 2-ply lifting strap width max 300
    Overall width B [mm] 336
    Overall height H [mm] 31
    Wall thickness hose A 8
    Clearance W 320
    Clear height T [mm] 15
    Effective length WLL [m] 0.4
    Weight approx. [kg] 2.88
    verpackungsmenge_dyn_erp 1 St
  • 20000
    0.6
    703969
    KSP PDP-HB300-RS20T-W320-T15-A8-0.6M
    Reference no. 703969
    for round slings max WLL 20000
    for 2-ply lifting strap width max 300
    Overall width B [mm] 336
    Overall height H [mm] 31
    Wall thickness hose A 8
    Clearance W 320
    Clear height T [mm] 15
    Effective length WLL [m] 0.6
    Weight approx. [kg] 4.32
    verpackungsmenge_dyn_erp 1 St
  • 20000
    1
    703970
    KSP PDP-HB300-RS20T-W320-T15-A8-1M
    Reference no. 703970
    for round slings max WLL 20000
    for 2-ply lifting strap width max 300
    Overall width B [mm] 336
    Overall height H [mm] 31
    Wall thickness hose A 8
    Clearance W 320
    Clear height T [mm] 15
    Effective length WLL [m] 1
    Weight approx. [kg] 7.2
    verpackungsmenge_dyn_erp 1 St
  • 20000
    1.5
    703971
    KSP PDP-HB300-RS20T-W320-T15-A8-1.5M
    Reference no. 703971
    for round slings max WLL 20000
    for 2-ply lifting strap width max 300
    Overall width B [mm] 336
    Overall height H [mm] 31
    Wall thickness hose A 8
    Clearance W 320
    Clear height T [mm] 15
    Effective length WLL [m] 1.5
    Weight approx. [kg] 10.8
    verpackungsmenge_dyn_erp 1 St
  • 20000
    2
    703972
    KSP PDP-HB300-RS20T-W320-T15-A8-2M
    Reference no. 703972
    for round slings max WLL 20000
    for 2-ply lifting strap width max 300
    Overall width B [mm] 336
    Overall height H [mm] 31
    Wall thickness hose A 8
    Clearance W 320
    Clear height T [mm] 15
    Effective length WLL [m] 2
    Weight approx. [kg] 14.4
    verpackungsmenge_dyn_erp 1 St
  • 20000
    4
    703973
    KSP PDP-HB300-RS20T-W320-T15-A8-4M
    Reference no. 703973
    for round slings max WLL 20000
    for 2-ply lifting strap width max 300
    Overall width B [mm] 336
    Overall height H [mm] 31
    Wall thickness hose A 8
    Clearance W 320
    Clear height T [mm] 15
    Effective length WLL [m] 4
    Weight approx. [kg] 28.8
    verpackungsmenge_dyn_erp 1 St
for lifting strap width max [mm] 150
Effective length WLL [m] 1.5
Reference no. 269675
  • Details
    KSP PDP-HB150-RS6T7T8T-W160-T12-A5-1.5M
    Reference no. 269675
    for lifting strap width max [mm] 150
    Overall width B [mm] 170
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 160
    Clear height T [mm] 12
    Effective length WLL [m] 1.5
    Weight approx. [kg] 2.77
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 1
Effective length WLL [m] 0.4
Reference no. 703717
  • Details
    KSP PDP-HB30-W40-T10-A5-0.4M
    Reference no. 703717
    for round slings max WLL 1
    for 2-ply lifting strap width max 30
    Overall width B [mm] 50
    Overall height H [mm] 20
    Wall thickness hose A 5
    Clearance W 40
    Clear height T [mm] 10
    Effective length WLL [m] 0.4
    Weight approx. [kg] 0.44
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 1
Effective length WLL [m] 0.6
Reference no. 703718
  • Details
    KSP PDP-HB30-W40-T10-A5-0.6M
    Reference no. 703718
    for round slings max WLL 1
    for 2-ply lifting strap width max 30
    Overall width B [mm] 50
    Overall height H [mm] 20
    Wall thickness hose A 5
    Clearance W 40
    Clear height T [mm] 10
    Effective length WLL [m] 0.6
    Weight approx. [kg] 0.66
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 1
Effective length WLL [m] 1
Reference no. 703719
  • Details
    KSP PDP-HB30-W40-T10-A5-1M
    Reference no. 703719
    for round slings max WLL 1
    for 2-ply lifting strap width max 30
    Overall width B [mm] 50
    Overall height H [mm] 20
    Wall thickness hose A 5
    Clearance W 40
    Clear height T [mm] 10
    Effective length WLL [m] 1
    Weight approx. [kg] 1.1
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 1
Effective length WLL [m] 1.5
Reference no. 703720
  • Details
    KSP PDP-HB30-W40-T10-A5-1.5M
    Reference no. 703720
    for round slings max WLL 1
    for 2-ply lifting strap width max 30
    Overall width B [mm] 50
    Overall height H [mm] 20
    Wall thickness hose A 5
    Clearance W 40
    Clear height T [mm] 10
    Effective length WLL [m] 1.5
    Weight approx. [kg] 1.65
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 1
Effective length WLL [m] 2
Reference no. 703721
  • Details
    KSP PDP-HB30-W40-T10-A5-2M
    Reference no. 703721
    for round slings max WLL 1
    for 2-ply lifting strap width max 30
    Overall width B [mm] 50
    Overall height H [mm] 20
    Wall thickness hose A 5
    Clearance W 40
    Clear height T [mm] 10
    Effective length WLL [m] 2
    Weight approx. [kg] 2.2
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 1
Effective length WLL [m] 4
Reference no. 703722
  • Details
    KSP PDP-HB30-W40-T10-A5-4M
    Reference no. 703722
    for round slings max WLL 1
    for 2-ply lifting strap width max 30
    Overall width B [mm] 50
    Overall height H [mm] 20
    Wall thickness hose A 5
    Clearance W 40
    Clear height T [mm] 10
    Effective length WLL [m] 4
    Weight approx. [kg] 4.4
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 1000
Effective length WLL [m] 0.2
Reference no. 703723
  • Details
    KSP PDP-HB50-RS1T-W60-T12-A5-0.2M
    Reference no. 703723
    for round slings max WLL 1000
    for 2-ply lifting strap width max 50
    Overall width B [mm] 70
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 60
    Clear height T [mm] 12
    Effective length WLL [m] 0.2
    Weight approx. [kg] 0.29
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 1000
Effective length WLL [m] 0.4
Reference no. 703724
  • Details
    KSP PDP-HB50-RS1T-W60-T12-A5-0.4M
    Reference no. 703724
    for round slings max WLL 1000
    for 2-ply lifting strap width max 50
    Overall width B [mm] 70
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 60
    Clear height T [mm] 12
    Effective length WLL [m] 0.4
    Weight approx. [kg] 0.58
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 1000
Effective length WLL [m] 0.6
Reference no. 703725
  • Details
    KSP PDP-HB50-RS1T-W60-T12-A5-0.6M
    Reference no. 703725
    for round slings max WLL 1000
    for 2-ply lifting strap width max 50
    Overall width B [mm] 70
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 60
    Clear height T [mm] 12
    Effective length WLL [m] 0.6
    Weight approx. [kg] 0.87
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 1000
Effective length WLL [m] 1
Reference no. 703726
  • Details
    KSP PDP-HB50-RS1T-W60-T12-A5-1M
    Reference no. 703726
    for round slings max WLL 1000
    for 2-ply lifting strap width max 50
    Overall width B [mm] 70
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 60
    Clear height T [mm] 12
    Effective length WLL [m] 1
    Weight approx. [kg] 1.45
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 1000
Effective length WLL [m] 1.5
Reference no. 703727
  • Details
    KSP PDP-HB50-RS1T-W60-T12-A5-1.5M
    Reference no. 703727
    for round slings max WLL 1000
    for 2-ply lifting strap width max 50
    Overall width B [mm] 70
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 60
    Clear height T [mm] 12
    Effective length WLL [m] 1.5
    Weight approx. [kg] 2.175
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 1000
Effective length WLL [m] 2
Reference no. 703728
  • Details
    KSP PDP-HB50-RS1T-W60-T12-A5-2M
    Reference no. 703728
    for round slings max WLL 1000
    for 2-ply lifting strap width max 50
    Overall width B [mm] 70
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 60
    Clear height T [mm] 12
    Effective length WLL [m] 2
    Weight approx. [kg] 2.9
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 1000
Effective length WLL [m] 4
Reference no. 703729
  • Details
    KSP PDP-HB50-RS1T-W60-T12-A5-4M
    Reference no. 703729
    for round slings max WLL 1000
    for 2-ply lifting strap width max 50
    Overall width B [mm] 70
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 60
    Clear height T [mm] 12
    Effective length WLL [m] 4
    Weight approx. [kg] 5.8
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 3000
Effective length WLL [m] 0.2
Reference no. 703730
  • Details
    KSP PDP-RS2T3T-W85-T12-A5-0.2M
    Reference no. 703730
    for round slings max WLL 3000
    for 2-ply lifting strap width max 75
    Overall width B [mm] 95
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 85
    Clear height T [mm] 12
    Effective length WLL [m] 0.2
    Weight approx. [kg] 0.4
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 3000
Effective length WLL [m] 0.4
Reference no. 703731
  • Details
    KSP PDP-RS2T3T-W85-T12-A5-0.4M
    Reference no. 703731
    for round slings max WLL 3000
    for 2-ply lifting strap width max 75
    Overall width B [mm] 95
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 85
    Clear height T [mm] 12
    Effective length WLL [m] 0.4
    Weight approx. [kg] 0.8
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 3000
Effective length WLL [m] 0.6
Reference no. 703732
  • Details
    KSP PDP-RS2T3T-W85-T12-A5-0.6M
    Reference no. 703732
    for round slings max WLL 3000
    for 2-ply lifting strap width max 75
    Overall width B [mm] 95
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 85
    Clear height T [mm] 12
    Effective length WLL [m] 0.6
    Weight approx. [kg] 1.2
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 3000
Effective length WLL [m] 1
Reference no. 703733
  • Details
    KSP PDP-RS2T3T-W85-T12-A5-1M
    Reference no. 703733
    for round slings max WLL 3000
    for 2-ply lifting strap width max 75
    Overall width B [mm] 95
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 85
    Clear height T [mm] 12
    Effective length WLL [m] 1
    Weight approx. [kg] 2
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 3000
Effective length WLL [m] 1.5
Reference no. 703734
  • Details
    KSP PDP-RS2T3T-W85-T12-A5-1.5M
    Reference no. 703734
    for round slings max WLL 3000
    for 2-ply lifting strap width max 75
    Overall width B [mm] 95
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 85
    Clear height T [mm] 12
    Effective length WLL [m] 1.5
    Weight approx. [kg] 3
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 3000
Effective length WLL [m] 2
Reference no. 703735
  • Details
    KSP PDP-RS2T3T-W85-T12-A5-2M
    Reference no. 703735
    for round slings max WLL 3000
    for 2-ply lifting strap width max 75
    Overall width B [mm] 95
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 85
    Clear height T [mm] 12
    Effective length WLL [m] 2
    Weight approx. [kg] 4
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 3000
Effective length WLL [m] 4
Reference no. 703736
  • Details
    KSP PDP-RS2T3T-W85-T12-A5-4M
    Reference no. 703736
    for round slings max WLL 3000
    for 2-ply lifting strap width max 75
    Overall width B [mm] 95
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 85
    Clear height T [mm] 12
    Effective length WLL [m] 4
    Weight approx. [kg] 8
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 1
Effective length WLL [m] 0.2
Reference no. 703737
  • Details
    KSP PDP-HB90-W100-T12-A5-0.2M
    Reference no. 703737
    for round slings max WLL 1
    for 2-ply lifting strap width max 90
    Overall width B [mm] 110
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 100
    Clear height T [mm] 12
    Effective length WLL [m] 0.2
    Weight approx. [kg] 0.42
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 1
Effective length WLL [m] 0.4
Reference no. 703738
  • Details
    KSP PDP-HB90-W100-T12-A5-0.4M
    Reference no. 703738
    for round slings max WLL 1
    for 2-ply lifting strap width max 90
    Overall width B [mm] 110
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 100
    Clear height T [mm] 12
    Effective length WLL [m] 0.4
    Weight approx. [kg] 0.84
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 1
Effective length WLL [m] 0.6
Reference no. 703739
  • Details
    KSP PDP-HB90-W100-T12-A5-0.6M
    Reference no. 703739
    for round slings max WLL 1
    for 2-ply lifting strap width max 90
    Overall width B [mm] 110
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 100
    Clear height T [mm] 12
    Effective length WLL [m] 0.6
    Weight approx. [kg] 1.26
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 1
Effective length WLL [m] 1
Reference no. 703740
  • Details
    KSP PDP-HB90-W100-T12-A5-1M
    Reference no. 703740
    for round slings max WLL 1
    for 2-ply lifting strap width max 90
    Overall width B [mm] 110
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 100
    Clear height T [mm] 12
    Effective length WLL [m] 1
    Weight approx. [kg] 2.1
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 1
Effective length WLL [m] 1.5
Reference no. 703741
  • Details
    KSP PDP-HB90-W100-T12-A5-1.5M
    Reference no. 703741
    for round slings max WLL 1
    for 2-ply lifting strap width max 90
    Overall width B [mm] 110
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 100
    Clear height T [mm] 12
    Effective length WLL [m] 1.5
    Weight approx. [kg] 3.15
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 1
Effective length WLL [m] 2
Reference no. 703742
  • Details
    KSP PDP-HB90-W100-T12-A5-2M
    Reference no. 703742
    for round slings max WLL 1
    for 2-ply lifting strap width max 90
    Overall width B [mm] 110
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 100
    Clear height T [mm] 12
    Effective length WLL [m] 2
    Weight approx. [kg] 4.2
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 1
Effective length WLL [m] 4
Reference no. 703743
  • Details
    KSP PDP-HB90-W100-T12-A5-4M
    Reference no. 703743
    for round slings max WLL 1
    for 2-ply lifting strap width max 90
    Overall width B [mm] 110
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 100
    Clear height T [mm] 12
    Effective length WLL [m] 4
    Weight approx. [kg] 8.4
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 5000
Effective length WLL [m] 0.2
Reference no. 703744
  • Details
    KSP PDP-HB120-RS5T-W135-T12-A5-0.2M
    Reference no. 703744
    for round slings max WLL 5000
    for 2-ply lifting strap width max 120
    Overall width B [mm] 145
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 135
    Clear height T [mm] 12
    Effective length WLL [m] 0.2
    Weight approx. [kg] 0.56
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 5000
Effective length WLL [m] 0.4
Reference no. 703745
  • Details
    KSP PDP-HB120-RS5T-W135-T12-A5-0.4M
    Reference no. 703745
    for round slings max WLL 5000
    for 2-ply lifting strap width max 120
    Overall width B [mm] 145
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 135
    Clear height T [mm] 12
    Effective length WLL [m] 0.4
    Weight approx. [kg] 1.12
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 5000
Effective length WLL [m] 0.6
Reference no. 703746
  • Details
    KSP PDP-HB120-RS5T-W135-T12-A5-0.6M
    Reference no. 703746
    for round slings max WLL 5000
    for 2-ply lifting strap width max 120
    Overall width B [mm] 145
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 135
    Clear height T [mm] 12
    Effective length WLL [m] 0.6
    Weight approx. [kg] 1.68
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 5000
Effective length WLL [m] 1
Reference no. 703747
  • Details
    KSP PDP-HB120-RS5T-W135-T12-A5-1M
    Reference no. 703747
    for round slings max WLL 5000
    for 2-ply lifting strap width max 120
    Overall width B [mm] 145
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 135
    Clear height T [mm] 12
    Effective length WLL [m] 1
    Weight approx. [kg] 2.8
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 5000
Effective length WLL [m] 1.5
Reference no. 703748
  • Details
    KSP PDP-HB120-RS5T-W135-T12-A5-1.5M
    Reference no. 703748
    for round slings max WLL 5000
    for 2-ply lifting strap width max 120
    Overall width B [mm] 145
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 135
    Clear height T [mm] 12
    Effective length WLL [m] 1.5
    Weight approx. [kg] 4.2
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 5000
Effective length WLL [m] 2
Reference no. 703749
  • Details
    KSP PDP-HB120-RS5T-W135-T12-A5-2M
    Reference no. 703749
    for round slings max WLL 5000
    for 2-ply lifting strap width max 120
    Overall width B [mm] 145
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 135
    Clear height T [mm] 12
    Effective length WLL [m] 2
    Weight approx. [kg] 5.6
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 5000
Effective length WLL [m] 4
Reference no. 703750
  • Details
    KSP PDP-HB120-RS5T-W135-T12-A5-4M
    Reference no. 703750
    for round slings max WLL 5000
    for 2-ply lifting strap width max 120
    Overall width B [mm] 145
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 135
    Clear height T [mm] 12
    Effective length WLL [m] 4
    Weight approx. [kg] 11.2
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 8000
Effective length WLL [m] 0.2
Reference no. 703751
  • Details
    KSP PDP-HB150-RS6T7T8T-W160-T12-A5-0.2M
    Reference no. 703751
    for round slings max WLL 8000
    for 2-ply lifting strap width max 150
    Overall width B [mm] 170
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 160
    Clear height T [mm] 12
    Effective length WLL [m] 0.2
    Weight approx. [kg] 0.68
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 8000
Effective length WLL [m] 0.4
Reference no. 703752
  • Details
    KSP PDP-HB150-RS6T7T8T-W160-T12-A5-0.4M
    Reference no. 703752
    for round slings max WLL 8000
    for 2-ply lifting strap width max 150
    Overall width B [mm] 170
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 160
    Clear height T [mm] 12
    Effective length WLL [m] 0.4
    Weight approx. [kg] 1.36
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 8000
Effective length WLL [m] 0.6
Reference no. 703753
  • Details
    KSP PDP-HB150-RS6T7T8T-W160-T12-A5-0.6M
    Reference no. 703753
    for round slings max WLL 8000
    for 2-ply lifting strap width max 150
    Overall width B [mm] 170
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 160
    Clear height T [mm] 12
    Effective length WLL [m] 0.6
    Weight approx. [kg] 2.04
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 8000
Effective length WLL [m] 1
Reference no. 703754
  • Details
    KSP PDP-HB150-RS6T7T8T-W160-T12-A5-1M
    Reference no. 703754
    for round slings max WLL 8000
    for 2-ply lifting strap width max 150
    Overall width B [mm] 170
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 160
    Clear height T [mm] 12
    Effective length WLL [m] 1
    Weight approx. [kg] 3.4
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 8000
Effective length WLL [m] 2
Reference no. 703756
  • Details
    KSP PDP-HB150-RS6T7T8T-W160-T12-A5-2M
    Reference no. 703756
    for round slings max WLL 8000
    for 2-ply lifting strap width max 150
    Overall width B [mm] 170
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 160
    Clear height T [mm] 12
    Effective length WLL [m] 2
    Weight approx. [kg] 6.8
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 8000
Effective length WLL [m] 4
Reference no. 703757
  • Details
    KSP PDP-HB150-RS6T7T8T-W160-T12-A5-4M
    Reference no. 703757
    for round slings max WLL 8000
    for 2-ply lifting strap width max 150
    Overall width B [mm] 170
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 160
    Clear height T [mm] 12
    Effective length WLL [m] 4
    Weight approx. [kg] 13.6
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 10000
Effective length WLL [m] 0.2
Reference no. 703758
  • Details
    KSP PDP-HB180-RS9T10T-W190-T12-A5-0.2M
    Reference no. 703758
    for round slings max WLL 10000
    for 2-ply lifting strap width max 180
    Overall width B [mm] 200
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 190
    Clear height T [mm] 12
    Effective length WLL [m] 0.2
    Weight approx. [kg] 0.76
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 10000
Effective length WLL [m] 0.4
Reference no. 703759
  • Details
    KSP PDP-HB180-RS9T10T-W190-T12-A5-0.4M
    Reference no. 703759
    for round slings max WLL 10000
    for 2-ply lifting strap width max 180
    Overall width B [mm] 200
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 190
    Clear height T [mm] 12
    Effective length WLL [m] 0.4
    Weight approx. [kg] 1.52
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 10000
Effective length WLL [m] 0.6
Reference no. 703760
  • Details
    KSP PDP-HB180-RS9T10T-W190-T12-A5-0.6M
    Reference no. 703760
    for round slings max WLL 10000
    for 2-ply lifting strap width max 180
    Overall width B [mm] 200
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 190
    Clear height T [mm] 12
    Effective length WLL [m] 0.6
    Weight approx. [kg] 2.28
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 10000
Effective length WLL [m] 1
Reference no. 703761
  • Details
    KSP PDP-HB180-RS9T10T-W190-T12-A5-1M
    Reference no. 703761
    for round slings max WLL 10000
    for 2-ply lifting strap width max 180
    Overall width B [mm] 200
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 190
    Clear height T [mm] 12
    Effective length WLL [m] 1
    Weight approx. [kg] 3.8
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 10000
Effective length WLL [m] 1.5
Reference no. 703950
  • Details
    KSP PDP-HB180-RS9T10T-W190-T12-A5-1.5M
    Reference no. 703950
    for round slings max WLL 10000
    for 2-ply lifting strap width max 180
    Overall width B [mm] 200
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 190
    Clear height T [mm] 12
    Effective length WLL [m] 1.5
    Weight approx. [kg] 5.7
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 10000
Effective length WLL [m] 2
Reference no. 703951
  • Details
    KSP PDP-HB180-RS9T10T-W190-T12-A5-2M
    Reference no. 703951
    for round slings max WLL 10000
    for 2-ply lifting strap width max 180
    Overall width B [mm] 200
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 190
    Clear height T [mm] 12
    Effective length WLL [m] 2
    Weight approx. [kg] 7.6
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 10000
Effective length WLL [m] 4
Reference no. 703952
  • Details
    KSP PDP-HB180-RS9T10T-W190-T12-A5-4M
    Reference no. 703952
    for round slings max WLL 10000
    for 2-ply lifting strap width max 180
    Overall width B [mm] 200
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 190
    Clear height T [mm] 12
    Effective length WLL [m] 4
    Weight approx. [kg] 15.2
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 1
Effective length WLL [m] 0.2
Reference no. 703953
  • Details
    KSP PDP-HB200-W220-T12-A5-0.2M
    Reference no. 703953
    for round slings max WLL 1
    for 2-ply lifting strap width max 200
    Overall width B [mm] 230
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 220
    Clear height T [mm] 12
    Effective length WLL [m] 0.2
    Weight approx. [kg] 0.87
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 1
Effective length WLL [m] 0.4
Reference no. 703954
  • Details
    KSP PDP-HB200-W220-T12-A5-0.4M
    Reference no. 703954
    for round slings max WLL 1
    for 2-ply lifting strap width max 200
    Overall width B [mm] 230
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 220
    Clear height T [mm] 12
    Effective length WLL [m] 0.4
    Weight approx. [kg] 1.74
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 1
Effective length WLL [m] 0.6
Reference no. 703955
  • Details
    KSP PDP-HB200-W220-T12-A5-0.6M
    Reference no. 703955
    for round slings max WLL 1
    for 2-ply lifting strap width max 200
    Overall width B [mm] 230
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 220
    Clear height T [mm] 12
    Effective length WLL [m] 0.6
    Weight approx. [kg] 2.61
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 1
Effective length WLL [m] 1
Reference no. 703956
  • Details
    KSP PDP-HB200-W220-T12-A5-1M
    Reference no. 703956
    for round slings max WLL 1
    for 2-ply lifting strap width max 200
    Overall width B [mm] 230
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 220
    Clear height T [mm] 12
    Effective length WLL [m] 1
    Weight approx. [kg] 4.35
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 1
Effective length WLL [m] 1.5
Reference no. 703957
  • Details
    KSP PDP-HB200-W220-T12-A5-1.5M
    Reference no. 703957
    for round slings max WLL 1
    for 2-ply lifting strap width max 200
    Overall width B [mm] 230
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 220
    Clear height T [mm] 12
    Effective length WLL [m] 1.5
    Weight approx. [kg] 6.525
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 1
Effective length WLL [m] 2
Reference no. 703958
  • Details
    KSP PDP-HB200-W220-T12-A5-2M
    Reference no. 703958
    for round slings max WLL 1
    for 2-ply lifting strap width max 200
    Overall width B [mm] 230
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 220
    Clear height T [mm] 12
    Effective length WLL [m] 2
    Weight approx. [kg] 8.7
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 1
Effective length WLL [m] 4
Reference no. 703959
  • Details
    KSP PDP-HB200-W220-T12-A5-4M
    Reference no. 703959
    for round slings max WLL 1
    for 2-ply lifting strap width max 200
    Overall width B [mm] 230
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 220
    Clear height T [mm] 12
    Effective length WLL [m] 4
    Weight approx. [kg] 17.4
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 15000
Effective length WLL [m] 0.2
Reference no. 703960
  • Details
    KSP PDP-HB240-RS15T-W280-T15-A8-0.2M
    Reference no. 703960
    for round slings max WLL 15000
    for 2-ply lifting strap width max 240
    Overall width B [mm] 296
    Overall height H [mm] 31
    Wall thickness hose A 8
    Clearance W 280
    Clear height T [mm] 15
    Effective length WLL [m] 0.2
    Weight approx. [kg] 1.24
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 15000
Effective length WLL [m] 0.4
Reference no. 703961
  • Details
    KSP PDP-HB240-RS15T-W280-T15-A8-0.4M
    Reference no. 703961
    for round slings max WLL 15000
    for 2-ply lifting strap width max 240
    Overall width B [mm] 296
    Overall height H [mm] 31
    Wall thickness hose A 8
    Clearance W 280
    Clear height T [mm] 15
    Effective length WLL [m] 0.4
    Weight approx. [kg] 2.48
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 15000
Effective length WLL [m] 0.6
Reference no. 703962
  • Details
    KSP PDP-HB240-RS15T-W280-T15-A8-0.6M
    Reference no. 703962
    for round slings max WLL 15000
    for 2-ply lifting strap width max 240
    Overall width B [mm] 296
    Overall height H [mm] 31
    Wall thickness hose A 8
    Clearance W 280
    Clear height T [mm] 15
    Effective length WLL [m] 0.6
    Weight approx. [kg] 3.72
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 15000
Effective length WLL [m] 1
Reference no. 703963
  • Details
    KSP PDP-HB240-RS15T-W280-T15-A8-1M
    Reference no. 703963
    for round slings max WLL 15000
    for 2-ply lifting strap width max 240
    Overall width B [mm] 296
    Overall height H [mm] 31
    Wall thickness hose A 8
    Clearance W 280
    Clear height T [mm] 15
    Effective length WLL [m] 1
    Weight approx. [kg] 6.2
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 15000
Effective length WLL [m] 1.5
Reference no. 703964
  • Details
    KSP PDP-HB240-RS15T-W280-T15-A8-1.5M
    Reference no. 703964
    for round slings max WLL 15000
    for 2-ply lifting strap width max 240
    Overall width B [mm] 296
    Overall height H [mm] 31
    Wall thickness hose A 8
    Clearance W 280
    Clear height T [mm] 15
    Effective length WLL [m] 1.5
    Weight approx. [kg] 9.3
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 15000
Effective length WLL [m] 2
Reference no. 703965
  • Details
    KSP PDP-HB240-RS15T-W280-T15-A8-2M
    Reference no. 703965
    for round slings max WLL 15000
    for 2-ply lifting strap width max 240
    Overall width B [mm] 296
    Overall height H [mm] 31
    Wall thickness hose A 8
    Clearance W 280
    Clear height T [mm] 15
    Effective length WLL [m] 2
    Weight approx. [kg] 12.4
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 15000
Effective length WLL [m] 4
Reference no. 703966
  • Details
    KSP PDP-HB240-RS15T-W280-T15-A8-4M
    Reference no. 703966
    for round slings max WLL 15000
    for 2-ply lifting strap width max 240
    Overall width B [mm] 296
    Overall height H [mm] 31
    Wall thickness hose A 8
    Clearance W 280
    Clear height T [mm] 15
    Effective length WLL [m] 4
    Weight approx. [kg] 24.8
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 20000
Effective length WLL [m] 0.2
Reference no. 703967
  • Details
    KSP PDP-HB300-RS20T-W320-T15-A8-0.2M
    Reference no. 703967
    for round slings max WLL 20000
    for 2-ply lifting strap width max 300
    Overall width B [mm] 336
    Overall height H [mm] 31
    Wall thickness hose A 8
    Clearance W 320
    Clear height T [mm] 15
    Effective length WLL [m] 0.2
    Weight approx. [kg] 1.44
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 20000
Effective length WLL [m] 0.4
Reference no. 703968
  • Details
    KSP PDP-HB300-RS20T-W320-T15-A8-0.4M
    Reference no. 703968
    for round slings max WLL 20000
    for 2-ply lifting strap width max 300
    Overall width B [mm] 336
    Overall height H [mm] 31
    Wall thickness hose A 8
    Clearance W 320
    Clear height T [mm] 15
    Effective length WLL [m] 0.4
    Weight approx. [kg] 2.88
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 20000
Effective length WLL [m] 0.6
Reference no. 703969
  • Details
    KSP PDP-HB300-RS20T-W320-T15-A8-0.6M
    Reference no. 703969
    for round slings max WLL 20000
    for 2-ply lifting strap width max 300
    Overall width B [mm] 336
    Overall height H [mm] 31
    Wall thickness hose A 8
    Clearance W 320
    Clear height T [mm] 15
    Effective length WLL [m] 0.6
    Weight approx. [kg] 4.32
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 20000
Effective length WLL [m] 1
Reference no. 703970
  • Details
    KSP PDP-HB300-RS20T-W320-T15-A8-1M
    Reference no. 703970
    for round slings max WLL 20000
    for 2-ply lifting strap width max 300
    Overall width B [mm] 336
    Overall height H [mm] 31
    Wall thickness hose A 8
    Clearance W 320
    Clear height T [mm] 15
    Effective length WLL [m] 1
    Weight approx. [kg] 7.2
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 20000
Effective length WLL [m] 1.5
Reference no. 703971
  • Details
    KSP PDP-HB300-RS20T-W320-T15-A8-1.5M
    Reference no. 703971
    for round slings max WLL 20000
    for 2-ply lifting strap width max 300
    Overall width B [mm] 336
    Overall height H [mm] 31
    Wall thickness hose A 8
    Clearance W 320
    Clear height T [mm] 15
    Effective length WLL [m] 1.5
    Weight approx. [kg] 10.8
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 20000
Effective length WLL [m] 2
Reference no. 703972
  • Details
    KSP PDP-HB300-RS20T-W320-T15-A8-2M
    Reference no. 703972
    for round slings max WLL 20000
    for 2-ply lifting strap width max 300
    Overall width B [mm] 336
    Overall height H [mm] 31
    Wall thickness hose A 8
    Clearance W 320
    Clear height T [mm] 15
    Effective length WLL [m] 2
    Weight approx. [kg] 14.4
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 20000
Effective length WLL [m] 4
Reference no. 703973
  • Details
    KSP PDP-HB300-RS20T-W320-T15-A8-4M
    Reference no. 703973
    for round slings max WLL 20000
    for 2-ply lifting strap width max 300
    Overall width B [mm] 336
    Overall height H [mm] 31
    Wall thickness hose A 8
    Clearance W 320
    Clear height T [mm] 15
    Effective length WLL [m] 4
    Weight approx. [kg] 28.8
    verpackungsmenge_dyn_erp 1 St
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Tel. +49 8331 937-9623
Fax +49 8331 937-380
E-Mail verkauf-azs@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
 Service centre
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Academy
Tel. +49 8331 937-462
E-Mail academy@pfeifer.de
Web www.pfeifer.info
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
France
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +33 676 54 42 68 / +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Poland
 PFEIFER Technika Linowa i Dźwigowa Sp. z o.o.
ul. Wrocławska 68
55-330 Krępice k/Wrocławia
Tel. +48 71 30 23 700
E-Mail info@pfeifer.pl
Web www.pfeifer.pl
 Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
