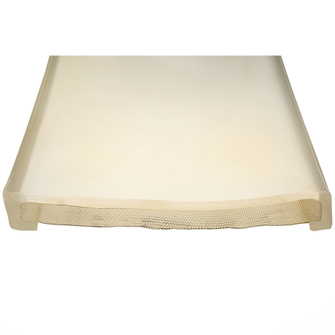

Edge protection sleeve Simplex

Edge protection sleeve Simplex
Single-sided PU-coated fabric hose with high elasticity, structural integrity, wear resistance and cut resistance.
Technical data

Operating temperature

  • 0 °C to 70 °C

Material

  • Polyester and polyurethane
Options

Options on request

  • Further lengths
Product variants
for round slings max WLL [kg]
Effective length WLL [m]
Reference no.
Details
  • 1000
    0.2
    703974
    KSP PSP-HB30-W40-T10-A5-0.2M
    Reference no. 703974
    for round slings max WLL 1000
    for 2-ply lifting strap width max 30

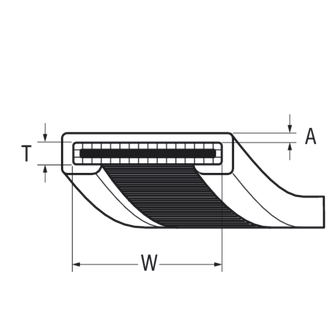

    Overall width B [mm] 70
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 60
    Clear height T [mm] 12
    Effective length WLL [m] 0.2
    Weight approx. [kg] 0.17
    verpackungsmenge_dyn_erp 1 St
  • 1000
    0.4
    703975
    KSP PSP-HB30-W40-T10-A5-0.4M
    Reference no. 703975
    for round slings max WLL 1000
    for 2-ply lifting strap width max 30
    Overall width B [mm] 70
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 60
    Clear height T [mm] 12
    Effective length WLL [m] 0.4
    Weight approx. [kg] 0.34
    verpackungsmenge_dyn_erp 1 St
  • 1000
    0.6
    703976
    KSP PSP-HB30-W40-T10-A5-0.6M
    Reference no. 703976
    for round slings max WLL 1000
    for 2-ply lifting strap width max 30
    Overall width B [mm] 70
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 60
    Clear height T [mm] 12
    Effective length WLL [m] 0.6
    Weight approx. [kg] 0.51
    verpackungsmenge_dyn_erp 1 St
  • 1000
    1
    703977
    KSP PSP-HB30-W40-T10-A5-1M
    Reference no. 703977
    for round slings max WLL 1000
    for 2-ply lifting strap width max 30
    Overall width B [mm] 70
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 60
    Clear height T [mm] 12
    Effective length WLL [m] 1
    Weight approx. [kg] 0.85
    verpackungsmenge_dyn_erp 1 St
  • 1000
    1.5
    703978
    KSP PSP-HB30-W40-T10-A5-1.5M
    Reference no. 703978
    for round slings max WLL 1000
    for 2-ply lifting strap width max 30
    Overall width B [mm] 70
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 60
    Clear height T [mm] 12
    Effective length WLL [m] 1.5
    Weight approx. [kg] 1.275
    verpackungsmenge_dyn_erp 1 St
  • 1000
    2
    703979
    KSP PSP-HB30-W40-T10-A5-2M
    Reference no. 703979
    for round slings max WLL 1000
    for 2-ply lifting strap width max 30
    Overall width B [mm] 70
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 60
    Clear height T [mm] 12
    Effective length WLL [m] 2
    Weight approx. [kg] 1.7
    verpackungsmenge_dyn_erp 1 St
  • 1000
    4
    703980
    KSP PSP-HB30-W40-T10-A5-4M
    Reference no. 703980
    for round slings max WLL 1000
    for 2-ply lifting strap width max 30
    Overall width B [mm] 70
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 60
    Clear height T [mm] 12
    Effective length WLL [m] 4
    Weight approx. [kg] 3.4
    verpackungsmenge_dyn_erp 1 St
  • 1000
    0.2
    703981
    KSP PSP-HB50-RS1T-W60-T12-A5-0.2M
    Reference no. 703981
    for round slings max WLL 1000
    for 2-ply lifting strap width max 50
    Overall width B [mm] 70
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 60
    Clear height T [mm] 12
    Effective length WLL [m] 0.2
    Weight approx. [kg] 0.25
    verpackungsmenge_dyn_erp 1 St
  • 1000
    0.4
    703982
    KSP PSP-HB50-RS1T-W60-T12-A5-0.4M
    Reference no. 703982
    for round slings max WLL 1000
    for 2-ply lifting strap width max 50
    Overall width B [mm] 70
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 60
    Clear height T [mm] 12
    Effective length WLL [m] 0.4
    Weight approx. [kg] 0.5
    verpackungsmenge_dyn_erp 1 St
  • 1000
    0.6
    703983
    KSP PSP-HB50-RS1T-W60-T12-A5-0.6M
    Reference no. 703983
    for round slings max WLL 1000
    for 2-ply lifting strap width max 50
    Overall width B [mm] 70
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 60
    Clear height T [mm] 12
    Effective length WLL [m] 0.6
    Weight approx. [kg] 0.75
    verpackungsmenge_dyn_erp 1 St
  • 1000
    1
    703984
    KSP PSP-HB50-RS1T-W60-T12-A5-1M
    Reference no. 703984
    for round slings max WLL 1000
    for 2-ply lifting strap width max 50
    Overall width B [mm] 70
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 60
    Clear height T [mm] 12
    Effective length WLL [m] 1
    Weight approx. [kg] 1.25
    verpackungsmenge_dyn_erp 1 St
  • 1000
    1.5
    703985
    KSP PSP-HB50-RS1T-W60-T12-A5-1.5M
    Reference no. 703985
    for round slings max WLL 1000
    for 2-ply lifting strap width max 50
    Overall width B [mm] 70
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 60
    Clear height T [mm] 12
    Effective length WLL [m] 1.5
    Weight approx. [kg] 1.875
    verpackungsmenge_dyn_erp 1 St
  • 1000
    2
    703986
    KSP PSP-HB50-RS1T-W60-T12-A5-2M
    Reference no. 703986
    for round slings max WLL 1000
    for 2-ply lifting strap width max 50
    Overall width B [mm] 70
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 60
    Clear height T [mm] 12
    Effective length WLL [m] 2
    Weight approx. [kg] 2.5
    verpackungsmenge_dyn_erp 1 St
  • 1000
    4
    703987
    KSP PSP-HB50-RS1T-W60-T12-A5-4M
    Reference no. 703987
    for round slings max WLL 1000
    for 2-ply lifting strap width max 50
    Overall width B [mm] 70
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 60
    Clear height T [mm] 12
    Effective length WLL [m] 4
    Weight approx. [kg] 5
    verpackungsmenge_dyn_erp 1 St
  • 3000
    0.2
    703988
    KSP PSP-HB75-RS2T3T-W85-T12-A5-0.2M
    Reference no. 703988
    for round slings max WLL 3000
    for 2-ply lifting strap width max 75
    Overall width B [mm] 95
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 85
    Clear height T [mm] 12
    Effective length WLL [m] 0.2
    Weight approx. [kg] 0.28
    verpackungsmenge_dyn_erp 1 St
  • 3000
    0.4
    703989
    KSP PSP-HB75-RS2T3T-W85-T12-A5-0.4M
    Reference no. 703989
    for round slings max WLL 3000
    for 2-ply lifting strap width max 75
    Overall width B [mm] 95
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 85
    Clear height T [mm] 12
    Effective length WLL [m] 0.4
    Weight approx. [kg] 0.56
    verpackungsmenge_dyn_erp 1 St
  • 3000
    0.6
    703990
    KSP PSP-HB75-RS2T3T-W85-T12-A5-0.6M
    Reference no. 703990
    for round slings max WLL 3000
    for 2-ply lifting strap width max 75
    Overall width B [mm] 95
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 85
    Clear height T [mm] 12
    Effective length WLL [m] 0.6
    Weight approx. [kg] 0.84
    verpackungsmenge_dyn_erp 1 St
  • 3000
    1
    703991
    KSP PSP-HB75-RS2T3T-W85-T12-A5-1M
    Reference no. 703991
    for round slings max WLL 3000
    for 2-ply lifting strap width max 75
    Overall width B [mm] 95
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 85
    Clear height T [mm] 12
    Effective length WLL [m] 1
    Weight approx. [kg] 1.4
    verpackungsmenge_dyn_erp 1 St
  • 3000
    1.5
    703992
    KSP PSP-HB75-RS2T3T-W85-T12-A5-1.5M
    Reference no. 703992
    for round slings max WLL 3000
    for 2-ply lifting strap width max 75
    Overall width B [mm] 95
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 85
    Clear height T [mm] 12
    Effective length WLL [m] 1.5
    Weight approx. [kg] 2.1
    verpackungsmenge_dyn_erp 1 St
  • 3000
    2
    703993
    KSP PSP-HB75-RS2T3T-W85-T12-A5-2M
    Reference no. 703993
    for round slings max WLL 3000
    for 2-ply lifting strap width max 75
    Overall width B [mm] 95
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 85
    Clear height T [mm] 12
    Effective length WLL [m] 2
    Weight approx. [kg] 2.8
    verpackungsmenge_dyn_erp 1 St
  • 3000
    4
    703994
    KSP PSP-HB75-RS2T3T-W85-T12-A5-4M
    Reference no. 703994
    for round slings max WLL 3000
    for 2-ply lifting strap width max 75
    Overall width B [mm] 95
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 85
    Clear height T [mm] 12
    Effective length WLL [m] 4
    Weight approx. [kg] 5.6
    verpackungsmenge_dyn_erp 1 St
  • 3000
    0.2
    703995
    KSP PSP-HB90-W100-T12-A5-0.2M
    Reference no. 703995
    for round slings max WLL 3000
    for 2-ply lifting strap width max 75
    Overall width B [mm] 95
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 85
    Clear height T [mm] 12
    Effective length WLL [m] 0.2
    Weight approx. [kg] 0.31
    verpackungsmenge_dyn_erp 1 St
  • 3000
    0.4
    703996
    KSP PSP-HB90-W100-T12-A5-0.4M
    Reference no. 703996
    for round slings max WLL 3000
    for 2-ply lifting strap width max 75
    Overall width B [mm] 95
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 85
    Clear height T [mm] 12
    Effective length WLL [m] 0.4
    Weight approx. [kg] 0.62
    verpackungsmenge_dyn_erp 1 St
  • 3000
    0.6
    703997
    KSP PSP-HB90-W100-T12-A5-0.6M
    Reference no. 703997
    for round slings max WLL 3000
    for 2-ply lifting strap width max 75
    Overall width B [mm] 95
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 85
    Clear height T [mm] 12
    Effective length WLL [m] 0.6
    Weight approx. [kg] 0.93
    verpackungsmenge_dyn_erp 1 St
  • 3000
    1
    703998
    KSP PSP-HB90-W100-T12-A5-1M
    Reference no. 703998
    for round slings max WLL 3000
    for 2-ply lifting strap width max 75
    Overall width B [mm] 95
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 85
    Clear height T [mm] 12
    Effective length WLL [m] 1
    Weight approx. [kg] 1.55
    verpackungsmenge_dyn_erp 1 St
  • 3000
    1.5
    703999
    KSP PSP-HB90-W100-T12-A5-1.5M
    Reference no. 703999
    for round slings max WLL 3000
    for 2-ply lifting strap width max 75
    Overall width B [mm] 95
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 85
    Clear height T [mm] 12
    Effective length WLL [m] 1.5
    Weight approx. [kg] 2.325
    verpackungsmenge_dyn_erp 1 St
  • 3000
    2
    704000
    KSP PSP-HB90-W100-T12-A5-2M
    Reference no. 704000
    for round slings max WLL 3000
    for 2-ply lifting strap width max 75
    Overall width B [mm] 95
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 85
    Clear height T [mm] 12
    Effective length WLL [m] 2
    Weight approx. [kg] 3.1
    verpackungsmenge_dyn_erp 1 St
  • 3000
    4
    704001
    KSP PSP-HB90-W100-T12-A5-4M
    Reference no. 704001
    for round slings max WLL 3000
    for 2-ply lifting strap width max 75
    Overall width B [mm] 95
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 85
    Clear height T [mm] 12
    Effective length WLL [m] 4
    Weight approx. [kg] 6.2
    verpackungsmenge_dyn_erp 1 St
  • 5000
    0.2
    704002
    KSP PSP-HB120-RS5T-W135-T12-A5-0.2M
    Reference no. 704002
    for round slings max WLL 5000
    for 2-ply lifting strap width max 120
    Overall width B [mm] 145
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 135
    Clear height T [mm] 12
    Effective length WLL [m] 0.2
    Weight approx. [kg] 0.4
    verpackungsmenge_dyn_erp 1 St
  • 5000
    0.4
    704003
    KSP PSP-HB120-RS5T-W135-T12-A5-0.4M
    Reference no. 704003
    for round slings max WLL 5000
    for 2-ply lifting strap width max 120
    Overall width B [mm] 145
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 135
    Clear height T [mm] 12
    Effective length WLL [m] 0.4
    Weight approx. [kg] 0.8
    verpackungsmenge_dyn_erp 1 St
  • 5000
    0.6
    704004
    KSP PSP-HB120-RS5T-W135-T12-A5-0.6M
    Reference no. 704004
    for round slings max WLL 5000
    for 2-ply lifting strap width max 120
    Overall width B [mm] 145
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 135
    Clear height T [mm] 12
    Effective length WLL [m] 0.6
    Weight approx. [kg] 1.2
    verpackungsmenge_dyn_erp 1 St
  • 5000
    1
    704005
    KSP PSP-HB120-RS5T-W135-T12-A5-1M
    Reference no. 704005
    for round slings max WLL 5000
    for 2-ply lifting strap width max 120
    Overall width B [mm] 145
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 135
    Clear height T [mm] 12
    Effective length WLL [m] 1
    Weight approx. [kg] 2
    verpackungsmenge_dyn_erp 1 St
  • 5000
    1.5
    704006
    KSP PSP-HB120-RS5T-W135-T12-A5-1.5M
    Reference no. 704006
    for round slings max WLL 5000
    for 2-ply lifting strap width max 120
    Overall width B [mm] 145
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 135
    Clear height T [mm] 12
    Effective length WLL [m] 1.5
    Weight approx. [kg] 3
    verpackungsmenge_dyn_erp 1 St
  • 5000
    2
    704007
    KSP PSP-HB120-RS5T-W135-T12-A5-2M
    Reference no. 704007
    for round slings max WLL 5000
    for 2-ply lifting strap width max 120
    Overall width B [mm] 145
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 135
    Clear height T [mm] 12
    Effective length WLL [m] 2
    Weight approx. [kg] 4
    verpackungsmenge_dyn_erp 1 St
  • 5000
    4
    704008
    KSP PSP-HB120-RS5T-W135-T12-A5-4M
    Reference no. 704008
    for round slings max WLL 5000
    for 2-ply lifting strap width max 120
    Overall width B [mm] 145
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 135
    Clear height T [mm] 12
    Effective length WLL [m] 4
    Weight approx. [kg] 8
    verpackungsmenge_dyn_erp 1 St
  • 8000
    0.2
    704009
    KSP PSP-HB150-RS6T7T8T-W160-T12-A5-0.2M
    Reference no. 704009
    for round slings max WLL 8000
    for 2-ply lifting strap width max 150
    Overall width B [mm] 170
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 160
    Clear height T [mm] 12
    Effective length WLL [m] 0.2
    Weight approx. [kg] 0.46
    verpackungsmenge_dyn_erp 1 St
  • 8000
    0.4
    704010
    KSP PSP-HB150-RS6T7T8T-W160-T12-A5-0.4M
    Reference no. 704010
    for round slings max WLL 8000
    for 2-ply lifting strap width max 150
    Overall width B [mm] 170
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 160
    Clear height T [mm] 12
    Effective length WLL [m] 0.4
    Weight approx. [kg] 0.92
    verpackungsmenge_dyn_erp 1 St
  • 8000
    0.6
    704011
    KSP PSP-HB150-RS6T7T8T-W160-T12-A5-0.6M
    Reference no. 704011
    for round slings max WLL 8000
    for 2-ply lifting strap width max 150
    Overall width B [mm] 170
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 160
    Clear height T [mm] 12
    Effective length WLL [m] 0.6
    Weight approx. [kg] 1.38
    verpackungsmenge_dyn_erp 1 St
  • 8000
    1
    704012
    KSP PSP-HB150-RS6T7T8T-W160-T12-A5-1M
    Reference no. 704012
    for round slings max WLL 8000
    for 2-ply lifting strap width max 150
    Overall width B [mm] 170
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 160
    Clear height T [mm] 12
    Effective length WLL [m] 1
    Weight approx. [kg] 2.3
    verpackungsmenge_dyn_erp 1 St
  • 8000
    1.5
    704013
    KSP PSP-HB150-RS6T7T8T-W160-T12-A5-1.5M
    Reference no. 704013
    for round slings max WLL 8000
    for 2-ply lifting strap width max 150
    Overall width B [mm] 170
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 160
    Clear height T [mm] 12
    Effective length WLL [m] 1.5
    Weight approx. [kg] 3.45
    verpackungsmenge_dyn_erp 1 St
  • 8000
    2
    704014
    KSP PSP-HB150-RS6T7T8T-W160-T12-A5-2M
    Reference no. 704014
    for round slings max WLL 8000
    for 2-ply lifting strap width max 150
    Overall width B [mm] 170
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 160
    Clear height T [mm] 12
    Effective length WLL [m] 2
    Weight approx. [kg] 4.6
    verpackungsmenge_dyn_erp 1 St
  • 8000
    4
    704015
    KSP PSP-HB150-RS6T7T8T-W160-T12-A5-4M
    Reference no. 704015
    for round slings max WLL 8000
    for 2-ply lifting strap width max 150
    Overall width B [mm] 170
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 160
    Clear height T [mm] 12
    Effective length WLL [m] 4
    Weight approx. [kg] 9.2
    verpackungsmenge_dyn_erp 1 St
  • 10000
    0.2
    704016
    KSP PSP-HB180-RS9T10T-W190-T12-A5-0.2M
    Reference no. 704016
    for round slings max WLL 10000
    for 2-ply lifting strap width max 180
    Overall width B [mm] 200
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 190
    Clear height T [mm] 12
    Effective length WLL [m] 0.2
    Weight approx. [kg] 0.52
    verpackungsmenge_dyn_erp 1 St
  • 10000
    0.4
    704017
    KSP PSP-HB180-RS9T10T-W190-T12-A5-0.4M
    Reference no. 704017
    for round slings max WLL 10000
    for 2-ply lifting strap width max 180
    Overall width B [mm] 200
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 190
    Clear height T [mm] 12
    Effective length WLL [m] 0.4
    Weight approx. [kg] 1.04
    verpackungsmenge_dyn_erp 1 St
  • 10000
    0.6
    704018
    KSP PSP-HB180-RS9T10T-W190-T12-A5-0.6M
    Reference no. 704018
    for round slings max WLL 10000
    for 2-ply lifting strap width max 180
    Overall width B [mm] 200
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 190
    Clear height T [mm] 12
    Effective length WLL [m] 0.6
    Weight approx. [kg] 1.56
    verpackungsmenge_dyn_erp 1 St
  • 10000
    1
    704019
    KSP PSP-HB180-RS9T10T-W190-T12-A5-1M
    Reference no. 704019
    for round slings max WLL 10000
    for 2-ply lifting strap width max 180
    Overall width B [mm] 200
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 190
    Clear height T [mm] 12
    Effective length WLL [m] 1
    Weight approx. [kg] 2.6
    verpackungsmenge_dyn_erp 1 St
  • 10000
    1.5
    704020
    KSP PSP-HB180-RS9T10T-W190-T12-A5-1.5M
    Reference no. 704020
    for round slings max WLL 10000
    for 2-ply lifting strap width max 180
    Overall width B [mm] 200
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 190
    Clear height T [mm] 12
    Effective length WLL [m] 1.5
    Weight approx. [kg] 3.9
    verpackungsmenge_dyn_erp 1 St
  • 10000
    2
    704021
    KSP PSP-HB180-RS9T10T-W190-T12-A5-2M
    Reference no. 704021
    for round slings max WLL 10000
    for 2-ply lifting strap width max 180
    Overall width B [mm] 200
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 190
    Clear height T [mm] 12
    Effective length WLL [m] 2
    Weight approx. [kg] 5.2
    verpackungsmenge_dyn_erp 1 St
  • 10000
    4
    704022
    KSP PSP-HB180-RS9T10T-W190-T12-A5-4M
    Reference no. 704022
    for round slings max WLL 10000
    for 2-ply lifting strap width max 180
    Overall width B [mm] 200
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 190
    Clear height T [mm] 12
    Effective length WLL [m] 4
    Weight approx. [kg] 10.4
    verpackungsmenge_dyn_erp 1 St
  • 10000
    0.2
    704023
    KSP PSP-HB200-W220-T12-A5-0.2M
    Reference no. 704023
    for round slings max WLL 10000
    for 2-ply lifting strap width max 180
    Overall width B [mm] 200
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 190
    Clear height T [mm] 12
    Effective length WLL [m] 0.2
    Weight approx. [kg] 0.6
    verpackungsmenge_dyn_erp 1 St
  • 10000
    0.4
    704024
    KSP PSP-HB200-W220-T12-A5-0.4M
    Reference no. 704024
    for round slings max WLL 10000
    for 2-ply lifting strap width max 180
    Overall width B [mm] 200
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 190
    Clear height T [mm] 12
    Effective length WLL [m] 0.4
    Weight approx. [kg] 1.2
    verpackungsmenge_dyn_erp 1 St
  • 10000
    0.6
    704025
    KSP PSP-HB200-W220-T12-A5-0.6M
    Reference no. 704025
    for round slings max WLL 10000
    for 2-ply lifting strap width max 180
    Overall width B [mm] 200
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 190
    Clear height T [mm] 12
    Effective length WLL [m] 0.6
    Weight approx. [kg] 1.8
    verpackungsmenge_dyn_erp 1 St
  • 10000
    1
    704026
    KSP PSP-HB200-W220-T12-A5-1M
    Reference no. 704026
    for round slings max WLL 10000
    for 2-ply lifting strap width max 180
    Overall width B [mm] 200
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 190
    Clear height T [mm] 12
    Effective length WLL [m] 1
    Weight approx. [kg] 3
    verpackungsmenge_dyn_erp 1 St
  • 10000
    1.5
    704027
    KSP PSP-HB200-W220-T12-A5-1.5M
    Reference no. 704027
    for round slings max WLL 10000
    for 2-ply lifting strap width max 180
    Overall width B [mm] 200
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 190
    Clear height T [mm] 12
    Effective length WLL [m] 1.5
    Weight approx. [kg] 4.5
    verpackungsmenge_dyn_erp 1 St
  • 10000
    2
    704028
    KSP PSP-HB200-W220-T12-A5-2M
    Reference no. 704028
    for round slings max WLL 10000
    for 2-ply lifting strap width max 180
    Overall width B [mm] 200
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 190
    Clear height T [mm] 12
    Effective length WLL [m] 2
    Weight approx. [kg] 6
    verpackungsmenge_dyn_erp 1 St
  • 10000
    4
    704029
    KSP PSP-HB200-W220-T12-A5-4M
    Reference no. 704029
    for round slings max WLL 10000
    for 2-ply lifting strap width max 180
    Overall width B [mm] 200
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 190
    Clear height T [mm] 12
    Effective length WLL [m] 4
    Weight approx. [kg] 9
    verpackungsmenge_dyn_erp 1 St
  • 15000
    0.2
    704030
    KSP PSP-HB240-RS15T-W280-T15-A8-0.2M
    Reference no. 704030
    for round slings max WLL 15000
    for 2-ply lifting strap width max 240
    Overall width B [mm] 296
    Overall height H [mm] 31
    Wall thickness hose A 8
    Clearance W 280
    Clear height T [mm] 15
    Effective length WLL [m] 0.2
    Weight approx. [kg] 0.8
    verpackungsmenge_dyn_erp 1 St
  • 15000
    0.4
    704031
    KSP PSP-HB240-RS15T-W280-T15-A8-0.4M
    Reference no. 704031
    for round slings max WLL 15000
    for 2-ply lifting strap width max 240
    Overall width B [mm] 296
    Overall height H [mm] 31
    Wall thickness hose A 8
    Clearance W 280
    Clear height T [mm] 15
    Effective length WLL [m] 0.4
    Weight approx. [kg] 1.6
    verpackungsmenge_dyn_erp 1 St
  • 15000
    0.6
    704032
    KSP PSP-HB240-RS15T-W280-T15-A8-0.6M
    Reference no. 704032
    for round slings max WLL 15000
    for 2-ply lifting strap width max 240
    Overall width B [mm] 296
    Overall height H [mm] 31
    Wall thickness hose A 8
    Clearance W 280
    Clear height T [mm] 15
    Effective length WLL [m] 0.6
    Weight approx. [kg] 2.4
    verpackungsmenge_dyn_erp 1 St
  • 15000
    1
    704033
    KSP PSP-HB240-RS15T-W280-T15-A8-1M
    Reference no. 704033
    for round slings max WLL 15000
    for 2-ply lifting strap width max 240
    Overall width B [mm] 296
    Overall height H [mm] 31
    Wall thickness hose A 8
    Clearance W 280
    Clear height T [mm] 15
    Effective length WLL [m] 1
    Weight approx. [kg] 4
    verpackungsmenge_dyn_erp 1 St
  • 15000
    1.5
    704034
    KSP PSP-HB240-RS15T-W280-T15-A8-1.5M
    Reference no. 704034
    for round slings max WLL 15000
    for 2-ply lifting strap width max 240
    Overall width B [mm] 296
    Overall height H [mm] 31
    Wall thickness hose A 8
    Clearance W 280
    Clear height T [mm] 15
    Effective length WLL [m] 1.5
    Weight approx. [kg] 6
    verpackungsmenge_dyn_erp 1 St
  • 15000
    2
    704035
    KSP PSP-HB240-RS15T-W280-T15-A8-2M
    Reference no. 704035
    for round slings max WLL 15000
    for 2-ply lifting strap width max 240
    Overall width B [mm] 296
    Overall height H [mm] 31
    Wall thickness hose A 8
    Clearance W 280
    Clear height T [mm] 15
    Effective length WLL [m] 2
    Weight approx. [kg] 8
    verpackungsmenge_dyn_erp 1 St
  • 15000
    4
    704036
    KSP PSP-HB240-RS15T-W280-T15-A8-4M
    Reference no. 704036
    for round slings max WLL 15000
    for 2-ply lifting strap width max 240
    Overall width B [mm] 296
    Overall height H [mm] 31
    Wall thickness hose A 8
    Clearance W 280
    Clear height T [mm] 15
    Effective length WLL [m] 4
    Weight approx. [kg] 16
    verpackungsmenge_dyn_erp 1 St
  • 20000
    0.2
    704037
    KSP PSP-HB300-RS20T-W320-T15-A8-0.2M
    Reference no. 704037
    for round slings max WLL 20000
    for 2-ply lifting strap width max 300
    Overall width B [mm] 336
    Overall height H [mm] 31
    Wall thickness hose A 8
    Clearance W 320
    Clear height T [mm] 15
    Effective length WLL [m] 0.2
    Weight approx. [kg] 0.88
    verpackungsmenge_dyn_erp 1 St
  • 20000
    0.4
    704038
    KSP PSP-HB300-RS20T-W320-T15-A8-0.4M
    Reference no. 704038
    for round slings max WLL 20000
    for 2-ply lifting strap width max 300
    Overall width B [mm] 336
    Overall height H [mm] 31
    Wall thickness hose A 8
    Clearance W 320
    Clear height T [mm] 15
    Effective length WLL [m] 0.4
    Weight approx. [kg] 1.76
    verpackungsmenge_dyn_erp 1 St
  • 20000
    0.6
    704039
    KSP PSP-HB300-RS20T-W320-T15-A8-0.6M
    Reference no. 704039
    for round slings max WLL 20000
    for 2-ply lifting strap width max 300
    Overall width B [mm] 336
    Overall height H [mm] 31
    Wall thickness hose A 8
    Clearance W 320
    Clear height T [mm] 15
    Effective length WLL [m] 0.6
    Weight approx. [kg] 2.64
    verpackungsmenge_dyn_erp 1 St
  • 20000
    1
    704040
    KSP PSP-HB300-RS20T-W320-T15-A8-1M
    Reference no. 704040
    for round slings max WLL 20000
    for 2-ply lifting strap width max 300
    Overall width B [mm] 336
    Overall height H [mm] 31
    Wall thickness hose A 8
    Clearance W 320
    Clear height T [mm] 15
    Effective length WLL [m] 1
    Weight approx. [kg] 4.4
    verpackungsmenge_dyn_erp 1 St
  • 20000
    1.5
    704041
    KSP PSP-HB300-RS20T-W320-T15-A8-1.5M
    Reference no. 704041
    for round slings max WLL 20000
    for 2-ply lifting strap width max 300
    Overall width B [mm] 336
    Overall height H [mm] 31
    Wall thickness hose A 8
    Clearance W 320
    Clear height T [mm] 15
    Effective length WLL [m] 1.5
    Weight approx. [kg] 6.6
    verpackungsmenge_dyn_erp 1 St
  • 20000
    2
    704042
    KSP PSP-HB300-RS20T-W320-T15-A8-2M
    Reference no. 704042
    for round slings max WLL 20000
    for 2-ply lifting strap width max 300
    Overall width B [mm] 336
    Overall height H [mm] 31
    Wall thickness hose A 8
    Clearance W 320
    Clear height T [mm] 15
    Effective length WLL [m] 2
    Weight approx. [kg] 8.8
    verpackungsmenge_dyn_erp 1 St
  • 20000
    4
    704043
    KSP PSP-HB300-RS20T-W320-T15-A8-4M
    Reference no. 704043
    for round slings max WLL 20000
    for 2-ply lifting strap width max 300
    Overall width B [mm] 336
    Overall height H [mm] 31
    Wall thickness hose A 8
    Clearance W 320
    Clear height T [mm] 15
    Effective length WLL [m] 4
    Weight approx. [kg] 17.6
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 1000
Effective length WLL [m] 0.2
Reference no. 703974
  • Details
    KSP PSP-HB30-W40-T10-A5-0.2M
    Reference no. 703974
    for round slings max WLL 1000
    for 2-ply lifting strap width max 30
    Overall width B [mm] 70
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 60
    Clear height T [mm] 12
    Effective length WLL [m] 0.2
    Weight approx. [kg] 0.17
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 1000
Effective length WLL [m] 0.4
Reference no. 703975
  • Details
    KSP PSP-HB30-W40-T10-A5-0.4M
    Reference no. 703975
    for round slings max WLL 1000
    for 2-ply lifting strap width max 30
    Overall width B [mm] 70
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 60
    Clear height T [mm] 12
    Effective length WLL [m] 0.4
    Weight approx. [kg] 0.34
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 1000
Effective length WLL [m] 0.6
Reference no. 703976
  • Details
    KSP PSP-HB30-W40-T10-A5-0.6M
    Reference no. 703976
    for round slings max WLL 1000
    for 2-ply lifting strap width max 30
    Overall width B [mm] 70
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 60
    Clear height T [mm] 12
    Effective length WLL [m] 0.6
    Weight approx. [kg] 0.51
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 1000
Effective length WLL [m] 1
Reference no. 703977
  • Details
    KSP PSP-HB30-W40-T10-A5-1M
    Reference no. 703977
    for round slings max WLL 1000
    for 2-ply lifting strap width max 30
    Overall width B [mm] 70
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 60
    Clear height T [mm] 12
    Effective length WLL [m] 1
    Weight approx. [kg] 0.85
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 1000
Effective length WLL [m] 1.5
Reference no. 703978
  • Details
    KSP PSP-HB30-W40-T10-A5-1.5M
    Reference no. 703978
    for round slings max WLL 1000
    for 2-ply lifting strap width max 30
    Overall width B [mm] 70
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 60
    Clear height T [mm] 12
    Effective length WLL [m] 1.5
    Weight approx. [kg] 1.275
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 1000
Effective length WLL [m] 2
Reference no. 703979
  • Details
    KSP PSP-HB30-W40-T10-A5-2M
    Reference no. 703979
    for round slings max WLL 1000
    for 2-ply lifting strap width max 30
    Overall width B [mm] 70
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 60
    Clear height T [mm] 12
    Effective length WLL [m] 2
    Weight approx. [kg] 1.7
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 1000
Effective length WLL [m] 4
Reference no. 703980
  • Details
    KSP PSP-HB30-W40-T10-A5-4M
    Reference no. 703980
    for round slings max WLL 1000
    for 2-ply lifting strap width max 30
    Overall width B [mm] 70
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 60
    Clear height T [mm] 12
    Effective length WLL [m] 4
    Weight approx. [kg] 3.4
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 1000
Effective length WLL [m] 0.2
Reference no. 703981
  • Details
    KSP PSP-HB50-RS1T-W60-T12-A5-0.2M
    Reference no. 703981
    for round slings max WLL 1000
    for 2-ply lifting strap width max 50
    Overall width B [mm] 70
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 60
    Clear height T [mm] 12
    Effective length WLL [m] 0.2
    Weight approx. [kg] 0.25
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 1000
Effective length WLL [m] 0.4
Reference no. 703982
  • Details
    KSP PSP-HB50-RS1T-W60-T12-A5-0.4M
    Reference no. 703982
    for round slings max WLL 1000
    for 2-ply lifting strap width max 50
    Overall width B [mm] 70
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 60
    Clear height T [mm] 12
    Effective length WLL [m] 0.4
    Weight approx. [kg] 0.5
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 1000
Effective length WLL [m] 0.6
Reference no. 703983
  • Details
    KSP PSP-HB50-RS1T-W60-T12-A5-0.6M
    Reference no. 703983
    for round slings max WLL 1000
    for 2-ply lifting strap width max 50
    Overall width B [mm] 70
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 60
    Clear height T [mm] 12
    Effective length WLL [m] 0.6
    Weight approx. [kg] 0.75
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 1000
Effective length WLL [m] 1
Reference no. 703984
  • Details
    KSP PSP-HB50-RS1T-W60-T12-A5-1M
    Reference no. 703984
    for round slings max WLL 1000
    for 2-ply lifting strap width max 50
    Overall width B [mm] 70
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 60
    Clear height T [mm] 12
    Effective length WLL [m] 1
    Weight approx. [kg] 1.25
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 1000
Effective length WLL [m] 1.5
Reference no. 703985
  • Details
    KSP PSP-HB50-RS1T-W60-T12-A5-1.5M
    Reference no. 703985
    for round slings max WLL 1000
    for 2-ply lifting strap width max 50
    Overall width B [mm] 70
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 60
    Clear height T [mm] 12
    Effective length WLL [m] 1.5
    Weight approx. [kg] 1.875
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 1000
Effective length WLL [m] 2
Reference no. 703986
  • Details
    KSP PSP-HB50-RS1T-W60-T12-A5-2M
    Reference no. 703986
    for round slings max WLL 1000
    for 2-ply lifting strap width max 50
    Overall width B [mm] 70
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 60
    Clear height T [mm] 12
    Effective length WLL [m] 2
    Weight approx. [kg] 2.5
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 1000
Effective length WLL [m] 4
Reference no. 703987
  • Details
    KSP PSP-HB50-RS1T-W60-T12-A5-4M
    Reference no. 703987
    for round slings max WLL 1000
    for 2-ply lifting strap width max 50
    Overall width B [mm] 70
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 60
    Clear height T [mm] 12
    Effective length WLL [m] 4
    Weight approx. [kg] 5
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 3000
Effective length WLL [m] 0.2
Reference no. 703988
  • Details
    KSP PSP-HB75-RS2T3T-W85-T12-A5-0.2M
    Reference no. 703988
    for round slings max WLL 3000
    for 2-ply lifting strap width max 75
    Overall width B [mm] 95
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 85
    Clear height T [mm] 12
    Effective length WLL [m] 0.2
    Weight approx. [kg] 0.28
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 3000
Effective length WLL [m] 0.4
Reference no. 703989
  • Details
    KSP PSP-HB75-RS2T3T-W85-T12-A5-0.4M
    Reference no. 703989
    for round slings max WLL 3000
    for 2-ply lifting strap width max 75
    Overall width B [mm] 95
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 85
    Clear height T [mm] 12
    Effective length WLL [m] 0.4
    Weight approx. [kg] 0.56
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 3000
Effective length WLL [m] 0.6
Reference no. 703990
  • Details
    KSP PSP-HB75-RS2T3T-W85-T12-A5-0.6M
    Reference no. 703990
    for round slings max WLL 3000
    for 2-ply lifting strap width max 75
    Overall width B [mm] 95
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 85
    Clear height T [mm] 12
    Effective length WLL [m] 0.6
    Weight approx. [kg] 0.84
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 3000
Effective length WLL [m] 1
Reference no. 703991
  • Details
    KSP PSP-HB75-RS2T3T-W85-T12-A5-1M
    Reference no. 703991
    for round slings max WLL 3000
    for 2-ply lifting strap width max 75
    Overall width B [mm] 95
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 85
    Clear height T [mm] 12
    Effective length WLL [m] 1
    Weight approx. [kg] 1.4
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 3000
Effective length WLL [m] 1.5
Reference no. 703992
  • Details
    KSP PSP-HB75-RS2T3T-W85-T12-A5-1.5M
    Reference no. 703992
    for round slings max WLL 3000
    for 2-ply lifting strap width max 75
    Overall width B [mm] 95
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 85
    Clear height T [mm] 12
    Effective length WLL [m] 1.5
    Weight approx. [kg] 2.1
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 3000
Effective length WLL [m] 2
Reference no. 703993
  • Details
    KSP PSP-HB75-RS2T3T-W85-T12-A5-2M
    Reference no. 703993
    for round slings max WLL 3000
    for 2-ply lifting strap width max 75
    Overall width B [mm] 95
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 85
    Clear height T [mm] 12
    Effective length WLL [m] 2
    Weight approx. [kg] 2.8
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 3000
Effective length WLL [m] 4
Reference no. 703994
  • Details
    KSP PSP-HB75-RS2T3T-W85-T12-A5-4M
    Reference no. 703994
    for round slings max WLL 3000
    for 2-ply lifting strap width max 75
    Overall width B [mm] 95
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 85
    Clear height T [mm] 12
    Effective length WLL [m] 4
    Weight approx. [kg] 5.6
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 3000
Effective length WLL [m] 0.2
Reference no. 703995
  • Details
    KSP PSP-HB90-W100-T12-A5-0.2M
    Reference no. 703995
    for round slings max WLL 3000
    for 2-ply lifting strap width max 75
    Overall width B [mm] 95
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 85
    Clear height T [mm] 12
    Effective length WLL [m] 0.2
    Weight approx. [kg] 0.31
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 3000
Effective length WLL [m] 0.4
Reference no. 703996
  • Details
    KSP PSP-HB90-W100-T12-A5-0.4M
    Reference no. 703996
    for round slings max WLL 3000
    for 2-ply lifting strap width max 75
    Overall width B [mm] 95
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 85
    Clear height T [mm] 12
    Effective length WLL [m] 0.4
    Weight approx. [kg] 0.62
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 3000
Effective length WLL [m] 0.6
Reference no. 703997
  • Details
    KSP PSP-HB90-W100-T12-A5-0.6M
    Reference no. 703997
    for round slings max WLL 3000
    for 2-ply lifting strap width max 75
    Overall width B [mm] 95
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 85
    Clear height T [mm] 12
    Effective length WLL [m] 0.6
    Weight approx. [kg] 0.93
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 3000
Effective length WLL [m] 1
Reference no. 703998
  • Details
    KSP PSP-HB90-W100-T12-A5-1M
    Reference no. 703998
    for round slings max WLL 3000
    for 2-ply lifting strap width max 75
    Overall width B [mm] 95
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 85
    Clear height T [mm] 12
    Effective length WLL [m] 1
    Weight approx. [kg] 1.55
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 3000
Effective length WLL [m] 1.5
Reference no. 703999
  • Details
    KSP PSP-HB90-W100-T12-A5-1.5M
    Reference no. 703999
    for round slings max WLL 3000
    for 2-ply lifting strap width max 75
    Overall width B [mm] 95
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 85
    Clear height T [mm] 12
    Effective length WLL [m] 1.5
    Weight approx. [kg] 2.325
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 3000
Effective length WLL [m] 2
Reference no. 704000
  • Details
    KSP PSP-HB90-W100-T12-A5-2M
    Reference no. 704000
    for round slings max WLL 3000
    for 2-ply lifting strap width max 75
    Overall width B [mm] 95
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 85
    Clear height T [mm] 12
    Effective length WLL [m] 2
    Weight approx. [kg] 3.1
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 3000
Effective length WLL [m] 4
Reference no. 704001
  • Details
    KSP PSP-HB90-W100-T12-A5-4M
    Reference no. 704001
    for round slings max WLL 3000
    for 2-ply lifting strap width max 75
    Overall width B [mm] 95
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 85
    Clear height T [mm] 12
    Effective length WLL [m] 4
    Weight approx. [kg] 6.2
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 5000
Effective length WLL [m] 0.2
Reference no. 704002
  • Details
    KSP PSP-HB120-RS5T-W135-T12-A5-0.2M
    Reference no. 704002
    for round slings max WLL 5000
    for 2-ply lifting strap width max 120
    Overall width B [mm] 145
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 135
    Clear height T [mm] 12
    Effective length WLL [m] 0.2
    Weight approx. [kg] 0.4
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 5000
Effective length WLL [m] 0.4
Reference no. 704003
  • Details
    KSP PSP-HB120-RS5T-W135-T12-A5-0.4M
    Reference no. 704003
    for round slings max WLL 5000
    for 2-ply lifting strap width max 120
    Overall width B [mm] 145
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 135
    Clear height T [mm] 12
    Effective length WLL [m] 0.4
    Weight approx. [kg] 0.8
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 5000
Effective length WLL [m] 0.6
Reference no. 704004
  • Details
    KSP PSP-HB120-RS5T-W135-T12-A5-0.6M
    Reference no. 704004
    for round slings max WLL 5000
    for 2-ply lifting strap width max 120
    Overall width B [mm] 145
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 135
    Clear height T [mm] 12
    Effective length WLL [m] 0.6
    Weight approx. [kg] 1.2
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 5000
Effective length WLL [m] 1
Reference no. 704005
  • Details
    KSP PSP-HB120-RS5T-W135-T12-A5-1M
    Reference no. 704005
    for round slings max WLL 5000
    for 2-ply lifting strap width max 120
    Overall width B [mm] 145
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 135
    Clear height T [mm] 12
    Effective length WLL [m] 1
    Weight approx. [kg] 2
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 5000
Effective length WLL [m] 1.5
Reference no. 704006
  • Details
    KSP PSP-HB120-RS5T-W135-T12-A5-1.5M
    Reference no. 704006
    for round slings max WLL 5000
    for 2-ply lifting strap width max 120
    Overall width B [mm] 145
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 135
    Clear height T [mm] 12
    Effective length WLL [m] 1.5
    Weight approx. [kg] 3
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 5000
Effective length WLL [m] 2
Reference no. 704007
  • Details
    KSP PSP-HB120-RS5T-W135-T12-A5-2M
    Reference no. 704007
    for round slings max WLL 5000
    for 2-ply lifting strap width max 120
    Overall width B [mm] 145
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 135
    Clear height T [mm] 12
    Effective length WLL [m] 2
    Weight approx. [kg] 4
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 5000
Effective length WLL [m] 4
Reference no. 704008
  • Details
    KSP PSP-HB120-RS5T-W135-T12-A5-4M
    Reference no. 704008
    for round slings max WLL 5000
    for 2-ply lifting strap width max 120
    Overall width B [mm] 145
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 135
    Clear height T [mm] 12
    Effective length WLL [m] 4
    Weight approx. [kg] 8
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 8000
Effective length WLL [m] 0.2
Reference no. 704009
  • Details
    KSP PSP-HB150-RS6T7T8T-W160-T12-A5-0.2M
    Reference no. 704009
    for round slings max WLL 8000
    for 2-ply lifting strap width max 150
    Overall width B [mm] 170
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 160
    Clear height T [mm] 12
    Effective length WLL [m] 0.2
    Weight approx. [kg] 0.46
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 8000
Effective length WLL [m] 0.4
Reference no. 704010
  • Details
    KSP PSP-HB150-RS6T7T8T-W160-T12-A5-0.4M
    Reference no. 704010
    for round slings max WLL 8000
    for 2-ply lifting strap width max 150
    Overall width B [mm] 170
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 160
    Clear height T [mm] 12
    Effective length WLL [m] 0.4
    Weight approx. [kg] 0.92
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 8000
Effective length WLL [m] 0.6
Reference no. 704011
  • Details
    KSP PSP-HB150-RS6T7T8T-W160-T12-A5-0.6M
    Reference no. 704011
    for round slings max WLL 8000
    for 2-ply lifting strap width max 150
    Overall width B [mm] 170
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 160
    Clear height T [mm] 12
    Effective length WLL [m] 0.6
    Weight approx. [kg] 1.38
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 8000
Effective length WLL [m] 1
Reference no. 704012
  • Details
    KSP PSP-HB150-RS6T7T8T-W160-T12-A5-1M
    Reference no. 704012
    for round slings max WLL 8000
    for 2-ply lifting strap width max 150
    Overall width B [mm] 170
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 160
    Clear height T [mm] 12
    Effective length WLL [m] 1
    Weight approx. [kg] 2.3
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 8000
Effective length WLL [m] 1.5
Reference no. 704013
  • Details
    KSP PSP-HB150-RS6T7T8T-W160-T12-A5-1.5M
    Reference no. 704013
    for round slings max WLL 8000
    for 2-ply lifting strap width max 150
    Overall width B [mm] 170
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 160
    Clear height T [mm] 12
    Effective length WLL [m] 1.5
    Weight approx. [kg] 3.45
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 8000
Effective length WLL [m] 2
Reference no. 704014
  • Details
    KSP PSP-HB150-RS6T7T8T-W160-T12-A5-2M
    Reference no. 704014
    for round slings max WLL 8000
    for 2-ply lifting strap width max 150
    Overall width B [mm] 170
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 160
    Clear height T [mm] 12
    Effective length WLL [m] 2
    Weight approx. [kg] 4.6
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 8000
Effective length WLL [m] 4
Reference no. 704015
  • Details
    KSP PSP-HB150-RS6T7T8T-W160-T12-A5-4M
    Reference no. 704015
    for round slings max WLL 8000
    for 2-ply lifting strap width max 150
    Overall width B [mm] 170
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 160
    Clear height T [mm] 12
    Effective length WLL [m] 4
    Weight approx. [kg] 9.2
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 10000
Effective length WLL [m] 0.2
Reference no. 704016
  • Details
    KSP PSP-HB180-RS9T10T-W190-T12-A5-0.2M
    Reference no. 704016
    for round slings max WLL 10000
    for 2-ply lifting strap width max 180
    Overall width B [mm] 200
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 190
    Clear height T [mm] 12
    Effective length WLL [m] 0.2
    Weight approx. [kg] 0.52
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 10000
Effective length WLL [m] 0.4
Reference no. 704017
  • Details
    KSP PSP-HB180-RS9T10T-W190-T12-A5-0.4M
    Reference no. 704017
    for round slings max WLL 10000
    for 2-ply lifting strap width max 180
    Overall width B [mm] 200
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 190
    Clear height T [mm] 12
    Effective length WLL [m] 0.4
    Weight approx. [kg] 1.04
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 10000
Effective length WLL [m] 0.6
Reference no. 704018
  • Details
    KSP PSP-HB180-RS9T10T-W190-T12-A5-0.6M
    Reference no. 704018
    for round slings max WLL 10000
    for 2-ply lifting strap width max 180
    Overall width B [mm] 200
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 190
    Clear height T [mm] 12
    Effective length WLL [m] 0.6
    Weight approx. [kg] 1.56
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 10000
Effective length WLL [m] 1
Reference no. 704019
  • Details
    KSP PSP-HB180-RS9T10T-W190-T12-A5-1M
    Reference no. 704019
    for round slings max WLL 10000
    for 2-ply lifting strap width max 180
    Overall width B [mm] 200
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 190
    Clear height T [mm] 12
    Effective length WLL [m] 1
    Weight approx. [kg] 2.6
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 10000
Effective length WLL [m] 1.5
Reference no. 704020
  • Details
    KSP PSP-HB180-RS9T10T-W190-T12-A5-1.5M
    Reference no. 704020
    for round slings max WLL 10000
    for 2-ply lifting strap width max 180
    Overall width B [mm] 200
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 190
    Clear height T [mm] 12
    Effective length WLL [m] 1.5
    Weight approx. [kg] 3.9
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 10000
Effective length WLL [m] 2
Reference no. 704021
  • Details
    KSP PSP-HB180-RS9T10T-W190-T12-A5-2M
    Reference no. 704021
    for round slings max WLL 10000
    for 2-ply lifting strap width max 180
    Overall width B [mm] 200
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 190
    Clear height T [mm] 12
    Effective length WLL [m] 2
    Weight approx. [kg] 5.2
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 10000
Effective length WLL [m] 4
Reference no. 704022
  • Details
    KSP PSP-HB180-RS9T10T-W190-T12-A5-4M
    Reference no. 704022
    for round slings max WLL 10000
    for 2-ply lifting strap width max 180
    Overall width B [mm] 200
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 190
    Clear height T [mm] 12
    Effective length WLL [m] 4
    Weight approx. [kg] 10.4
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 10000
Effective length WLL [m] 0.2
Reference no. 704023
  • Details
    KSP PSP-HB200-W220-T12-A5-0.2M
    Reference no. 704023
    for round slings max WLL 10000
    for 2-ply lifting strap width max 180
    Overall width B [mm] 200
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 190
    Clear height T [mm] 12
    Effective length WLL [m] 0.2
    Weight approx. [kg] 0.6
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 10000
Effective length WLL [m] 0.4
Reference no. 704024
  • Details
    KSP PSP-HB200-W220-T12-A5-0.4M
    Reference no. 704024
    for round slings max WLL 10000
    for 2-ply lifting strap width max 180
    Overall width B [mm] 200
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 190
    Clear height T [mm] 12
    Effective length WLL [m] 0.4
    Weight approx. [kg] 1.2
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 10000
Effective length WLL [m] 0.6
Reference no. 704025
  • Details
    KSP PSP-HB200-W220-T12-A5-0.6M
    Reference no. 704025
    for round slings max WLL 10000
    for 2-ply lifting strap width max 180
    Overall width B [mm] 200
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 190
    Clear height T [mm] 12
    Effective length WLL [m] 0.6
    Weight approx. [kg] 1.8
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 10000
Effective length WLL [m] 1
Reference no. 704026
  • Details
    KSP PSP-HB200-W220-T12-A5-1M
    Reference no. 704026
    for round slings max WLL 10000
    for 2-ply lifting strap width max 180
    Overall width B [mm] 200
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 190
    Clear height T [mm] 12
    Effective length WLL [m] 1
    Weight approx. [kg] 3
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 10000
Effective length WLL [m] 1.5
Reference no. 704027
  • Details
    KSP PSP-HB200-W220-T12-A5-1.5M
    Reference no. 704027
    for round slings max WLL 10000
    for 2-ply lifting strap width max 180
    Overall width B [mm] 200
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 190
    Clear height T [mm] 12
    Effective length WLL [m] 1.5
    Weight approx. [kg] 4.5
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 10000
Effective length WLL [m] 2
Reference no. 704028
  • Details
    KSP PSP-HB200-W220-T12-A5-2M
    Reference no. 704028
    for round slings max WLL 10000
    for 2-ply lifting strap width max 180
    Overall width B [mm] 200
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 190
    Clear height T [mm] 12
    Effective length WLL [m] 2
    Weight approx. [kg] 6
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 10000
Effective length WLL [m] 4
Reference no. 704029
  • Details
    KSP PSP-HB200-W220-T12-A5-4M
    Reference no. 704029
    for round slings max WLL 10000
    for 2-ply lifting strap width max 180
    Overall width B [mm] 200
    Overall height H [mm] 22
    Wall thickness hose A 5
    Clearance W 190
    Clear height T [mm] 12
    Effective length WLL [m] 4
    Weight approx. [kg] 9
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 15000
Effective length WLL [m] 0.2
Reference no. 704030
  • Details
    KSP PSP-HB240-RS15T-W280-T15-A8-0.2M
    Reference no. 704030
    for round slings max WLL 15000
    for 2-ply lifting strap width max 240
    Overall width B [mm] 296
    Overall height H [mm] 31
    Wall thickness hose A 8
    Clearance W 280
    Clear height T [mm] 15
    Effective length WLL [m] 0.2
    Weight approx. [kg] 0.8
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 15000
Effective length WLL [m] 0.4
Reference no. 704031
  • Details
    KSP PSP-HB240-RS15T-W280-T15-A8-0.4M
    Reference no. 704031
    for round slings max WLL 15000
    for 2-ply lifting strap width max 240
    Overall width B [mm] 296
    Overall height H [mm] 31
    Wall thickness hose A 8
    Clearance W 280
    Clear height T [mm] 15
    Effective length WLL [m] 0.4
    Weight approx. [kg] 1.6
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 15000
Effective length WLL [m] 0.6
Reference no. 704032
  • Details
    KSP PSP-HB240-RS15T-W280-T15-A8-0.6M
    Reference no. 704032
    for round slings max WLL 15000
    for 2-ply lifting strap width max 240
    Overall width B [mm] 296
    Overall height H [mm] 31
    Wall thickness hose A 8
    Clearance W 280
    Clear height T [mm] 15
    Effective length WLL [m] 0.6
    Weight approx. [kg] 2.4
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 15000
Effective length WLL [m] 1
Reference no. 704033
  • Details
    KSP PSP-HB240-RS15T-W280-T15-A8-1M
    Reference no. 704033
    for round slings max WLL 15000
    for 2-ply lifting strap width max 240
    Overall width B [mm] 296
    Overall height H [mm] 31
    Wall thickness hose A 8
    Clearance W 280
    Clear height T [mm] 15
    Effective length WLL [m] 1
    Weight approx. [kg] 4
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 15000
Effective length WLL [m] 1.5
Reference no. 704034
  • Details
    KSP PSP-HB240-RS15T-W280-T15-A8-1.5M
    Reference no. 704034
    for round slings max WLL 15000
    for 2-ply lifting strap width max 240
    Overall width B [mm] 296
    Overall height H [mm] 31
    Wall thickness hose A 8
    Clearance W 280
    Clear height T [mm] 15
    Effective length WLL [m] 1.5
    Weight approx. [kg] 6
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 15000
Effective length WLL [m] 2
Reference no. 704035
  • Details
    KSP PSP-HB240-RS15T-W280-T15-A8-2M
    Reference no. 704035
    for round slings max WLL 15000
    for 2-ply lifting strap width max 240
    Overall width B [mm] 296
    Overall height H [mm] 31
    Wall thickness hose A 8
    Clearance W 280
    Clear height T [mm] 15
    Effective length WLL [m] 2
    Weight approx. [kg] 8
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 15000
Effective length WLL [m] 4
Reference no. 704036
  • Details
    KSP PSP-HB240-RS15T-W280-T15-A8-4M
    Reference no. 704036
    for round slings max WLL 15000
    for 2-ply lifting strap width max 240
    Overall width B [mm] 296
    Overall height H [mm] 31
    Wall thickness hose A 8
    Clearance W 280
    Clear height T [mm] 15
    Effective length WLL [m] 4
    Weight approx. [kg] 16
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 20000
Effective length WLL [m] 0.2
Reference no. 704037
  • Details
    KSP PSP-HB300-RS20T-W320-T15-A8-0.2M
    Reference no. 704037
    for round slings max WLL 20000
    for 2-ply lifting strap width max 300
    Overall width B [mm] 336
    Overall height H [mm] 31
    Wall thickness hose A 8
    Clearance W 320
    Clear height T [mm] 15
    Effective length WLL [m] 0.2
    Weight approx. [kg] 0.88
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 20000
Effective length WLL [m] 0.4
Reference no. 704038
  • Details
    KSP PSP-HB300-RS20T-W320-T15-A8-0.4M
    Reference no. 704038
    for round slings max WLL 20000
    for 2-ply lifting strap width max 300
    Overall width B [mm] 336
    Overall height H [mm] 31
    Wall thickness hose A 8
    Clearance W 320
    Clear height T [mm] 15
    Effective length WLL [m] 0.4
    Weight approx. [kg] 1.76
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 20000
Effective length WLL [m] 0.6
Reference no. 704039
  • Details
    KSP PSP-HB300-RS20T-W320-T15-A8-0.6M
    Reference no. 704039
    for round slings max WLL 20000
    for 2-ply lifting strap width max 300
    Overall width B [mm] 336
    Overall height H [mm] 31
    Wall thickness hose A 8
    Clearance W 320
    Clear height T [mm] 15
    Effective length WLL [m] 0.6
    Weight approx. [kg] 2.64
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 20000
Effective length WLL [m] 1
Reference no. 704040
  • Details
    KSP PSP-HB300-RS20T-W320-T15-A8-1M
    Reference no. 704040
    for round slings max WLL 20000
    for 2-ply lifting strap width max 300
    Overall width B [mm] 336
    Overall height H [mm] 31
    Wall thickness hose A 8
    Clearance W 320
    Clear height T [mm] 15
    Effective length WLL [m] 1
    Weight approx. [kg] 4.4
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 20000
Effective length WLL [m] 1.5
Reference no. 704041
  • Details
    KSP PSP-HB300-RS20T-W320-T15-A8-1.5M
    Reference no. 704041
    for round slings max WLL 20000
    for 2-ply lifting strap width max 300
    Overall width B [mm] 336
    Overall height H [mm] 31
    Wall thickness hose A 8
    Clearance W 320
    Clear height T [mm] 15
    Effective length WLL [m] 1.5
    Weight approx. [kg] 6.6
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 20000
Effective length WLL [m] 2
Reference no. 704042
  • Details
    KSP PSP-HB300-RS20T-W320-T15-A8-2M
    Reference no. 704042
    for round slings max WLL 20000
    for 2-ply lifting strap width max 300
    Overall width B [mm] 336
    Overall height H [mm] 31
    Wall thickness hose A 8
    Clearance W 320
    Clear height T [mm] 15
    Effective length WLL [m] 2
    Weight approx. [kg] 8.8
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 20000
Effective length WLL [m] 4
Reference no. 704043
  • Details
    KSP PSP-HB300-RS20T-W320-T15-A8-4M
    Reference no. 704043
    for round slings max WLL 20000
    for 2-ply lifting strap width max 300
    Overall width B [mm] 336
    Overall height H [mm] 31
    Wall thickness hose A 8
    Clearance W 320
    Clear height T [mm] 15
    Effective length WLL [m] 4
    Weight approx. [kg] 17.6
    verpackungsmenge_dyn_erp 1 St
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Tel. +49 8331 937-9623
Fax +49 8331 937-380
E-Mail verkauf-azs@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
 Service centre
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Academy
Tel. +49 8331 937-462
E-Mail academy@pfeifer.de
Web www.pfeifer.info
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
France
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +33 676 54 42 68 / +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Poland
 PFEIFER Technika Linowa i Dźwigowa Sp. z o.o.
ul. Wrocławska 68
55-330 Krępice k/Wrocławia
Tel. +48 71 30 23 700
E-Mail info@pfeifer.pl
Web www.pfeifer.pl
 Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
