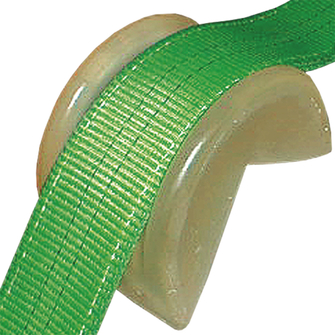

Edge protectors with magnet

Edge protectors with magnet
Edge protectors made of wear-resistant polyurethane with magnetic attachment for easy positioning, for protection of lifting straps, round slings and lashing straps against damage and premature wear. For extremely sharp-edged loads such as sheet metal coils
Technical data

Operating temperature

  • 0 °C to 70 °C

Material

  • Polyurethane
Product variants
for round slings max WLL [kg]
for lifting strap width max [mm]
Reference no.
Details
  • 1000
    40
    155233
    KWP EDG-HB40-RS1T-MAGNET-2
    Reference no. 155233
    for round slings max WLL 1000
    for lifting strap width max [mm] 40
    Number of magnets 2
    Weight approx. [kg] 0.8
    verpackungsmenge_dyn_erp 1 St
  • 4000
    65
    155234
    KWP EDG-HB65-RS4T-MAGNET-2
    Reference no. 155234
    for round slings max WLL 4000
    for lifting strap width max [mm] 65
    Number of magnets 2
    Weight approx. [kg] 1
    verpackungsmenge_dyn_erp 1 St
  • 6000
    100
    155235
    KWP EDG-HB100-RS6T-MAGNET-4
    Reference no. 155235
    for round slings max WLL 6000
    for lifting strap width max [mm] 100
    Number of magnets 4
    Weight approx. [kg] 1.5
    verpackungsmenge_dyn_erp 1 St
  • 8000
    125
    155236
    KWP EDG-HB125-RS8T-MAGNET-4
    Reference no. 155236
    for round slings max WLL 8000
    for lifting strap width max [mm] 125
    Number of magnets 4
    Weight approx. [kg] 1.6
    verpackungsmenge_dyn_erp 1 St
  • 10000
    150
    155237
    KWP EDG-HB150-RS10-MAGNET-4
    Reference no. 155237
    for round slings max WLL 10000
    for lifting strap width max [mm] 150
    Number of magnets 4
    Weight approx. [kg] 1.9
    verpackungsmenge_dyn_erp 1 St
  • 10000
    200
    155238
    KWP EDG-HB200-MAGNET-6
    Reference no. 155238
    for round slings max WLL 10000
    for lifting strap width max [mm] 200
    Number of magnets 6
    Weight approx. [kg] 2.6
    verpackungsmenge_dyn_erp 1 St
  • 10000
    300
    155239
    KWP EDG-HB300-MAGNET-8
    Reference no. 155239
    for round slings max WLL 10000
    for lifting strap width max [mm] 300
    Number of magnets 8
    Weight approx. [kg] 3.5
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 1000
for lifting strap width max [mm] 40
Reference no. 155233
  • Details
    KWP EDG-HB40-RS1T-MAGNET-2
    Reference no. 155233
    for round slings max WLL 1000
    for lifting strap width max [mm] 40
    Number of magnets 2
    Weight approx. [kg] 0.8
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 4000
for lifting strap width max [mm] 65
Reference no. 155234
  • Details
    KWP EDG-HB65-RS4T-MAGNET-2
    Reference no. 155234
    for round slings max WLL 4000
    for lifting strap width max [mm] 65
    Number of magnets 2
    Weight approx. [kg] 1
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 6000
for lifting strap width max [mm] 100
Reference no. 155235
  • Details
    KWP EDG-HB100-RS6T-MAGNET-4
    Reference no. 155235
    for round slings max WLL 6000
    for lifting strap width max [mm] 100
    Number of magnets 4
    Weight approx. [kg] 1.5
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 8000
for lifting strap width max [mm] 125
Reference no. 155236
  • Details
    KWP EDG-HB125-RS8T-MAGNET-4
    Reference no. 155236
    for round slings max WLL 8000
    for lifting strap width max [mm] 125
    Number of magnets 4
    Weight approx. [kg] 1.6
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 10000
for lifting strap width max [mm] 150
Reference no. 155237
  • Details
    KWP EDG-HB150-RS10-MAGNET-4
    Reference no. 155237
    for round slings max WLL 10000
    for lifting strap width max [mm] 150
    Number of magnets 4
    Weight approx. [kg] 1.9
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 10000
for lifting strap width max [mm] 200
Reference no. 155238
  • Details
    KWP EDG-HB200-MAGNET-6
    Reference no. 155238
    for round slings max WLL 10000
    for lifting strap width max [mm] 200
    Number of magnets 6
    Weight approx. [kg] 2.6
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 10000
for lifting strap width max [mm] 300
Reference no. 155239
  • Details
    KWP EDG-HB300-MAGNET-8
    Reference no. 155239
    for round slings max WLL 10000
    for lifting strap width max [mm] 300
    Number of magnets 8
    Weight approx. [kg] 3.5
    verpackungsmenge_dyn_erp 1 St
