Heavy duty edge protector

Heavy duty edge protector

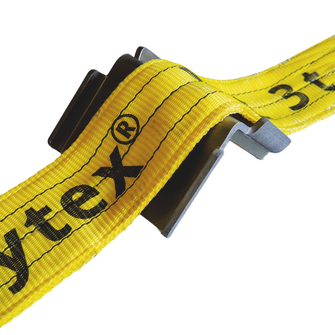

Heavy duty edge protectors with magnetic bracket for simple positioning - particularly for protection against damage and premature wear. The continuous 6 mm steel core offers optimal protection and stability even with heavy loads. PU layer protects the load
Technical data

Operating temperature

  • 0 °C to 70 °C

Material

  • Steel and polyurethane
Product variants
for round slings max WLL [kg]
for lifting strap width max [mm]
Reference no.
Details
  • 1000
    30
    217493
    KWM SWL-RS1T-HB30-MAGNET-2
    Reference no. 217493
    for round slings max WLL 1000
    for lifting strap width max [mm] 30
    Number of magnets 2
    Weight approx. [kg] 0.85
    verpackungsmenge_dyn_erp 1 St
  • 4000
    60
    217494
    KWM SWL-RS4T-HB60-MAGNET-2
    Reference no. 217494
    for round slings max WLL 4000
    for lifting strap width max [mm] 60
    Number of magnets 2
    Weight approx. [kg] 1.2
    verpackungsmenge_dyn_erp 1 St
  • 6000
    90
    217495
    KWM SWL-RS6T-HB90-MAGNET-2
    Reference no. 217495
    for round slings max WLL 6000
    for lifting strap width max [mm] 90
    Number of magnets 2
    Weight approx. [kg] 1.6
    verpackungsmenge_dyn_erp 1 St
  • 8000
    120
    217496
    KWM SWL-RS8T-HB120-MAGNET-4
    Reference no. 217496
    for round slings max WLL 8000
    for lifting strap width max [mm] 120
    Number of magnets 4
    Weight approx. [kg] 2.05
    verpackungsmenge_dyn_erp 1 St
  • 10000
    150
    217497
    KWM SWL-RS10T-HB150-MAGNET-4
    Reference no. 217497
    for round slings max WLL 10000
    for lifting strap width max [mm] 150
    Number of magnets 4
    Weight approx. [kg] 2.5
    verpackungsmenge_dyn_erp 1 St
  • 20000
    180
    217498
    KWM SWL-RS20T-HB180-MAGNET-4
    Reference no. 217498
    for round slings max WLL 20000
    for lifting strap width max [mm] 180
    Number of magnets 4
    Weight approx. [kg] 2.8
    verpackungsmenge_dyn_erp 1 St
  • 0
    240
    217499
    KWM SWL-RS40T-HB240-MAGNET-6
    Reference no. 217499
    for round slings max WLL 0
    for lifting strap width max [mm] 240
    Number of magnets 6
    Weight approx. [kg] 3.6
    verpackungsmenge_dyn_erp 1 St
  • 0
    300
    217500
    KWM SWL-RS50T-HB300-MAGNET-8
    Reference no. 217500
    for round slings max WLL 0
    for lifting strap width max [mm] 300
    Number of magnets 8
    Weight approx. [kg] 4.4
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 1000
for lifting strap width max [mm] 30
Reference no. 217493
  • Details
    KWM SWL-RS1T-HB30-MAGNET-2
    Reference no. 217493
    for round slings max WLL 1000
    for lifting strap width max [mm] 30
    Number of magnets 2
    Weight approx. [kg] 0.85
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 4000
for lifting strap width max [mm] 60
Reference no. 217494
  • Details
    KWM SWL-RS4T-HB60-MAGNET-2
    Reference no. 217494
    for round slings max WLL 4000
    for lifting strap width max [mm] 60
    Number of magnets 2
    Weight approx. [kg] 1.2
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 6000
for lifting strap width max [mm] 90
Reference no. 217495
  • Details
    KWM SWL-RS6T-HB90-MAGNET-2
    Reference no. 217495
    for round slings max WLL 6000
    for lifting strap width max [mm] 90
    Number of magnets 2
    Weight approx. [kg] 1.6
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 8000
for lifting strap width max [mm] 120
Reference no. 217496
  • Details
    KWM SWL-RS8T-HB120-MAGNET-4
    Reference no. 217496
    for round slings max WLL 8000
    for lifting strap width max [mm] 120
    Number of magnets 4
    Weight approx. [kg] 2.05
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 10000
for lifting strap width max [mm] 150
Reference no. 217497
  • Details
    KWM SWL-RS10T-HB150-MAGNET-4
    Reference no. 217497
    for round slings max WLL 10000
    for lifting strap width max [mm] 150
    Number of magnets 4
    Weight approx. [kg] 2.5
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 20000
for lifting strap width max [mm] 180
Reference no. 217498
  • Details
    KWM SWL-RS20T-HB180-MAGNET-4
    Reference no. 217498
    for round slings max WLL 20000
    for lifting strap width max [mm] 180
    Number of magnets 4
    Weight approx. [kg] 2.8
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 0
for lifting strap width max [mm] 240
Reference no. 217499
  • Details
    KWM SWL-RS40T-HB240-MAGNET-6
    Reference no. 217499
    for round slings max WLL 0
    for lifting strap width max [mm] 240
    Number of magnets 6
    Weight approx. [kg] 3.6
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 0
for lifting strap width max [mm] 300
Reference no. 217500
  • Details
    KWM SWL-RS50T-HB300-MAGNET-8
    Reference no. 217500
    for round slings max WLL 0
    for lifting strap width max [mm] 300
    Number of magnets 8
    Weight approx. [kg] 4.4
    verpackungsmenge_dyn_erp 1 St
