HMPE edge protection collar

HMPE edge protection collar

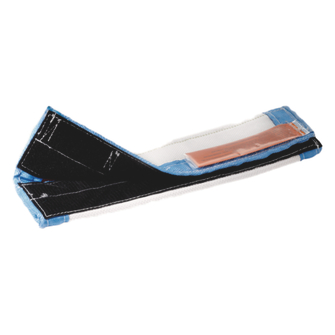

HMPE edge protection collar with Velcro fastener for rapid and secure positioning and flexible all-round protection of lifting straps, round slings and lashing straps against damage and premature wear. This edge protection ring offers high edge stability and abrasion resistance with extremely long service life and adapts ideally to the respective edge form.
Technical data

Operating temperature

  • –60 °C to +70 °C

Material

  • HMPE
Options

Options on request

  • Further lengths
Product variants
for round slings max WLL [kg]
for lifting strap width max [mm]
Effective length WLL [m]
Reference no.
Details
  • 2000
    30
    1
    496050
    KMH PTP-HMPE-HB30-RS2T-IB52MM-1M
    Reference no. 496050
    for round slings max WLL 2000
    for lifting strap width max [mm] 30
    Clearance W 52
    Effective length WLL [m] 1
    Weight approx. [kg] 0.26
    verpackungsmenge_dyn_erp 1 St
  • 4000
    50
    1
    496051
    KMH PTP-HMPE-HB50-RS4T-IB62MM-1M
    Reference no. 496051
    for round slings max WLL 4000
    for lifting strap width max [mm] 50
    Clearance W 62
    Effective length WLL [m] 1
    Weight approx. [kg] 0.26
    verpackungsmenge_dyn_erp 1 St
  • 6000
    60
    1
    496052
    KMH PTP-HMPE-HB60-RS6T-IB77MM-1M
    Reference no. 496052
    for round slings max WLL 6000
    for lifting strap width max [mm] 60
    Clearance W 77
    Effective length WLL [m] 1
    Weight approx. [kg] 0.59
    verpackungsmenge_dyn_erp 1 St
  • 8000
    90
    1
    496053
    KMH PTP-HMPE-HB90-RS8T-IB100MM-1M
    Reference no. 496053
    for round slings max WLL 8000
    for lifting strap width max [mm] 90
    Clearance W 100
    Effective length WLL [m] 1
    Weight approx. [kg] 0.74
    verpackungsmenge_dyn_erp 1 St
  • 15000
    120
    1
    496054
    KMH PTP-HMPE-HB120-RS15T-IB120MM-1M
    Reference no. 496054
    for round slings max WLL 15000
    for lifting strap width max [mm] 120
    Clearance W 120
    Effective length WLL [m] 1
    Weight approx. [kg] 1
    verpackungsmenge_dyn_erp 1 St
  • 30000
    180
    1
    496055
    KMH PTP-HMPE-HB180-RS30T-IB200MM-1M
    Reference no. 496055
    for round slings max WLL 30000
    for lifting strap width max [mm] 180
    Clearance W 200
    Effective length WLL [m] 1
    Weight approx. [kg] 1.2
    verpackungsmenge_dyn_erp 1 St
  • 50000
    240
    1
    496056
    KMH PTP-HMPE-HB240-RS50T-IB250MM-1M
    Reference no. 496056
    for round slings max WLL 50000
    for lifting strap width max [mm] 240
    Clearance W 250
    Effective length WLL [m] 1
    Weight approx. [kg] 1.4
    verpackungsmenge_dyn_erp 1 St
  • 80000
    300
    1
    496057
    KMH PTP-HMPE-HB300-RS80T-IB332MM-1M
    Reference no. 496057
    for round slings max WLL 80000
    for lifting strap width max [mm] 300
    Clearance W 332
    Effective length WLL [m] 1
    Weight approx. [kg] 1.6
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 2000
for lifting strap width max [mm] 30
Effective length WLL [m] 1
Reference no. 496050
  • Details
    KMH PTP-HMPE-HB30-RS2T-IB52MM-1M
    Reference no. 496050
    for round slings max WLL 2000
    for lifting strap width max [mm] 30
    Clearance W 52
    Effective length WLL [m] 1
    Weight approx. [kg] 0.26
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 4000
for lifting strap width max [mm] 50
Effective length WLL [m] 1
Reference no. 496051
  • Details
    KMH PTP-HMPE-HB50-RS4T-IB62MM-1M
    Reference no. 496051
    for round slings max WLL 4000
    for lifting strap width max [mm] 50
    Clearance W 62
    Effective length WLL [m] 1
    Weight approx. [kg] 0.26
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 6000
for lifting strap width max [mm] 60
Effective length WLL [m] 1
Reference no. 496052
  • Details
    KMH PTP-HMPE-HB60-RS6T-IB77MM-1M
    Reference no. 496052
    for round slings max WLL 6000
    for lifting strap width max [mm] 60
    Clearance W 77
    Effective length WLL [m] 1
    Weight approx. [kg] 0.59
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 8000
for lifting strap width max [mm] 90
Effective length WLL [m] 1
Reference no. 496053
  • Details
    KMH PTP-HMPE-HB90-RS8T-IB100MM-1M
    Reference no. 496053
    for round slings max WLL 8000
    for lifting strap width max [mm] 90
    Clearance W 100
    Effective length WLL [m] 1
    Weight approx. [kg] 0.74
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 15000
for lifting strap width max [mm] 120
Effective length WLL [m] 1
Reference no. 496054
  • Details
    KMH PTP-HMPE-HB120-RS15T-IB120MM-1M
    Reference no. 496054
    for round slings max WLL 15000
    for lifting strap width max [mm] 120
    Clearance W 120
    Effective length WLL [m] 1
    Weight approx. [kg] 1
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 30000
for lifting strap width max [mm] 180
Effective length WLL [m] 1
Reference no. 496055
  • Details
    KMH PTP-HMPE-HB180-RS30T-IB200MM-1M
    Reference no. 496055
    for round slings max WLL 30000
    for lifting strap width max [mm] 180
    Clearance W 200
    Effective length WLL [m] 1
    Weight approx. [kg] 1.2
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 50000
for lifting strap width max [mm] 240
Effective length WLL [m] 1
Reference no. 496056
  • Details
    KMH PTP-HMPE-HB240-RS50T-IB250MM-1M
    Reference no. 496056
    for round slings max WLL 50000
    for lifting strap width max [mm] 240
    Clearance W 250
    Effective length WLL [m] 1
    Weight approx. [kg] 1.4
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 80000
for lifting strap width max [mm] 300
Effective length WLL [m] 1
Reference no. 496057
  • Details
    KMH PTP-HMPE-HB300-RS80T-IB332MM-1M
    Reference no. 496057
    for round slings max WLL 80000
    for lifting strap width max [mm] 300
    Clearance W 332
    Effective length WLL [m] 1
    Weight approx. [kg] 1.6
    verpackungsmenge_dyn_erp 1 St
