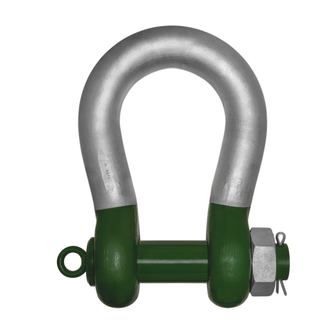

Green Pin® heavy-duty polar shackle with safety bolt, nut and cotter pin – curved shape

Green Pin® heavy-duty polar shackle with safety bolt, nut and cotter pin – curved shape

Curved shackle for maximum carrying capacities and climate conditions with safety bolt, nut and cotter pin.

Technical data
Options
Product variants
Downloads
Contact

Technical data

Operating temperature

–40 °C to +200 °C

Safety factor

5

Shape

curved

Stirrup surface

coated (120 t hot-dip galvanised version)

Bolt surface

painted (120 t shackle hot-dip galvanized)

Bolt type

Safety bolt, nut and split pin

Options

Options on request

with RFID chip

Product variants

Bow Shackle "heavy d.Polar" 120.000t galv

Reference no.	304772
Working load limit	120

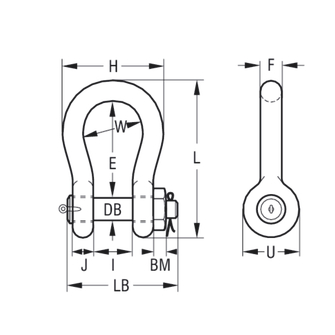

Distance suspension point E [mm]	400
Clear span stirrup W [mm]	238
Stirrup section Ø F [mm]	95
Eye width J [mm]	91
Distance to eye I	147
Eye Ø U [mm]	208
Nut width BM [mm]	50
Bolt Ø DB	95
Stirrup width H	428
Overall length L [mm]	647
Bolt length LB	440
Weight approx. [kg]	110

Bow Shackle "heavy d.Polar" 150.000t galv

Reference no.	304776
Working load limit	150
Distance suspension point E [mm]	410
Clear span stirrup W [mm]	275
Stirrup section Ø F [mm]	105
Eye width J [mm]	102
Distance to eye I	169
Eye Ø U [mm]	238
Nut width BM [mm]	60
Bolt Ø DB	108
Stirrup width H	485
Overall length L [mm]	688
Bolt length LB	490
Weight approx. [kg]	160

Bow Shackle "heavy d.Polar" 200.000t galv

Reference no.	304777
Working load limit	200
Distance suspension point E [mm]	513
Clear span stirrup W [mm]	290
Stirrup section Ø F [mm]	120
Eye width J [mm]	113
Distance to eye I	179
Eye Ø U [mm]	279
Nut width BM [mm]	60
Bolt Ø DB	130
Stirrup width H	530
Overall length L [mm]	838
Bolt length LB	520
Weight approx. [kg]	235

Bow Shackle "heavy d.Polar" 250.000t galv

Reference no.	304778
Working load limit	250
Distance suspension point E [mm]	554
Clear span stirrup W [mm]	305
Stirrup section Ø F [mm]	130
Eye width J [mm]	118
Distance to eye I	205
Eye Ø U [mm]	299
Nut width BM [mm]	65
Bolt Ø DB	140
Stirrup width H	565
Overall length L [mm]	904
Bolt length LB	560
Weight approx. [kg]	285

Bow Shackle "heavy d.Polar" 300.000t galv

Reference no.	304779
Working load limit	300
Distance suspension point E [mm]	618
Clear span stirrup W [mm]	305
Stirrup section Ø F [mm]	140
Eye width J [mm]	123
Distance to eye I	205
Eye Ø U [mm]	325
Nut width BM [mm]	70
Bolt Ø DB	150
Stirrup width H	585
Overall length L [mm]	996
Bolt length LB	575
Weight approx. [kg]	340

Bow Shackle "heavy d.Polar" 400.000t galv

Reference no.	304780
Working load limit	400
Distance suspension point E [mm]	668
Clear span stirrup W [mm]	325
Stirrup section Ø F [mm]	170
Eye width J [mm]	164
Distance to eye I	231
Eye Ø U [mm]	376
Nut width BM [mm]	70
Bolt Ø DB	175
Stirrup width H	665
Overall length L [mm]	1114
Bolt length LB	690
Weight approx. [kg]	560

Bow Shackle "heavy d.Polar" 500.000t galv

Reference no.	304782
Working load limit	500
Distance suspension point E [mm]	718
Clear span stirrup W [mm]	350
Stirrup section Ø F [mm]	180
Eye width J [mm]	164
Distance to eye I	256
Eye Ø U [mm]	398
Nut width BM [mm]	70
Bolt Ø DB	185
Stirrup width H	710
Overall length L [mm]	1190
Bolt length LB	720
Weight approx. [kg]	685

Bow Shackle "heavy d.Polar" 600.000t galv

Reference no.	304783
Working load limit	600
Distance suspension point E [mm]	718
Clear span stirrup W [mm]	375
Stirrup section Ø F [mm]	200
Eye width J [mm]	189
Distance to eye I	282
Eye Ø U [mm]	444
Nut width BM [mm]	70
Bolt Ø DB	205
Stirrup width H	775
Overall length L [mm]	1243
Bolt length LB	810
Weight approx. [kg]	880

Bow Shackle "heavy d.Polar" 700.000t galv

Reference no.	304784
Working load limit	700
Distance suspension point E [mm]	718
Clear span stirrup W [mm]	400
Stirrup section Ø F [mm]	210
Eye width J [mm]	204
Distance to eye I	308
Eye Ø U [mm]	454
Nut width BM [mm]	70
Bolt Ø DB	215
Stirrup width H	820
Overall length L [mm]	1263
Bolt length LB	870
Weight approx. [kg]	980

Bow Shackle "heavy d.Polar" 800.000t galv

Reference no.	304785
Working load limit	800
Distance suspension point E [mm]	718
Clear span stirrup W [mm]	400
Stirrup section Ø F [mm]	210
Eye width J [mm]	204
Distance to eye I	308
Eye Ø U [mm]	464
Nut width BM [mm]	70
Bolt Ø DB	220
Stirrup width H	820
Overall length L [mm]	1270
Bolt length LB	870
Weight approx. [kg]	1100

Bow Shackle "heavy d.Polar" 900.000t galv

Reference no.	304786
Working load limit	900
Distance suspension point E [mm]	718
Clear span stirrup W [mm]	420
Stirrup section Ø F [mm]	220
Eye width J [mm]	215
Distance to eye I	328
Eye Ø U [mm]	485
Nut width BM [mm]	70
Bolt Ø DB	230
Stirrup width H	860
Overall length L [mm]	1296
Bolt length LB	920
Weight approx. [kg]	1280

Bow Shackle "heavy d.Polar" 1000.000t galv

Reference no.	304787
Working load limit	1000
Distance suspension point E [mm]	718
Clear span stirrup W [mm]	420
Stirrup section Ø F [mm]	240
Eye width J [mm]	215
Distance to eye I	349
Eye Ø U [mm]	515
Nut width BM [mm]	70
Bolt Ø DB	240
Stirrup width H	900
Overall length L [mm]	1336
Bolt length LB	940
Weight approx. [kg]	1460

Bow Shackle "heavy d.Polar" 1250.000t galv

Reference no.	304788
Working load limit	1250
Distance suspension point E [mm]	768
Clear span stirrup W [mm]	450
Stirrup section Ø F [mm]	260
Eye width J [mm]	230
Distance to eye I	369
Eye Ø U [mm]	585
Nut width BM [mm]	70
Bolt Ø DB	270
Stirrup width H	970
Overall length L [mm]	1456
Bolt length LB	1025
Weight approx. [kg]	1990

Bow Shackle "heavy d.Polar" 1500.000t galv

Reference no.	304789
Working load limit	1500
Distance suspension point E [mm]	818
Clear span stirrup W [mm]	450
Stirrup section Ø F [mm]	280
Eye width J [mm]	230
Distance to eye I	369
Eye Ø U [mm]	625
Nut width BM [mm]	70
Bolt Ø DB	290
Stirrup width H	1010
Overall length L [mm]	1556
Bolt length LB	1025
Weight approx. [kg]	2400
