Green Pin® Heavy-duty shackle

Green Pin® Heavy-duty shackle

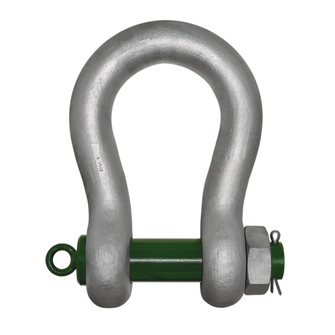

Curved shackle with safety bolt, nut and split pin for maximum working load limits.

Technical data
Options
Product variants
Downloads
Contact

Technical data

Operating temperature

–40 °C to +200 °C

Standard

ASME B30.26

Safety factor

5

Material

Alloyed steel (quality grade 8)

Shape

curved

Stirrup surface

coated (120 t hot-dip galvanised version)

Bolt surface

coated

Bolt type

Safety bolt, nut and split pin

Options

Options on request

with RFID chip

Product variants

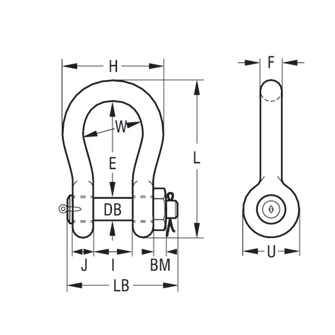

SLS GRP-120T-P6036

Reference no.	222517
Working load limit	120
Distance suspension point E [mm]	400
Clear span stirrup W [mm]	238
Stirrup section Ø F [mm]	95
Eye width J [mm]	91
Distance to eye I	147
Eye Ø U [mm]	208
Nut width BM [mm]	50
Bolt Ø DB	95
Stirrup width H	428
Overall length L [mm]	647
Bolt length LB	440
Weight approx. [kg]	110

SLS GRP-150T-P6036

Reference no.	304514
Working load limit	150
Distance suspension point E [mm]	410
Clear span stirrup W [mm]	275
Stirrup section Ø F [mm]	105
Eye width J [mm]	102
Distance to eye I	169
Eye Ø U [mm]	238
Nut width BM [mm]	60
Bolt Ø DB	108
Stirrup width H	485
Overall length L [mm]	688
Bolt length LB	490
Weight approx. [kg]	160

SLS GRP-200T-P6036

Reference no.	304515
Working load limit	200
Distance suspension point E [mm]	513
Clear span stirrup W [mm]	290
Stirrup section Ø F [mm]	120
Eye width J [mm]	113
Distance to eye I	179
Eye Ø U [mm]	279
Nut width BM [mm]	60
Bolt Ø DB	130
Stirrup width H	530
Overall length L [mm]	838
Bolt length LB	520
Weight approx. [kg]	235

SLS GRP-300T-P6036

Reference no.	304516
Working load limit	300
Distance suspension point E [mm]	618
Clear span stirrup W [mm]	305
Stirrup section Ø F [mm]	140
Eye width J [mm]	123
Distance to eye I	205
Eye Ø U [mm]	325
Nut width BM [mm]	70
Bolt Ø DB	150
Stirrup width H	585
Overall length L [mm]	996
Bolt length LB	575
Weight approx. [kg]	340

SLS GRP-400T-P6036

Reference no.	304517
Working load limit	400
Distance suspension point E [mm]	668
Clear span stirrup W [mm]	325
Stirrup section Ø F [mm]	170
Eye width J [mm]	164
Distance to eye I	231
Eye Ø U [mm]	376
Nut width BM [mm]	70
Bolt Ø DB	175
Stirrup width H	665
Overall length L [mm]	1114
Bolt length LB	690
Weight approx. [kg]	560

SLS GRP-500T-P6036

Reference no.	304518
Working load limit	500
Distance suspension point E [mm]	718
Clear span stirrup W [mm]	350
Stirrup section Ø F [mm]	180
Eye width J [mm]	164
Distance to eye I	256
Eye Ø U [mm]	398
Nut width BM [mm]	70
Bolt Ø DB	185
Stirrup width H	710
Overall length L [mm]	1190
Bolt length LB	720
Weight approx. [kg]	685

SLS GRP-600T-P6036

Reference no.	304519
Working load limit	600
Distance suspension point E [mm]	718
Clear span stirrup W [mm]	375
Stirrup section Ø F [mm]	200
Eye width J [mm]	189
Distance to eye I	282
Eye Ø U [mm]	444
Nut width BM [mm]	70
Bolt Ø DB	205
Stirrup width H	775
Overall length L [mm]	1243
Bolt length LB	810
Weight approx. [kg]	880

SLS GRP-700T-P6036

Reference no.	304520
Working load limit	700
Distance suspension point E [mm]	718
Clear span stirrup W [mm]	400
Stirrup section Ø F [mm]	210
Eye width J [mm]	204
Distance to eye I	308
Eye Ø U [mm]	454
Nut width BM [mm]	70
Bolt Ø DB	215
Stirrup width H	820
Overall length L [mm]	1263
Bolt length LB	870
Weight approx. [kg]	980

SLS GRP-800T-P6036

Reference no.	304521
Working load limit	800
Distance suspension point E [mm]	718
Clear span stirrup W [mm]	400
Stirrup section Ø F [mm]	210
Eye width J [mm]	204
Distance to eye I	308
Eye Ø U [mm]	464
Nut width BM [mm]	70
Bolt Ø DB	220
Stirrup width H	820
Overall length L [mm]	1270
Bolt length LB	870
Weight approx. [kg]	1100

SLS GRP-900T-P6036

Reference no.	304522
Working load limit	900
Distance suspension point E [mm]	718
Clear span stirrup W [mm]	420
Stirrup section Ø F [mm]	220
Eye width J [mm]	215
Distance to eye I	328
Eye Ø U [mm]	485
Nut width BM [mm]	70
Bolt Ø DB	230
Stirrup width H	860
Overall length L [mm]	1296
Bolt length LB	920
Weight approx. [kg]	1280

SLS GRP-1000T-P6036

Reference no.	304523
Working load limit	1000
Distance suspension point E [mm]	718
Clear span stirrup W [mm]	420
Stirrup section Ø F [mm]	240
Eye width J [mm]	215
Distance to eye I	349
Eye Ø U [mm]	515
Nut width BM [mm]	70
Bolt Ø DB	240
Stirrup width H	900
Overall length L [mm]	1336
Bolt length LB	940
Weight approx. [kg]	1460

SLS GRP-1250T-P6036

Reference no.	304524
Working load limit	1250
Distance suspension point E [mm]	768
Clear span stirrup W [mm]	450
Stirrup section Ø F [mm]	260
Eye width J [mm]	230
Distance to eye I	369
Eye Ø U [mm]	585
Nut width BM [mm]	70
Bolt Ø DB	270
Stirrup width H	970
Overall length L [mm]	1456
Bolt length LB	1025
Weight approx. [kg]	1990

SLS GRP-1500-P6036

Reference no.	304525
Working load limit	1500
Distance suspension point E [mm]	818
Clear span stirrup W [mm]	450
Stirrup section Ø F [mm]	280
Eye width J [mm]	230
Distance to eye I	369
Eye Ø U [mm]	625
Nut width BM [mm]	70
Bolt Ø DB	290
Stirrup width H	1010
Overall length L [mm]	1556
Bolt length LB	1025
Weight approx. [kg]	2400

Working load limit 120

Reference no. 222517

SLS GRP-120T-P6036

Reference no.	222517
Working load limit	120
Distance suspension point E [mm]	400
Clear span stirrup W [mm]	238
Stirrup section Ø F [mm]	95
Eye width J [mm]	91
Distance to eye I	147
Eye Ø U [mm]	208
Nut width BM [mm]	50
Bolt Ø DB	95
Stirrup width H	428
Overall length L [mm]	647
Bolt length LB	440
Weight approx. [kg]	110

Working load limit 150

Reference no. 304514

SLS GRP-150T-P6036

Reference no.	304514
Working load limit	150
Distance suspension point E [mm]	410
Clear span stirrup W [mm]	275
Stirrup section Ø F [mm]	105
Eye width J [mm]	102
Distance to eye I	169
Eye Ø U [mm]	238
Nut width BM [mm]	60
Bolt Ø DB	108
Stirrup width H	485
Overall length L [mm]	688
Bolt length LB	490
Weight approx. [kg]	160

Working load limit 200

Reference no. 304515

SLS GRP-200T-P6036

Reference no.	304515
Working load limit	200
Distance suspension point E [mm]	513
Clear span stirrup W [mm]	290
Stirrup section Ø F [mm]	120
Eye width J [mm]	113
Distance to eye I	179
Eye Ø U [mm]	279
Nut width BM [mm]	60
Bolt Ø DB	130
Stirrup width H	530
Overall length L [mm]	838
Bolt length LB	520
Weight approx. [kg]	235

Working load limit 300

Reference no. 304516

SLS GRP-300T-P6036

Reference no.	304516
Working load limit	300
Distance suspension point E [mm]	618
Clear span stirrup W [mm]	305
Stirrup section Ø F [mm]	140
Eye width J [mm]	123
Distance to eye I	205
Eye Ø U [mm]	325
Nut width BM [mm]	70
Bolt Ø DB	150
Stirrup width H	585
Overall length L [mm]	996
Bolt length LB	575
Weight approx. [kg]	340

Working load limit 400

Reference no. 304517

SLS GRP-400T-P6036

Reference no.	304517
Working load limit	400
Distance suspension point E [mm]	668
Clear span stirrup W [mm]	325
Stirrup section Ø F [mm]	170
Eye width J [mm]	164
Distance to eye I	231
Eye Ø U [mm]	376
Nut width BM [mm]	70
Bolt Ø DB	175
Stirrup width H	665
Overall length L [mm]	1114
Bolt length LB	690
Weight approx. [kg]	560

Working load limit 500

Reference no. 304518

SLS GRP-500T-P6036

Reference no.	304518
Working load limit	500
Distance suspension point E [mm]	718
Clear span stirrup W [mm]	350
Stirrup section Ø F [mm]	180
Eye width J [mm]	164
Distance to eye I	256
Eye Ø U [mm]	398
Nut width BM [mm]	70
Bolt Ø DB	185
Stirrup width H	710
Overall length L [mm]	1190
Bolt length LB	720
Weight approx. [kg]	685

Working load limit 600

Reference no. 304519

SLS GRP-600T-P6036

Reference no.	304519
Working load limit	600
Distance suspension point E [mm]	718
Clear span stirrup W [mm]	375
Stirrup section Ø F [mm]	200
Eye width J [mm]	189
Distance to eye I	282
Eye Ø U [mm]	444
Nut width BM [mm]	70
Bolt Ø DB	205
Stirrup width H	775
Overall length L [mm]	1243
Bolt length LB	810
Weight approx. [kg]	880

Working load limit 700

Reference no. 304520

SLS GRP-700T-P6036

Reference no.	304520
Working load limit	700
Distance suspension point E [mm]	718
Clear span stirrup W [mm]	400
Stirrup section Ø F [mm]	210
Eye width J [mm]	204
Distance to eye I	308
Eye Ø U [mm]	454
Nut width BM [mm]	70
Bolt Ø DB	215
Stirrup width H	820
Overall length L [mm]	1263
Bolt length LB	870
Weight approx. [kg]	980

Working load limit 800

Reference no. 304521

SLS GRP-800T-P6036

Reference no.	304521
Working load limit	800
Distance suspension point E [mm]	718
Clear span stirrup W [mm]	400
Stirrup section Ø F [mm]	210
Eye width J [mm]	204
Distance to eye I	308
Eye Ø U [mm]	464
Nut width BM [mm]	70
Bolt Ø DB	220
Stirrup width H	820
Overall length L [mm]	1270
Bolt length LB	870
Weight approx. [kg]	1100

Working load limit 900

Reference no. 304522

SLS GRP-900T-P6036

Reference no.	304522
Working load limit	900
Distance suspension point E [mm]	718
Clear span stirrup W [mm]	420
Stirrup section Ø F [mm]	220
Eye width J [mm]	215
Distance to eye I	328
Eye Ø U [mm]	485
Nut width BM [mm]	70
Bolt Ø DB	230
Stirrup width H	860
Overall length L [mm]	1296
Bolt length LB	920
Weight approx. [kg]	1280

Working load limit 1000

Reference no. 304523

SLS GRP-1000T-P6036

Reference no.	304523
Working load limit	1000
Distance suspension point E [mm]	718
Clear span stirrup W [mm]	420
Stirrup section Ø F [mm]	240
Eye width J [mm]	215
Distance to eye I	349
Eye Ø U [mm]	515
Nut width BM [mm]	70
Bolt Ø DB	240
Stirrup width H	900
Overall length L [mm]	1336
Bolt length LB	940
Weight approx. [kg]	1460

Working load limit 1250

Reference no. 304524

SLS GRP-1250T-P6036

Reference no.	304524
Working load limit	1250
Distance suspension point E [mm]	768
Clear span stirrup W [mm]	450
Stirrup section Ø F [mm]	260
Eye width J [mm]	230
Distance to eye I	369
Eye Ø U [mm]	585
Nut width BM [mm]	70
Bolt Ø DB	270
Stirrup width H	970
Overall length L [mm]	1456
Bolt length LB	1025
Weight approx. [kg]	1990

Working load limit 1500

Reference no. 304525

SLS GRP-1500-P6036

Reference no.	304525
Working load limit	1500
Distance suspension point E [mm]	818
Clear span stirrup W [mm]	450
Stirrup section Ø F [mm]	280
Eye width J [mm]	230
Distance to eye I	369
Eye Ø U [mm]	625
Nut width BM [mm]	70
Bolt Ø DB	290
Stirrup width H	1010
Overall length L [mm]	1556
Bolt length LB	1025
Weight approx. [kg]	2400

Downloads

Design / Engineering

CAD 3D

Download

Contact

Market	Contact	Location type
All other markets	PFEIFER Seil- und Hebetechnik GmbH Dr.-Karl-Lenz-Straße 66 DE-87700 Memmingen Tel. +49 8331 937-9623 Fax +49 8331 937-380 E-Mail verkauf-azs@pfeifer.de Web www.pfeifer.info	Parent company/Head office
Germany	PFEIFER Seil- und Hebetechnik GmbH Dr.-Karl-Lenz-Straße 66 DE-87700 Memmingen Mobile Services Tel. +49 800 7237244 Fax +49 8331 937-198 E-Mail pruefservice-azs@pfeifer.de Web www.pfeifer.info	Service centre
Germany	PFEIFER Seil- und Hebetechnik GmbH Dr.-Karl-Lenz-Strasse 66 DE-87700 Memmingen Academy Tel. +49 8331 937-462 E-Mail academy@pfeifer.de Web www.pfeifer.info	Service centre
Austria	PFEIFER Seil- und Hebetechnik GmbH Harterfeldweg 2 AT-4481 Asten Tel. +43 7224 662 24-0 Fax +43 7224 662 24-13 E-Mail info@pfeifer-austria.at Web www.pfeifer-austria.at	Sales subsidiary
France	PFEIFER SOGEQUIP S.à.r.l. Zone Ind. Schifflange-Foetz LU-3844 Schifflange Tel. +33 676 54 42 68 / +352 57 42-42 Fax +352 57 42-62 E-Mail info@pfeifer-sogequip.lu Web www.pfeifer-sogequip.lu	Sales subsidiary
Luxemburg	PFEIFER SOGEQUIP S.à.r.l. Zone Ind. Schifflange-Foetz LU-3844 Schifflange Tel. +352 57 42-42 Fax +352 57 42-62 E-Mail info@pfeifer-sogequip.lu Web www.pfeifer-sogequip.lu	Sales subsidiary
Poland	PFEIFER Technika Linowa i Dźwigowa Sp. z o.o. ul. Wrocławska 68 55-330 Krępice k/Wrocławia Tel. +48 71 30 23 700 E-Mail info@pfeifer.pl Web www.pfeifer.pl	Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

E-Mail

verkauf-azs@pfeifer.de

Inquiry

please leave empty!

Mr Mrs

* Required fields

Send me a copy.

I consent to my data being processed in accordance with the data protection declaration.

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
