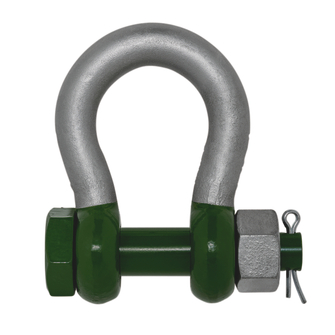

Green Pin® Polar shackle with safety bolt, nut and cotter pin – curved shape

Green Pin® Polar shackle with safety bolt, nut and cotter pin – curved shape
Curved shackle for extreme climatic conditions with safety bolt, nut and cotter pin.
Technical data

Operating temperature

  • –60 °C to +200 °C

Standard

  • EN 13889
  • US Fed. Spec. RR-C-271 Type IVA Class 2, Grade A

Safety factor

  • 6

Material

  • Alloyed steel (quality grade 8)

Shape

  • curved

Stirrup surface

  • hot-dip galvanised

Bolt surface

  • hot-dip galvanised

Bolt type

  • Safety bolt, nut and split pin
Options

Options on request

  • with RFID chip
Product variants
Working load limit [t]
Reference no.
Details
  • 2
    304573
    Bow Shackle alloy w.N."Polar" 2.000t galv
    Reference no. 304573
    Working load limit 2

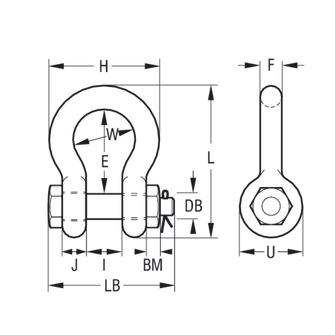

    Distance suspension point E [mm] 51
    Clear span stirrup W [mm] 32
    Stirrup section Ø F [mm] 13.5
    Eye width J [mm] 13
    Distance to eye I 22
    Eye Ø U [mm] 34
    Nut width BM [mm] 13
    Bolt Ø DB 16
    Stirrup width H 58
    Overall length L [mm] 89
    Bolt length LB 82
    Weight approx. [kg] 0.42
  • 3.25
    304578
    Bow Shackle alloy w.N."Polar" 3.250t galv
    Reference no. 304578
    Working load limit 3.25
    Distance suspension point E [mm] 64
    Clear span stirrup W [mm] 43
    Stirrup section Ø F [mm] 16
    Eye width J [mm] 16
    Distance to eye I 27
    Eye Ø U [mm] 40
    Nut width BM [mm] 17
    Bolt Ø DB 19
    Stirrup width H 75
    Overall length L [mm] 110
    Bolt length LB 98
    Weight approx. [kg] 0.74
  • 9.5
    304579
    Bow Shackle alloy w.N."Polar" 9.500t galv
    Reference no. 304579
    Working load limit 9.5
    Distance suspension point E [mm] 108
    Clear span stirrup W [mm] 75
    Stirrup section Ø F [mm] 28
    Eye width J [mm] 28
    Distance to eye I 47
    Eye Ø U [mm] 66
    Nut width BM [mm] 27
    Bolt Ø DB 32
    Stirrup width H 131
    Overall length L [mm] 185
    Bolt length LB 166
    Weight approx. [kg] 3.66
  • 13.5
    304580
    Bow Shackle alloy w.N."Polar" 13.500t galv
    Reference no. 304580
    Working load limit 13.5
    Distance suspension point E [mm] 133
    Clear span stirrup W [mm] 92
    Stirrup section Ø F [mm] 35
    Eye width J [mm] 35
    Distance to eye I 57
    Eye Ø U [mm] 80
    Nut width BM [mm] 33
    Bolt Ø DB 38
    Stirrup width H 162
    Overall length L [mm] 227
    Bolt length LB 197
    Weight approx. [kg] 6.54
  • 42.5
    304581
    Bow Shackle alloy w.N."Polar" 42.500t galv
    Reference no. 304581
    Working load limit 42.5
    Distance suspension point E [mm] 222
    Clear span stirrup W [mm] 160
    Stirrup section Ø F [mm] 57
    Eye width J [mm] 57
    Distance to eye I 95
    Eye Ø U [mm] 130
    Nut width BM [mm] 29
    Bolt Ø DB 65
    Stirrup width H 274
    Overall length L [mm] 377
    Bolt length LB 301
    Weight approx. [kg] 28.33
  • 85
    304582
    Bow Shackle alloy w.N."Polar" 85.000t galv
    Reference no. 304582
    Working load limit 85
    Distance suspension point E [mm] 329
    Clear span stirrup W [mm] 190
    Stirrup section Ø F [mm] 75
    Eye width J [mm] 73
    Distance to eye I 127
    Eye Ø U [mm] 162
    Nut width BM [mm] 39
    Bolt Ø DB 83
    Stirrup width H 340
    Overall length L [mm] 527
    Bolt length LB 380
    Weight approx. [kg] 62
Working load limit 2
Reference no. 304573
  • Details
    Bow Shackle alloy w.N."Polar" 2.000t galv
    Reference no. 304573
    Working load limit 2
    Distance suspension point E [mm] 51
    Clear span stirrup W [mm] 32
    Stirrup section Ø F [mm] 13.5
    Eye width J [mm] 13
    Distance to eye I 22
    Eye Ø U [mm] 34
    Nut width BM [mm] 13
    Bolt Ø DB 16
    Stirrup width H 58
    Overall length L [mm] 89
    Bolt length LB 82
    Weight approx. [kg] 0.42
Working load limit 3.25
Reference no. 304578
  • Details
    Bow Shackle alloy w.N."Polar" 3.250t galv
    Reference no. 304578
    Working load limit 3.25
    Distance suspension point E [mm] 64
    Clear span stirrup W [mm] 43
    Stirrup section Ø F [mm] 16
    Eye width J [mm] 16
    Distance to eye I 27
    Eye Ø U [mm] 40
    Nut width BM [mm] 17
    Bolt Ø DB 19
    Stirrup width H 75
    Overall length L [mm] 110
    Bolt length LB 98
    Weight approx. [kg] 0.74
Working load limit 9.5
Reference no. 304579
  • Details
    Bow Shackle alloy w.N."Polar" 9.500t galv
    Reference no. 304579
    Working load limit 9.5
    Distance suspension point E [mm] 108
    Clear span stirrup W [mm] 75
    Stirrup section Ø F [mm] 28
    Eye width J [mm] 28
    Distance to eye I 47
    Eye Ø U [mm] 66
    Nut width BM [mm] 27
    Bolt Ø DB 32
    Stirrup width H 131
    Overall length L [mm] 185
    Bolt length LB 166
    Weight approx. [kg] 3.66
Working load limit 13.5
Reference no. 304580
  • Details
    Bow Shackle alloy w.N."Polar" 13.500t galv
    Reference no. 304580
    Working load limit 13.5
    Distance suspension point E [mm] 133
    Clear span stirrup W [mm] 92
    Stirrup section Ø F [mm] 35
    Eye width J [mm] 35
    Distance to eye I 57
    Eye Ø U [mm] 80
    Nut width BM [mm] 33
    Bolt Ø DB 38
    Stirrup width H 162
    Overall length L [mm] 227
    Bolt length LB 197
    Weight approx. [kg] 6.54
Working load limit 42.5
Reference no. 304581
  • Details
    Bow Shackle alloy w.N."Polar" 42.500t galv
    Reference no. 304581
    Working load limit 42.5
    Distance suspension point E [mm] 222
    Clear span stirrup W [mm] 160
    Stirrup section Ø F [mm] 57
    Eye width J [mm] 57
    Distance to eye I 95
    Eye Ø U [mm] 130
    Nut width BM [mm] 29
    Bolt Ø DB 65
    Stirrup width H 274
    Overall length L [mm] 377
    Bolt length LB 301
    Weight approx. [kg] 28.33
Working load limit 85
Reference no. 304582
  • Details
    Bow Shackle alloy w.N."Polar" 85.000t galv
    Reference no. 304582
    Working load limit 85
    Distance suspension point E [mm] 329
    Clear span stirrup W [mm] 190
    Stirrup section Ø F [mm] 75
    Eye width J [mm] 73
    Distance to eye I 127
    Eye Ø U [mm] 162
    Nut width BM [mm] 39
    Bolt Ø DB 83
    Stirrup width H 340
    Overall length L [mm] 527
    Bolt length LB 380
    Weight approx. [kg] 62
