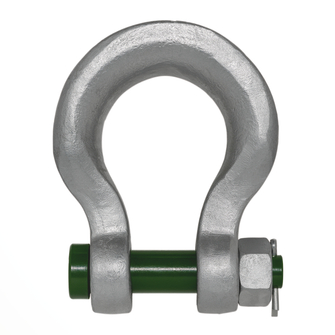

Green Pin® sling shackle

Green Pin® sling shackle
Shackle with large bearing surface, safety bolt, nut and split pin in curved form. A larger stirrup radius improves the ratio of the radii between the attachment devices. This considerably extends the service life of the suspension gear.
Technical data

Quality grade

  • 8

Operating temperature

  • –40 °C to +200 °C

Safety factor

  • 5

Material

  • Alloyed steel (quality grade 8)

Shape

  • curved

Stirrup surface

  • coated (shackle 7 t - 55 t hot-dip galvanised)

Bolt surface

  • coated

Bolt type

  • Safety bolt, nut and split pin
Options

Options on request

  • with RFID chip
  • Working load limits > 150 t
Product variants
Working load limit [t]
Reference no.
Details
  • 7
    243661
    BKS GRP-7T-LACK-P6033
    Reference no. 243661
    Working load limit 7

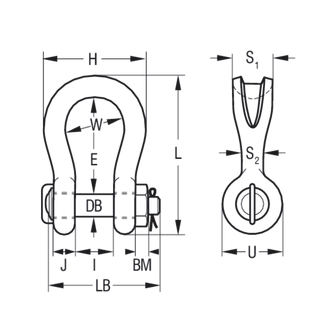

    Distance suspension point E [mm] 96
    Clear span stirrup W [mm] 64
    Eye width J [mm] 19
    Distance to eye I 32
    Eye Ø U [mm] 46
    Nut width BM [mm] 19
    Bolt Ø DB 22
    Stirrup width H 110
    Overall length L [mm] 153
    Bolt length LB 115
    Suspension point strength S1 [mm] 41
    Stirrup strength S2 [mm] 22
    Weight approx. [kg] 2
  • 12.5
    243662
    BKS GRP-12.5T-LACK-P6033
    Reference no. 243662
    Working load limit 12.5
    Distance suspension point E [mm] 121
    Clear span stirrup W [mm] 82
    Eye width J [mm] 25
    Distance to eye I 44
    Eye Ø U [mm] 61
    Nut width BM [mm] 24
    Bolt Ø DB 28
    Stirrup width H 146
    Overall length L [mm] 197
    Bolt length LB 151
    Suspension point strength S1 [mm] 54
    Stirrup strength S2 [mm] 28
    Weight approx. [kg] 4.54
  • 18
    243663
    BKS GRP-18T-LACK-P6033
    Reference no. 243663
    Working load limit 18
    Distance suspension point E [mm] 148
    Clear span stirrup W [mm] 102
    Eye width J [mm] 30
    Distance to eye I 54
    Eye Ø U [mm] 69
    Nut width BM [mm] 29
    Bolt Ø DB 35
    Stirrup width H 180
    Overall length L [mm] 239
    Bolt length LB 175
    Suspension point strength S1 [mm] 64
    Stirrup strength S2 [mm] 35
    Weight approx. [kg] 7
  • 30
    243664
    BKS GRP-30T-LACK-P6033
    Reference no. 243664
    Working load limit 30
    Distance suspension point E [mm] 165
    Clear span stirrup W [mm] 126
    Eye width J [mm] 35
    Distance to eye I 69
    Eye Ø U [mm] 90
    Nut width BM [mm] 34
    Bolt Ø DB 42
    Stirrup width H 200
    Overall length L [mm] 279
    Bolt length LB 211
    Suspension point strength S1 [mm] 79
    Stirrup strength S2 [mm] 40
    Weight approx. [kg] 13
  • 40
    235880
    BKS GRP-40T-LACK-P6033
    Reference no. 235880
    Working load limit 40
    Distance suspension point E [mm] 199
    Clear span stirrup W [mm] 140
    Eye width J [mm] 45
    Distance to eye I 84
    Eye Ø U [mm] 109
    Nut width BM [mm] 38
    Bolt Ø DB 51
    Stirrup width H 235
    Overall length L [mm] 331
    Bolt length LB 252
    Suspension point strength S1 [mm] 97
    Stirrup strength S2 [mm] 55
    Weight approx. [kg] 21
  • 55
    226293
    BKS GRP-55T-LACK-P6033
    Reference no. 226293
    Working load limit 55
    Distance suspension point E [mm] 240
    Clear span stirrup W [mm] 160
    Eye width J [mm] 55
    Distance to eye I 90
    Eye Ø U [mm] 115
    Nut width BM [mm] 45
    Bolt Ø DB 57
    Stirrup width H 270
    Overall length L [mm] 389
    Bolt length LB 299
    Suspension point strength S1 [mm] 100
    Stirrup strength S2 [mm] 60
    Weight approx. [kg] 30
  • 75
    235881
    BKS GRP-75T-LACK-P6033
    Reference no. 235881
    Working load limit 75
    Distance suspension point E [mm] 290
    Clear span stirrup W [mm] 185
    Eye width J [mm] 54
    Distance to eye I 110
    Eye Ø U [mm] 125
    Nut width BM [mm] 54
    Bolt Ø DB 70
    Stirrup width H 317
    Overall length L [mm] 473
    Bolt length LB 327
    Suspension point strength S1 [mm] 120
    Stirrup strength S2 [mm] 68
    Weight approx. [kg] 53
  • 125
    235882
    BKS GRP-125T-LACK-P6033
    Reference no. 235882
    Working load limit 125
    Distance suspension point E [mm] 366
    Clear span stirrup W [mm] 220
    Eye width J [mm] 85
    Distance to eye I 137
    Eye Ø U [mm] 154
    Nut width BM [mm] 64
    Bolt Ø DB 80
    Stirrup width H 390
    Overall length L [mm] 583
    Bolt length LB 426
    Suspension point strength S1 [mm] 150
    Stirrup strength S2 [mm] 85
    Weight approx. [kg] 92
  • 150
    235883
    BKS GRP-150T-LACK-P6033
    Reference no. 235883
    Working load limit 150
    Distance suspension point E [mm] 391
    Clear span stirrup W [mm] 253
    Eye width J [mm] 89
    Distance to eye I 147
    Eye Ø U [mm] 179
    Nut width BM [mm] 50
    Bolt Ø DB 95
    Stirrup width H 434
    Overall length L [mm] 645
    Bolt length LB 435
    Suspension point strength S1 [mm] 170
    Stirrup strength S2 [mm] 94
    Weight approx. [kg] 140
  • 200
    235884
    BKS GRP-200T-LACK-P6033
    Reference no. 235884
    Working load limit 200
    Distance suspension point E [mm] 481
    Clear span stirrup W [mm] 280
    Eye width J [mm] 100
    Distance to eye I 158
    Eye Ø U [mm] 199
    Nut width BM [mm] 50
    Bolt Ø DB 105
    Stirrup width H 482
    Overall length L [mm] 759
    Bolt length LB 470
    Suspension point strength S1 [mm] 205
    Stirrup strength S2 [mm] 110
    Weight approx. [kg] 205
  • 250
    235885
    BKS GRP-250T-LACK-P6033
    Reference no. 235885
    Working load limit 250
    Distance suspension point E [mm] 542
    Clear span stirrup W [mm] 300
    Eye width J [mm] 110
    Distance to eye I 179
    Eye Ø U [mm] 227
    Nut width BM [mm] 60
    Bolt Ø DB 120
    Stirrup width H 530
    Overall length L [mm] 859
    Bolt length LB 519
    Suspension point strength S1 [mm] 240
    Stirrup strength S2 [mm] 126
    Weight approx. [kg] 264
  • 300
    223981
    BKS GRP-300T-LACK-P6033
    Reference no. 223981
    Working load limit 300
    Distance suspension point E [mm] 601
    Clear span stirrup W [mm] 350
    Eye width J [mm] 122
    Distance to eye I 195
    Eye Ø U [mm] 245
    Nut width BM [mm] 70
    Bolt Ø DB 134
    Stirrup width H 620
    Overall length L [mm] 947
    Bolt length LB 575
    Suspension point strength S1 [mm] 265
    Stirrup strength S2 [mm] 135
    Weight approx. [kg] 368
  • 400
    235886
    BKS GRP-400T-LACK-P6033
    Reference no. 235886
    Working load limit 400
    Distance suspension point E [mm] 576
    Clear span stirrup W [mm] 370
    Eye width J [mm] 145
    Distance to eye I 231
    Eye Ø U [mm] 293
    Nut width BM [mm] 80
    Bolt Ø DB 160
    Stirrup width H 690
    Overall length L [mm] 985
    Bolt length LB 675
    Suspension point strength S1 [mm] 320
    Stirrup strength S2 [mm] 160
    Weight approx. [kg] 580
  • 500
    235887
    BKS GRP-500T-LACK-P6033
    Reference no. 235887
    Working load limit 500
    Distance suspension point E [mm] 681
    Clear span stirrup W [mm] 450
    Eye width J [mm] 160
    Distance to eye I 263
    Eye Ø U [mm] 328
    Nut width BM [mm] 90
    Bolt Ø DB 180
    Stirrup width H 790
    Overall length L [mm] 1131
    Bolt length LB 748
    Suspension point strength S1 [mm] 339
    Stirrup strength S2 [mm] 170
    Weight approx. [kg] 780
  • 600
    259713
    BKS GRP-600T-LACK-P6033
    Reference no. 259713
    Working load limit 600
    Distance suspension point E [mm] 741
    Clear span stirrup W [mm] 490
    Eye width J [mm] 170
    Distance to eye I 289
    Eye Ø U [mm] 348
    Nut width BM [mm] 100
    Bolt Ø DB 200
    Stirrup width H 865
    Overall length L [mm] 1234
    Bolt length LB 809
    Suspension point strength S1 [mm] 370
    Stirrup strength S2 [mm] 190
    Weight approx. [kg] 980
  • 700
    235888
    BKS GRP-700T-LACK-P6033
    Reference no. 235888
    Working load limit 700
    Distance suspension point E [mm] 751
    Clear span stirrup W [mm] 540
    Eye width J [mm] 190
    Distance to eye I 315
    Eye Ø U [mm] 392
    Nut width BM [mm] 100
    Bolt Ø DB 215
    Stirrup width H 901
    Overall length L [mm] 1284
    Bolt length LB 879
    Suspension point strength S1 [mm] 400
    Stirrup strength S2 [mm] 200
    Weight approx. [kg] 1360
