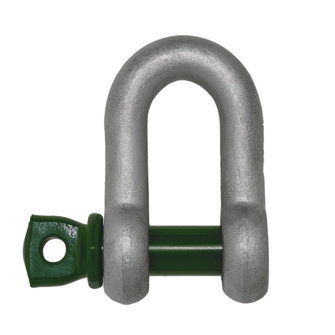

Green Pin® Standard shackle

Green Pin® Standard shackle
Straight standard shackle with eye bolt, not for permanent use and single occupancy.
Technical data

Operating temperature

  • –40 °C to +200 °C

Standard

  • EN 13889
  • US Fed. Spec. RR-C-271 Type IVA Class 2, Grade A

Safety factor

  • 6

Material

  • High-tensile steel (quality grade 6)

Shape

  • straight

Stirrup surface

  • hot-dip galvanised

Bolt surface

  • coated

Bolt type

  • Eye bolt
Options

Options on request

  • with RFID chip
Product variants
Working load limit [t]
Reference no.
Details
  • 0.33
    304511
    HGA GRP-0.33T-G4151
    Reference no. 304511
    Working load limit 0.33

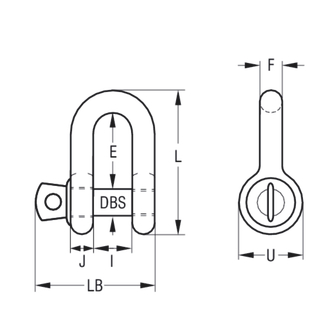

    Stud bolt Ø DBS 6
    Distance suspension point E [mm] 19
    Stirrup section Ø F [mm] 5
    Eye width J [mm] 5
    Distance to eye I 9.5
    Eye Ø U [mm] 12
    Overall length L [mm] 33
    Bolt length LB 29.5
    Weight approx. [kg] 0.02
  • 0.5
    112924
    HGA GRP-0.5T-G4151
    Reference no. 112924
    Working load limit 0.5
    Stud bolt Ø DBS 8
    Distance suspension point E [mm] 22
    Stirrup section Ø F [mm] 7
    Eye width J [mm] 7
    Distance to eye I 12
    Eye Ø U [mm] 16.5
    Overall length L [mm] 41.5
    Bolt length LB 38
    Weight approx. [kg] 0.05
  • 0.75
    112925
    HGA GRP-0.75T-G4151
    Reference no. 112925
    Working load limit 0.75
    Stud bolt Ø DBS 10
    Distance suspension point E [mm] 26
    Stirrup section Ø F [mm] 9
    Eye width J [mm] 9
    Distance to eye I 13.5
    Eye Ø U [mm] 20
    Overall length L [mm] 50
    Bolt length LB 46.5
    Weight approx. [kg] 0.09
  • 1
    112926
    Alloy Dee Shackle EN alloy 1.000t galv
    Reference no. 112926
    Working load limit 1
    Stud bolt Ø DBS 11
    Distance suspension point E [mm] 32
    Stirrup section Ø F [mm] 10
    Eye width J [mm] 10
    Distance to eye I 17
    Eye Ø U [mm] 22.5
    Overall length L [mm] 59
    Bolt length LB 54
    Weight approx. [kg] 0.14
  • 1.5
    112927
    HGA GRP-1.5T-G4151
    Reference no. 112927
    Working load limit 1.5
    Stud bolt Ø DBS 13
    Distance suspension point E [mm] 37
    Stirrup section Ø F [mm] 11
    Eye width J [mm] 11
    Distance to eye I 19
    Eye Ø U [mm] 26.5
    Overall length L [mm] 68
    Bolt length LB 59.5
    Weight approx. [kg] 0.19
  • 2
    112928
    HGA GRP-2T-G4151
    Reference no. 112928
    Working load limit 2
    Stud bolt Ø DBS 16
    Distance suspension point E [mm] 43
    Stirrup section Ø F [mm] 13.5
    Eye width J [mm] 13
    Distance to eye I 22
    Eye Ø U [mm] 34
    Overall length L [mm] 81
    Bolt length LB 73
    Weight approx. [kg] 0.34
  • 3.25
    112929
    HGA GRP-3.25T-G4151
    Reference no. 112929
    Working load limit 3.25
    Stud bolt Ø DBS 19
    Distance suspension point E [mm] 51
    Stirrup section Ø F [mm] 16
    Eye width J [mm] 16
    Distance to eye I 27
    Eye Ø U [mm] 40
    Overall length L [mm] 97
    Bolt length LB 89
    Weight approx. [kg] 0.54
  • 4.75
    112930
    HGA GRP-4.75T-G4151
    Reference no. 112930
    Working load limit 4.75
    Stud bolt Ø DBS 22
    Distance suspension point E [mm] 59
    Stirrup section Ø F [mm] 19
    Eye width J [mm] 19
    Distance to eye I 31
    Eye Ø U [mm] 46
    Overall length L [mm] 112
    Bolt length LB 103
    Weight approx. [kg] 0.87
  • 6.5
    112931
    HGA GRP-6.5T-G4151
    Reference no. 112931
    Working load limit 6.5
    Stud bolt Ø DBS 25
    Distance suspension point E [mm] 73
    Stirrup section Ø F [mm] 22
    Eye width J [mm] 22
    Distance to eye I 36
    Eye Ø U [mm] 52
    Overall length L [mm] 134
    Bolt length LB 119
    Weight approx. [kg] 1.4
  • 8.5
    112932
    HGA GRP-8.5T-G4151
    Reference no. 112932
    Working load limit 8.5
    Stud bolt Ø DBS 28
    Distance suspension point E [mm] 85
    Stirrup section Ø F [mm] 25
    Eye width J [mm] 25
    Distance to eye I 43
    Eye Ø U [mm] 59
    Overall length L [mm] 154
    Bolt length LB 137
    Weight approx. [kg] 2.08
  • 9.5
    112933
    HGA GRP-9.5T-G4151
    Reference no. 112933
    Working load limit 9.5
    Stud bolt Ø DBS 32
    Distance suspension point E [mm] 90
    Stirrup section Ø F [mm] 28
    Eye width J [mm] 28
    Distance to eye I 47
    Eye Ø U [mm] 66
    Overall length L [mm] 167
    Bolt length LB 153
    Weight approx. [kg] 2.86
  • 12
    112934
    HGA GRP-12T-G4151
    Reference no. 112934
    Working load limit 12
    Stud bolt Ø DBS 35
    Distance suspension point E [mm] 94
    Stirrup section Ø F [mm] 32
    Eye width J [mm] 32
    Distance to eye I 51
    Eye Ø U [mm] 72
    Overall length L [mm] 180
    Bolt length LB 170
    Weight approx. [kg] 3.72
  • 13.5
    112935
    HGA GRP-13.5T-G4151
    Reference no. 112935
    Working load limit 13.5
    Stud bolt Ø DBS 38
    Distance suspension point E [mm] 115
    Stirrup section Ø F [mm] 35
    Eye width J [mm] 35
    Distance to eye I 57
    Eye Ø U [mm] 80
    Overall length L [mm] 209
    Bolt length LB 186
    Weight approx. [kg] 5.14
  • 17
    112936
    HGA GRP-17T-G4151
    Reference no. 112936
    Working load limit 17
    Stud bolt Ø DBS 42
    Distance suspension point E [mm] 127
    Stirrup section Ø F [mm] 38
    Eye width J [mm] 38
    Distance to eye I 60
    Eye Ø U [mm] 88
    Overall length L [mm] 230
    Bolt length LB 203
    Weight approx. [kg] 6.85
  • 25
    112937
    HGA GRP-25T-G4151
    Reference no. 112937
    Working load limit 25
    Stud bolt Ø DBS 50
    Distance suspension point E [mm] 149
    Stirrup section Ø F [mm] 45
    Eye width J [mm] 45
    Distance to eye I 74
    Eye Ø U [mm] 103
    Overall length L [mm] 271
    Bolt length LB 243
    Weight approx. [kg] 11.45
  • 35
    112938
    HGA GRP-35T-G4151
    Reference no. 112938
    Working load limit 35
    Stud bolt Ø DBS 57
    Distance suspension point E [mm] 171
    Stirrup section Ø F [mm] 50
    Eye width J [mm] 50
    Distance to eye I 83
    Eye Ø U [mm] 111
    Overall length L [mm] 305
    Bolt length LB 272
    Weight approx. [kg] 16.86
  • 42.5
    304512
    HGA GRP-42.5T-G4151
    Reference no. 304512
    Working load limit 42.5
    Stud bolt Ø DBS 65
    Distance suspension point E [mm] 190
    Stirrup section Ø F [mm] 57
    Eye width J [mm] 57
    Distance to eye I 95
    Eye Ø U [mm] 130
    Overall length L [mm] 345
    Bolt length LB 310
    Weight approx. [kg] 24.61
  • 55
    112940
    HGA GRP-55T-G4151
    Reference no. 112940
    Working load limit 55
    Stud bolt Ø DBS 70
    Distance suspension point E [mm] 203
    Stirrup section Ø F [mm] 65
    Eye width J [mm] 65
    Distance to eye I 105
    Eye Ø U [mm] 145
    Overall length L [mm] 376
    Bolt length LB 344
    Weight approx. [kg] 37.86
