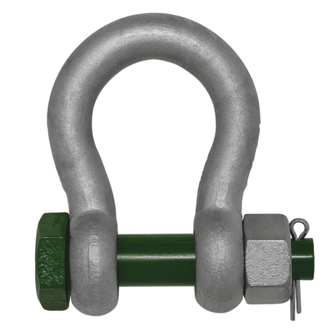

Green Pin® Standard shackle

Curved standard shackle with safety bolt, nut and split pin for permanent use and multiple occupancy. The shackle fully complies with EN 13889 and to the performance specifications of the US Fed. Spec. RR-C-271 Type IVA Class 2, Grade A.

Technical data
Options
Product variants
Downloads
Contact

Technical data

Operating temperature

–40 °C to +200 °C

Standard

EN 13889
US Fed. Spec. RR-C-271 Type IVA Class 2, Grade A

Safety factor

Material

High-tensile steel (quality grade 6)

Shape

curved

Stirrup surface

hot-dip galvanised

Bolt surface

coated

Bolt type

Safety bolt, nut and split pin

Options

Options on request

with RFID chip

Product variants

0.5

136375

HWB GRP-0.5T-G4153

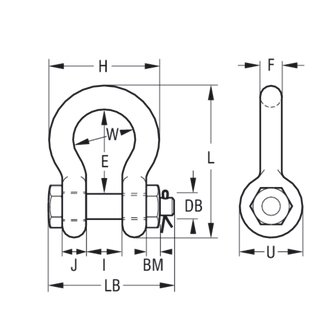

Reference no.	136375
Working load limit	0.5
Distance suspension point E [mm]	29
Clear span stirrup W [mm]	20
Stirrup section Ø F [mm]	7
Eye width J [mm]	7
Distance to eye I	12
Eye Ø U [mm]	16.5
Nut width BM [mm]	4
Bolt Ø DB	8
Stirrup width H	34
Overall length L [mm]	48.5
Bolt length LB	42
Weight approx. [kg]	0.06

0.75

136376

HWB GRP-0.75T-G4153

Reference no.	136376
Working load limit	0.75
Distance suspension point E [mm]	32
Clear span stirrup W [mm]	22
Stirrup section Ø F [mm]	9
Eye width J [mm]	9
Distance to eye I	13.5
Eye Ø U [mm]	20
Nut width BM [mm]	5
Bolt Ø DB	10
Stirrup width H	40
Overall length L [mm]	56
Bolt length LB	50
Weight approx. [kg]	0.11

136377

HWB GRP-1T-G4153

Reference no.	136377
Working load limit	1
Distance suspension point E [mm]	36.5
Clear span stirrup W [mm]	26
Stirrup section Ø F [mm]	10
Eye width J [mm]	10
Distance to eye I	17
Eye Ø U [mm]	22.5
Nut width BM [mm]	8
Bolt Ø DB	11
Stirrup width H	46
Overall length L [mm]	63.5
Bolt length LB	60
Weight approx. [kg]	0.16

1.5

136378

HWB GRP-1.5T-G4153

Reference no.	136378
Working load limit	1.5
Distance suspension point E [mm]	43
Clear span stirrup W [mm]	29
Stirrup section Ø F [mm]	11
Eye width J [mm]	11
Distance to eye I	19
Eye Ø U [mm]	26.5
Nut width BM [mm]	11
Bolt Ø DB	13
Stirrup width H	51
Overall length L [mm]	74
Bolt length LB	67
Weight approx. [kg]	0.22

112003

HWB GRP-2T-G4163

Reference no.	112003
Working load limit	2
Distance suspension point E [mm]	51
Clear span stirrup W [mm]	32
Stirrup section Ø F [mm]	13.5
Eye width J [mm]	13
Distance to eye I	22
Eye Ø U [mm]	34
Nut width BM [mm]	13
Bolt Ø DB	16
Stirrup width H	58
Overall length L [mm]	89
Bolt length LB	82
Weight approx. [kg]	0.42

3.25

112005

HWB GRP-3.25T-G4163

Reference no.	112005
Working load limit	3.25
Distance suspension point E [mm]	64
Clear span stirrup W [mm]	43
Stirrup section Ø F [mm]	16
Eye width J [mm]	16
Distance to eye I	27
Eye Ø U [mm]	40
Nut width BM [mm]	17
Bolt Ø DB	19
Stirrup width H	75
Overall length L [mm]	110
Bolt length LB	98
Weight approx. [kg]	0.74

4.75

112007

HWB GRP-4.75T-G4163

Reference no.	112007
Working load limit	4.75
Distance suspension point E [mm]	76
Clear span stirrup W [mm]	51
Stirrup section Ø F [mm]	19
Eye width J [mm]	19
Distance to eye I	31
Eye Ø U [mm]	46
Nut width BM [mm]	19
Bolt Ø DB	22
Stirrup width H	89
Overall length L [mm]	129
Bolt length LB	114
Weight approx. [kg]	1.18

6.5

112009

HWB GRP-6.5T-G4163

Reference no.	112009
Working load limit	6.5
Distance suspension point E [mm]	83
Clear span stirrup W [mm]	58
Stirrup section Ø F [mm]	22
Eye width J [mm]	22
Distance to eye I	36
Eye Ø U [mm]	52
Nut width BM [mm]	22
Bolt Ø DB	25
Stirrup width H	102
Overall length L [mm]	144
Bolt length LB	130
Weight approx. [kg]	1.8

8.5

112011

HWB GRP-8.5T-G4163

Reference no.	112011
Working load limit	8.5
Distance suspension point E [mm]	95
Clear span stirrup W [mm]	68
Stirrup section Ø F [mm]	25
Eye width J [mm]	25
Distance to eye I	43
Eye Ø U [mm]	59
Nut width BM [mm]	25
Bolt Ø DB	28
Stirrup width H	118
Overall length L [mm]	164
Bolt length LB	150
Weight approx. [kg]	2.58

9.5

112013

HWB GRP-9.5T-G4163

Reference no.	112013
Working load limit	9.5
Distance suspension point E [mm]	108
Clear span stirrup W [mm]	75
Stirrup section Ø F [mm]	28
Eye width J [mm]	28
Distance to eye I	47
Eye Ø U [mm]	66
Nut width BM [mm]	27
Bolt Ø DB	32
Stirrup width H	131
Overall length L [mm]	185
Bolt length LB	166
Weight approx. [kg]	3.68

112015

HWB GRP-12T-G4163

Reference no.	112015
Working load limit	12
Distance suspension point E [mm]	115
Clear span stirrup W [mm]	83
Stirrup section Ø F [mm]	32
Eye width J [mm]	32
Distance to eye I	51
Eye Ø U [mm]	72
Nut width BM [mm]	30
Bolt Ø DB	35
Stirrup width H	147
Overall length L [mm]	201
Bolt length LB	178
Weight approx. [kg]	4.91

13.5

112017

HWB GRP-13.5T-G4163

Reference no.	112017
Working load limit	13.5
Distance suspension point E [mm]	133
Clear span stirrup W [mm]	92
Stirrup section Ø F [mm]	35
Eye width J [mm]	35
Distance to eye I	57
Eye Ø U [mm]	80
Nut width BM [mm]	33
Bolt Ø DB	38
Stirrup width H	162
Overall length L [mm]	227
Bolt length LB	197
Weight approx. [kg]	6.54

112019

HWB GRP-17T-G4163

Reference no.	112019
Working load limit	17
Distance suspension point E [mm]	146
Clear span stirrup W [mm]	99
Stirrup section Ø F [mm]	38
Eye width J [mm]	38
Distance to eye I	60
Eye Ø U [mm]	88
Nut width BM [mm]	19
Bolt Ø DB	42
Stirrup width H	175
Overall length L [mm]	249
Bolt length LB	202
Weight approx. [kg]	8.19

112021

HWB GRP-25T-G4163

Reference no.	112021
Working load limit	25
Distance suspension point E [mm]	178
Clear span stirrup W [mm]	126
Stirrup section Ø F [mm]	45
Eye width J [mm]	45
Distance to eye I	74
Eye Ø U [mm]	103
Nut width BM [mm]	23
Bolt Ø DB	50
Stirrup width H	216
Overall length L [mm]	300
Bolt length LB	249
Weight approx. [kg]	14.22

112023

HWB GRP-35T-G4163

Reference no.	112023
Working load limit	35
Distance suspension point E [mm]	197
Clear span stirrup W [mm]	138
Stirrup section Ø F [mm]	50
Eye width J [mm]	50
Distance to eye I	83
Eye Ø U [mm]	111
Nut width BM [mm]	26
Bolt Ø DB	57
Stirrup width H	238
Overall length L [mm]	331
Bolt length LB	269
Weight approx. [kg]	19.85

42.5

171679

HWB GRP-42.5T-G4163

Reference no.	171679
Working load limit	42.5
Distance suspension point E [mm]	222
Clear span stirrup W [mm]	160
Stirrup section Ø F [mm]	57
Eye width J [mm]	57
Distance to eye I	95
Eye Ø U [mm]	130
Nut width BM [mm]	29
Bolt Ø DB	65
Stirrup width H	274
Overall length L [mm]	377
Bolt length LB	301
Weight approx. [kg]	28.33

136379

HWB GRP-55T-G4153

Reference no.	136379
Working load limit	55
Distance suspension point E [mm]	260
Clear span stirrup W [mm]	180
Stirrup section Ø F [mm]	65
Eye width J [mm]	65
Distance to eye I	105
Eye Ø U [mm]	145
Nut width BM [mm]	32
Bolt Ø DB	70
Stirrup width H	310
Overall length L [mm]	433
Bolt length LB	330
Weight approx. [kg]	39.59

146813

HWB GRP-85T-G4163

Reference no.	146813
Working load limit	85
Distance suspension point E [mm]	329
Clear span stirrup W [mm]	190
Stirrup section Ø F [mm]	75
Eye width J [mm]	73
Distance to eye I	127
Eye Ø U [mm]	162
Nut width BM [mm]	39
Bolt Ø DB	83
Stirrup width H	340
Overall length L [mm]	527
Bolt length LB	380
Weight approx. [kg]	62
